Toyota YARIS 后鼓式制动器分泵和底板 — Figure 4706

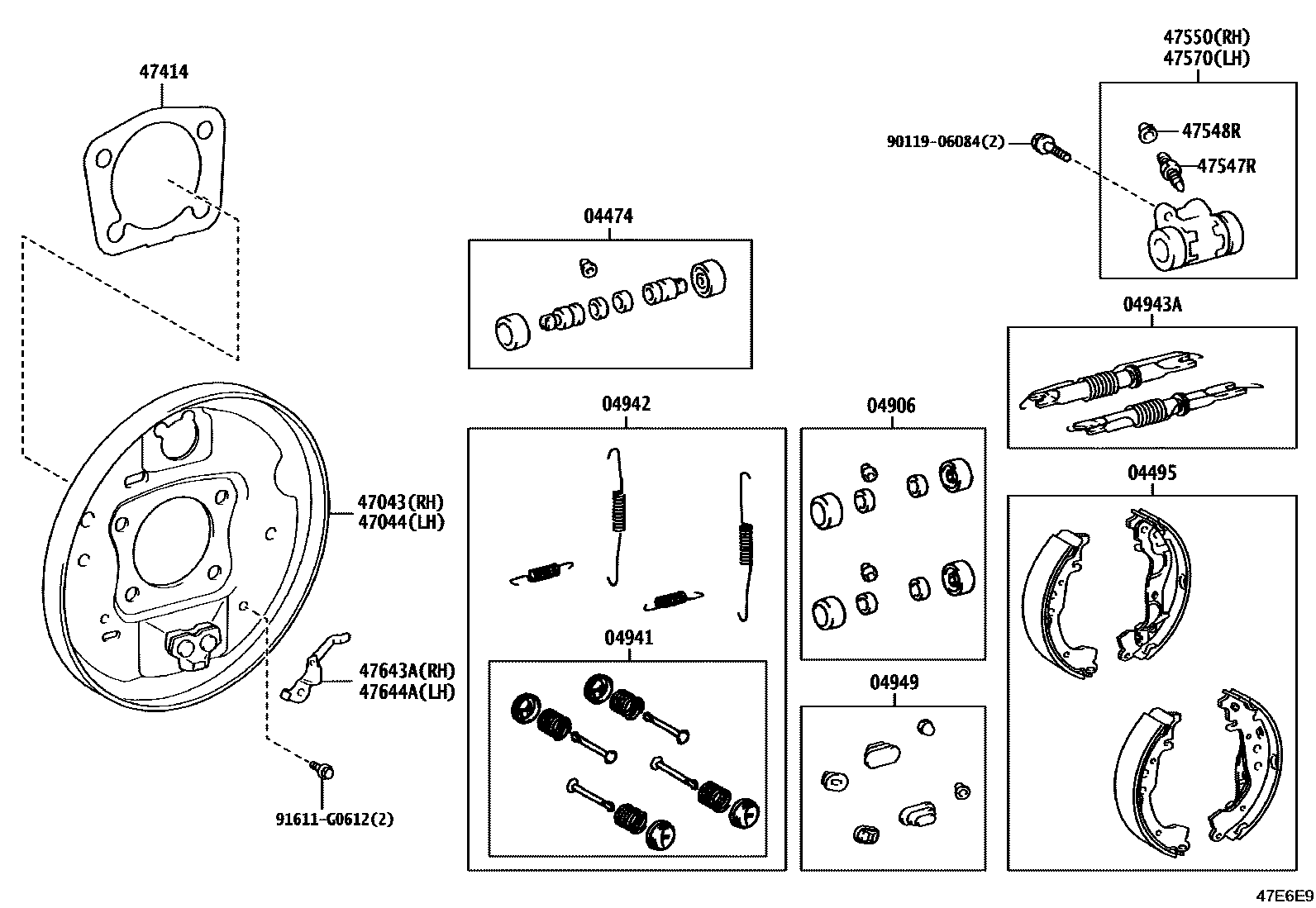

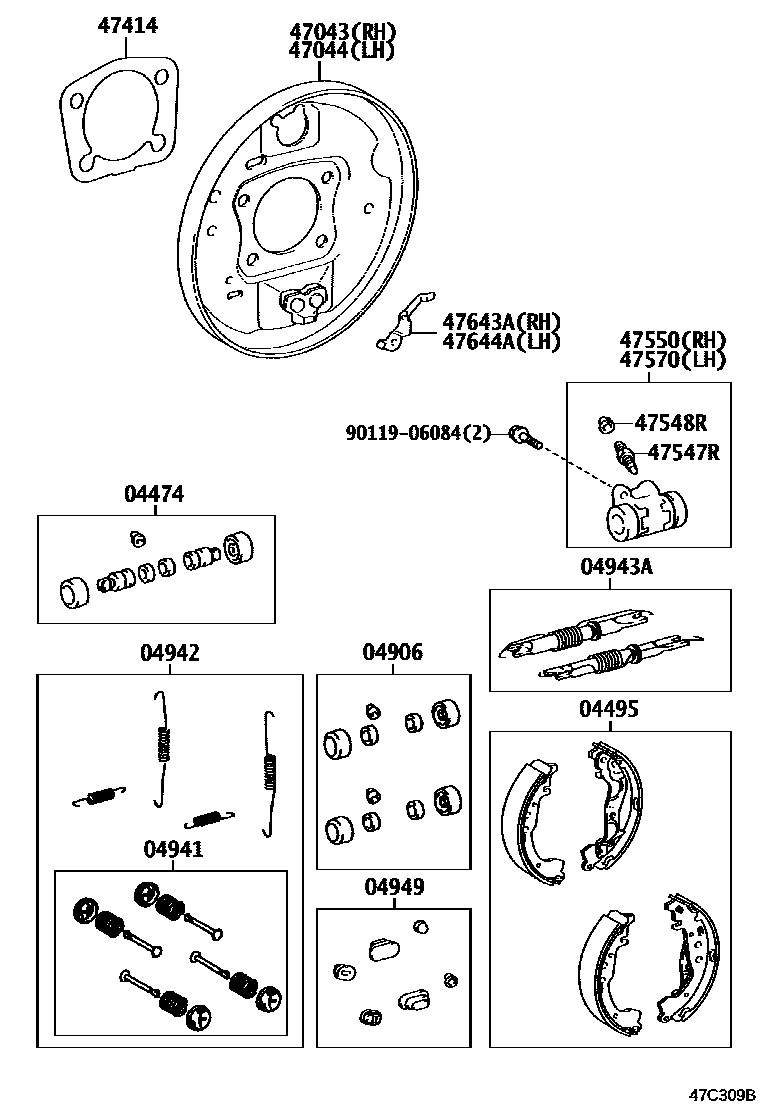

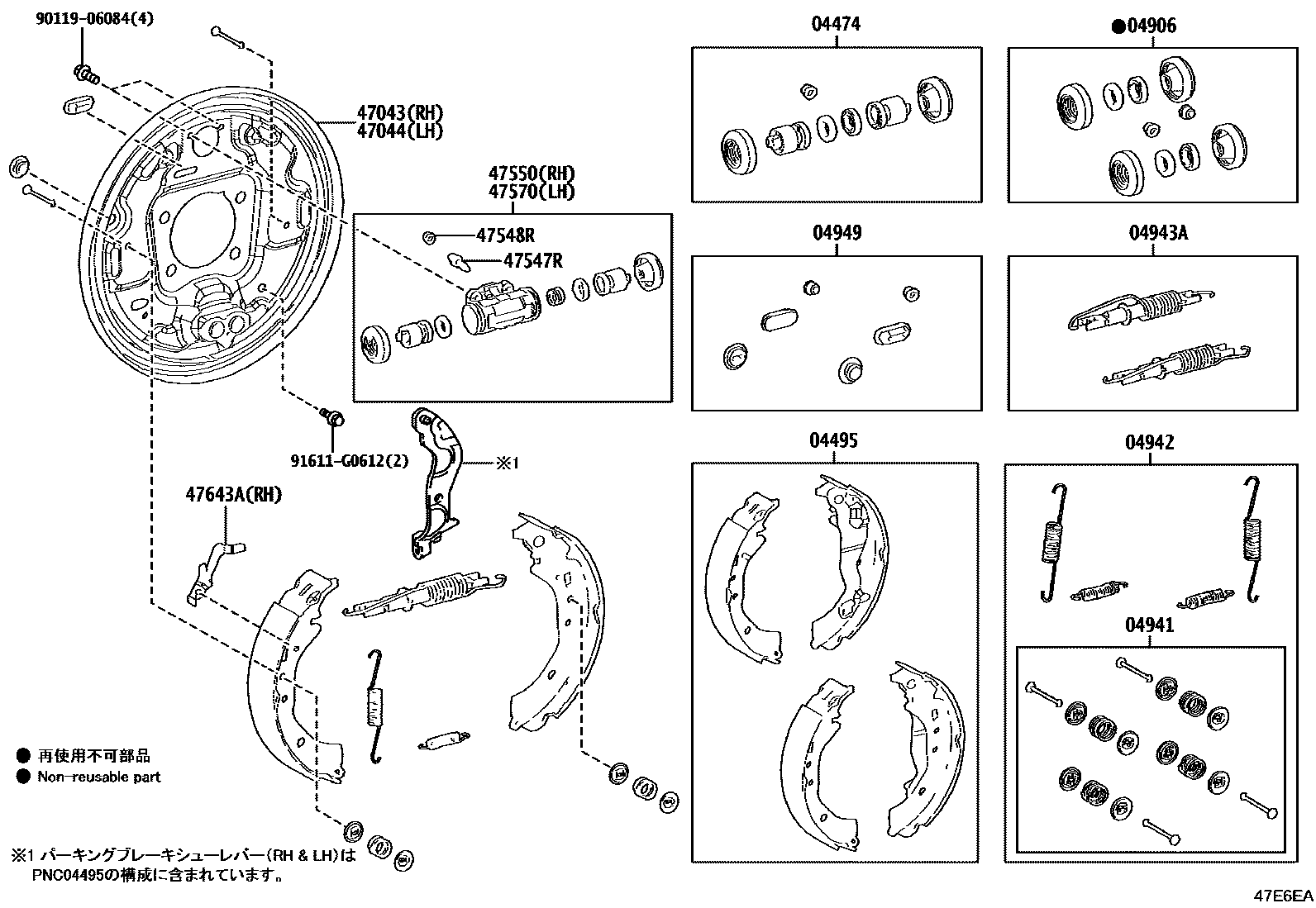

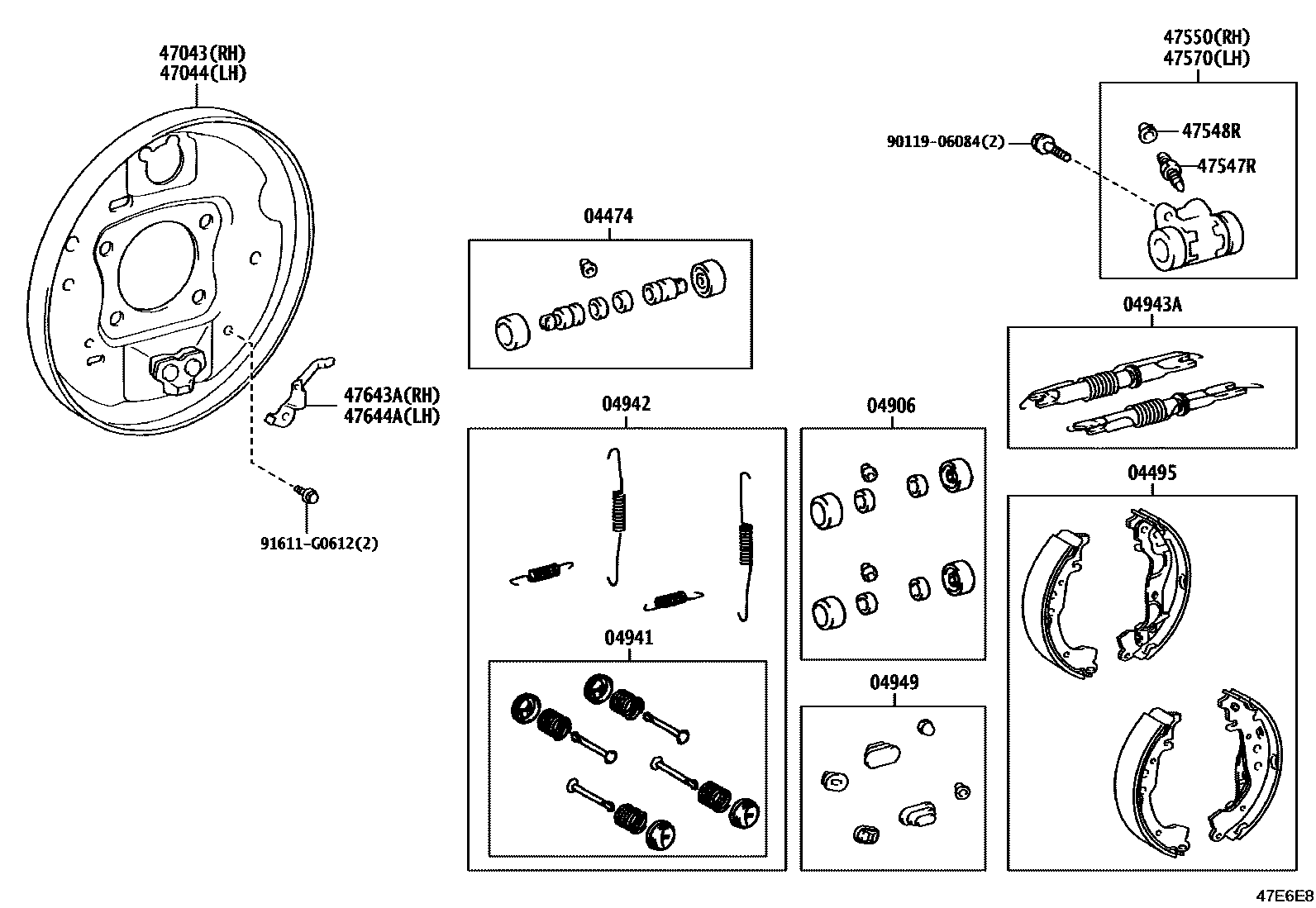

Toyota YARIS EPC diagram 4706, 后鼓式制动器分泵和底板, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-47010 · 04474-52020 · 04474-52140 |
| 04495 | Rear brake shoe assembly | 04495-52121 · 04495-52170 |
| 04906 | Rear wheel pump cup assembly | 04906-10021 · 04906-28040 · 04906-47010 |
| 04941 | Rear brake shoe limit spring assembly | 04941-28010 · 04941-46010 |
| 04942 | Rear brake spring assembly | 04942-13030 · 04942-52050 |
| 04943A | Rear brake bracket assembly | 04943-12010 · 04943-52030 |
| 04949 | Rear brake plug assembly | 04949-12010 · 04949-13010 |
| 47043 | Right rear brake base plate sub-assembly | 47043-52100 · 47043-52120 |
| 47044 | Left rear brake base plate sub-assembly | 47044-52100 · 47044-52120 |
| 47414 | Toyota part | 47414-52010 |
| 47547R | Bleed plug (for rear drum brake) | 47547-20010 · 47547-27030 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-20211 · 47550-28060 · 47550-47010 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-28060 · 47570-20101 · 47570-47010 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-52102 · 47643-52120 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-52102 |
