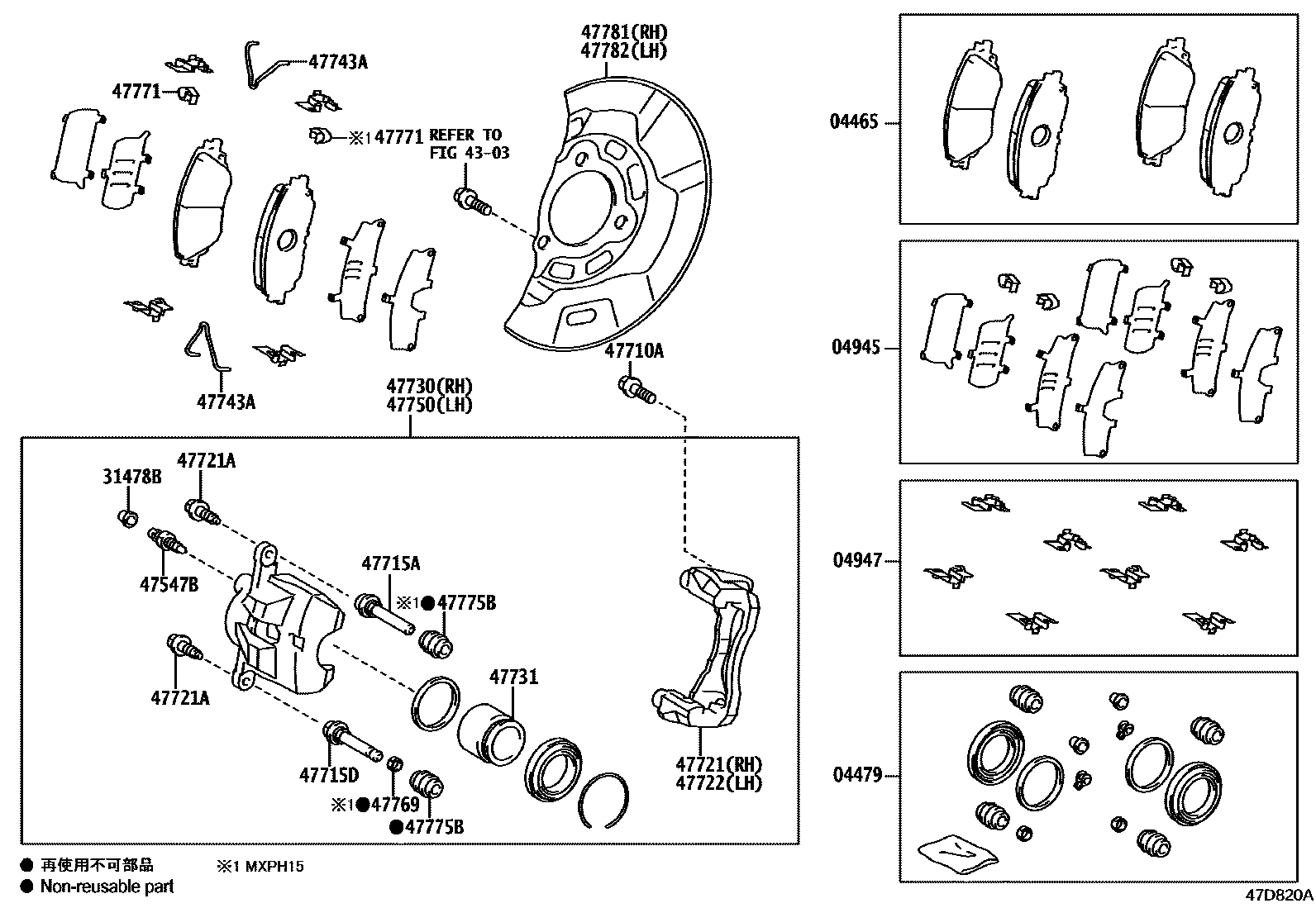

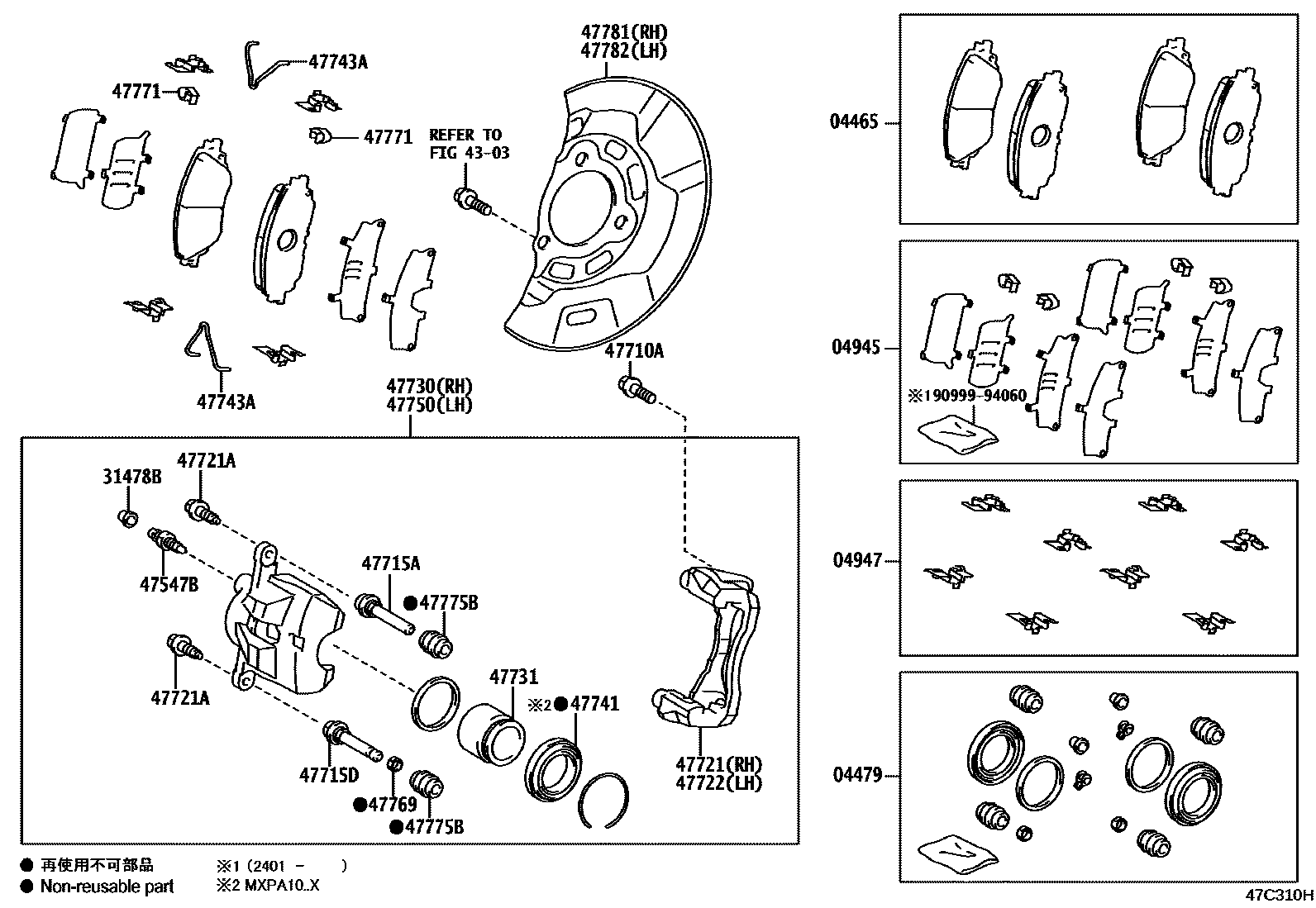

Toyota YARIS 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota YARIS EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-12670 · 04465-52390 · 04465-52410 · 04465-K0020 |
| 04479 | Front disc brake cylinder assembly | 04478-12120 |
| 04945 | Front silencer gasket assembly | 04945-K0000 · 04945-K0010 · 04945-K0011 |
| 04947 | Front disc brake mounting kit | 04947-47030 · 04947-K0000 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47715-52190 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-12A10 |
| 47721 | Right front disc brake cylinder retainer | 47721-12B10 · 47721-K0010 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90105-08164 |
| 47722 | Left front disc brake cylinder retainer | 47722-12B10 · 47722-K0010 |
| 47730 | Right front disc brake cylinder assembly | 47730-K0010 · 47730-K0020 |
| 47731 | Front disc brake piston | 47731-52190 |
| 47741 | Front disc brake cylinder dust boot | 47741-12B00 |
| 47743A | Silencer spring (for front disc brake) | 47743-12090 |
| 47750 | Left disc brake cylinder assembly | 47750-K0010 · 47750-K0020 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-50010 |
| 47771 | No. 1 pad wear indicator plate | 47771-33380 |
| 47775B | No. 1 Bushing Dust Boot | 47775-52190 |
| 47781 | Right front disc brake dust cover | 47781-K0010 |
| 47782 | Left front disc brake dust cover | 47782-K0010 |
