Toyota YARIS 制动助力器和真空管 — Figure 4703

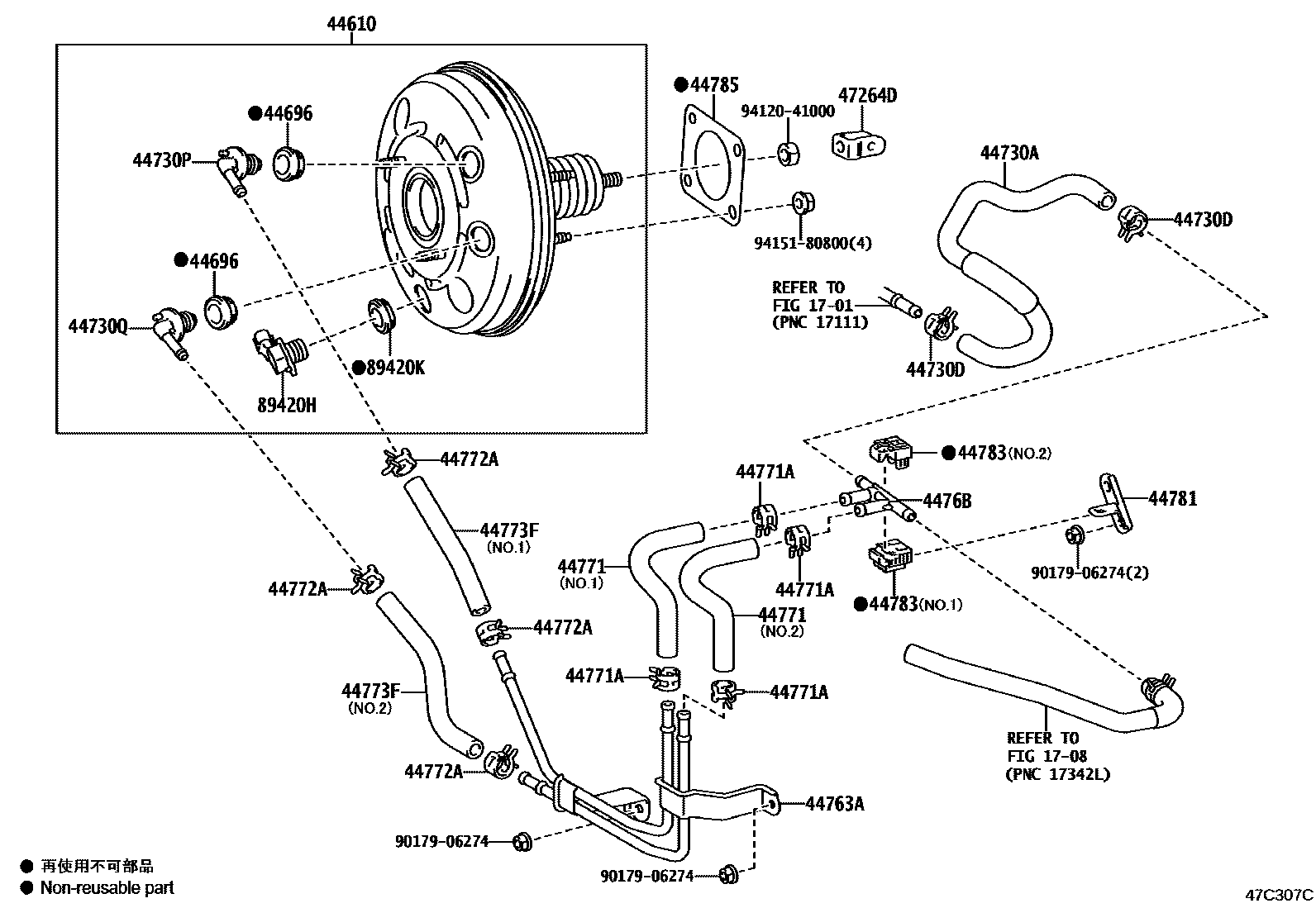

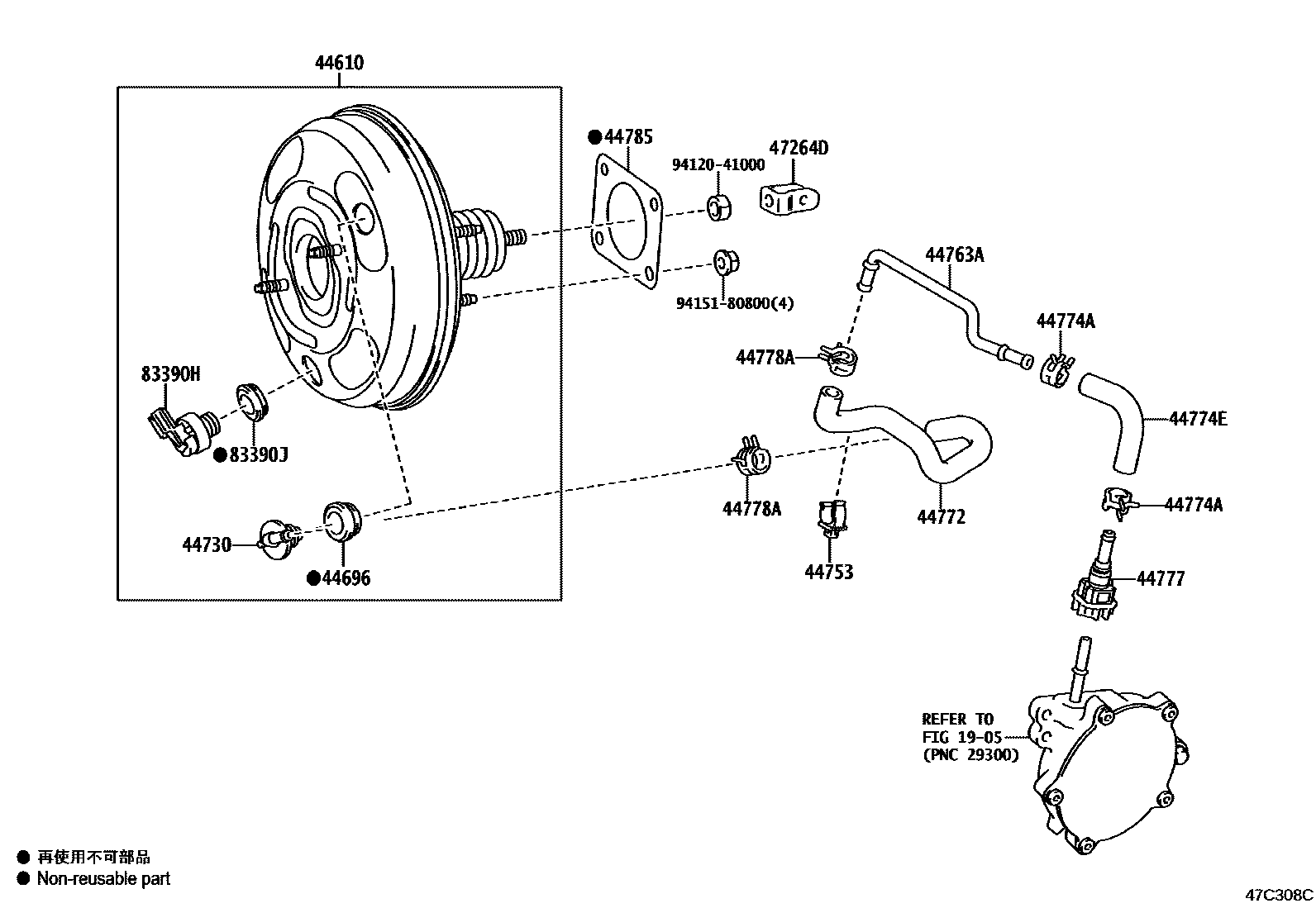

Toyota YARIS EPC diagram 4703, 制动助力器和真空管, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-K0120 · 44610-K0130 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-52010 |
| 44730A | No. 1 vacuum hose | 44774-K0050 |
| 44730D | Clamp (for vacuum hose No. 1) | 90467-16014 |
| 44730P | No. 1 vacuum check valve assembly | 44730-52010 |
| 44730Q | No. 2 vacuum check valve assembly | 44730-52010 |
| 44753 | No. 2 vacuum reservoir clip | 44753-30320 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-K0050 · 44763-K0060 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44771 | Vacuum tube connector hose | 44771-K0010 · 44771-K0020 |
| 44771A | Clip (for vacuum tube connector hose) | 90467-16014 |
| 44772 | Hoses (check valve to connector tube) | 44772-52350 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44773F | Hoses (connector to check valve) | 44772-K0040 · 44772-K0050 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44774E | Hoses (joints to connector tubes) | 44771-K0030 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-K0010 |
| 44778A | Clip (for connector to check valve hose) | 90467-16014 |
| 44781 | hose holder | 44781-K0020 |
| 44783 | Vacuum hose clamp | 44783-K0010 · 44783-K0020 |
| 44785 | brake booster pad | 44785-16020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 · 47264-52040 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
| 83390J | Toyota part | 90480-24439 |
| 89420H | Vacuum sensor assembly | 89421-52020 |
| 89420K | Toyota part | 90480-24439 |
