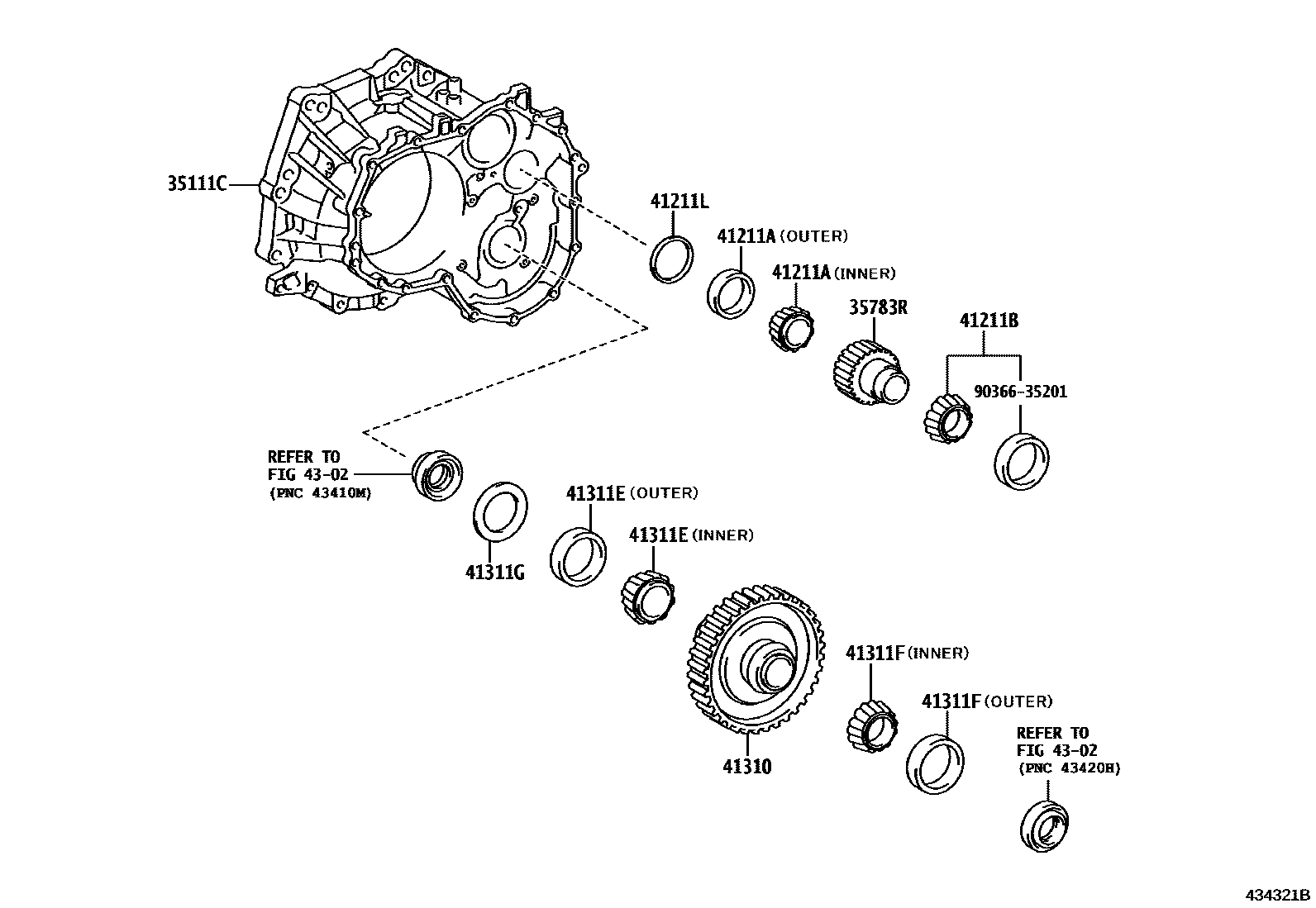

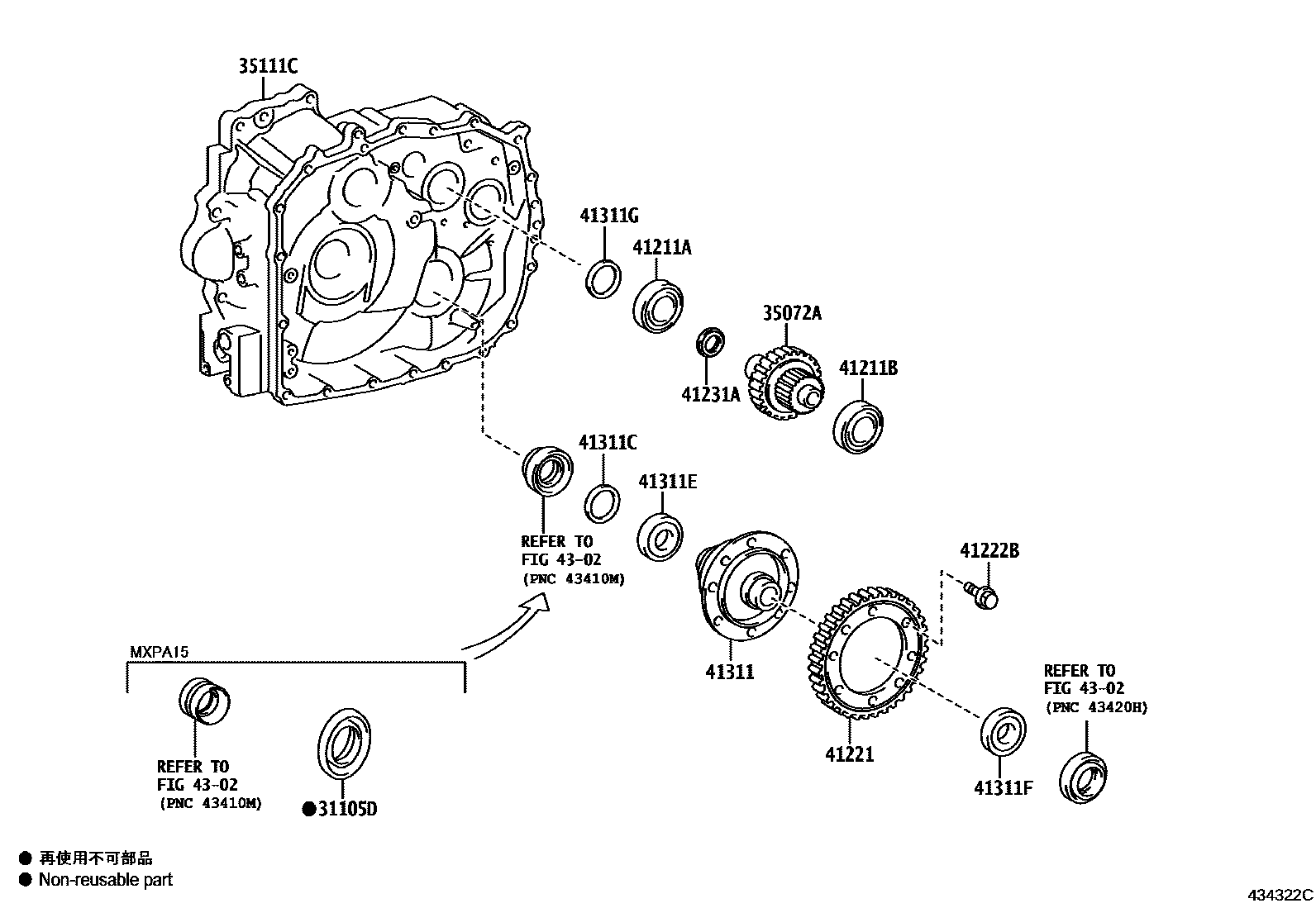

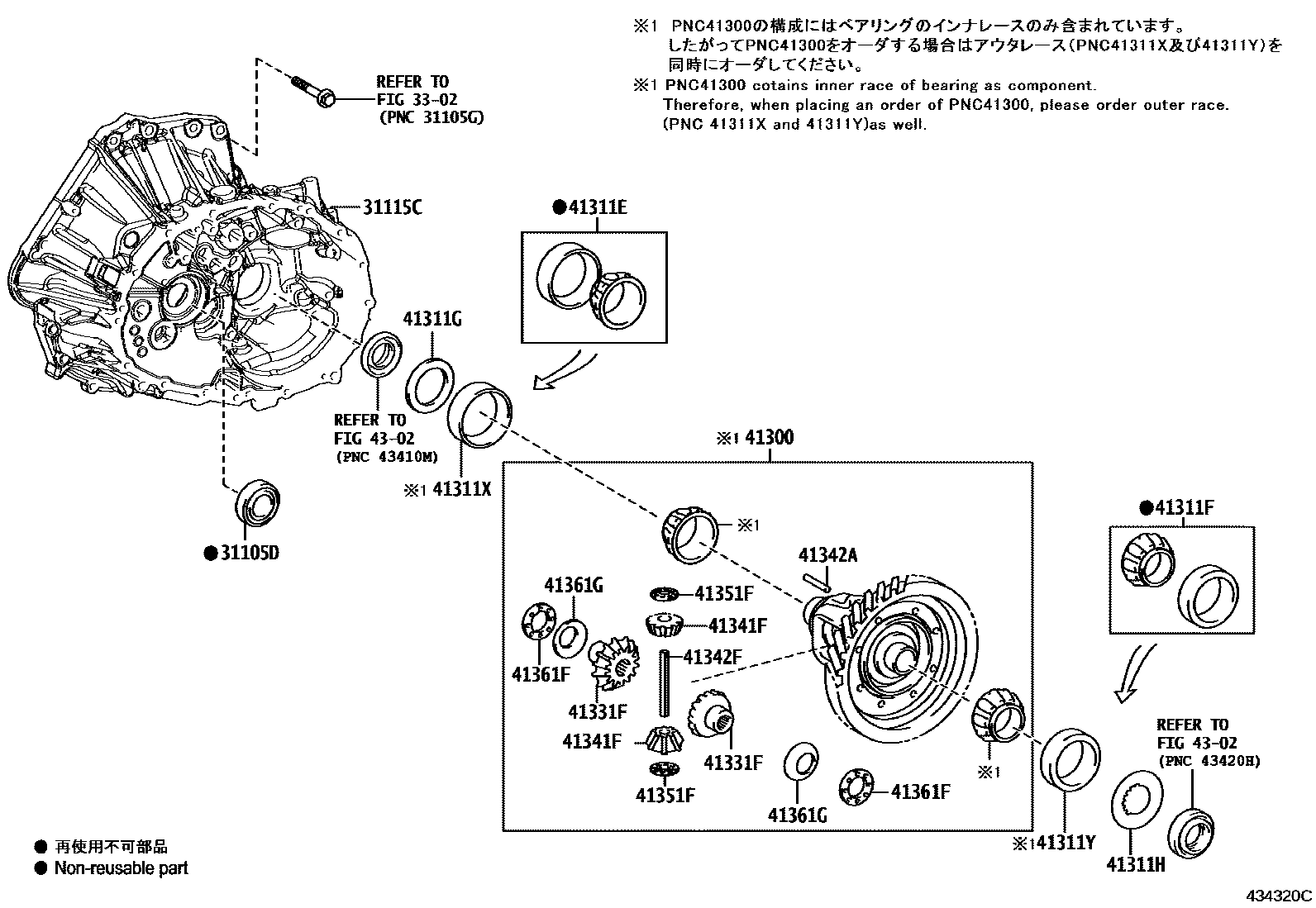

Toyota YARIS 前桥壳和差速器 — Figure 4301
Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25030 · 90311-49002 |
| 31115C | Front transmission axle housing (MTM) | 31115-K0020 |
| 35072A | Toyota part | 35705-K0020 |
| 35111C | Transmission axle housing | 35105-52280 · 35105-K0020 · 35105-K0030 |
| 35783R | countershaft driven gear | 35705-52110 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-24002 · 90366-24003 · 90366-25030 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-29016 · 90366-35200 |
| 41211L | Spacer (for differential drive pinion) | 90564-43016 · 90564-43017 · 90564-43018 · 90564-43019 · 90564-43020 · 90564-43021 · 90564-43022 · 90564-43023 · 90564-43024 · 90564-43025 · 90564-43026 · 90564-43027 · 90564-43028 · 90564-43029 · 90564-43030 · 90564-43031 · 90564-43032 · 90564-43033 · 90564-43034 · 90564-43035 · 90564-43036 · 90564-43037 · 90564-43038 · 90564-43039 · 90564-43040 · 90564-43041 · 90564-43042 · 90564-43043 · 90564-43044 · 90564-43045 · 90564-43046 · 90564-43047 · 90564-43048 · 90564-43049 · 90564-43050 · 90564-43051 · 90564-43052 · 90564-43053 · 90564-43054 · 90564-43055 · 90564-43056 |
| 41221 | Front differential ring gear | 41221-K0030 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12379 |
| 41231A | Drive pinion lock nut | 90179-32006 |
| 41300 | Front differential case assembly with ring gear | 41300-12100 |
| 41310 | Differential case assembly | 41310-52040 |
| 41311 | front differential case | 41301-K0020 · 41301-K0030 |
| 41311C | Rear gasket (for front differential case) | 90564-58002 · 90564-58003 · 90564-58004 · 90564-58005 · 90564-58006 · 90564-58007 · 90564-58008 · 90564-58009 · 90564-58010 · 90564-58011 · 90564-58012 · 90564-58013 · 90564-58014 · 90564-58015 · 90564-58016 · 90564-58017 · 90564-58018 · 90564-58019 · 90564-58020 · 90564-58021 · 90564-66038 · 90564-66039 · 90564-66067 · 90564-66068 · 90564-66069 · 90564-66070 · 90564-66071 · 90564-66072 · 90564-66073 · 90564-66074 · 90564-66075 · 90564-66076 · 90564-66077 · 90564-66078 · 90564-66079 · 90564-66080 · 90564-66081 · 90564-66082 · 90564-66083 · 90564-66084 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-38064 · 90366-38065 · 90366-40129 · 90366-40149 · 90366-50172 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-38061 · 90366-38062 · 90366-42009 · 90366-44010 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 · 90564-42123 · 90564-42124 · 90564-42125 · 90564-42126 · 90564-42127 · 90564-42128 · 90564-42129 · 90564-42130 · 90564-42131 · 90564-42132 · 90564-42133 · 90564-42134 · 90564-42135 · 90564-42136 · 90564-42137 · 90564-42138 · 90564-42139 · 90564-42140 · 90564-42141 · 90564-42142 · 90564-42143 · 90564-42144 · 90564-42145 · 90564-42146 · 90564-42147 · 90564-42148 · 90564-42149 · 90564-42150 · 90564-42151 · 90564-42152 · 90564-42153 · 90564-42154 · 90564-42155 · 90564-42156 · 90564-42157 · 90564-42158 · 90564-42159 · 90564-42160 · 90564-42161 · 90564-42162 · 90564-42163 · 90564-42164 · 90564-42165 · 90564-42166 · 90564-42167 · 90564-44074 · 90564-44075 · 90564-44076 · 90564-44077 · 90564-44078 · 90564-44079 · 90564-44080 · 90564-44081 · 90564-44082 · 90564-44083 · 90564-44084 · 90564-44085 · 90564-44086 · 90564-44087 · 90564-44088 · 90564-44089 · 90564-44090 · 90564-44091 · 90564-44092 · 90564-44093 · 90564-44094 · 90564-44095 · 90564-44096 |
| 41311H | Rear flat washer (for front differential case) | 90564-44039 · 90564-44040 · 90564-44041 · 90564-44042 · 90564-44043 · 90564-44044 · 90564-44045 · 90564-44046 · 90564-44047 · 90564-44048 · 90564-44049 · 90564-44050 · 90564-44051 · 90564-44052 · 90564-44053 · 90564-44054 · 90564-44055 · 90564-44056 · 90564-44057 · 90564-44058 · 90564-44059 · 90564-44060 · 90564-44061 · 90564-44062 · 90564-44063 · 90564-44064 · 90564-44065 · 90564-44066 · 90564-44067 · 90564-44068 · 90564-44069 |
| 41311X | Roller cone bearing outer race (for front differential) | 90366-40130 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-42010 |
| 41331F | Front differential side gear | 41331-12190 |
| 41341F | Front differential planetary gear | 41341-12130 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-52060 |
| 41351F | Front differential planetary gear thrust washer | 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-48010 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-35001 |
