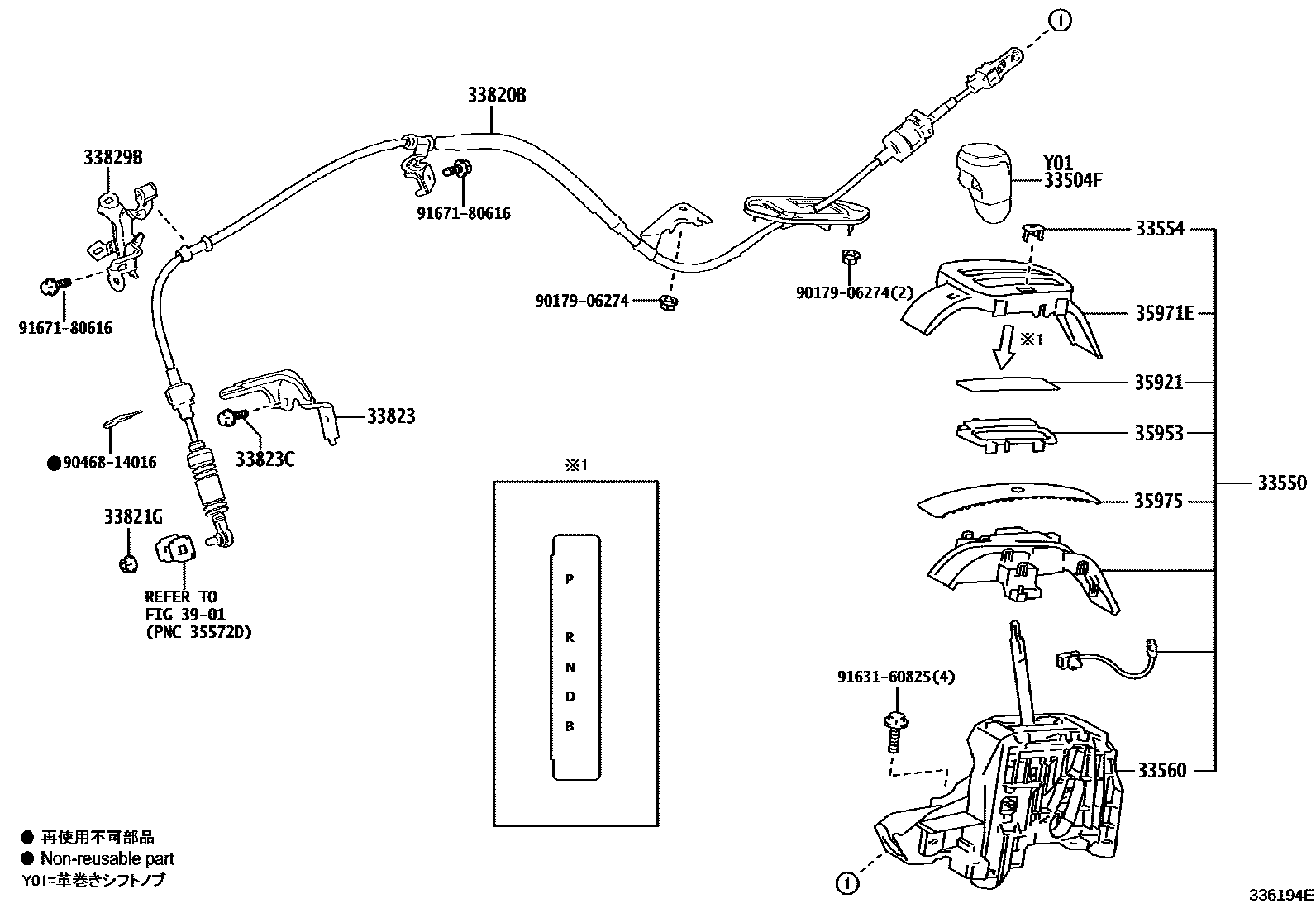

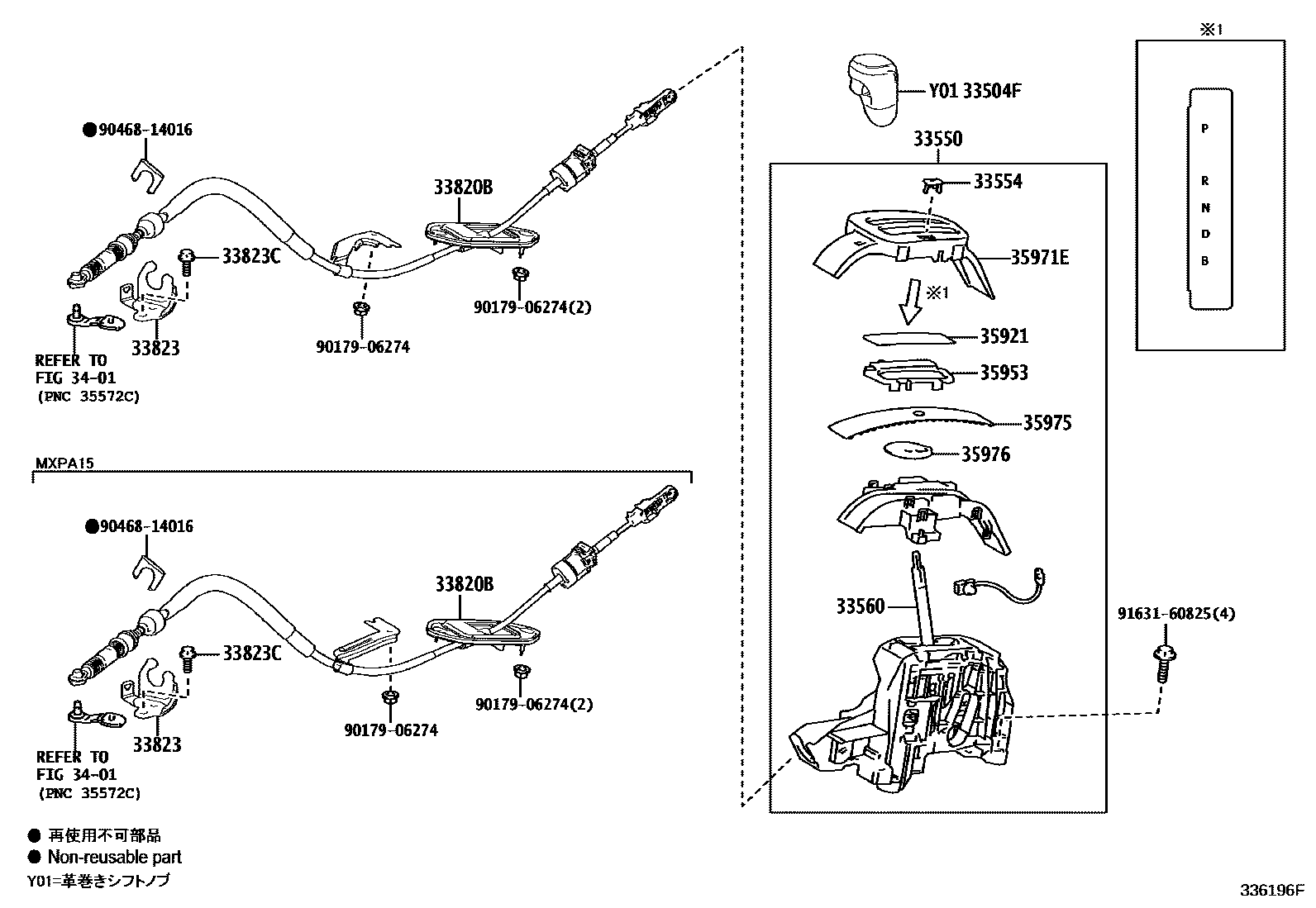

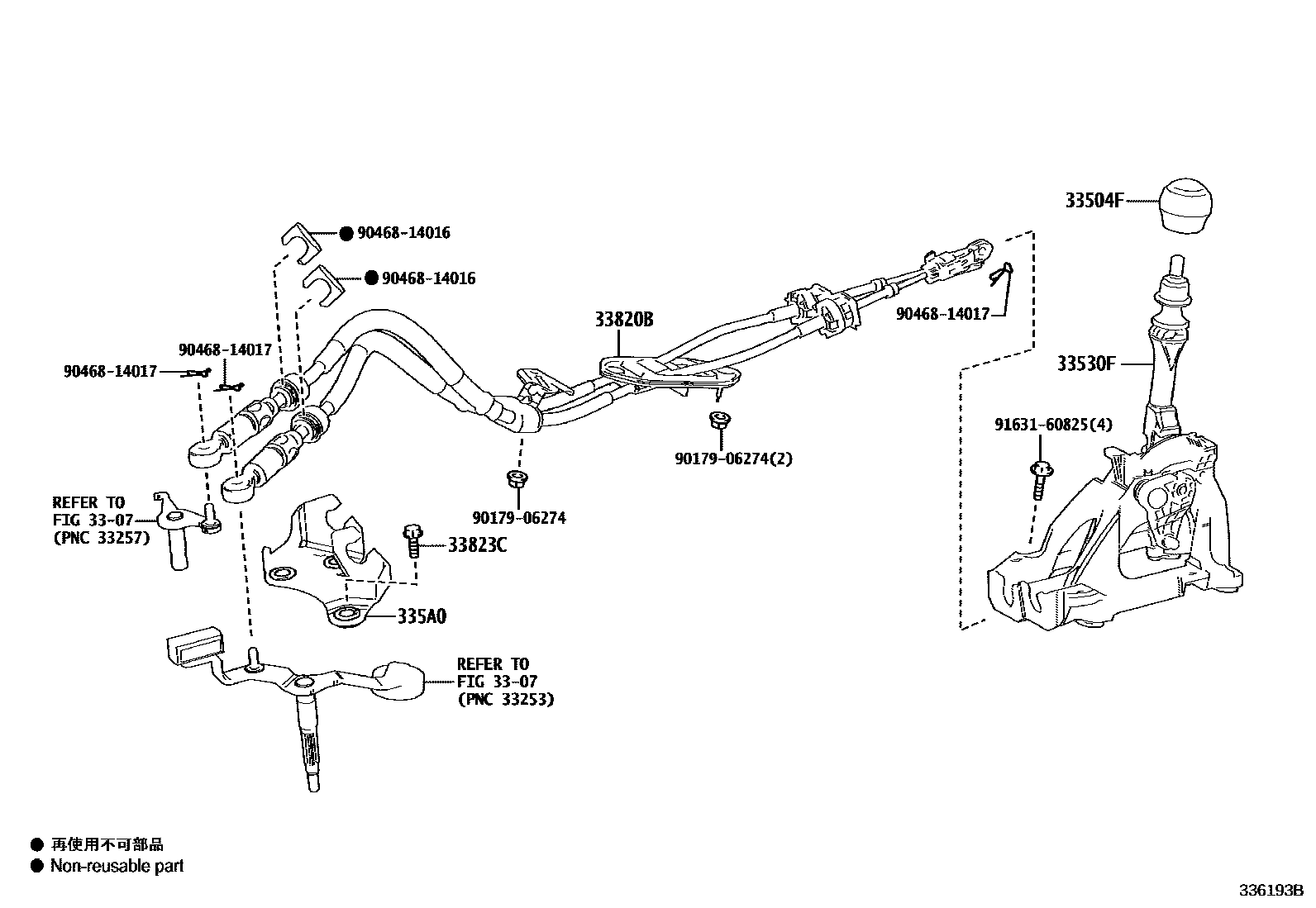

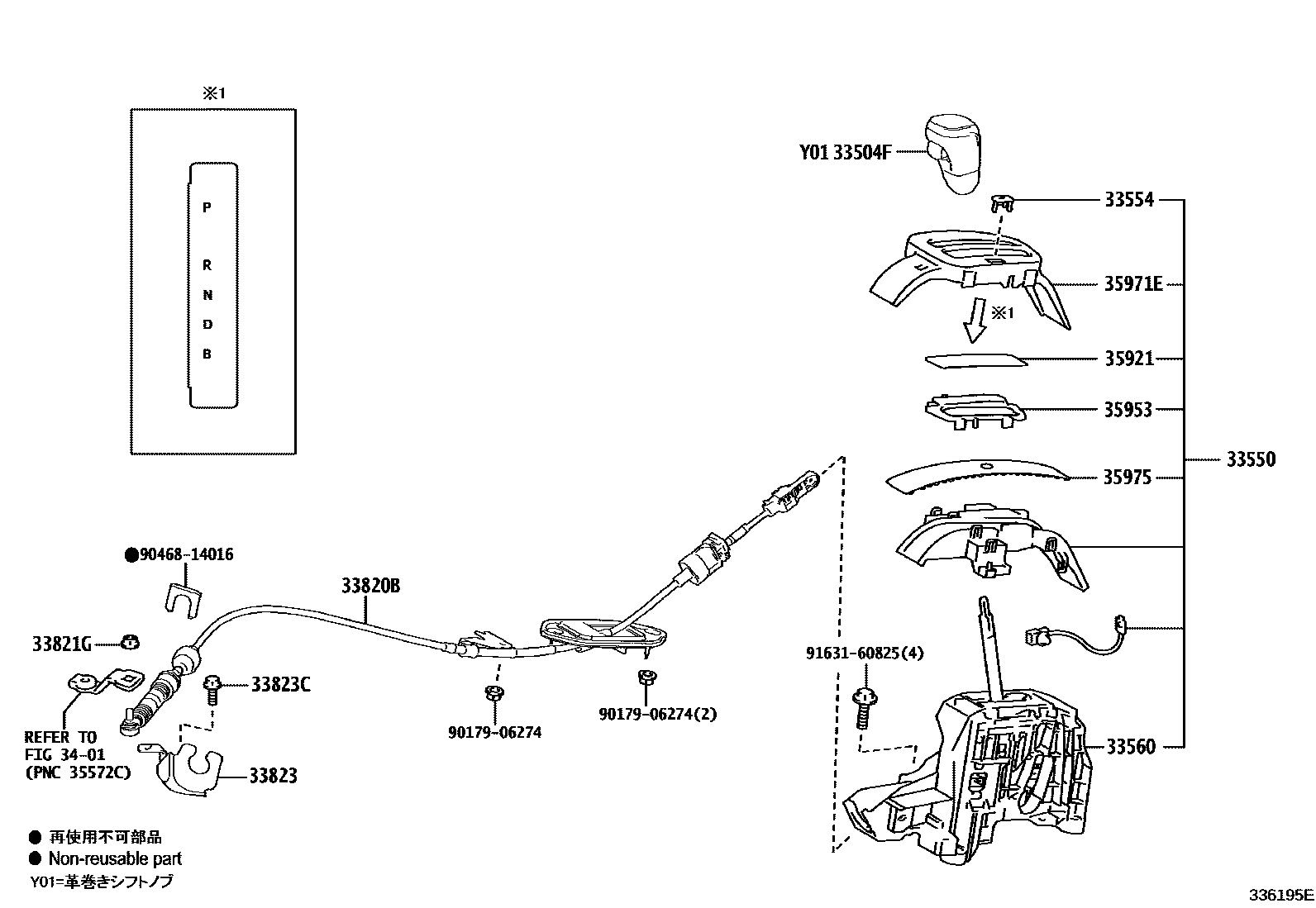

Toyota YARIS Shift Lever & Retainer — Figure 3312
Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33530F | Shift lever assembly (for floor shift) | 33530-12C50 |
| 33550 | Transmission floor shift assembly | 33550-52K20 · 33550-52K30 · 33550-52K40 · 33550-52K50 · 33550-K0070 · 33550-K0080 · 33550-K0090 · 33550-K0100 |
| 33554 | shift lever cover | 33554-K0030 |
| 33560 | Shift lock control unit assembly | 33560-52770 · 33560-52780 · 33560-52790 · 33560-52800 · 33560-K0030 · 33560-K0040 · 33560-K0050 · 33560-K0060 |
| 335A0 | Control cable bracket assembly | 335A0-20010 |
| 33820B | Transmission control cable assembly | 33820-K0050 · 33820-K0060 · 33820-K0070 · 33820-K0080 · 33820-K0090 |
| 33821G | Nut (for transmission control cable) | 94151-80800 |
| 33823 | No. 1 transmission control cable bracket | 33823-K0030 · 33823-K0040 · 33823-K0050 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 91671-80820 |
| 33829B | Transmission control cable clip | 33829-K0020 |
| 35921 | control position indicator board | 35921-K0050 · 35921-K0060 |
| 35953 | Position indicator light guide | 35953-K0010 · 35953-K0020 |
| 35971E | position indicator housing | 35971-K0030 · 35971-K0040 |
| 35975 | Slide cover (for position indicator light) | 35975-K0030 · 35975-K0040 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-K0020 |
