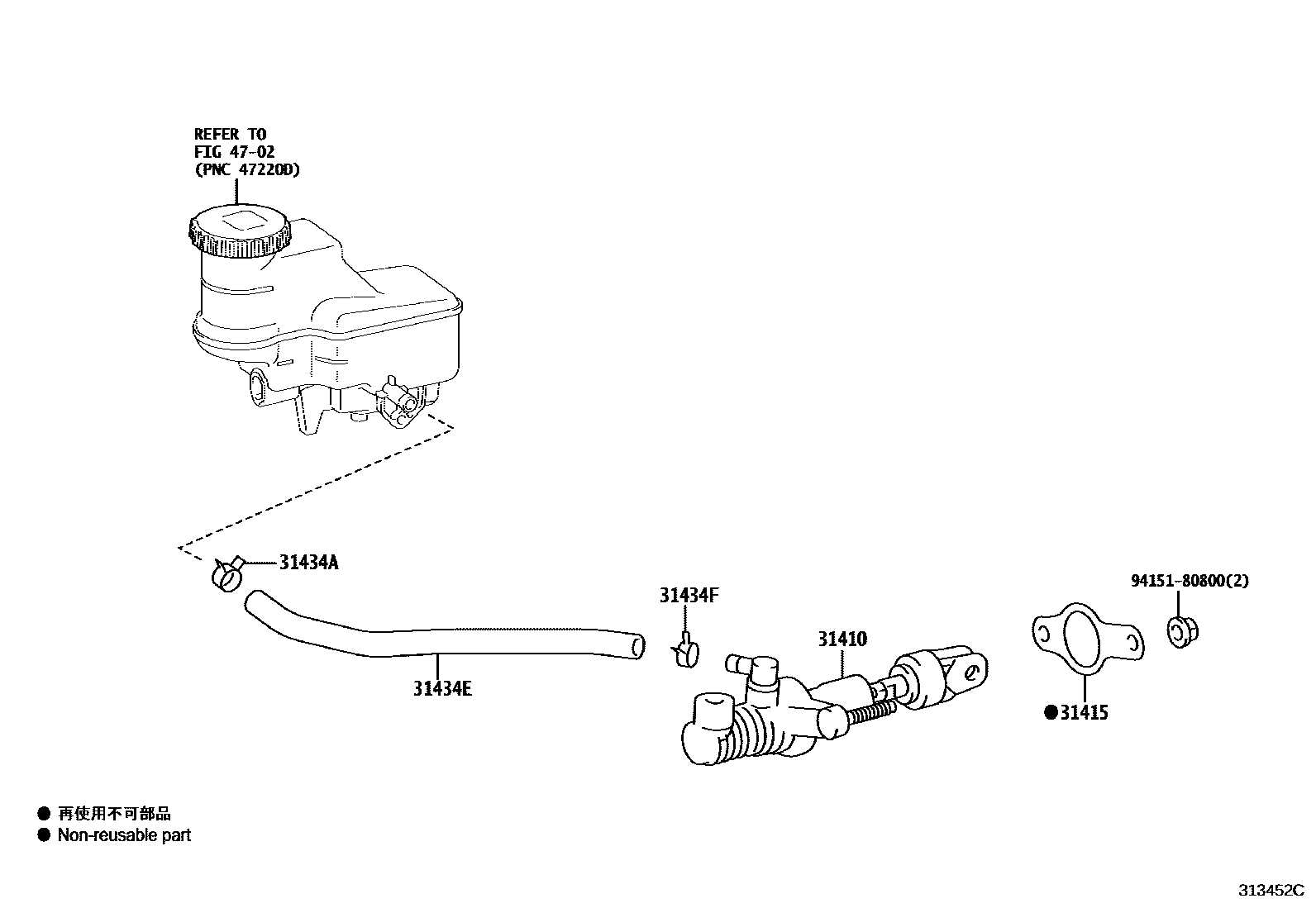

Toyota YARIS 离合器总泵 — Figure 3103
Toyota YARIS EPC diagram 3103, 离合器总泵, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-K0010 |
| 31415 | Clutch master cylinder gasket | 31415-K0010 |
| 31434A | Clamp (for clutch reservoir connecting pipe) | 96136-41501 |
| 31434E | Toyota part | 31434-K0010 |
| 31434F | Toyota part | 96138-41501 |
