Toyota YARIS 废气再循环系统 — Figure 2501

Toyota YARIS EPC diagram 2501, 废气再循环系统, with 2 images and 10 PNC and OE references.

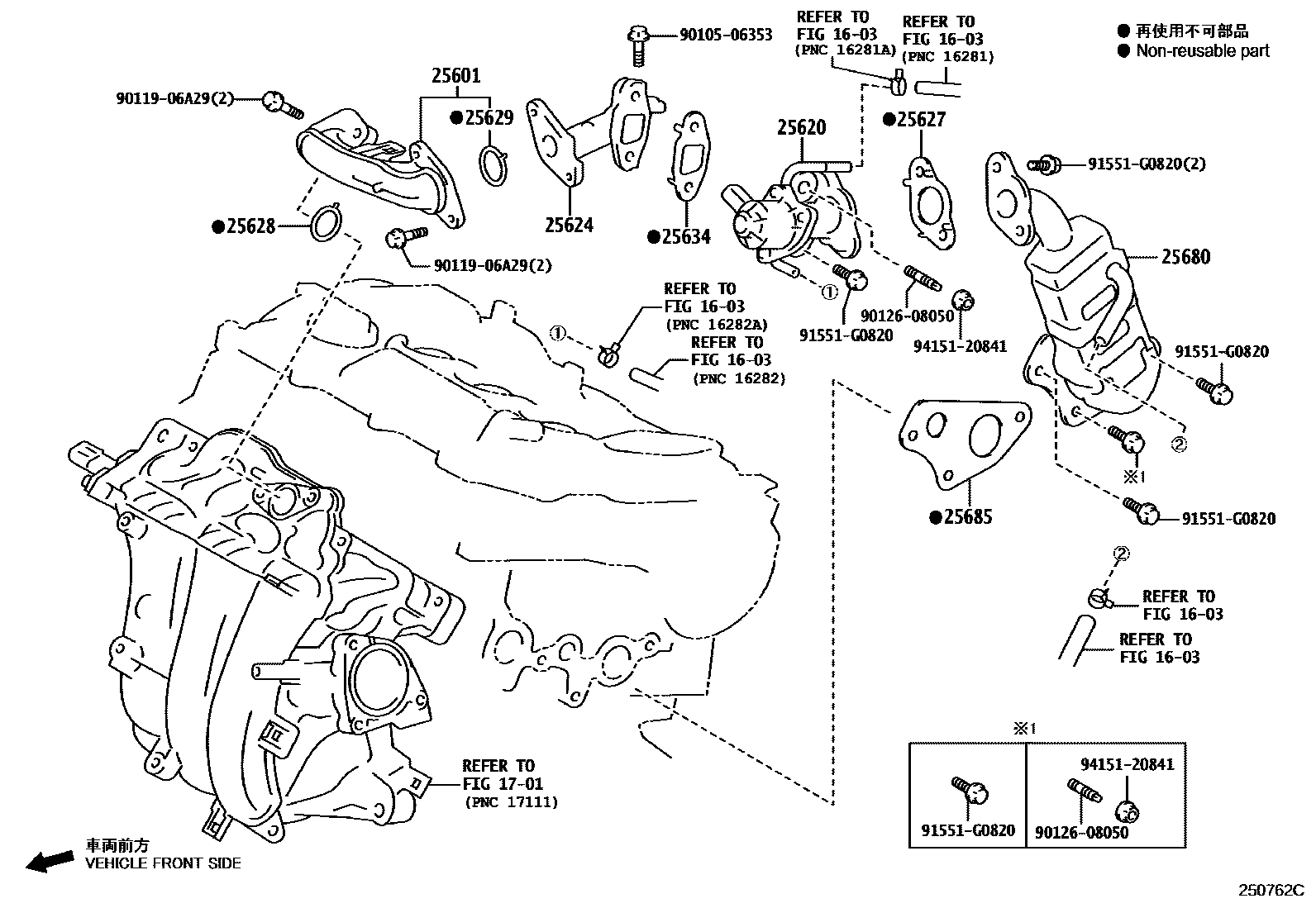

Toyota YARIS 废气再循环系统 EPC diagram — 250762C
废气再循环系统 — 250762C (202002 – 999999)

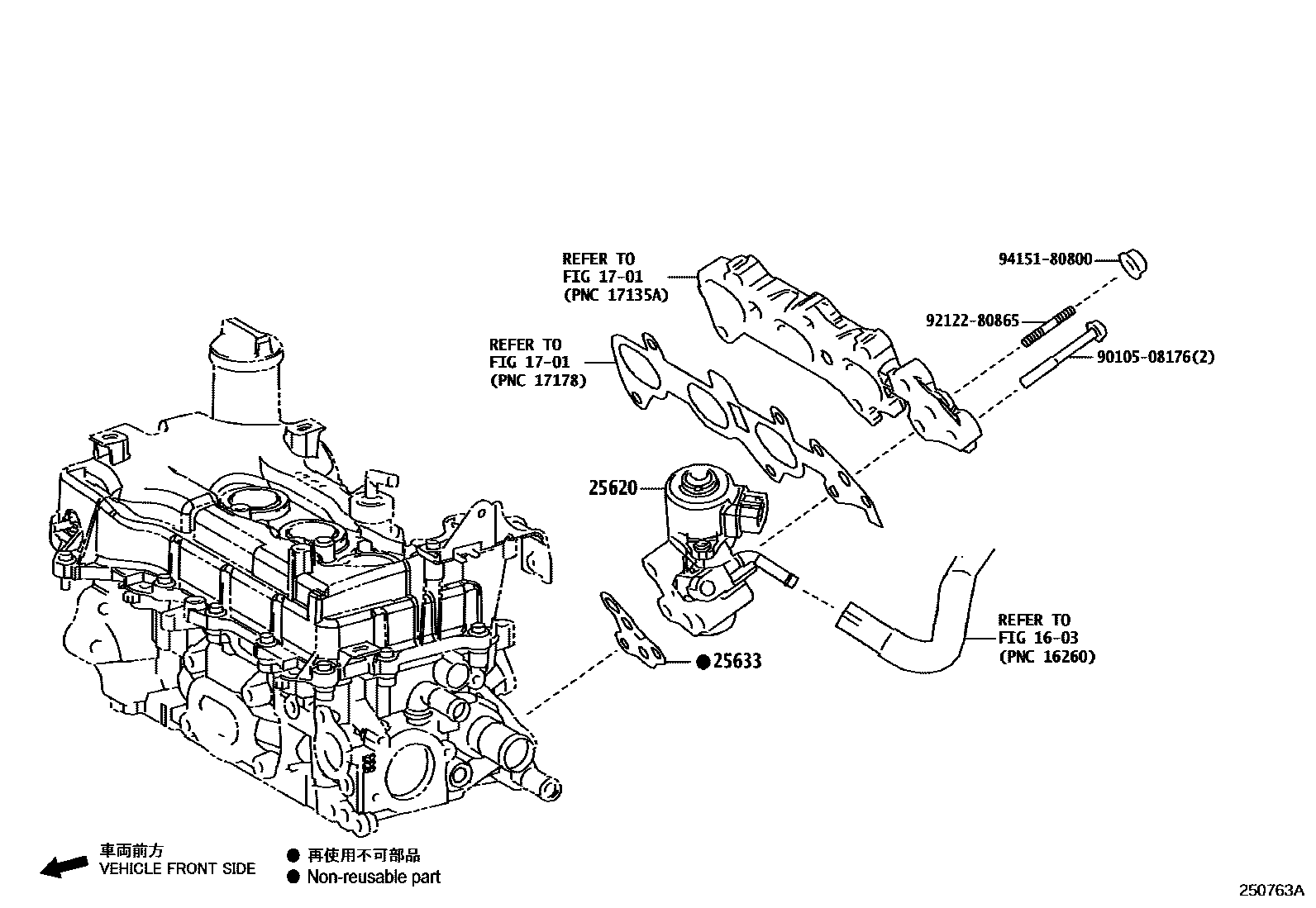

Toyota YARIS 废气再循环系统 EPC diagram — 250763A
废气再循环系统 — 250763A (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
25601No. 1 EGR pipe assembly25601-15050
25620EGR valve assembly25620-15350 · 25620-40030
25624EGR valve adapter25624-15010
25627EGR valve gasket25627-15010
25628EGR air intake gasket25628-25010 · 25628-F2040
25629EGR valve adapter gasket25628-25010 · 25628-F2040
25633EGR valve gasket25633-40030
25634EGR tube gasket25634-15010
25680EGR cooler assembly25680-15010
25685No. 1 EGR Cooler Gasket25685-15010
