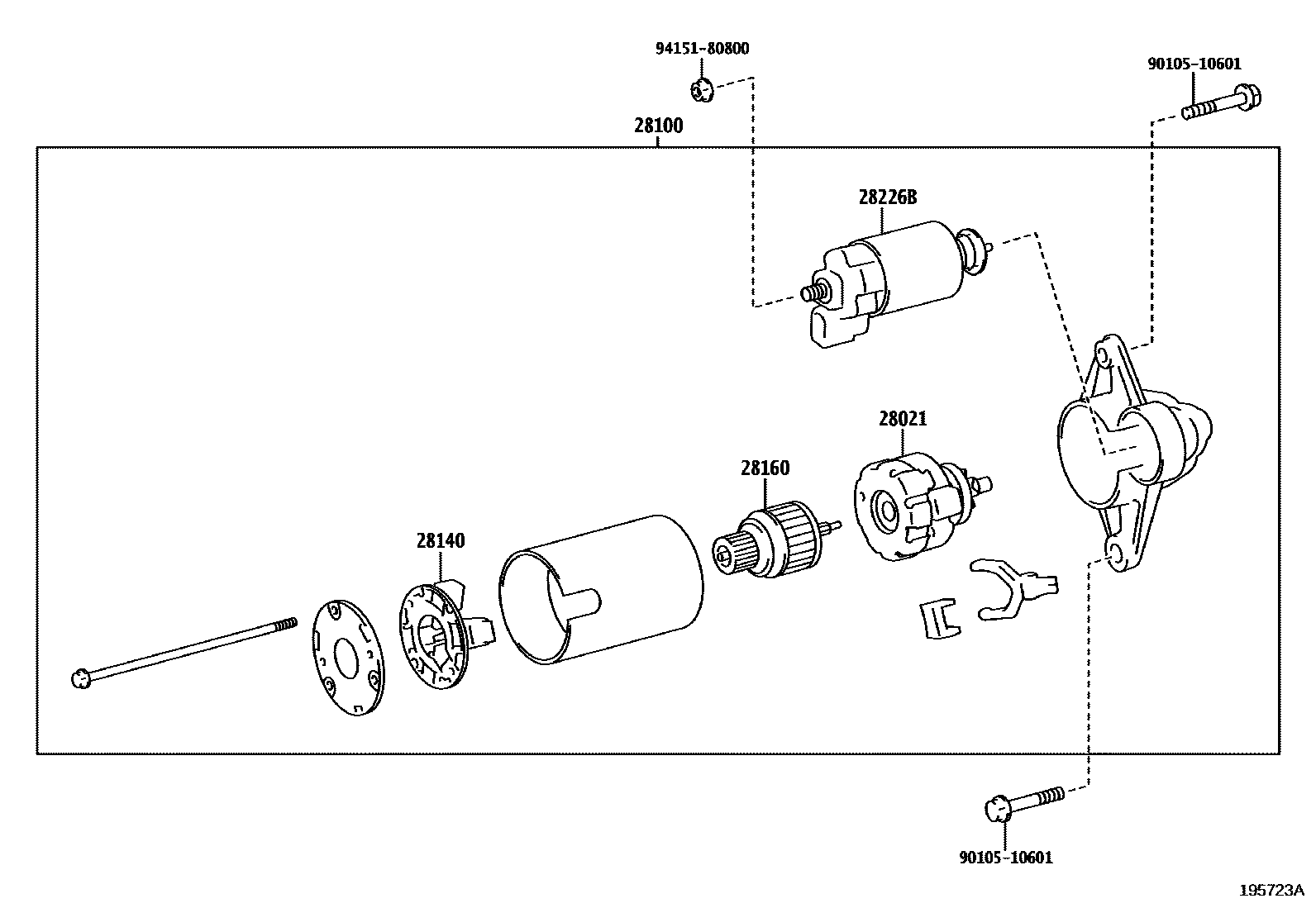

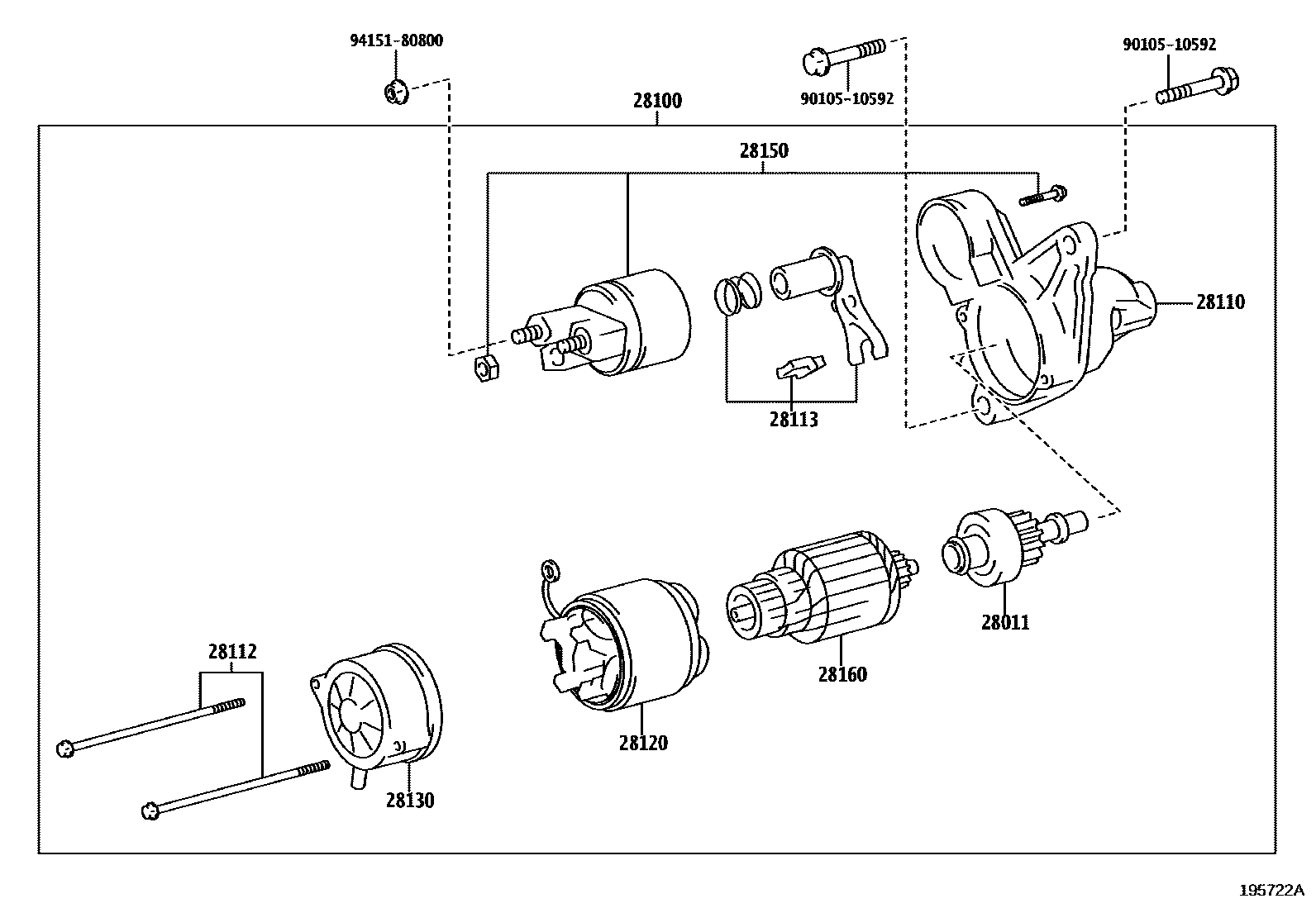

Toyota YARIS 起动机 — Figure 1904
Toyota YARIS EPC diagram 1904, 起动机, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-0Q160 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-K0040 |
| 28100 | Starter assembly | 28100-0Q160 · 28100-K0040 |
| 28110 | Starter drive end housing assembly | 28110-0Q160 |
| 28112 | Housing fixing bolts | 28112-0Q160 |
| 28113 | starter pinion drive rod | 28113-0Q160 |
| 28120 | Starter yoke assembly | 28120-0Q160 |
| 28130 | Starter commutator end frame assembly | 28130-0Q160 |
| 28140 | Starter brush holder assembly | 28140-21070 |
| 28150 | Starter electromagnetic switch assembly | 28150-0Q160 |
| 28160 | Starter armature assembly | 28160-0Q160 · 28160-21070 |
| 28226B | starter magnetic switch | 28226-K0040 |
