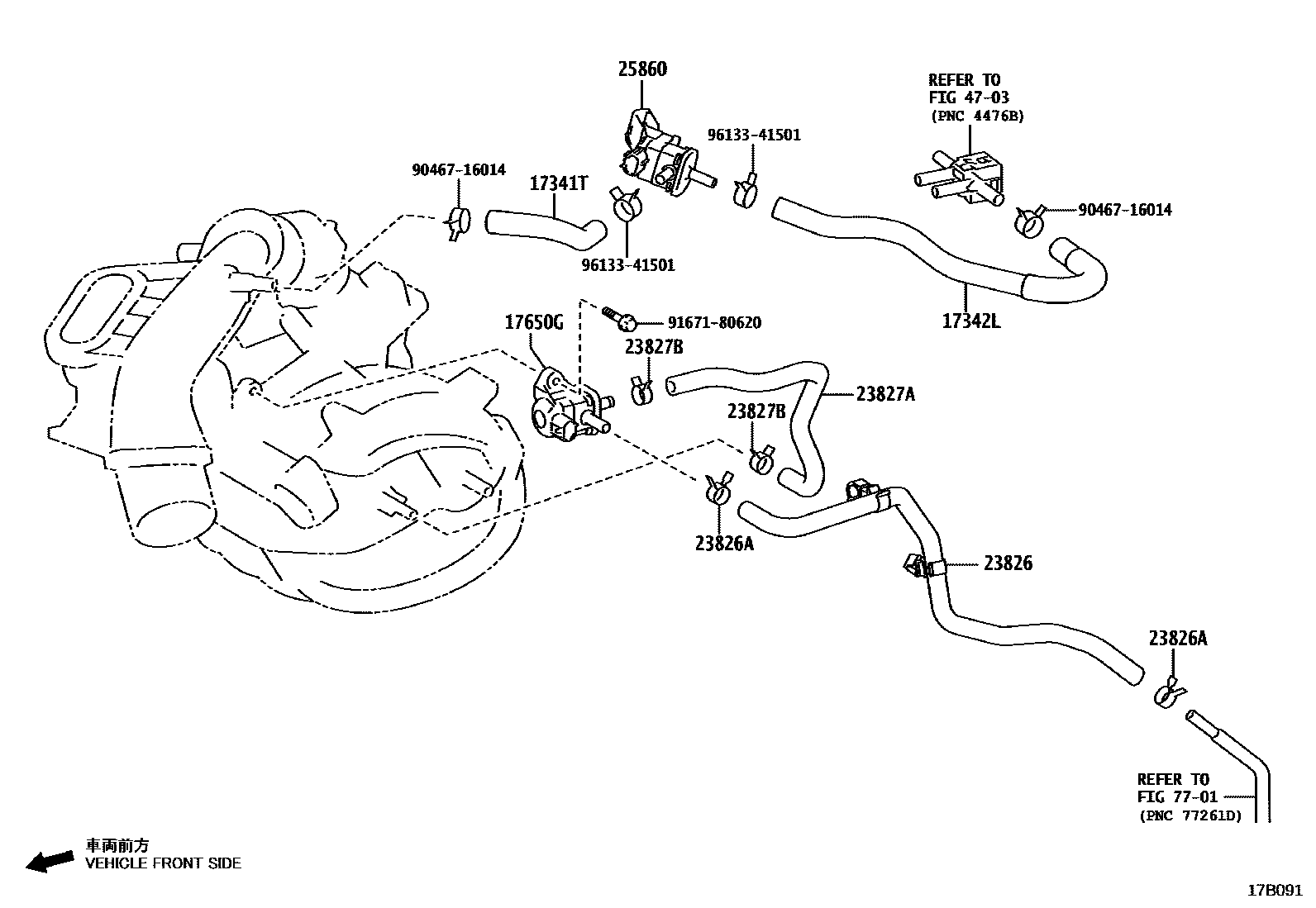

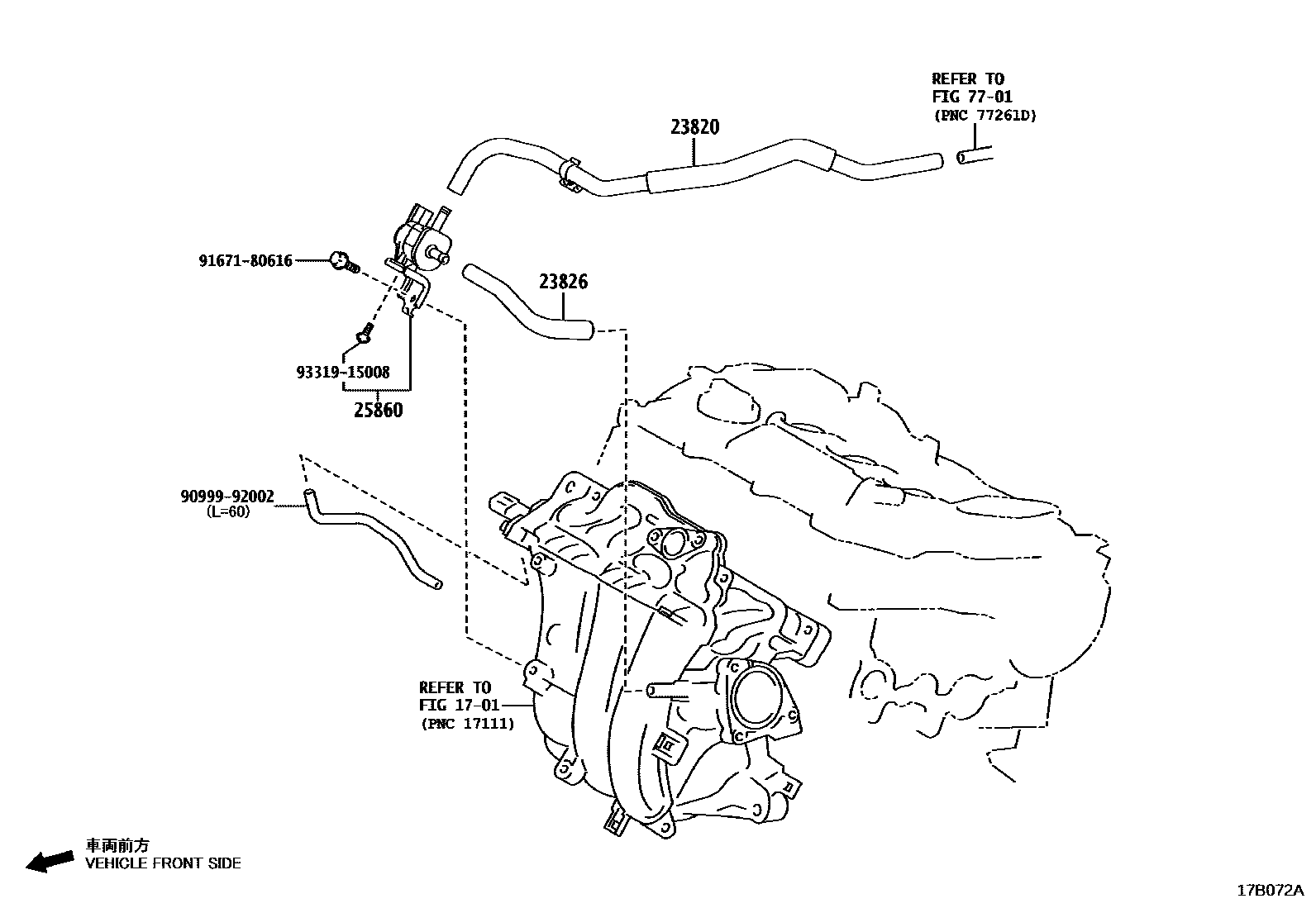

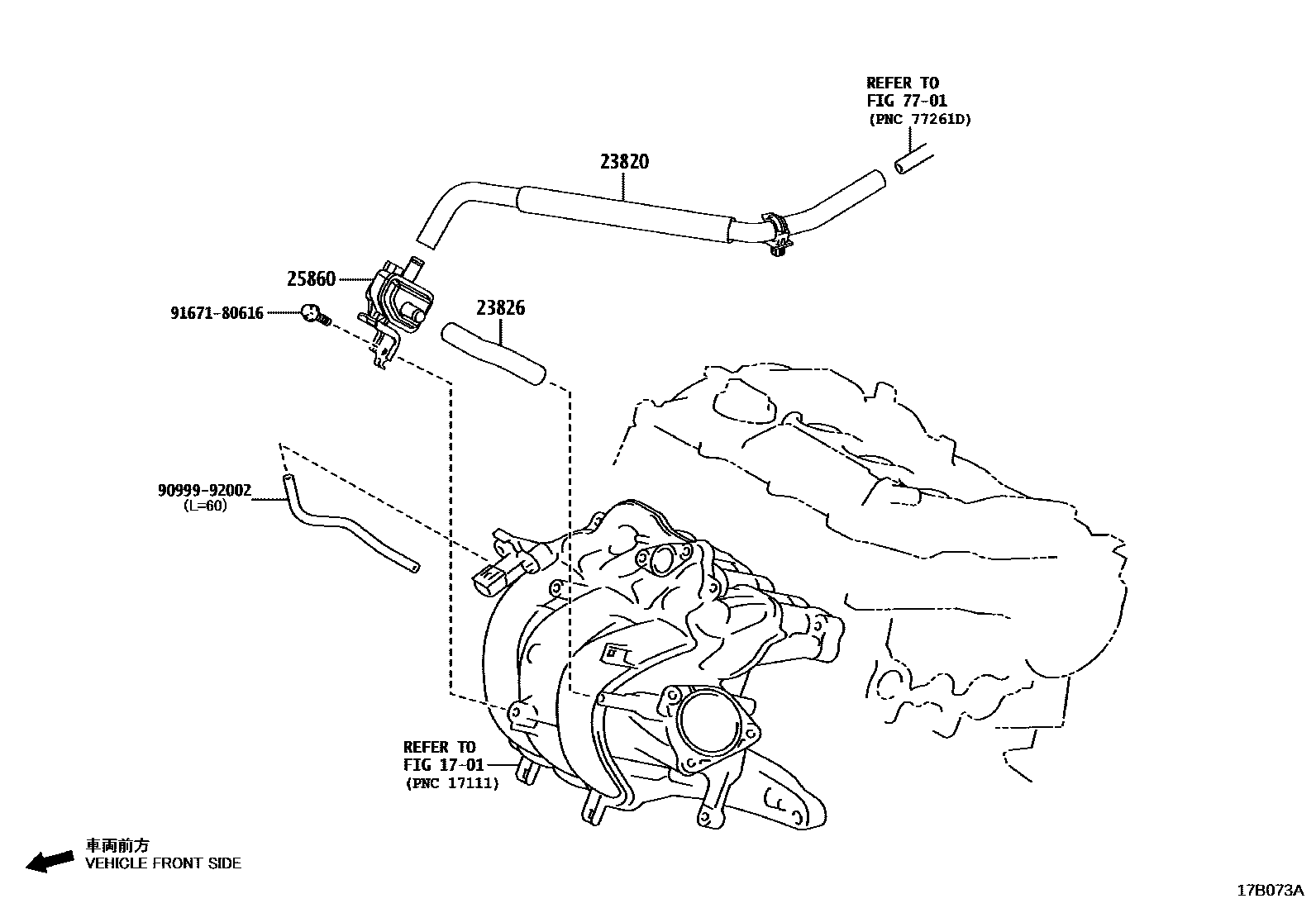

Toyota YARIS vacuum tube — Figure 1708
Toyota YARIS EPC diagram 1708, vacuum tube, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341T | Air hose No. 1 | 17341-40040 |
| 17342L | Air hose No. 2 | 17342-40030 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12282 |
| 23820 | Fuel vapor supply hose assembly | 23820-15010 · 23820-15020 |
| 23826 | No. 1 fuel vapor supply hose | 23826-15010 · 23826-15020 · 23826-40060 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-13005 |
| 23827A | No. 2 fuel vapor supply hose | 23827-40070 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96138-41501 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-15040 · 25860-15050 · 25860-40020 |
