Toyota YARIS Manifold — Figure 1701

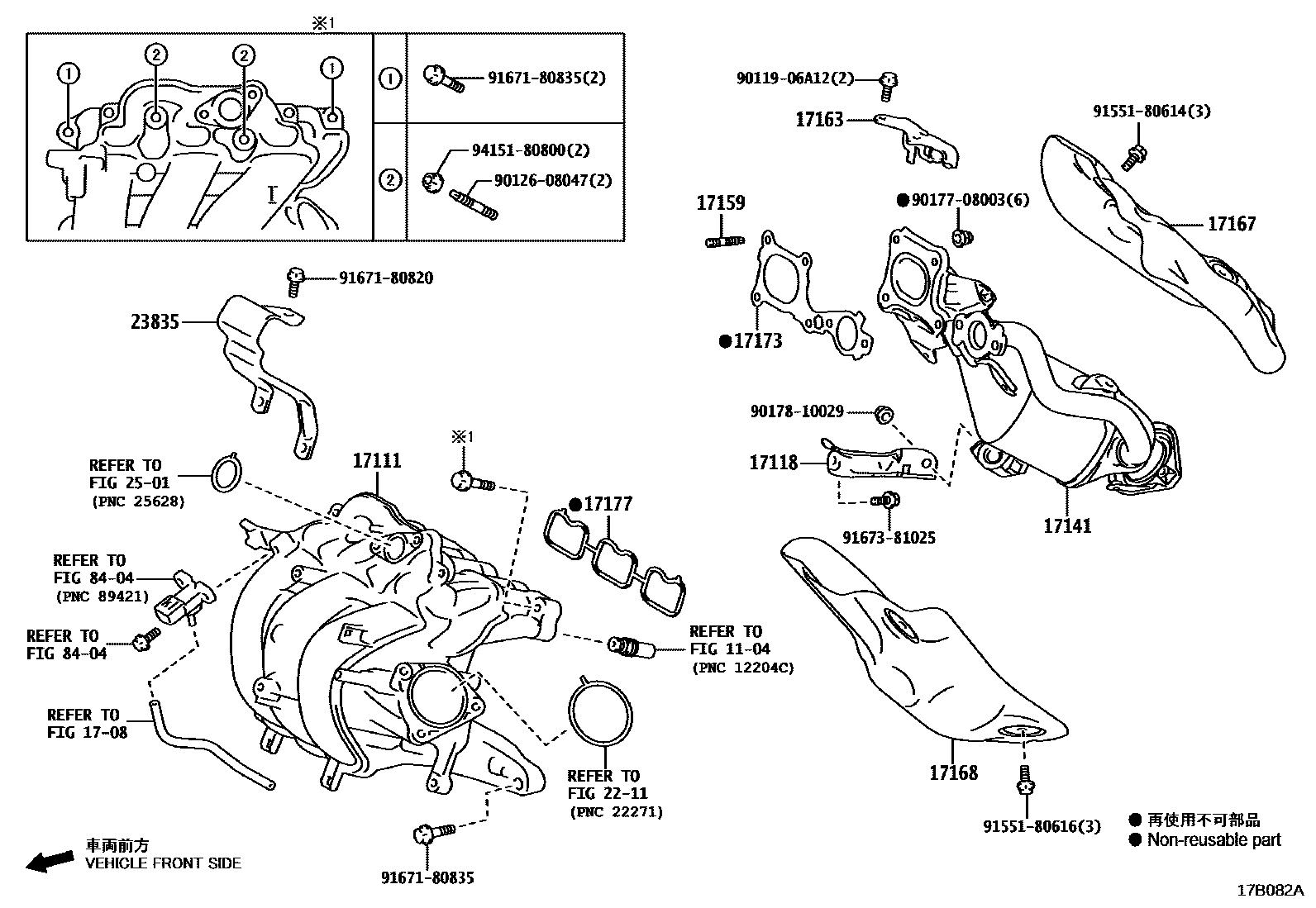

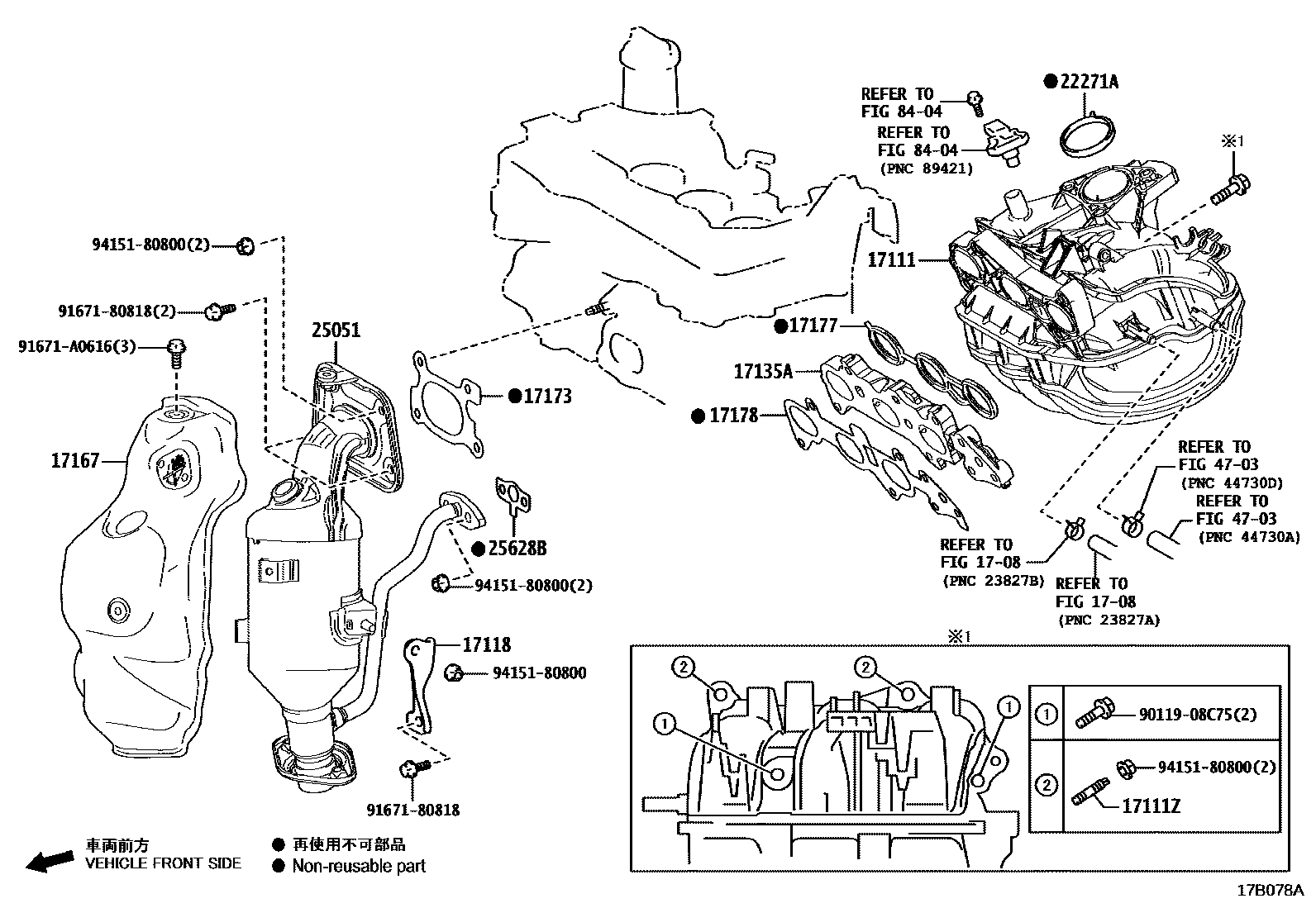

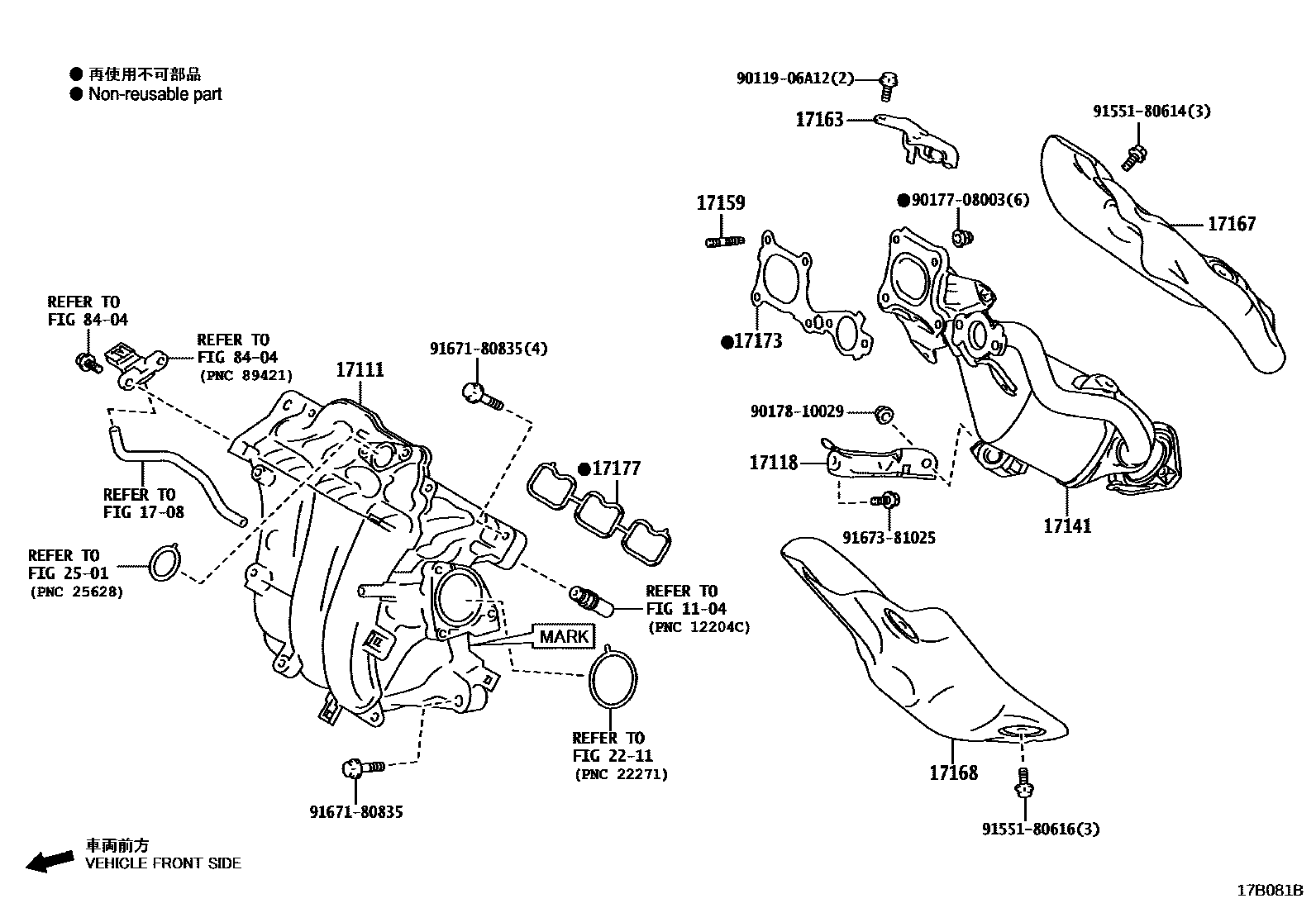

Toyota YARIS EPC diagram 1701, Manifold, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17101-15120 · 17101-15130 · 17101-40020 · 17101-F3010 · 17101-F3020 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 92122-80845 |
| 17118 | Manifold stays | 17118-15090 · 17118-40040 |
| 17135A | Intake manifold No. 1 heat shield | 17135-40030 |
| 17141 | exhaust manifold | 17141-15180 · 17141-15200 · 17141-15250 · 17141-15260 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08052 |
| 17163 | No. 1 insulation pad bracket | 17163-15010 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-15100 · 17167-15110 · 17167-40060 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-15040 · 17168-15050 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-15050 · 17173-40040 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-15040 · 17177-40030 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-40030 |
| 22271A | Throttle body gasket | 22271-40030 |
| 23835 | Toyota part | 23835-15010 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-40130 |
| 25628B | EGR air intake gasket | 25628-40020 |
