Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603

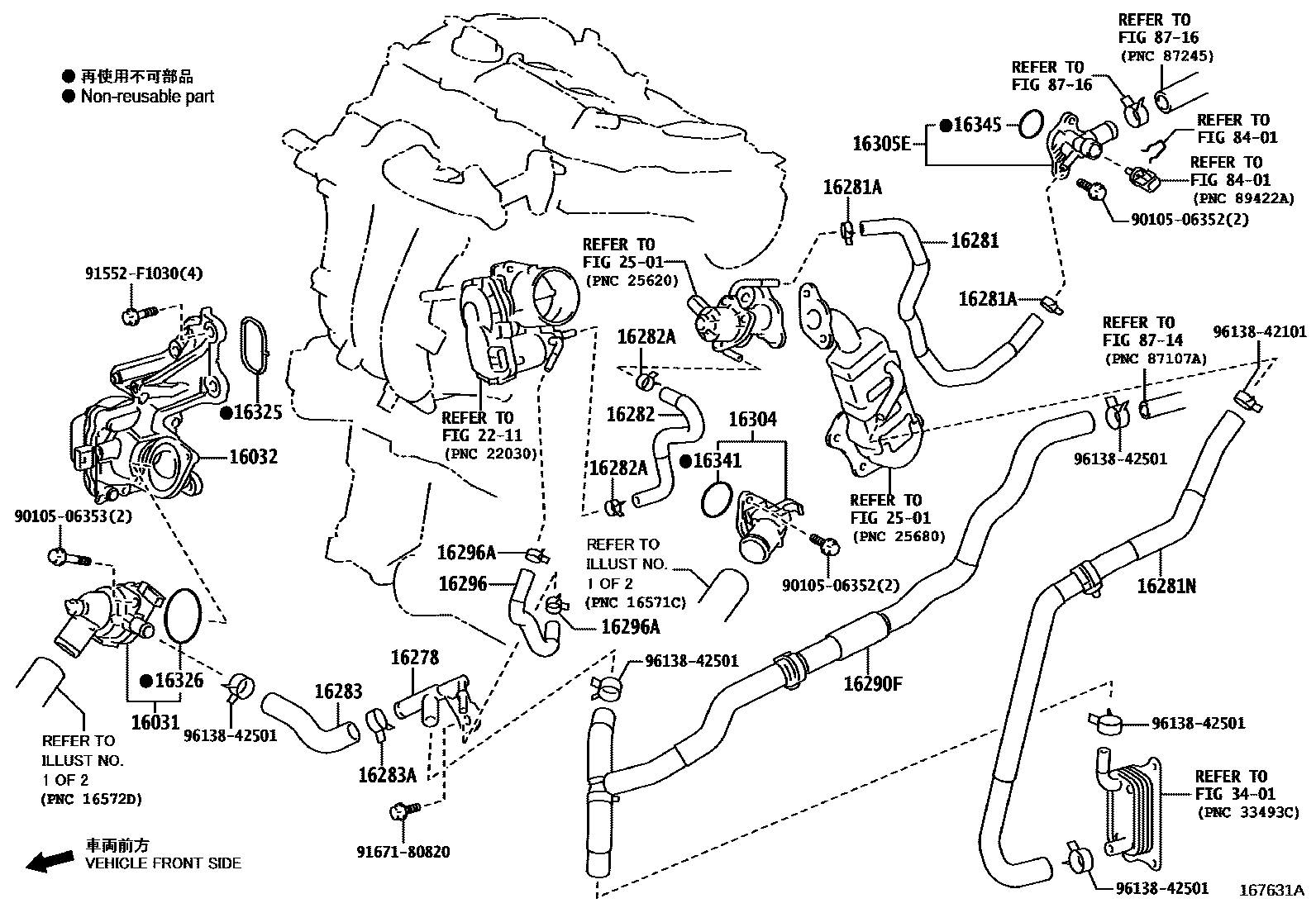

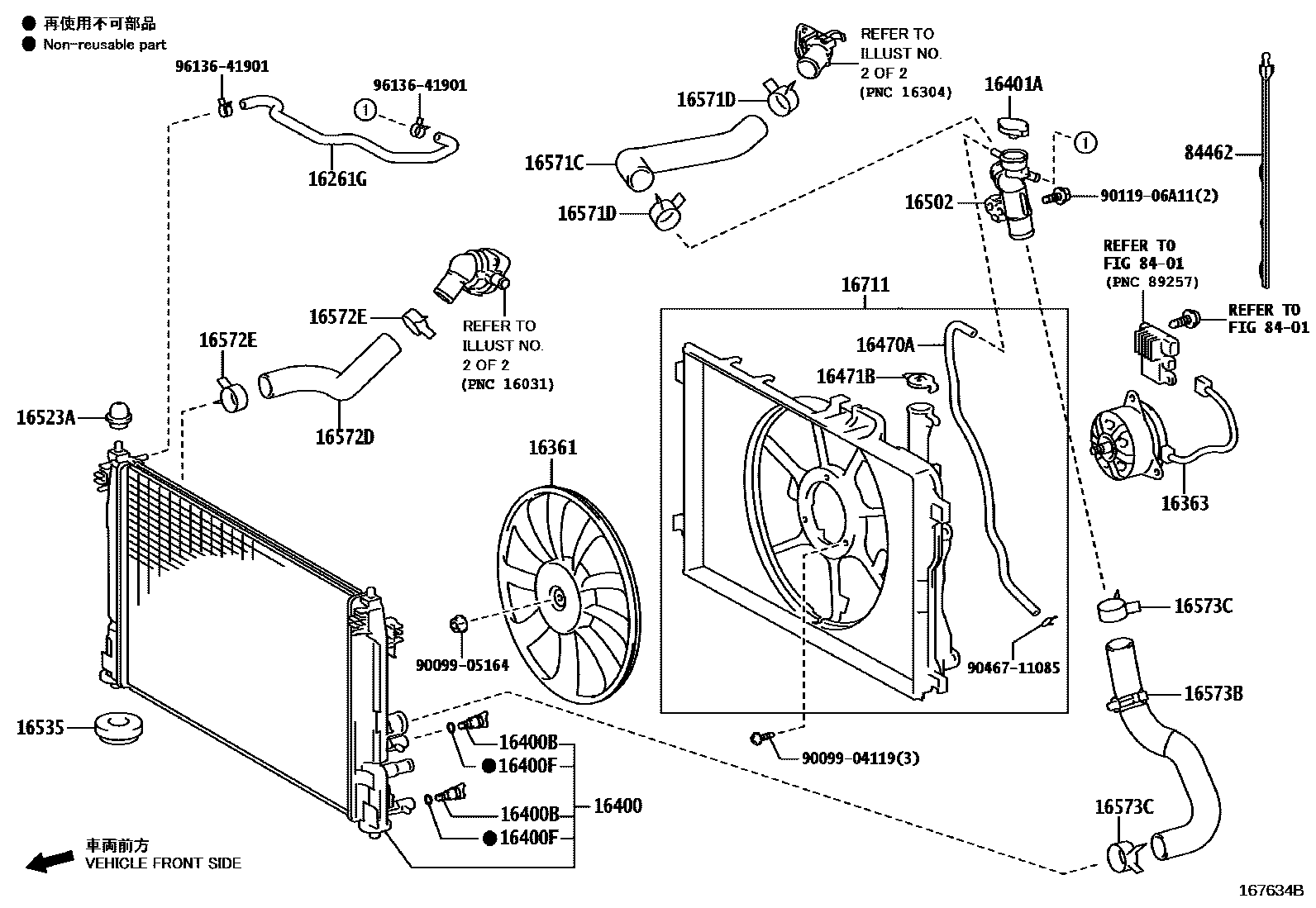

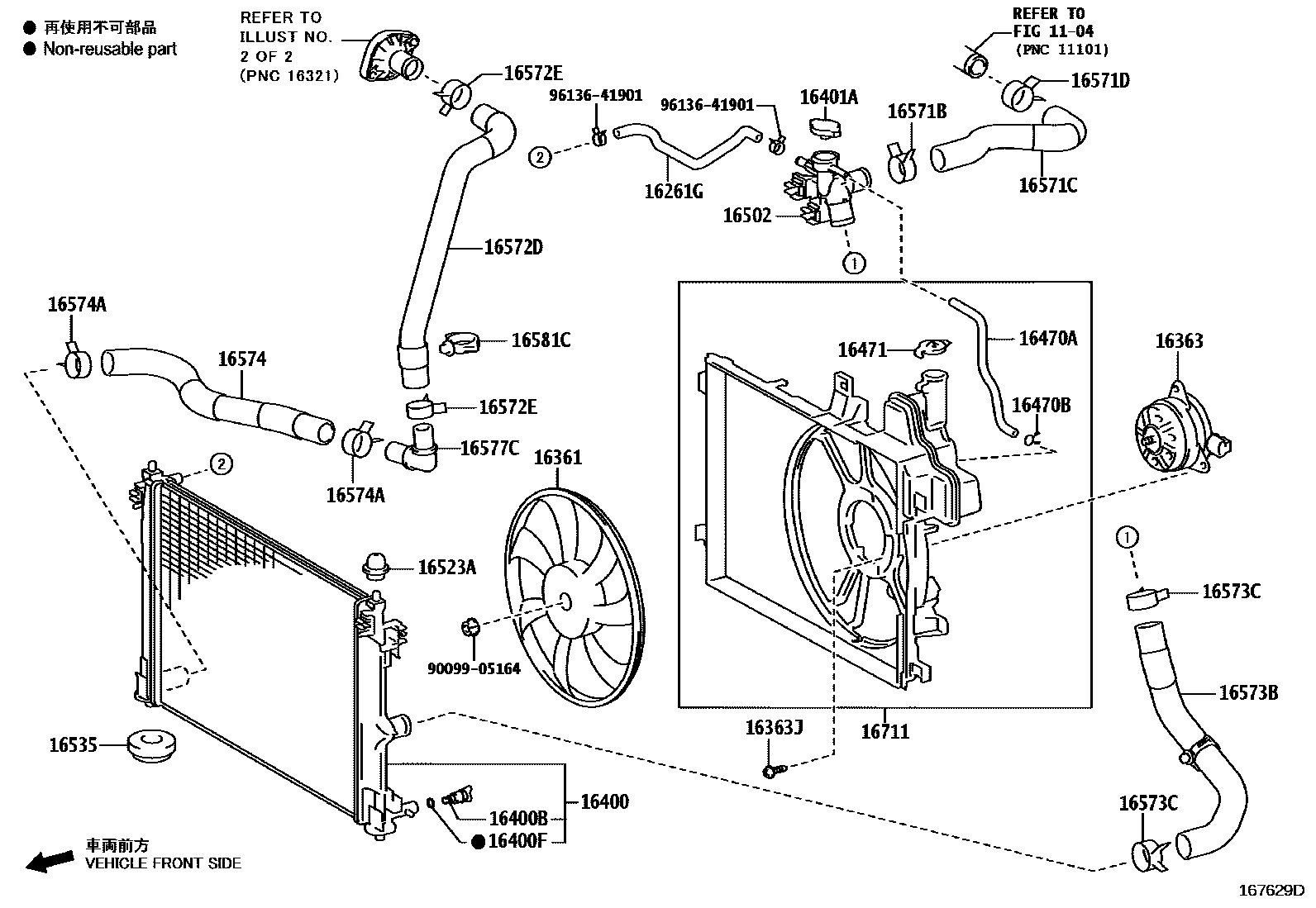

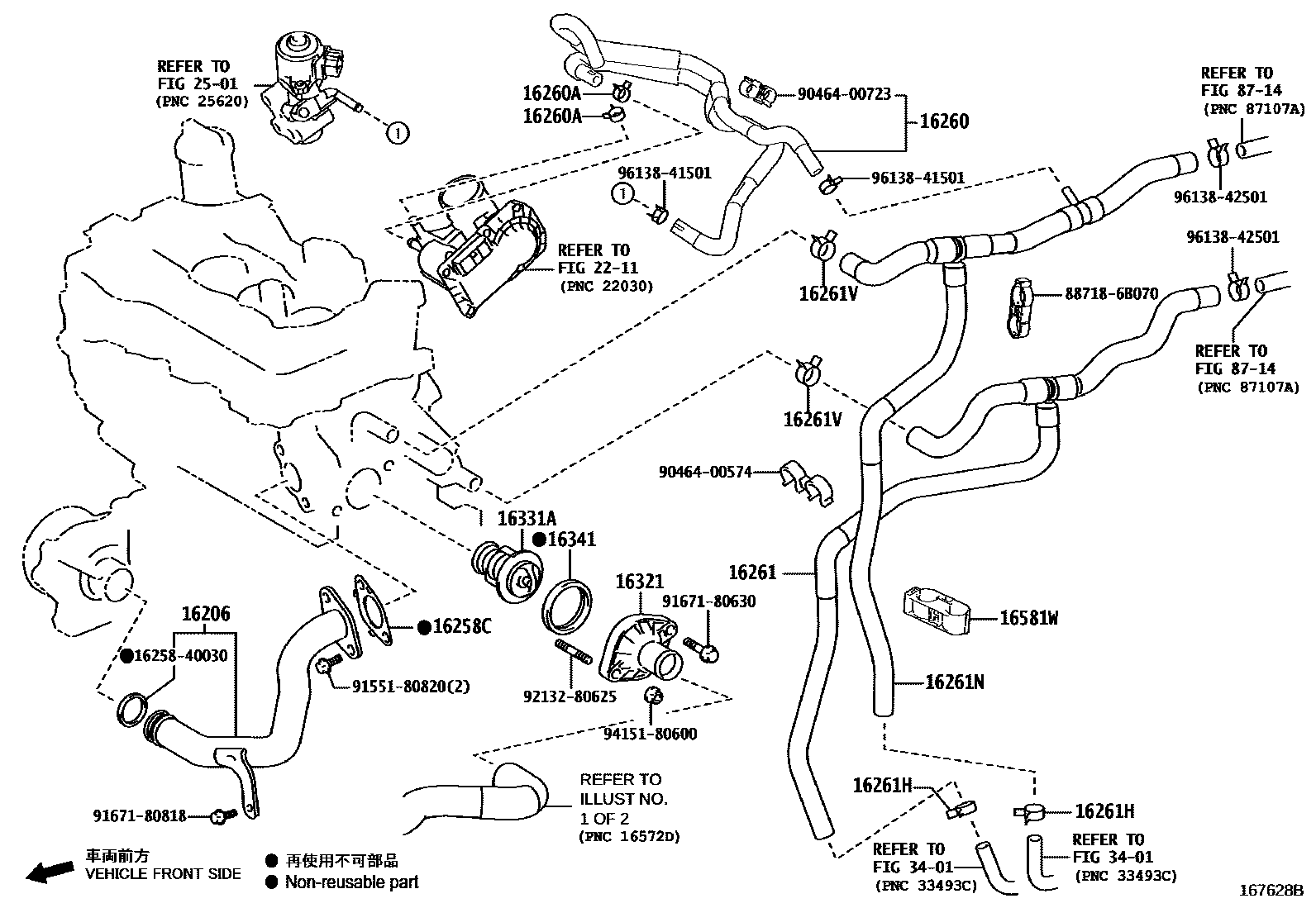

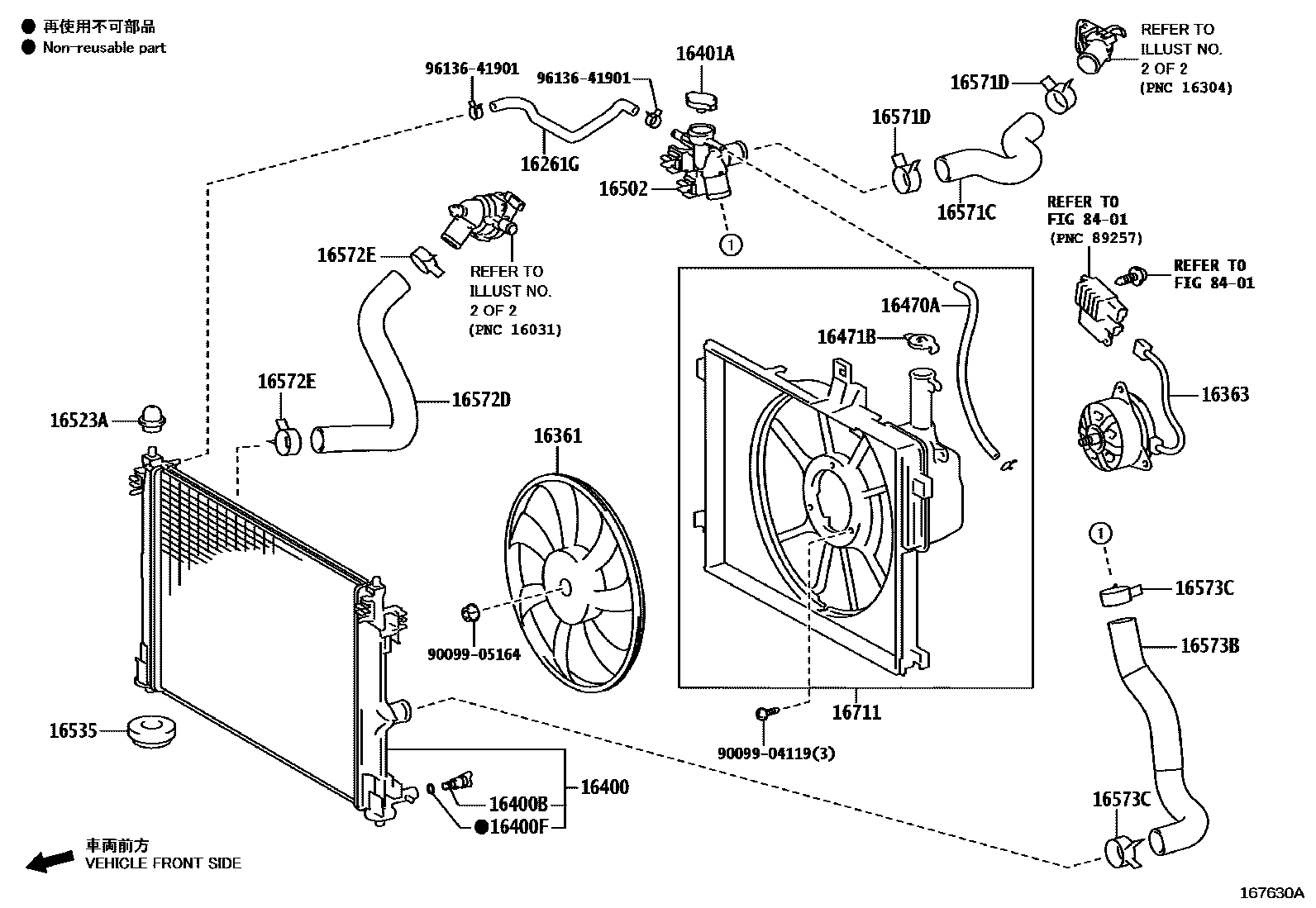

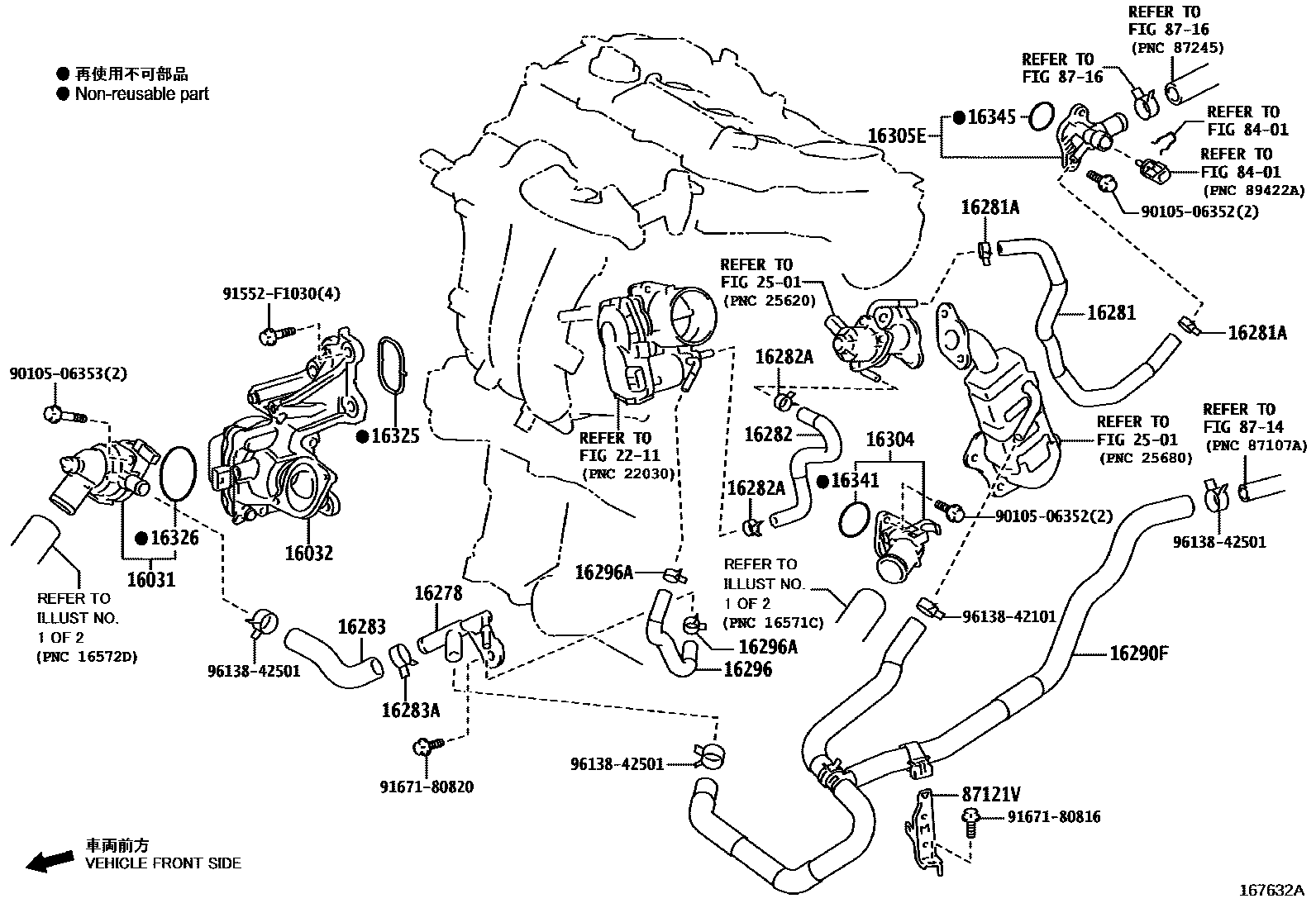

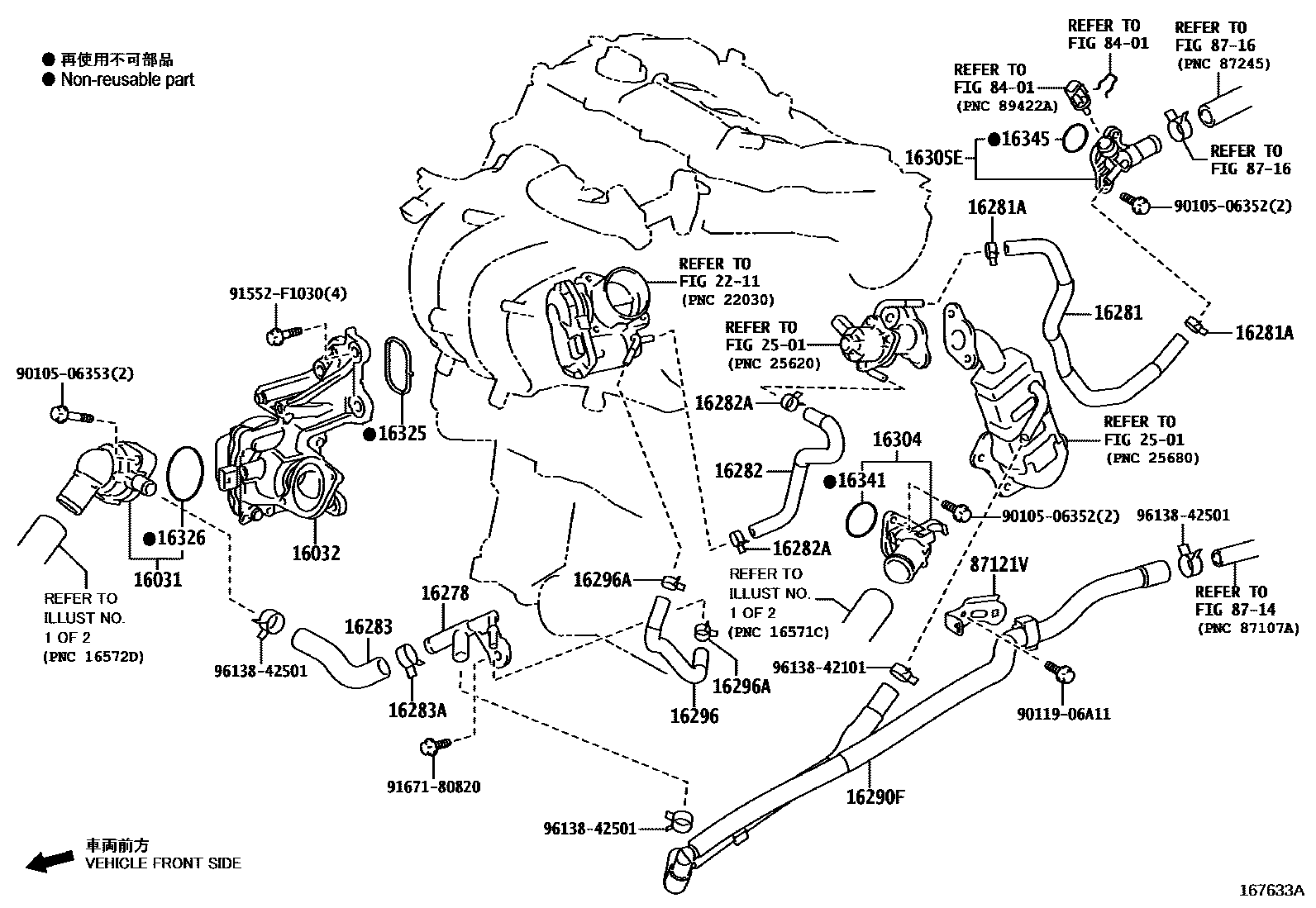

Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 7 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-15010 · 16031-15020 |
| 16032 | Toyota part | 16032-15190 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-40010 |
| 16258C | Gasket (for water bypass pipe) | 16258-40021 |
| 16260 | Water bypass hose assembly | 16260-40220 |
| 16260A | Clamp (for water bypass hose assembly) | 96137-41501 |
| 16261 | HOSE, WATER BY-PASS | 16260-40190 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-15030 · 16261-15040 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96138-42101 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16280-40020 |
| 16261V | CLAMP OR CLIP, WATER BY-PASS HOSE | 96138-42501 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-15080 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-15010 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 96138-41501 |
| 16281N | Toyota part | 16281-15020 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-15010 · 16282-15020 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96138-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-15010 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96138-42501 |
| 16290F | Toyota part | 16290-15010 · 16290-15020 · 16290-15030 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-15010 · 16296-15020 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96138-41501 |
| 16304 | Water outlet sub-assembly | 16304-15010 |
| 16305E | Water bypass outlet sub-assembly | 16305-15010 · 16305-15020 |
| 16321 | water inlet | 16321-40010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-15030 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-15010 |
| 16331A | thermostat | 90916-03150 |
| 16341 | GASKET, WATER OUTLET | 16341-15020 · 16341-35010 |
| 16345 | Outlet pipe gasket | 16345-15010 |
| 16361 | Fan | 16361-15090 · 16361-15100 · 16361-28270 |
| 16363 | cooling fan motor | 16363-28200 · 16363-K0010 · 16363-K0020 |
| 16363J | Toyota part | 90099-04119 |
| 16400 | Radiator assembly | 16400-15620 · 16400-15630 · 16400-40230 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401A | Radiator reservoir cap sub-assembly | 16401-36020 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-K0010 · 16377-K0020 · 16377-K0040 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-23010 |
| 16471B | Reservoir tank cover | 16471-15020 · 16471-15030 · 16471-23010 |
| 16502 | Water injection port sub-assembly | 16502-15020 · 16502-15030 |
| 16523A | Radiator bracket cushion | 16523-37010 |
| 16535 | Radiator lower support | 90480-40021 |
| 16571B | Slim hose (for radiator hose) | 96136-43901 |
| 16571C | Radiator hose No. 1 | 16571-15190 · 16571-15200 · 16571-40070 |
| 16571D | No. 1 radiator hose clip | 90466-40001 · 96136-43601 |
| 16572D | Radiator hose No. 2 | 16572-15220 · 16572-15230 · 16572-40060 |
| 16572E | No. 2 radiator hose clip | 90466-40001 · 96136-43601 |
| 16573B | Radiator hose No. 3 | 16573-15010 · 16573-15020 · 16573-40030 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-43002 |
| 16574 | Radiator hose No. 4 | 16574-40020 |
| 16574A | No. 4 radiator hose clip | 90466-40001 |
| 16577C | radiator pipe | 16577-21050 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-25030 |
| 16581W | Toyota part | 16581-40100 |
| 16711 | fan cover | 16711-15290 · 16711-15300 · 16711-40060 |
| 84462 | Toyota part | 84462-52010 |
| 87121V | Toyota part | 87121-10020 · 87121-52060 |
