Toyota YARIS Oil Filter — Figure 1502

Toyota YARIS EPC diagram 1502, Oil Filter, with 2 images and 8 PNC and OE references.

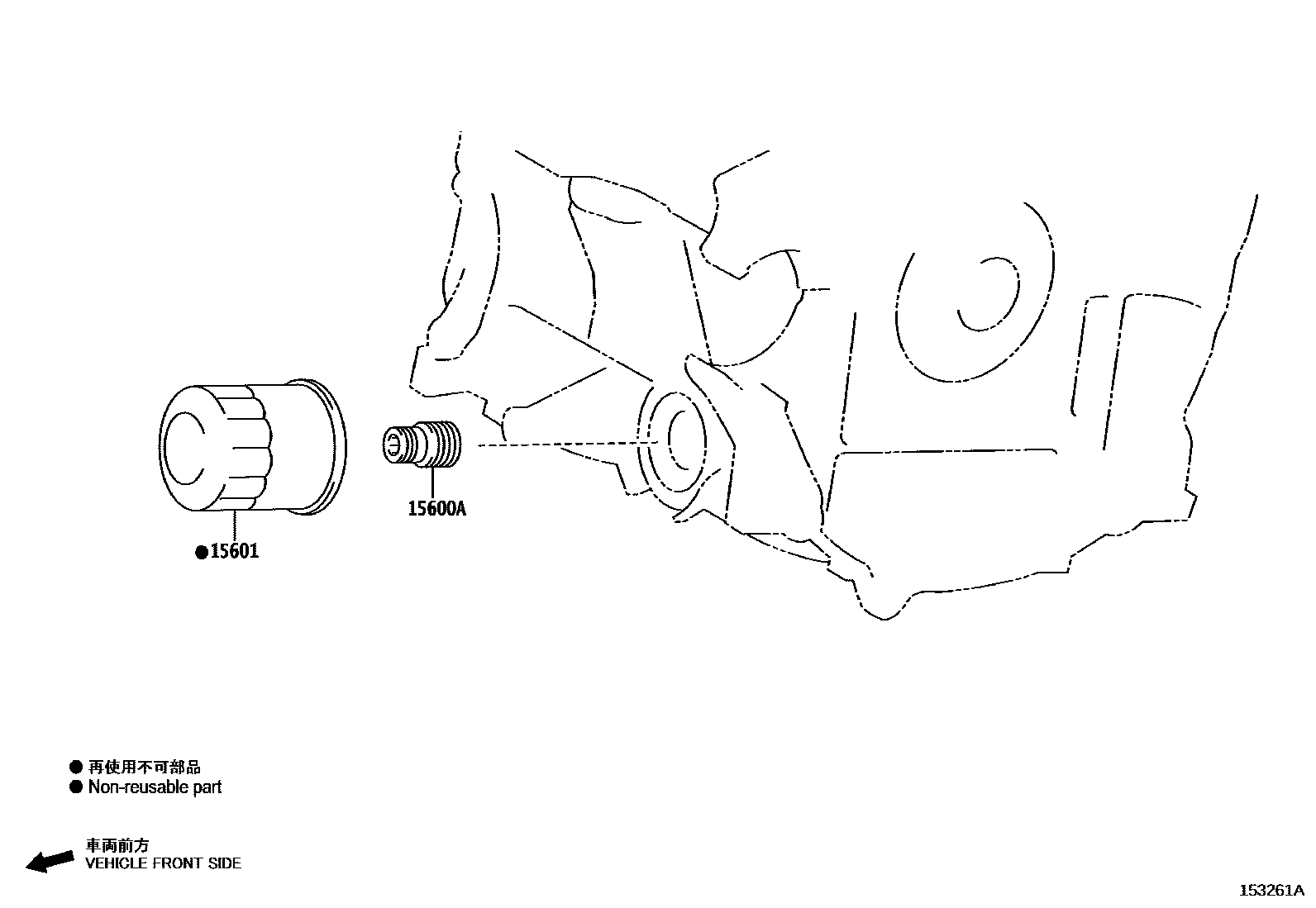

Toyota YARIS Oil Filter EPC diagram — 153261A
Oil Filter — 153261A (202002 – 999999)

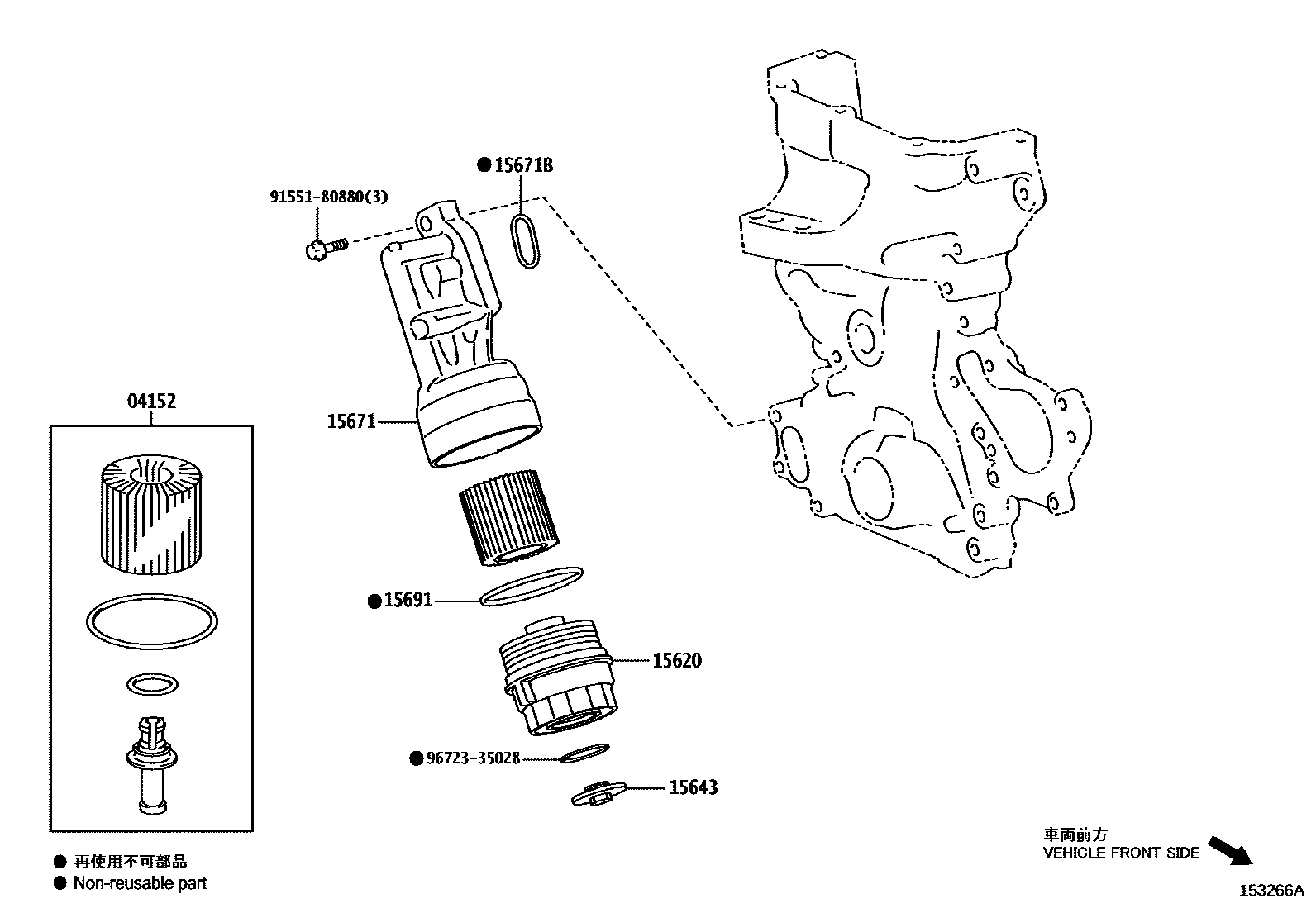

Toyota YARIS Oil Filter EPC diagram — 153266A
Oil Filter — 153266A (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-40060
15600AConnector (for oil filter)90904-04006
15601Oil filter sub-assembly90915-10009
15620Oil filter cover assembly15620-40030
15643Oil filter drain plug15643-31050
15671Oil filter bracket15671-40040
15671BOil filter holder gasket15691-40020
15691oil filter gasket90301-69011
