Toyota YARIS Engine Oil Pump — Figure 1501

Toyota YARIS EPC diagram 1501, Engine Oil Pump, with 2 images and 2 PNC and OE references.

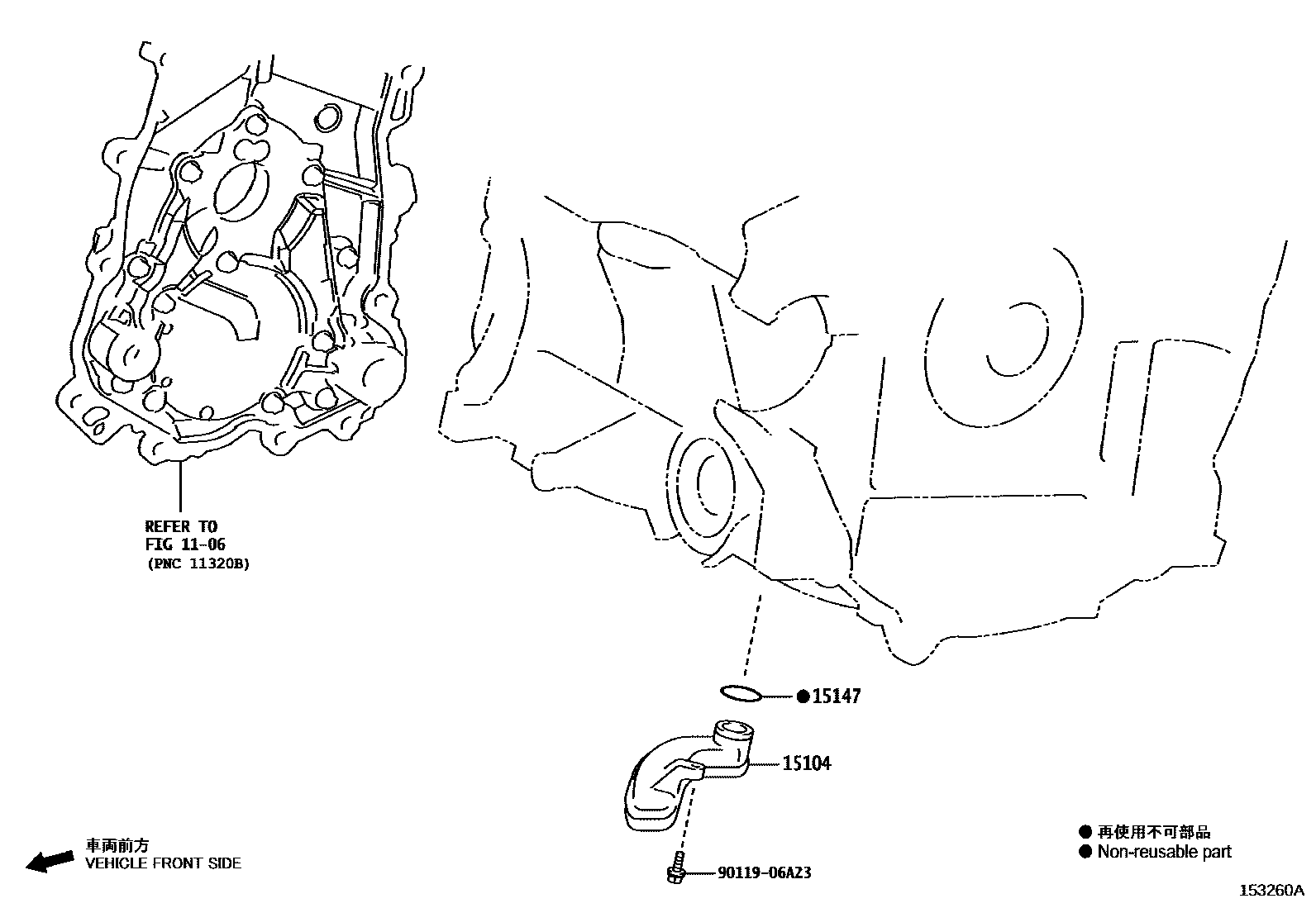

Toyota YARIS Engine Oil Pump EPC diagram — 153260A
Engine Oil Pump — 153260A (202002 – 999999)

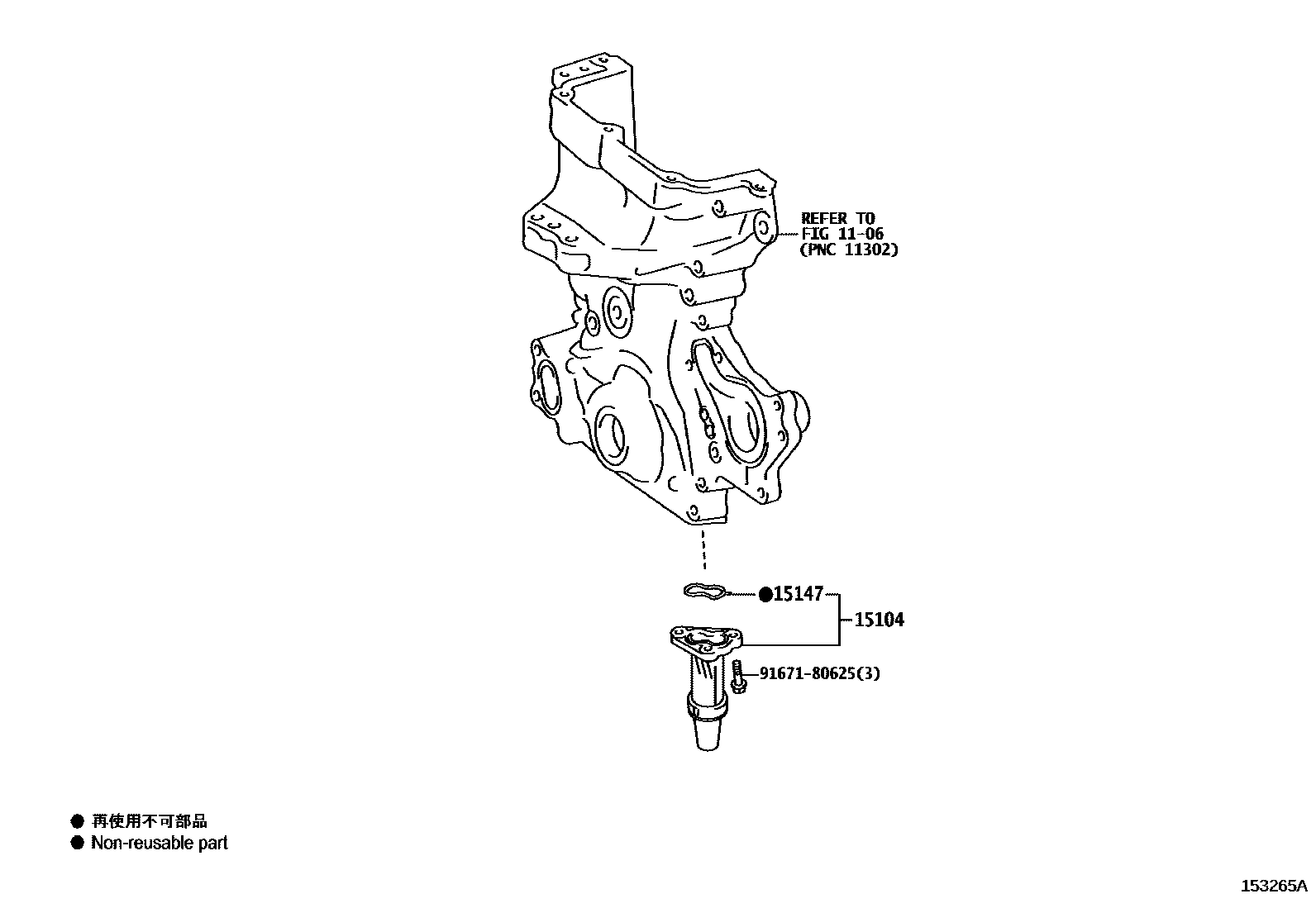

Toyota YARIS Engine Oil Pump EPC diagram — 153265A
Engine Oil Pump — 153265A (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
15104Oil filter sub-assembly15104-15110 · 15104-40060
15147Oil filter gasket15147-25010 · 15147-40030
