Toyota YARIS Camshaft & Valve — Figure 1302

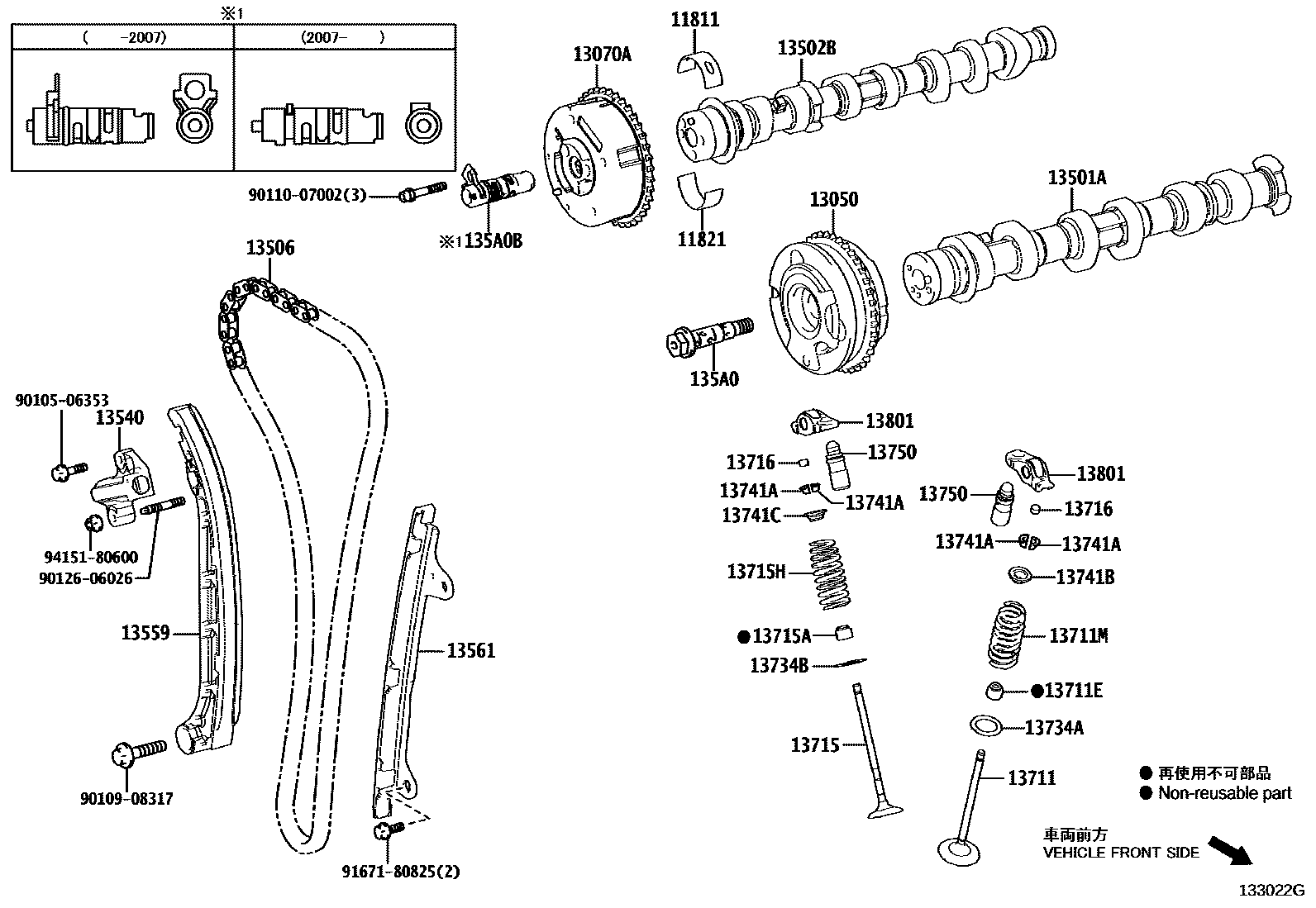

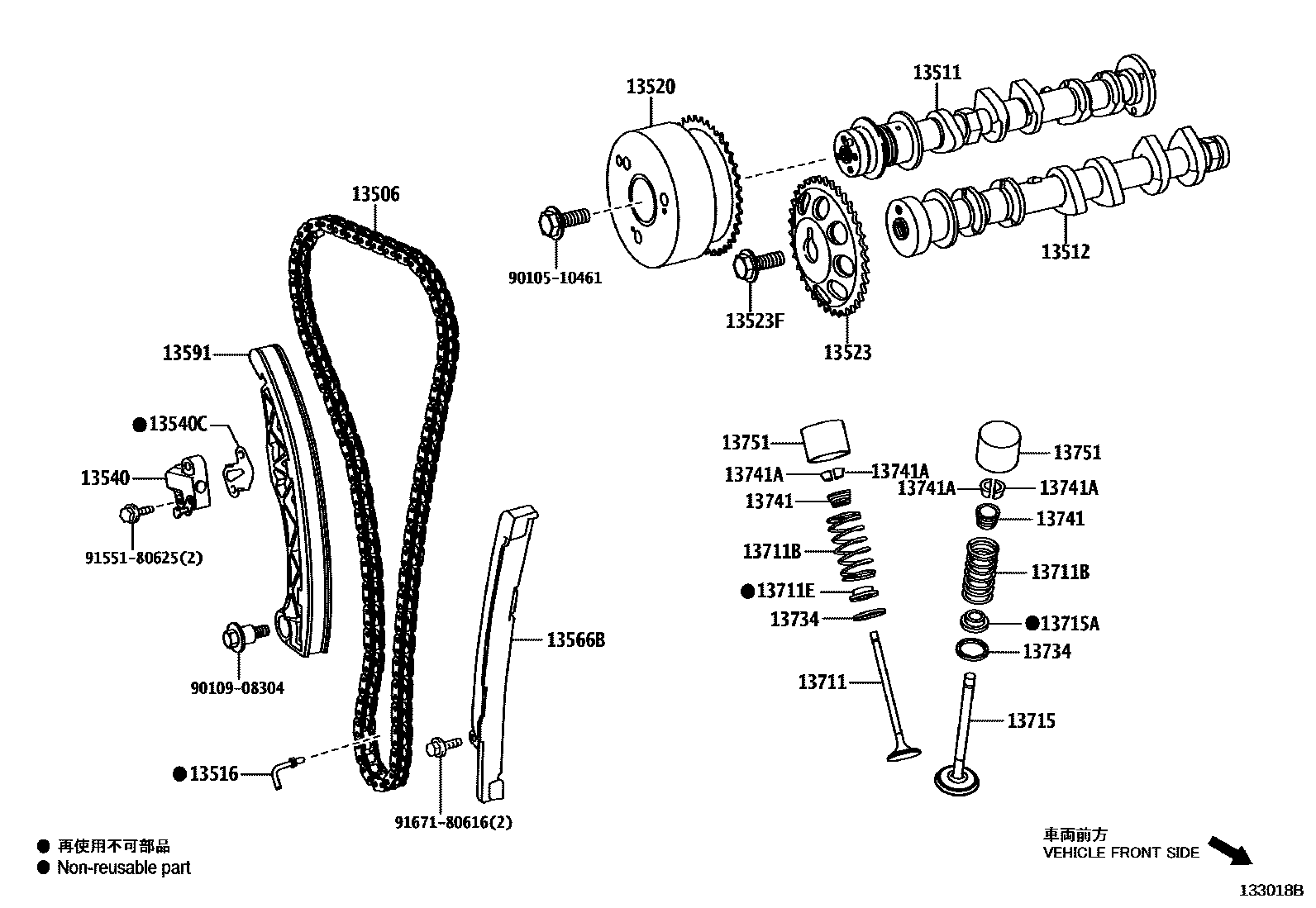

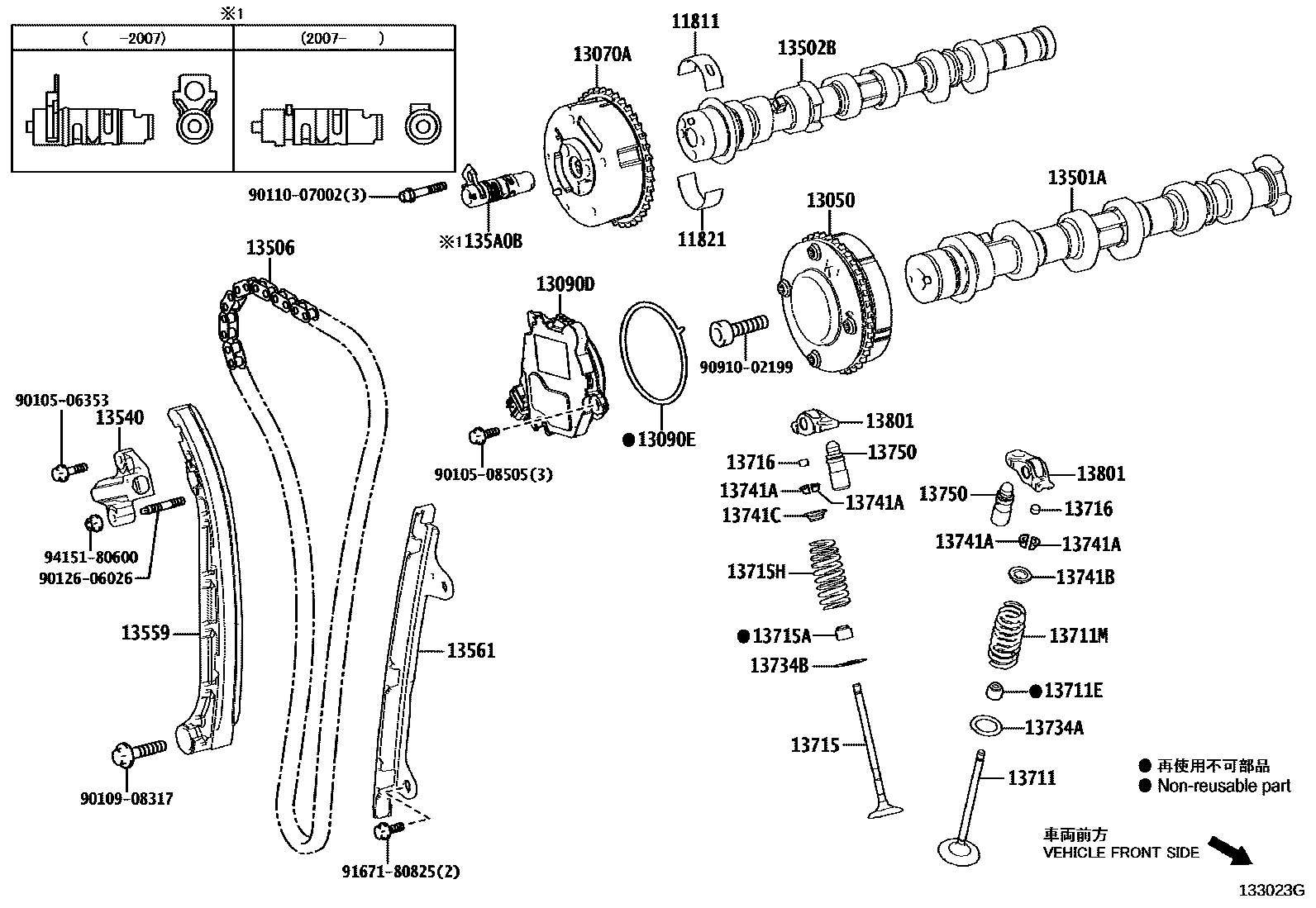

Toyota YARIS EPC diagram 1302, Camshaft & Valve, with 3 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-15010 |
| 11821 | No. 2 camshaft bearing | 11821-15010 |
| 13050 | Camshaft timing gear assembly | 13050-15010 · 13050-15020 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-25020 · 13070-25030 |
| 13090D | Toyota part | 13090-25010 |
| 13090E | Toyota part | 90301-92005 |
| 13501A | Toyota part | 13501-15060 · 13501-15070 |
| 13502B | Toyota part | 13502-15060 · 13502-15070 |
| 13506 | Chain sub-assembly | 13506-24020 · 13506-40020 |
| 13511 | camshaft | 13501-40070 |
| 13512 | Camshaft No. 2 | 13502-40040 |
| 13516 | oil nozzle | 13516-40010 |
| 13520 | Camshaft timing sprocket assembly | 13520-40021 |
| 13523 | Camshaft timing gear or sprocket | 13523-22020 |
| 13523F | Bolt (for camshaft timing gear) | 90119-10889 |
| 13540 | No. 1 chain tensioner assembly | 13540-15010 · 13540-21020 |
| 13540C | Pad (for chain tensioner) | 13552-40010 |
| 13559 | chain tensioner guide plate | 13559-15010 |
| 13561 | No. 1 chain shock absorber | 13561-15010 |
| 13566B | Timing chain guide plate | 13566-40031 |
| 13591 | Timing chain tensioner arm | 13591-40041 |
| 135A0 | Toyota part | 135A0-31020 |
| 135A0B | Toyota part | 135A0-15010 · 135A0-70020 |
| 13711 | intake valve | 13711-24040 · 13711-40050 |
| 13711B | Compression spring (for inner side) | 90501-25069 |
| 13711E | Intake valve stem oil seal | 90913-02093 · 90913-02101 |
| 13711M | Toyota part | 90501-30043 · 90501-32076 |
| 13715 | exhaust valve | 13715-15090 · 13715-40050 |
| 13715A | Exhaust valve stem oil seal | 90913-02112 · 90913-02128 |
| 13715H | Toyota part | 90501-30043 · 90501-32076 |
| 13716 | valve stem cover | 13716-25010 |
| 13734 | Valve spring seat | 13734-40010 |
| 13734A | Intake valve spring seat | 13734-62020 |
| 13734B | Exhaust valve spring seat | 13734-62020 |
| 13741 | Valve spring seat ring | 13741-22021 |
| 13741A | Valve spring seat lock plate | 90913-03028 · 90913-03031 |
| 13741B | Intake valve spring seat ring | 13741-36010 |
| 13741C | Exhaust valve spring seat ring | 13741-36010 |
| 13750 | Valve lash adjuster assembly | 13750-25010 |
| 13751 | valve lifter | 13751-40630 · 13751-40640 · 13751-40650 · 13751-40660 · 13751-40670 · 13751-40680 · 13751-40690 · 13751-40700 · 13751-40710 · 13751-40720 · 13751-40730 · 13751-40740 · 13751-40750 · 13751-40760 · 13751-40770 · 13751-40780 · 13751-40790 · 13751-40800 · 13751-40810 · 13751-40820 · 13751-40830 · 13751-40840 · 13751-40850 · 13751-40860 · 13751-40870 · 13751-40880 · 13751-40890 · 13751-40A10 · 13751-40A20 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-25010 |
