Toyota YARIS Ventilation Hose — Figure 1201

Toyota YARIS EPC diagram 1201, Ventilation Hose, with 2 images and 10 PNC and OE references.

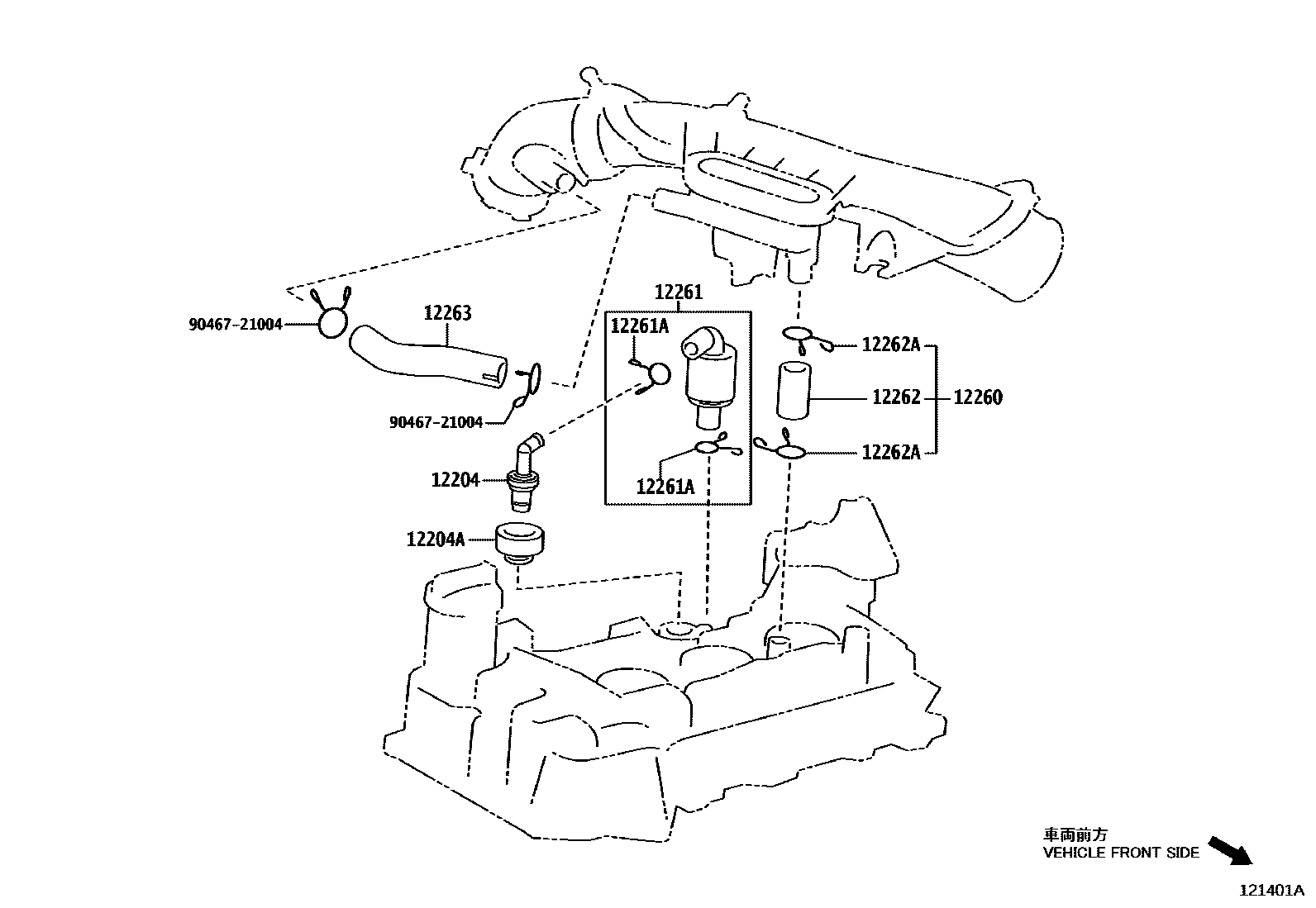

Toyota YARIS Ventilation Hose EPC diagram — 121401A
Ventilation Hose — 121401A (202002 – 999999)

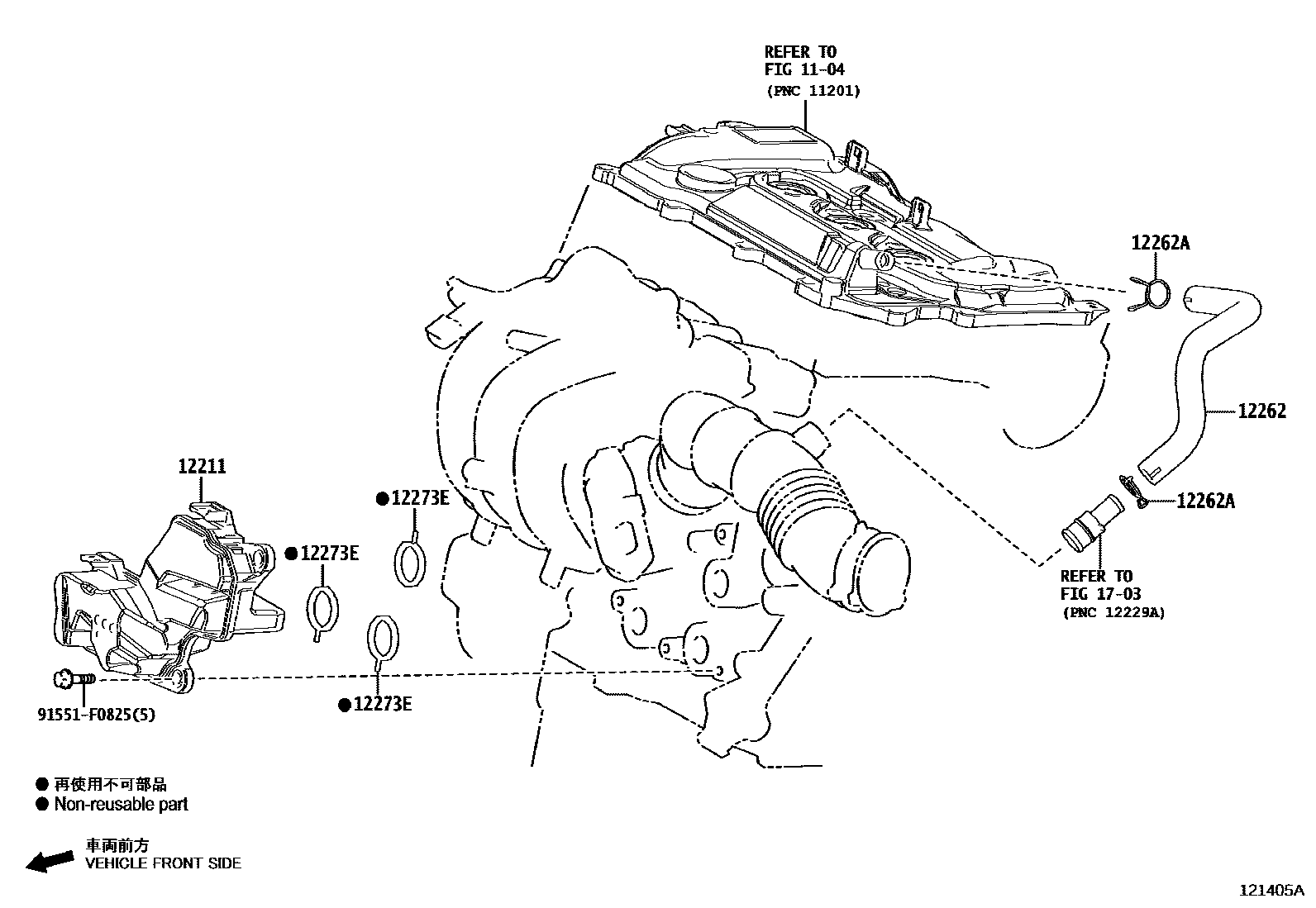

Toyota YARIS Ventilation Hose EPC diagram — 121405A
Ventilation Hose — 121405A (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-40040
12204AGasket (for ventilation system)90480-18016
12211Ventilation box No. 112211-15060 · 12211-15061
12260Ventilation hose assembly12260-40010
12261Ventilation Hose12261-40051
12261AClip or clip (for vent hose)90467-15120
12262Ventilation hose No. 212262-15100 · 12262-15110 · 12262-40040
12262AClamp (for vent hose No. 2)90467-21004
12263No. 3 ventilation hose12263-40030
12273EToyota part12273-15010
