Toyota YARIS Timing Gear Cover & Rear End Plate — Figure 1106

Toyota YARIS EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 15 PNC and OE references.

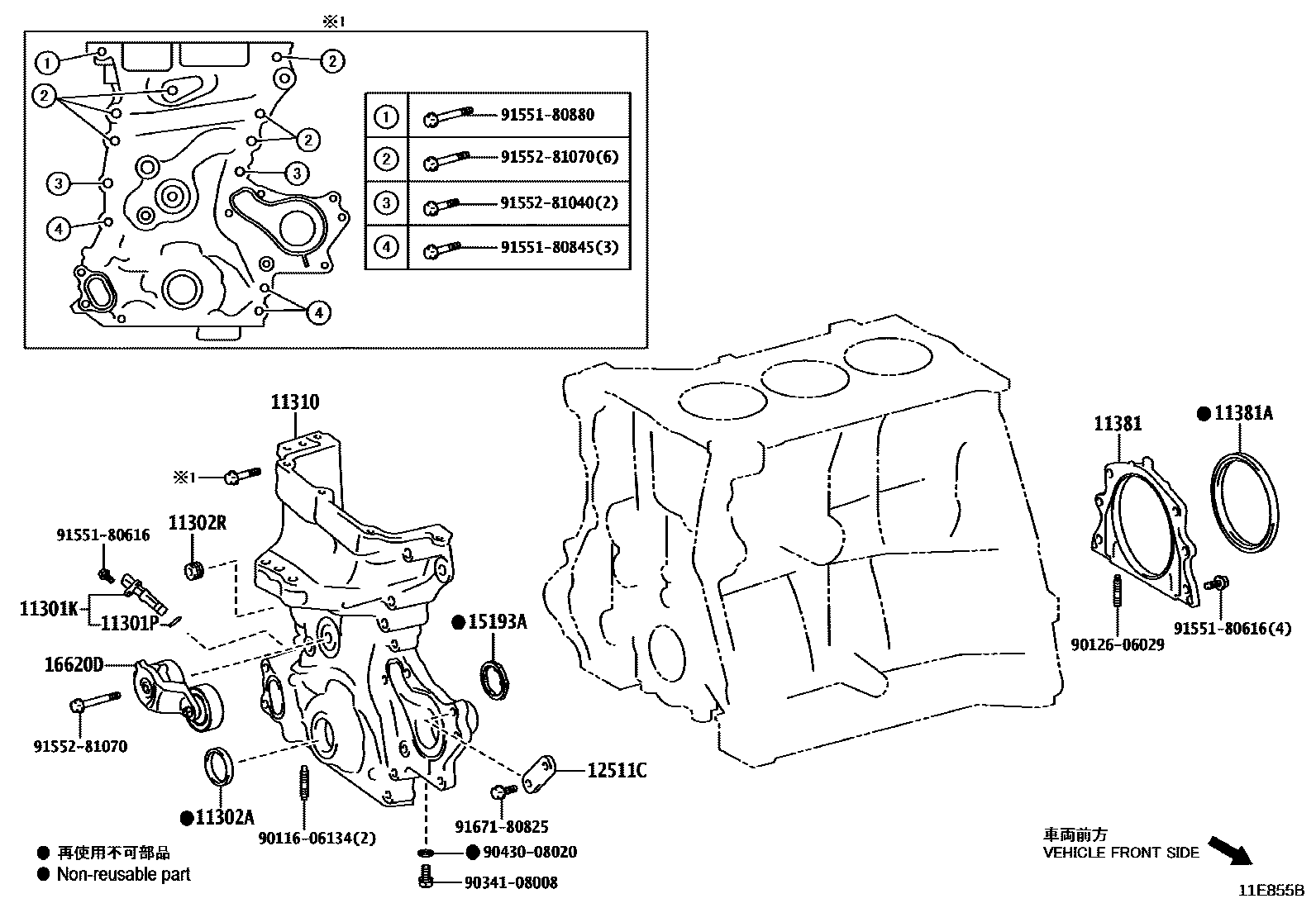

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11E855B
Timing Gear Cover & Rear End Plate — 11E855B (202002 – 999999)

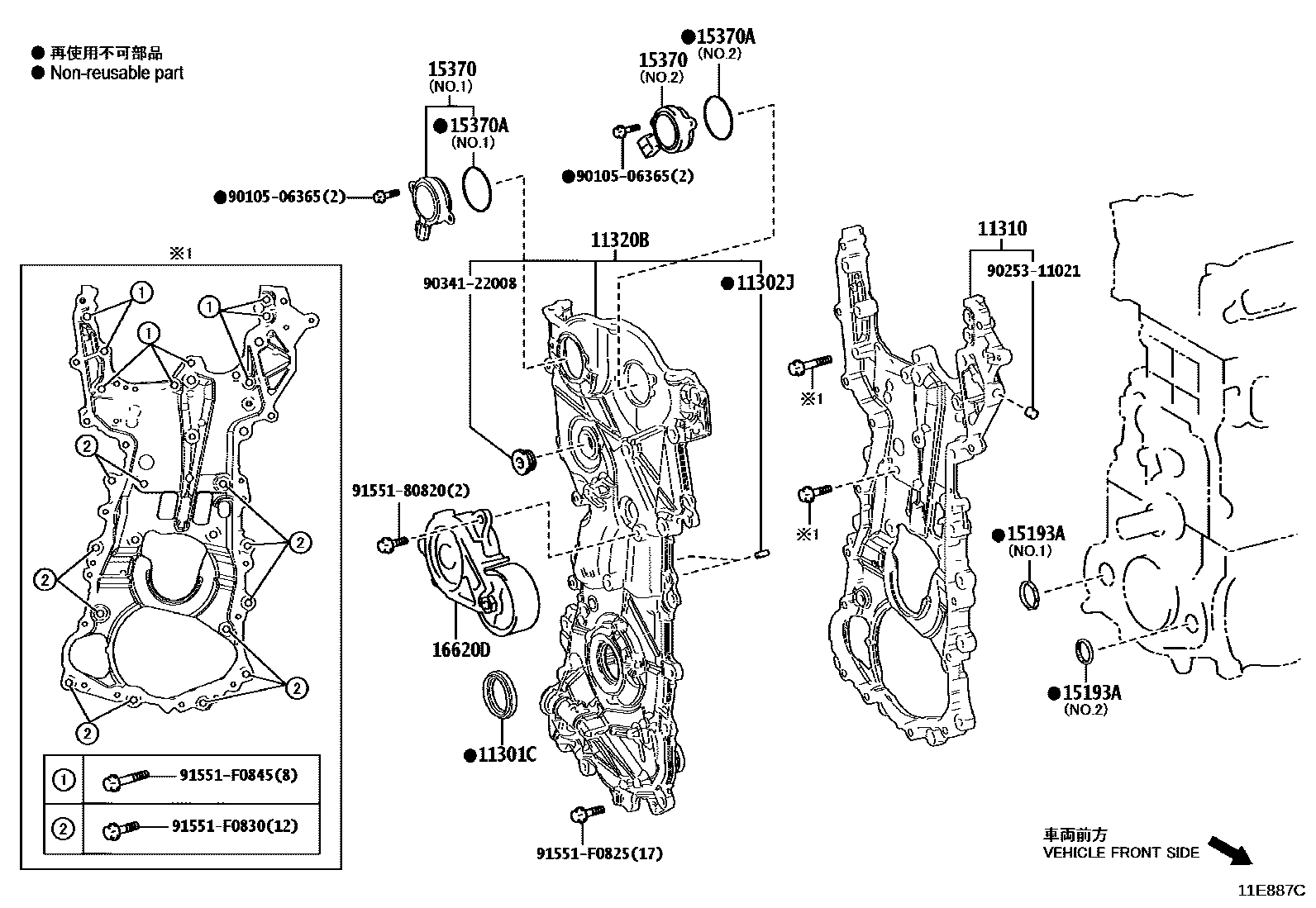

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11E887C
Timing Gear Cover & Rear End Plate — 11E887C (202002 – 999999)

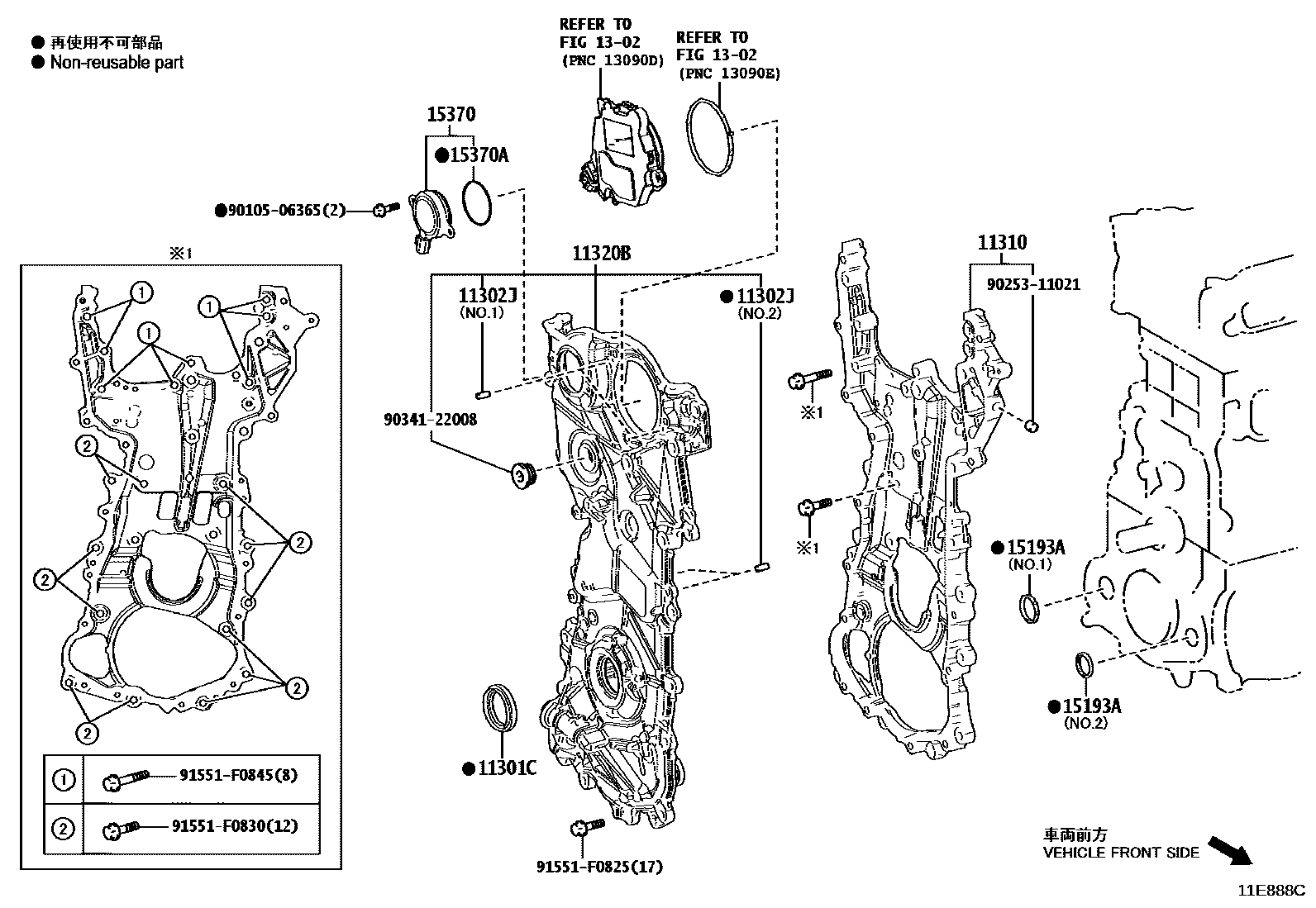

Toyota YARIS Timing Gear Cover & Rear End Plate EPC diagram — 11E888C
Timing Gear Cover & Rear End Plate — 11E888C (202002 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-40044
11301Kcrankshaft position sensor90919-05062
11301PToyota part90301-14016
11302AOil seal (for timing chain or timing belt cover)90311-38092
11302JDirect sales (for timing chain cover)90250-04097 · 90250-06003
11302RNo. 1 sealing plug (for timing gear cover)90344-53006
11310Toyota part11310-15010 · 11310-40070
11320BToyota part11320-15010 · 11320-15020 · 11320-15021
11381RETAINER, ENGINE REAR OIL SEAL11381-40030
11381ASEAL, ENGINE REAR OIL90311-73005
12511CGenerator bracket12511-40040
15193Aoil pump gasket15193-15010 · 15193-40010 · 15197-15040
15370Toyota part15370-25020 · 15370-36010
15370AToyota part90301-44006 · 90301-50003
16620DPoly V-belt tensioner assembly16620-24010 · 16620-24020 · 16620-24021 · 16620-40020 · 16620-40021
