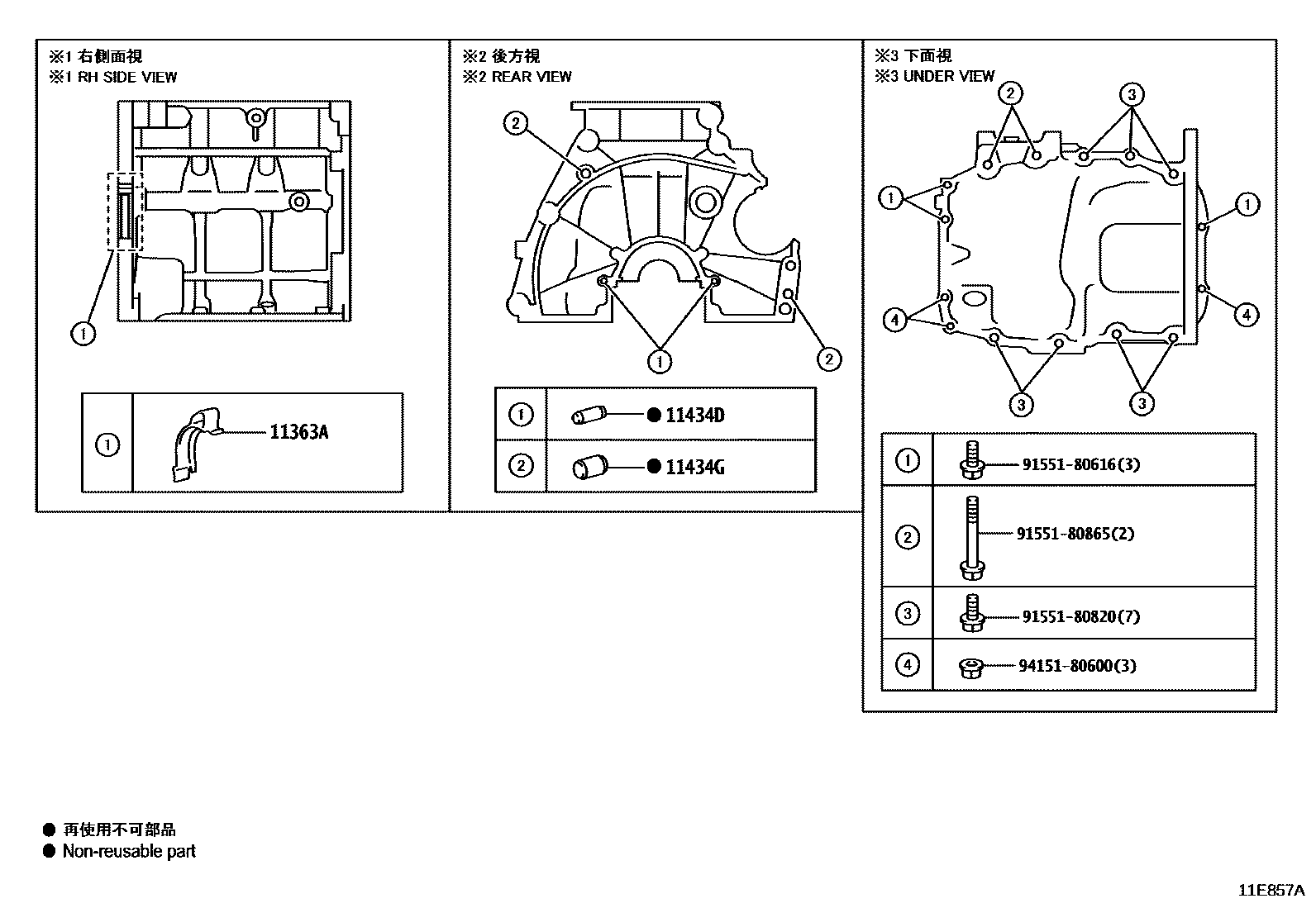

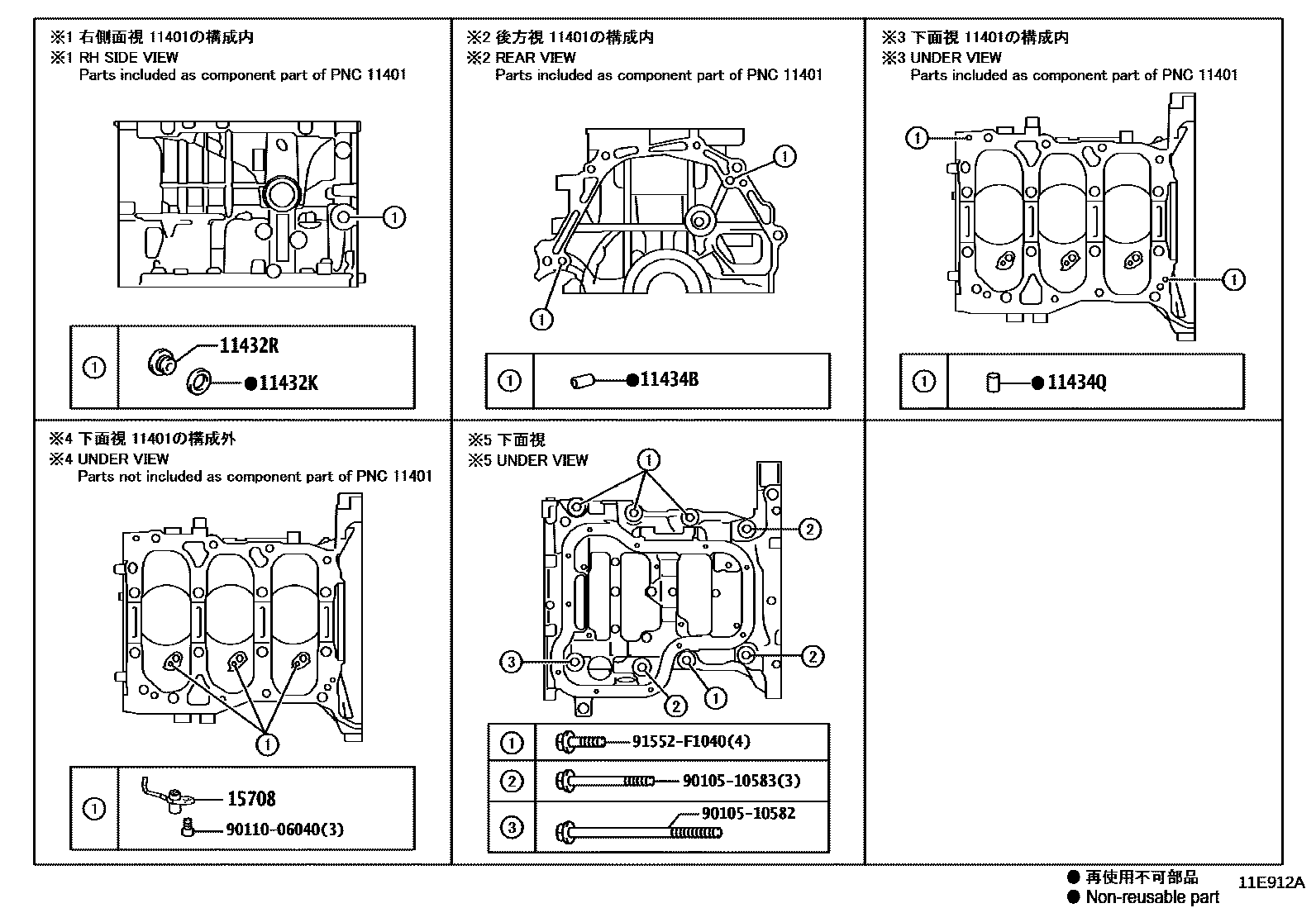

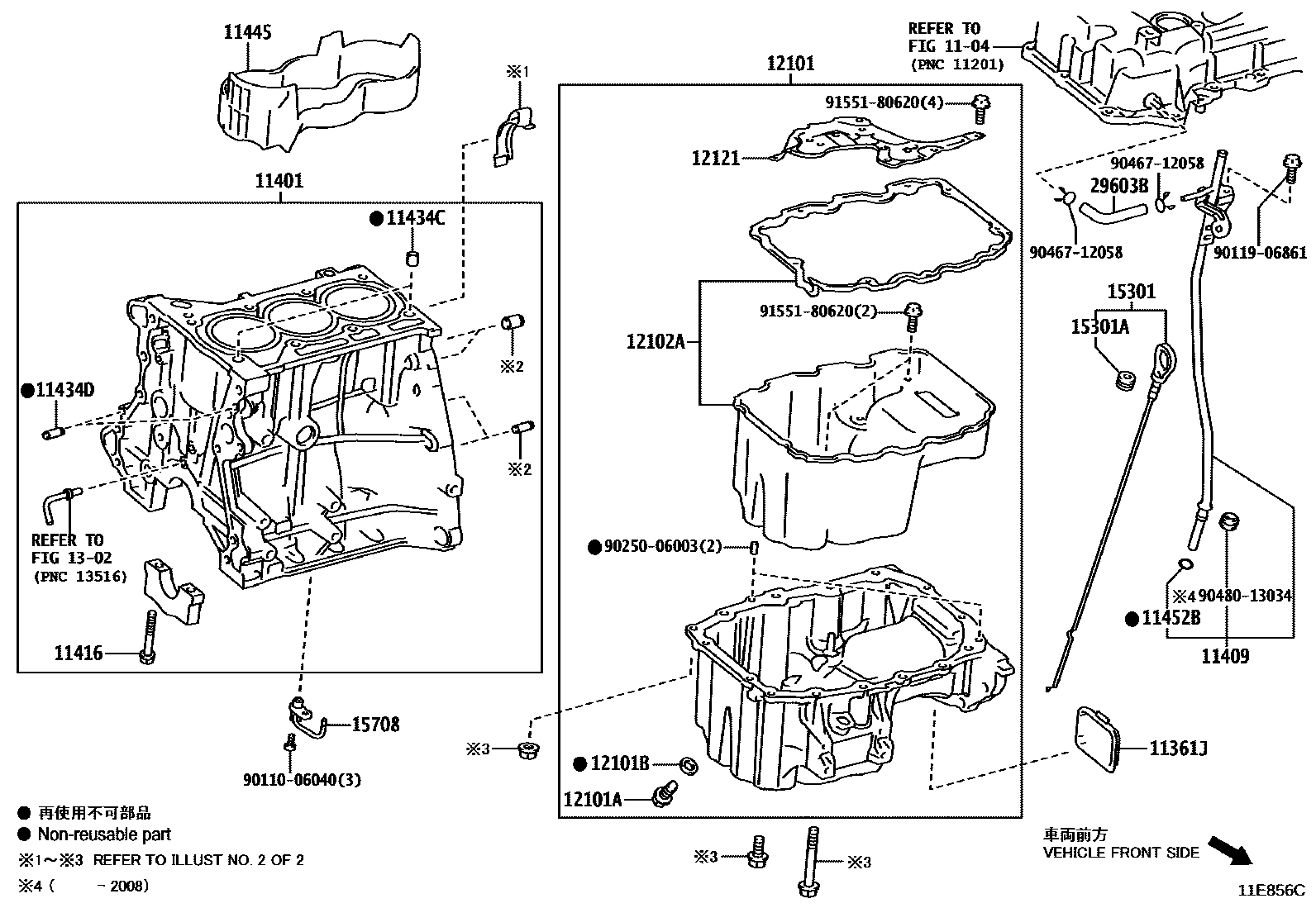

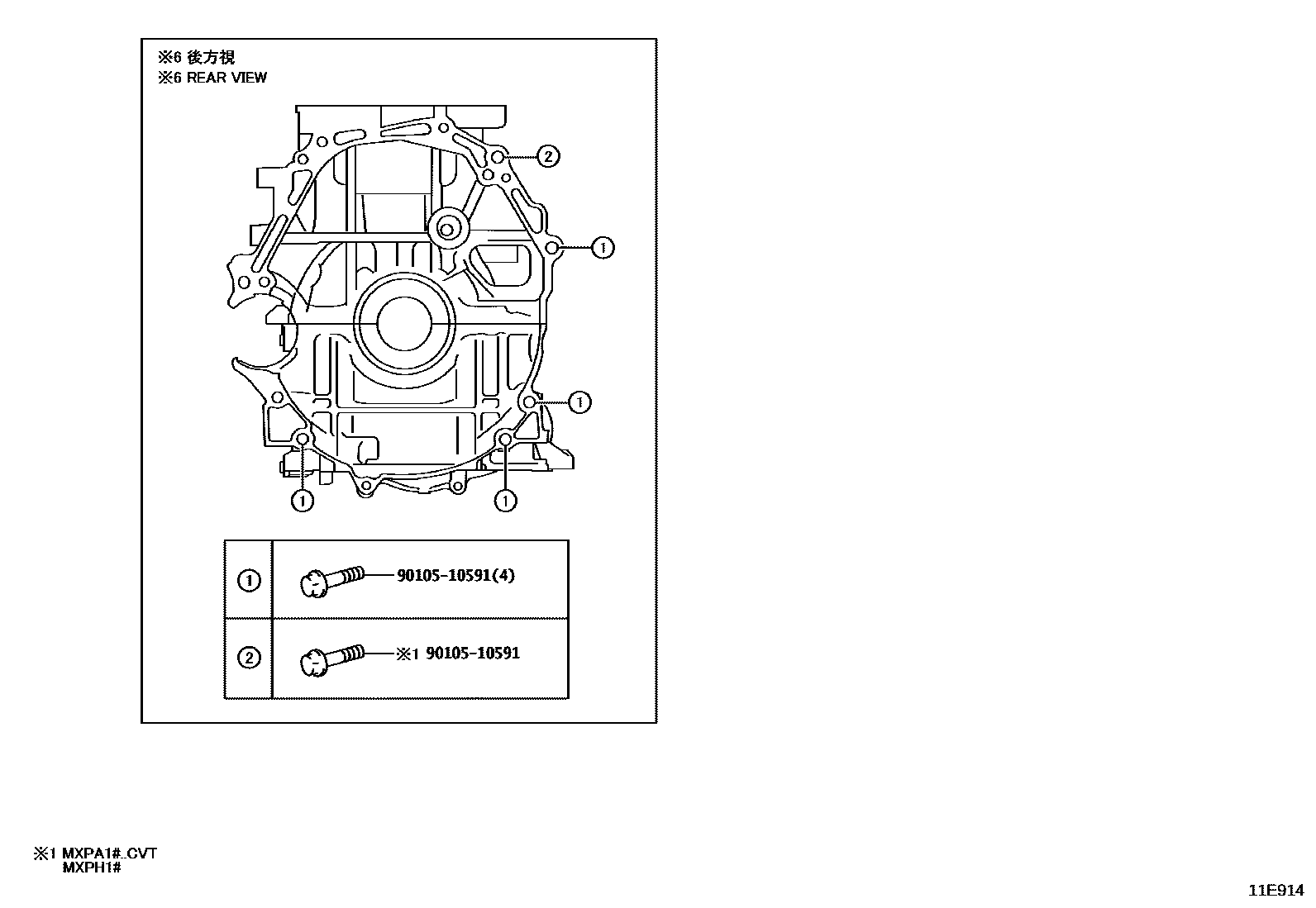

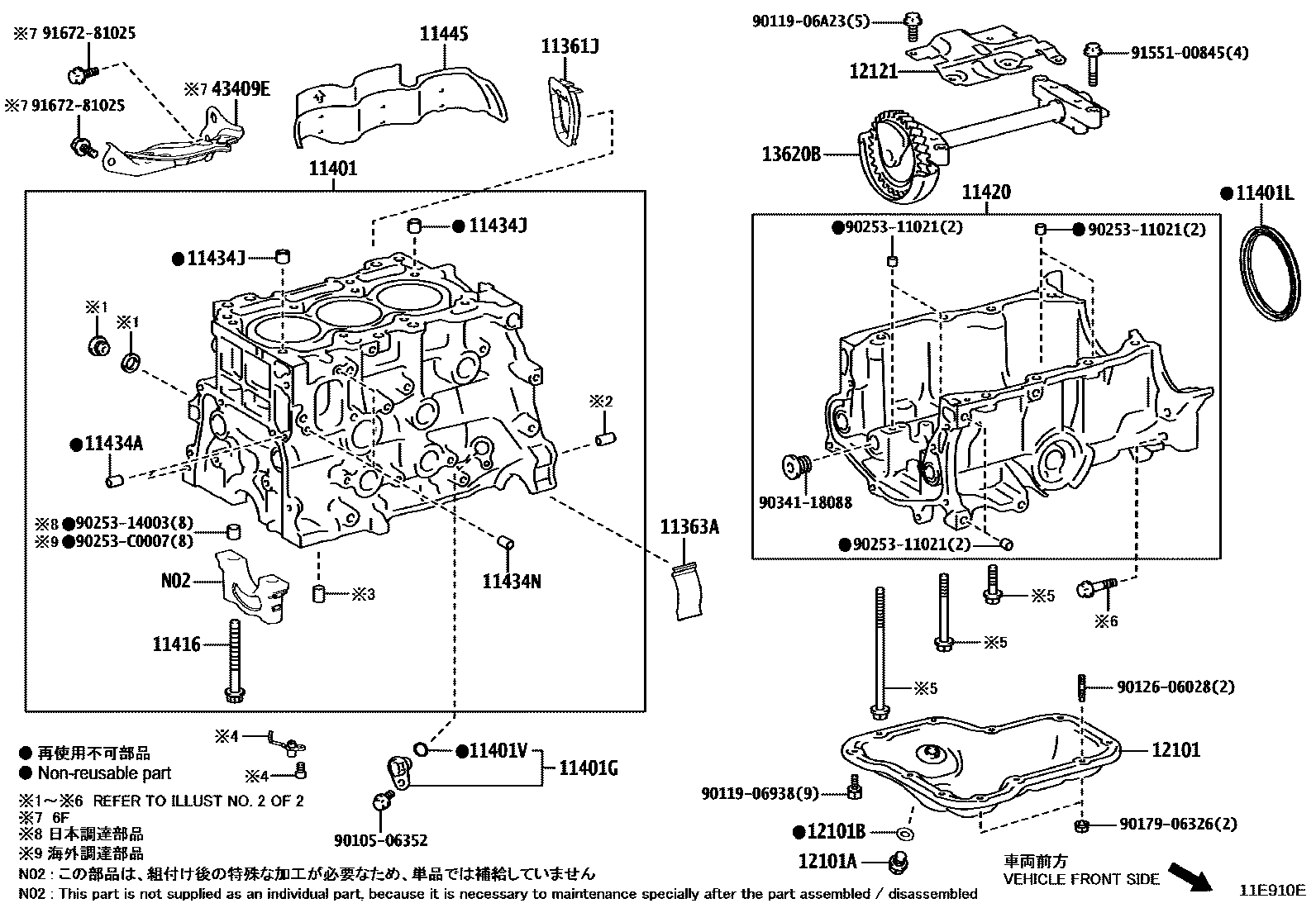

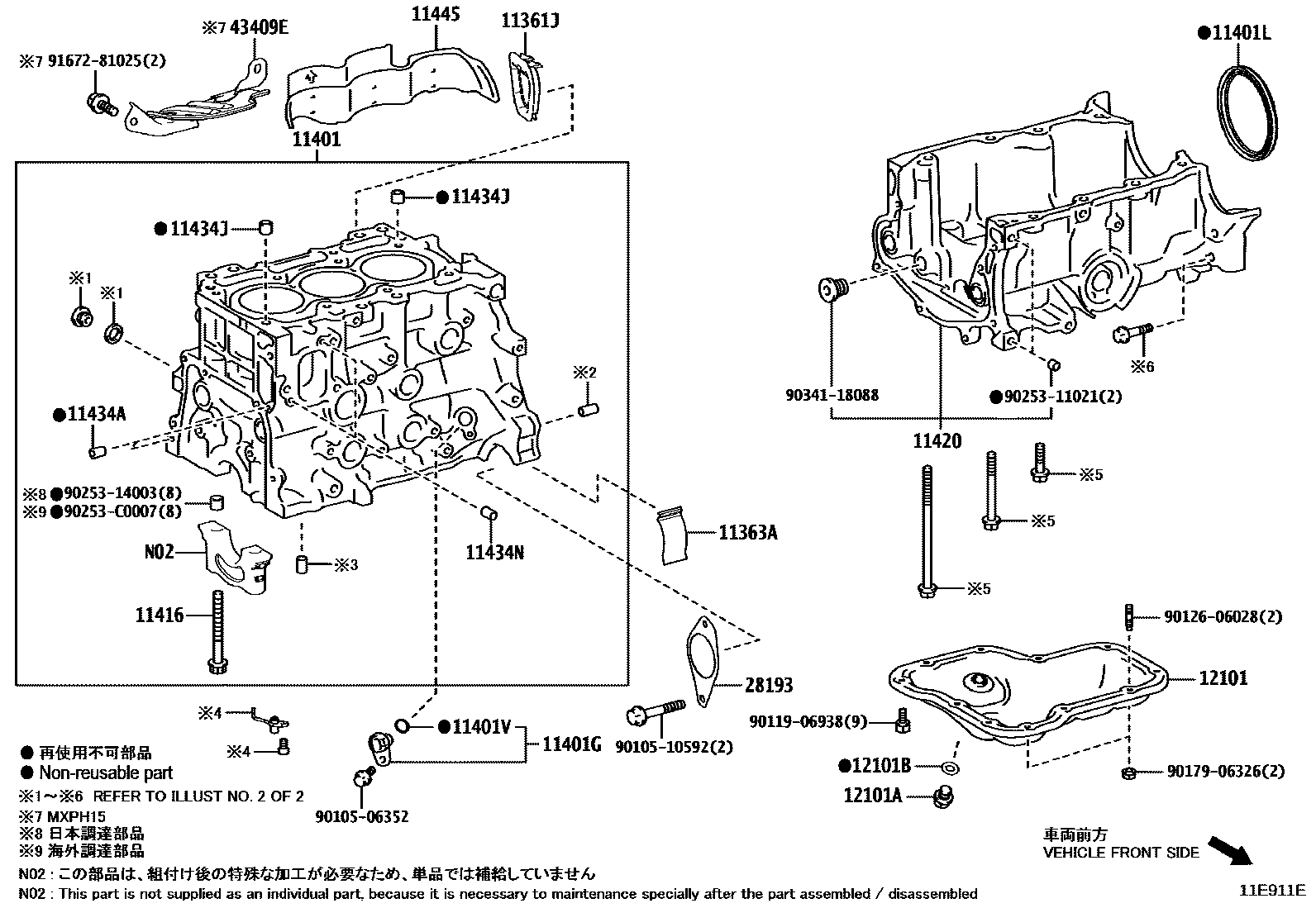

Toyota YARIS Cylinder Block — Figure 1105
Toyota YARIS EPC diagram 1105, Cylinder Block, with 7 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-23020 · 11361-25010 |
| 11363A | Flywheel housing side cover | 11363-15010 · 11363-40010 |
| 11401 | Cylinder block sub-assembly | 11401-40080 · 11410-19005 |
| 11401G | crankshaft position sensor | 90919-05095 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-90010 |
| 11401V | Toyota part | 90301-11039 |
| 11409 | Engine oil level gauge guide sub-assembly | 11409-40090 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10531 · 90910-02197 |
| 11420 | Reinforce crankcase assembly | 11420-15010 · 11420-15020 |
| 11432K | Headed straight thread plug liner | 90430-18008 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-18023 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-06003 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90253-12002 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 |
| 11434G | Direct sales (for end plates) | 90250-10232 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434N | Direct sales (for water inlet housing) | 90250-06003 |
| 11434Q | Direct sales (for crankcase) | 90250-06003 |
| 11445 | Cylinder block water jacket spacer | 11445-15010 · 11445-40021 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 12101 | Oil pan sub-assembly | 12101-40140 · 12102-15010 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12032 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-40010 · 12112-40011 |
| 12121 | No. 1 oil pan baffle | 12121-15050 · 12121-40070 |
| 13620B | Engine balancer assembly | 13620-15010 |
| 15301 | Engine oil level scoring assembly | 15301-40110 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-15010 · 15708-40010 |
| 28193 | Starter hole vibration isolation pad | 28193-25010 |
| 29603B | Oil hose (for oil level gauge conduit) | 29603-40010 |
| 43409E | Toyota part | 43409-K0030 · 43409-K0040 |
