Toyota YARIS Standard Tools — Figure 0901

Toyota YARIS EPC diagram 0901, Standard Tools, with 2 images and 20 PNC and OE references.

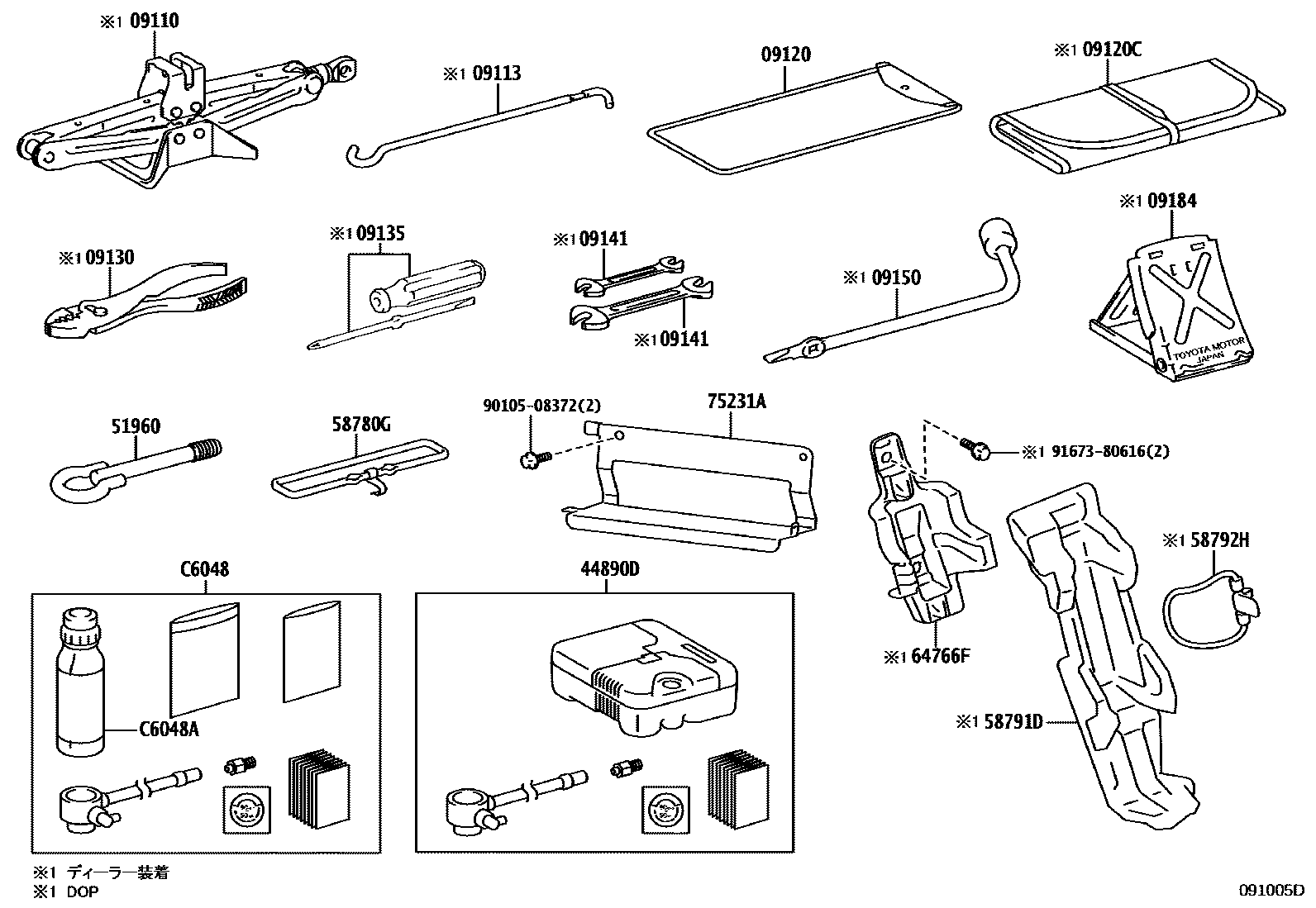

Toyota YARIS Standard Tools EPC diagram — 091005D
Standard Tools — 091005D (202002 – 999999)

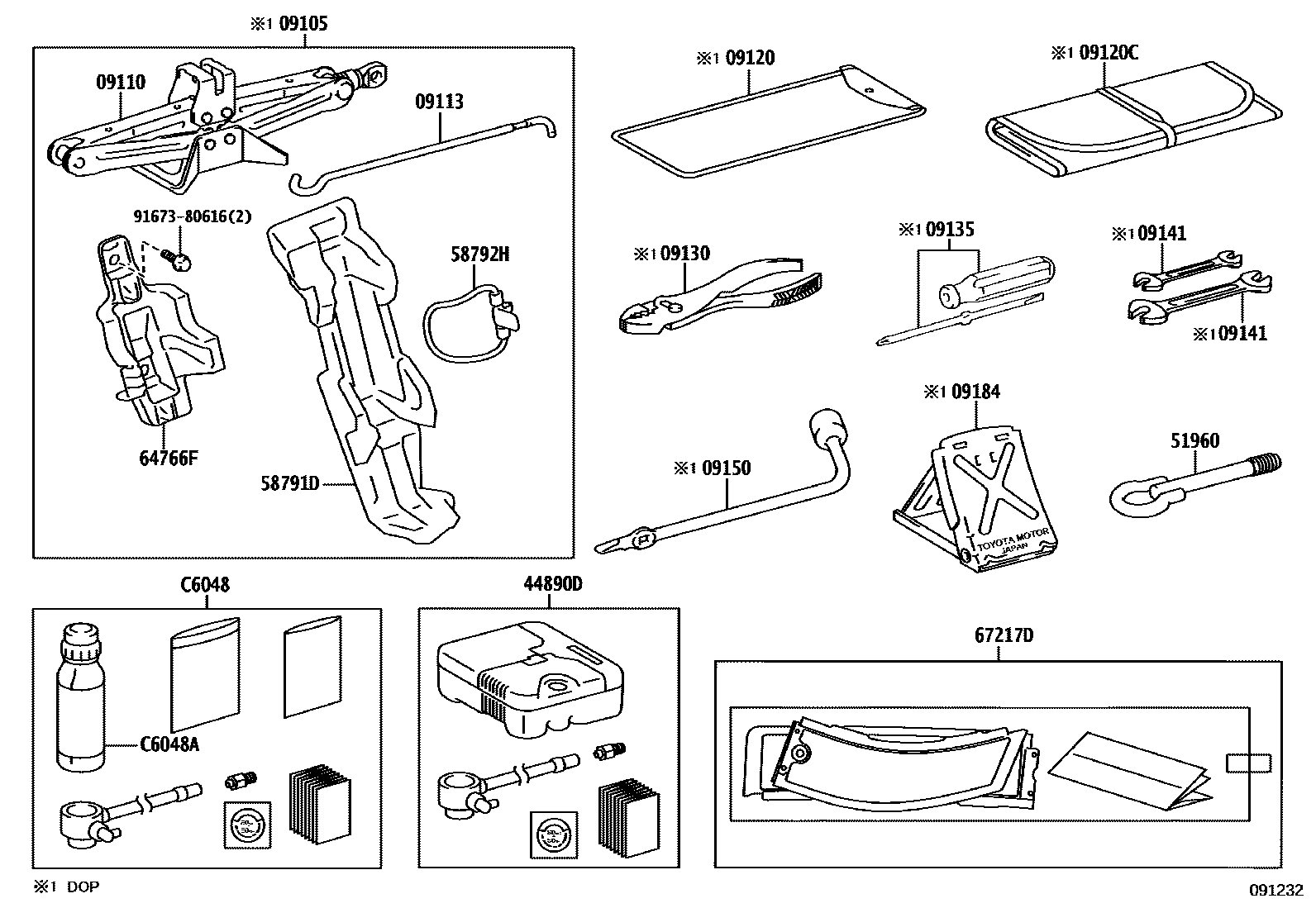

Toyota YARIS Standard Tools EPC diagram — 091232
Standard Tools — 091232 (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
09105Toyota part09105-52010
09110Jack Assembly09111-K0040
09113Jack Handle09113-42030
09120Tool Bag09120-37030
09120CToyota part09120-16030
09130Pliers99913-11500
09135Screwdriver99915-10700
09141Wrench99914-10810 · 99914-11214
09150Wheel Nut Wrench09150-42010
09184Wheel Chock09184-00010
44890DAir Compressor Assembly44890-K0010 · 44890-K0011
51960Front Towing Hook Assembly51960-10010
58780GToyota part58780-52010
58791Djack bracket58791-K0040
58792HToyota part58792-K0010
64766FToyota part64766-K0040
67217DToyota part67217-52060
75231AToyota part75231-52030
C6048Tire Repair Kit42683-K0010
C6048ATire Repair SealantC6048-K0010
