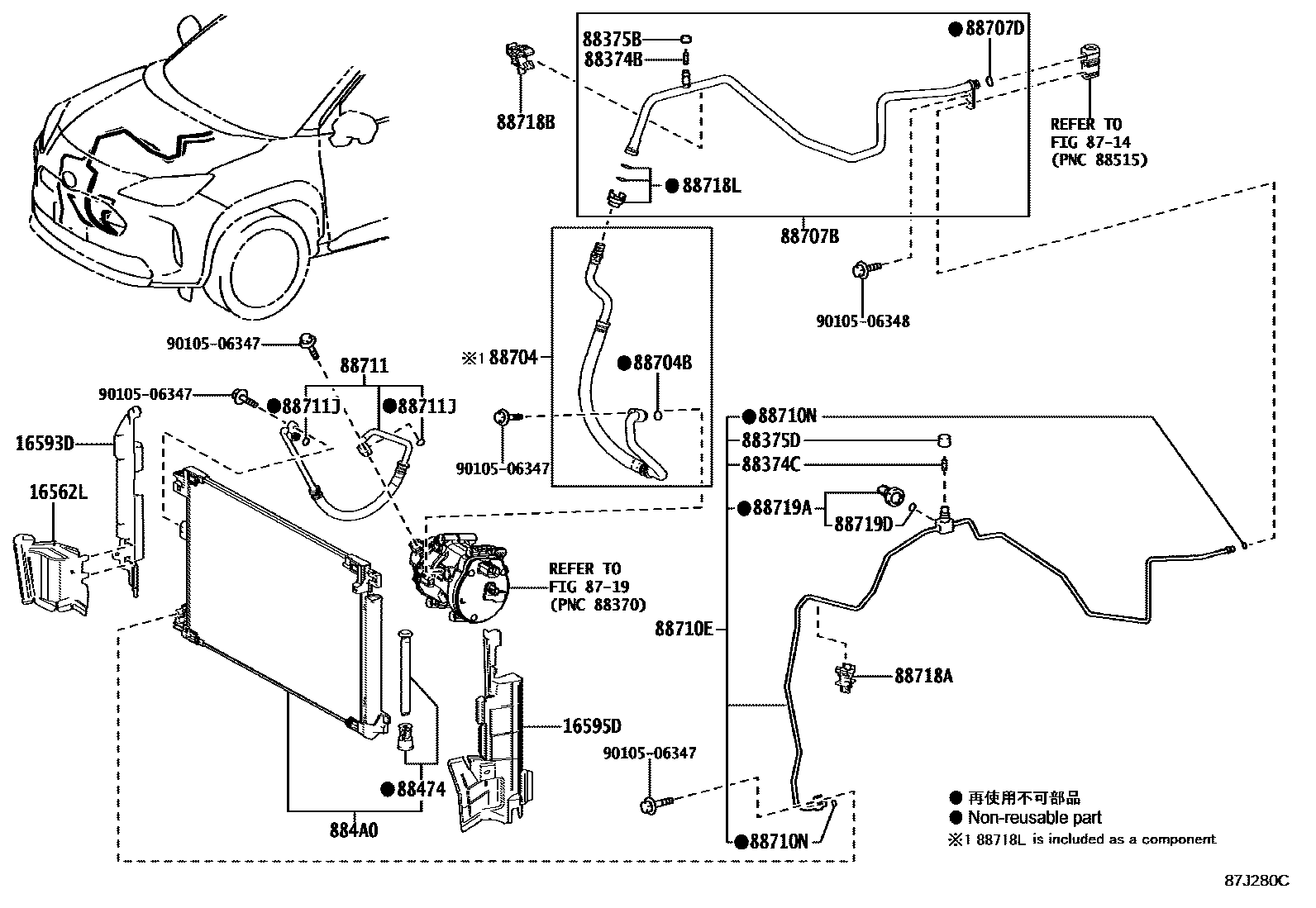

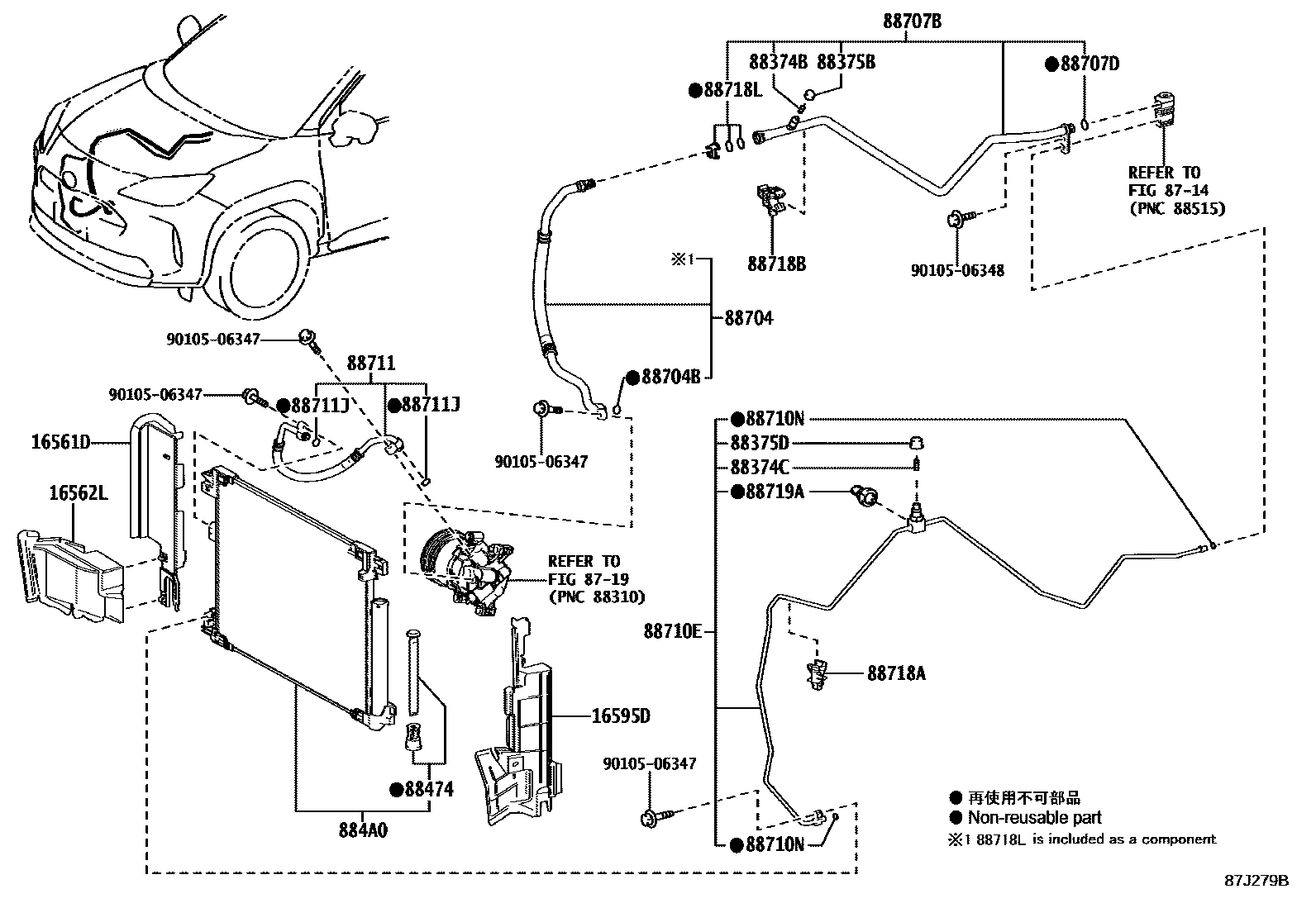

Toyota YARIS Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota YARIS EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16561D | Seal No. 1 (radiator to bracket) | 16561-15010 |
| 16562L | Seal No. 2 (radiator to bracket) | 16562-15010 · 16562-15020 |
| 16593D | No. 1 radiator right deflector | 16593-15010 |
| 16595D | No. 1 radiator left deflector | 16595-15010 |
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 · 88375-30310 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 · 88375-30320 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 |
| 884A0 | Air conditioning condenser assembly | 884A0-52010 · 884A0-52020 |
| 88704 | Oil suction hose sub-assembly | 88704-K0050 · 88704-K0060 |
| 88704B | O-ring (for suction hose) | 90099-14121 |
| 88707B | Suction pipe B sub-assembly | 88707-52410 · 88707-52420 · 88707-K0110 · 88707-K0121 |
| 88707D | O-ring (for suction pipe) | 90099-14121 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-52280 · 88710-52290 · 88710-K0240 · 88710-K0251 |
| 88710N | No. 1 O-ring (for air conditioning pipe and accessory assembly) | 90099-14119 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-K0060 · 88711-K0070 |
| 88711J | No. 1 O-ring (for drain hose) | 90099-14120 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-1A870 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-K0020 |
| 88718L | Pipe clamp | 88718-52280 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
| 88719D | O-ring (for air conditioning pressure sensor) | 90099-14122 |
