Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714

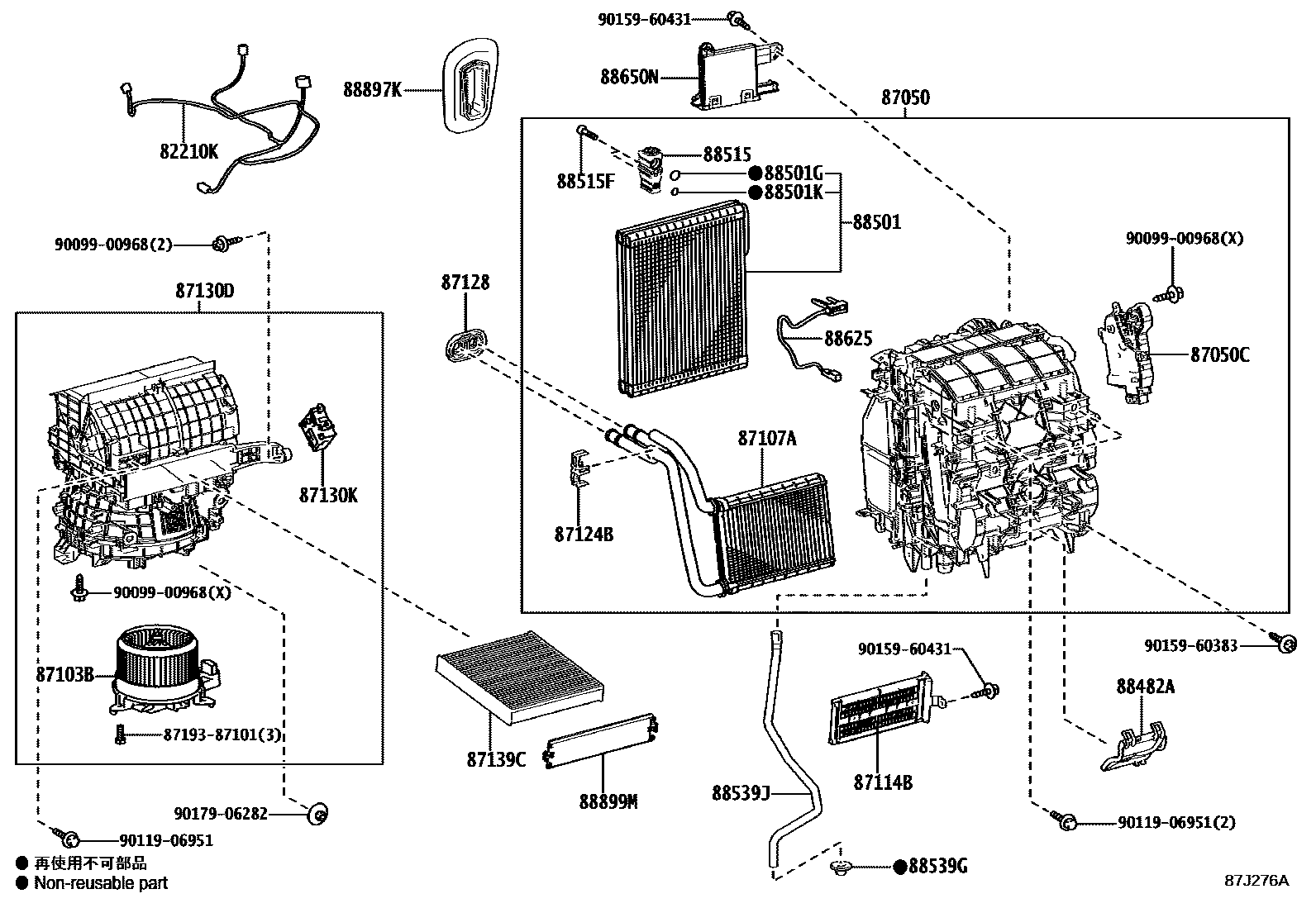

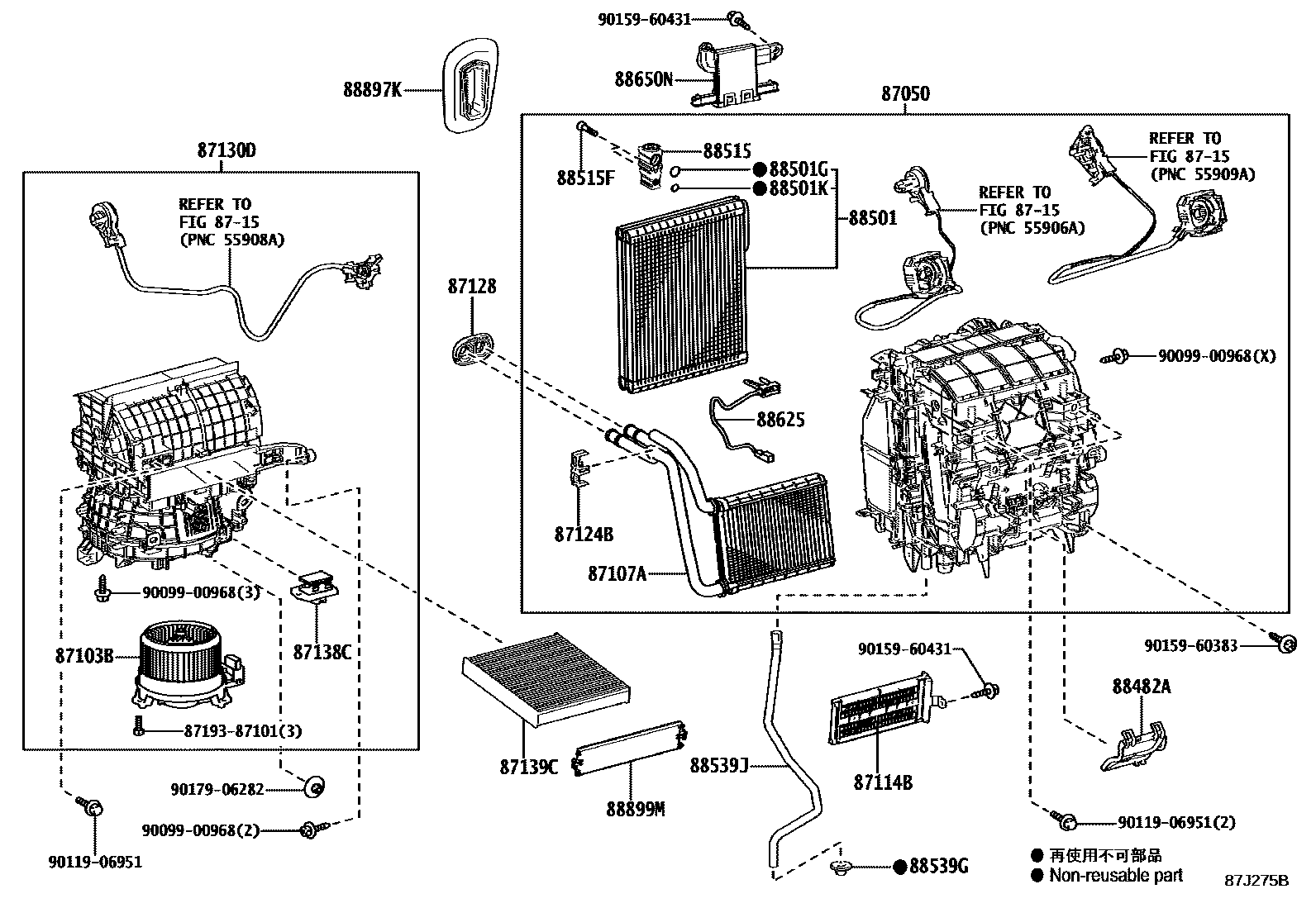

Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-K0030 |
| 87050 | Air conditioning radiator assembly | 87050-52680 · 87050-52760 · 87050-52770 · 87050-52780 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-42230 |
| 87103B | Blower motor sub-assembly with fan | 87103-52170 · 87103-52270 · 87103-52290 · 87103-K0090 |
| 87107A | Heater radiator device sub-assembly | 87107-K0030 |
| 87114B | heater cover | 87114-K0060 |
| 87124B | heater clip | 87124-33070 |
| 87128 | heater seal | 87128-28010 |
| 87130D | Blower assembly | 87130-52250 · 87130-52310 · 87130-K0080 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-52200 |
| 87138C | Blower resistor | 87138-52030 |
| 87139C | air purification filter | 87139-28020 · 87139-58010 |
| 88482A | cover | 87114-K0070 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-52150 · 88501-52160 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90099-14121 |
| 88501K | No. 1 cooler evaporator O-ring (liquid) | 90099-14120 |
| 88515 | Cooler expansion valve | 88515-48110 · 88515-52130 |
| 88515F | Bolt (for cooler expansion valve) | 90099-04542 |
| 88539G | Seal (for cooler unit drain hose) | 88888-47010 |
| 88539J | Cooler drain hose | 88539-K0030 |
| 88625 | Cooler No. 1 Thermistor | 88620-28050 |
| 88650N | Air conditioning amplifier assembly | 88650-52E90 · 88650-52F60 · 88650-52F80 · 88650-K0040 |
| 88897K | Seals (for cooler tubes) | 88899-K0020 |
| 88899M | cover (for air cleaner) | 88899-47120 |
