Toyota YARIS 预碰撞安全系统 — Figure 8617

Toyota YARIS EPC diagram 8617, 预碰撞安全系统, with 2 images and 5 PNC and OE references.

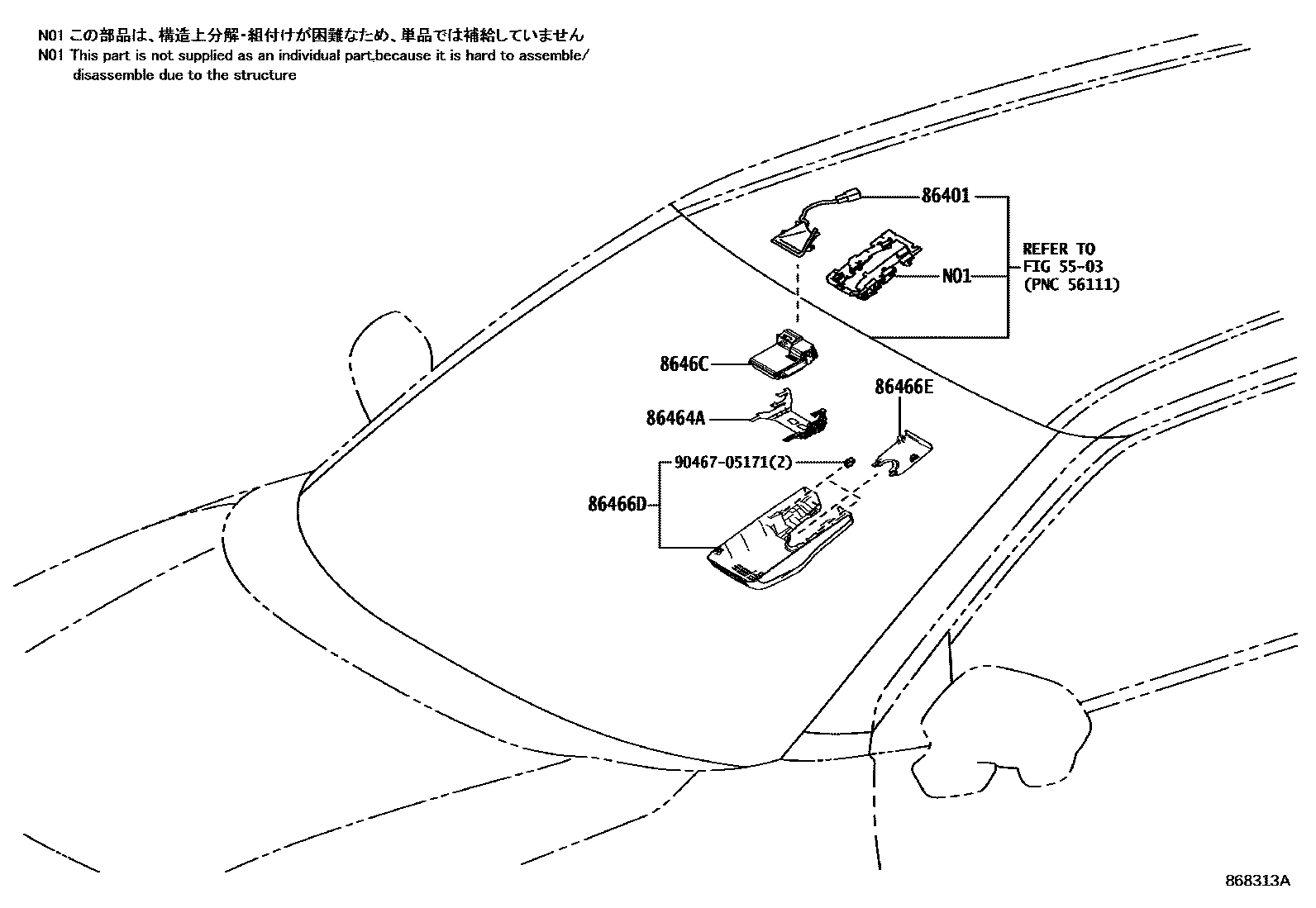

Toyota YARIS 预碰撞安全系统 EPC diagram — 868313A
预碰撞安全系统 — 868313A (202008 – 202401)

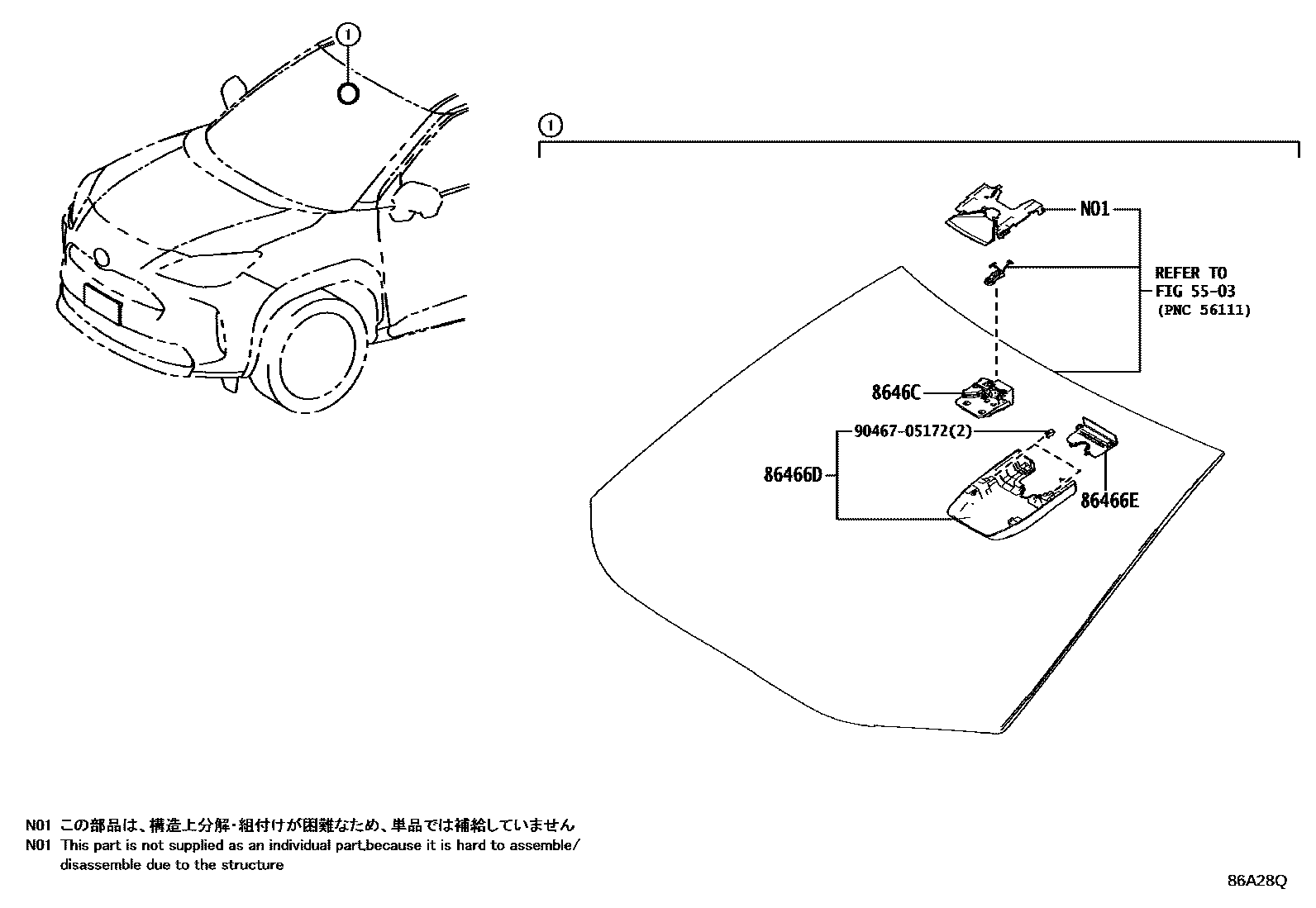

Toyota YARIS 预碰撞安全系统 EPC diagram — 86A28Q
预碰撞安全系统 — 86A28Q (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
86401Front identification hood sub-assembly with heater86401-K0010
86464AFront identification lock86464-K0010
86466DFront identification cover No. 186466-52200 · 86466-K0010
86466EFront identification cover No. 286466-K0020 · 86467-52080
8646Cfront recognition camera8646C-0D010 · 8646C-52050 · 8646C-52290
