Toyota YARIS 车载电话和呼救装置 — Figure 8615

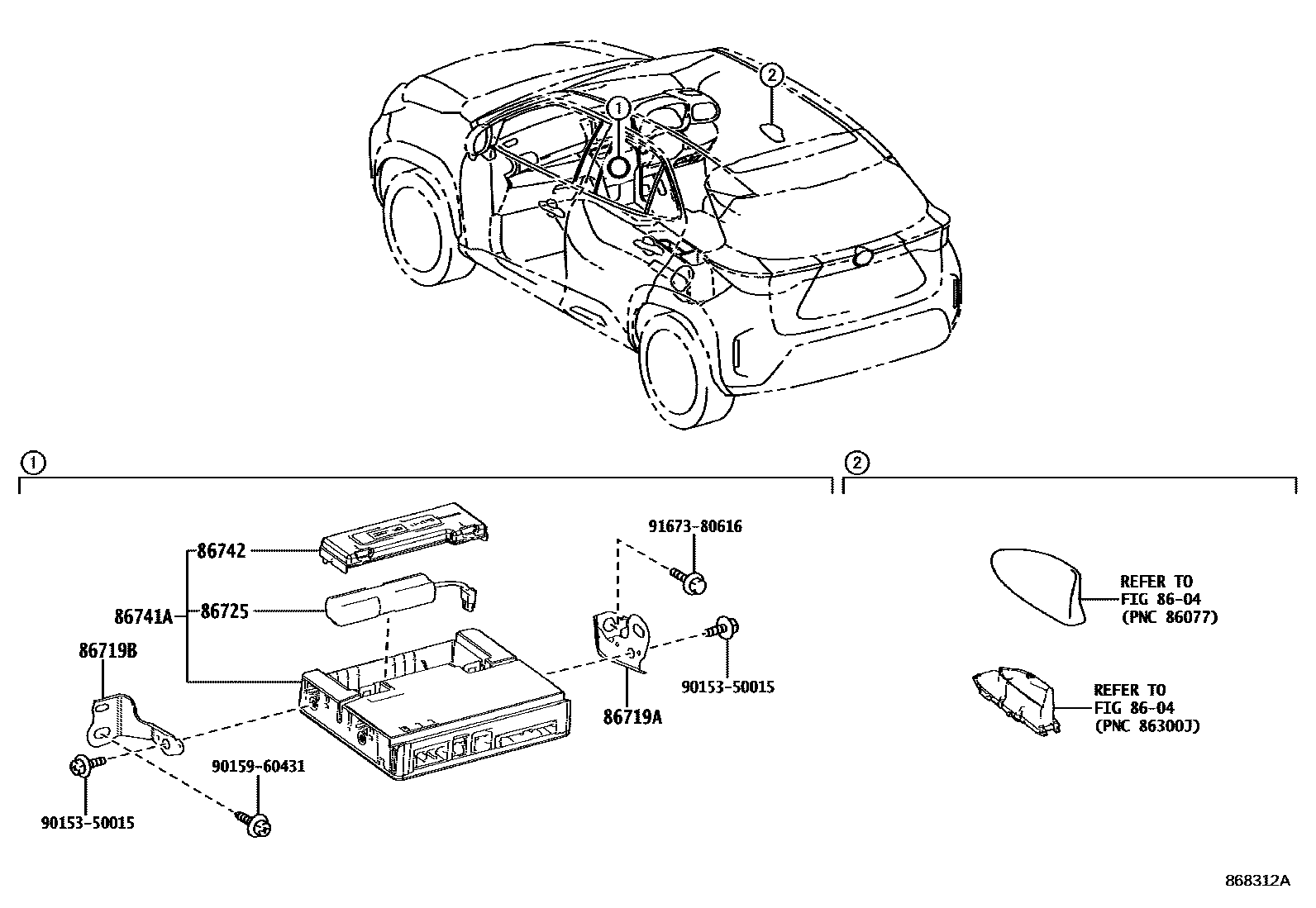

Toyota YARIS EPC diagram 8615, 车载电话和呼救装置, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86719A | Phone holder No. 1 | 86719-K0010 |
| 86719B | Phone holder No. 2 | 86719-K0020 |
| 86725 | mobile phone battery | 86725-78010 · 86725-78011 |
| 86741A | Telecommunications transceiver | 86741-52041 · 86741-78150 · 86741-78152 |
| 86742 | transceiver cover | 86742-0D020 |
