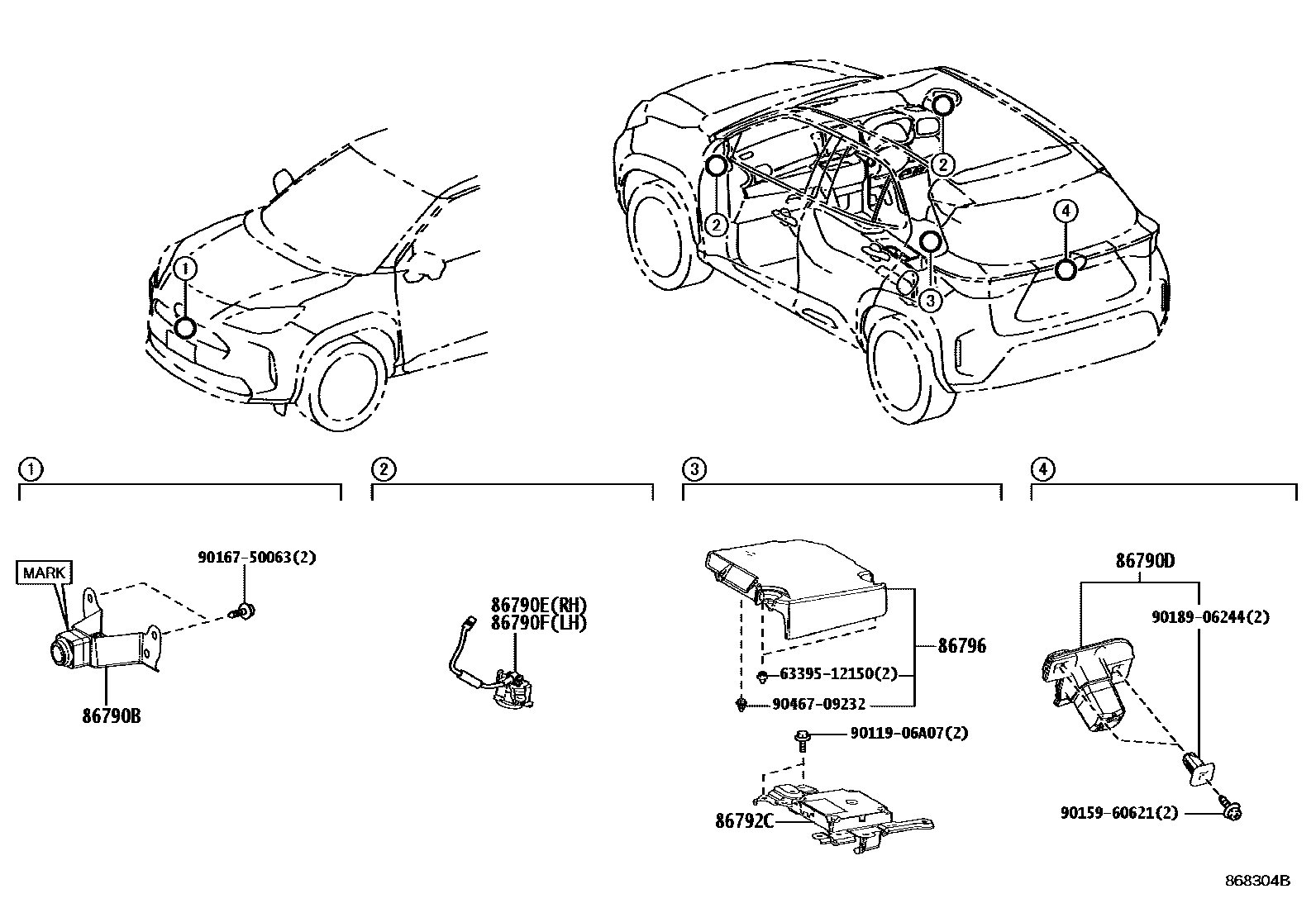

Toyota YARIS 倒车影像和摄像头 — Figure 8606
Toyota YARIS EPC diagram 8606, 倒车影像和摄像头, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-52290 · 86790-52291 · 86790-52750 |
| 86790D | Rear reversing image camera assembly | 86790-52280 · 86790-52730 · 867B0-52010 · 867B0-52130 |
| 86790E | Right image camera assembly | 86790-52450 · 86790-52451 · 86790-52780 |
| 86790F | Left image camera assembly | 86790-52440 · 86790-52441 · 86790-52770 |
| 86792C | Parking assist ECU | 86792-52110 · 86792-52111 · 86792-52410 |
| 86796 | Parking assist ECU cover | 86796-K0010 |
