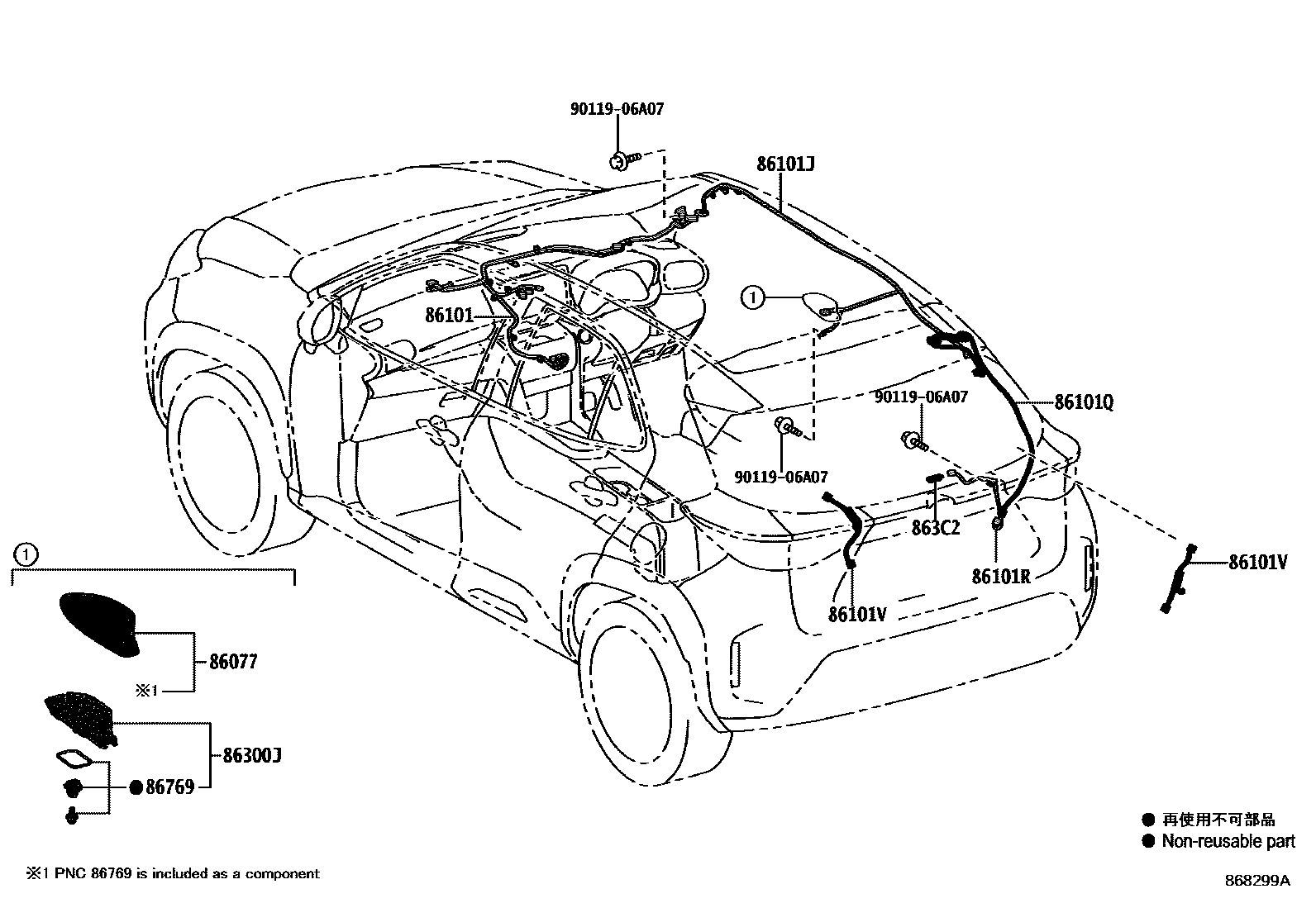

Toyota YARIS antenna — Figure 8604
Toyota YARIS EPC diagram 8604, antenna, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-52D40 · 86101-52D60 · 86101-52R50 · 86101-52R60 · 86101-52R70 · 86101-K0750 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-52C40 · 86101-52C41 · 86101-52D20 · 86101-52J80 · 86101-52J81 · 86101-52Q30 · 86101-52Q40 · 86101-52Q60 |
| 86101Q | No. 4 antenna wire sub-assembly | 86101-52D90 |
| 86101R | No. 5 antenna wire sub-assembly | 86101-52F30 |
| 86101V | No. 6 antenna wire sub-assembly | 86101-52G30 · 86101-52G31 |
| 86300J | Roof antenna assembly | 86760-16010 · 86760-52020 |
| 863C2 | Digital audio broadcasting receiver antenna base | 863C2-60010 |
| 86769 | roof radome | 86769-K0010 |
