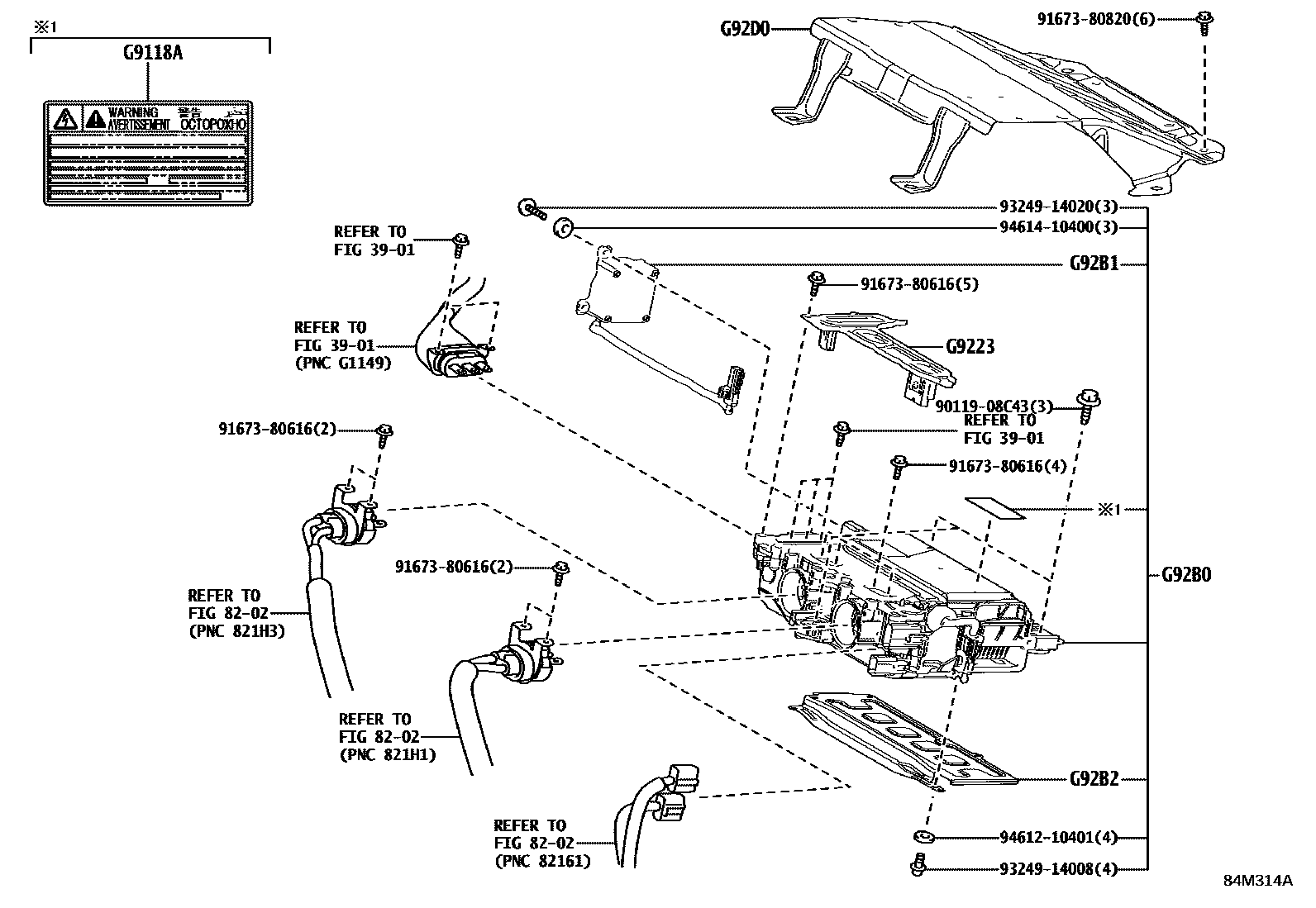

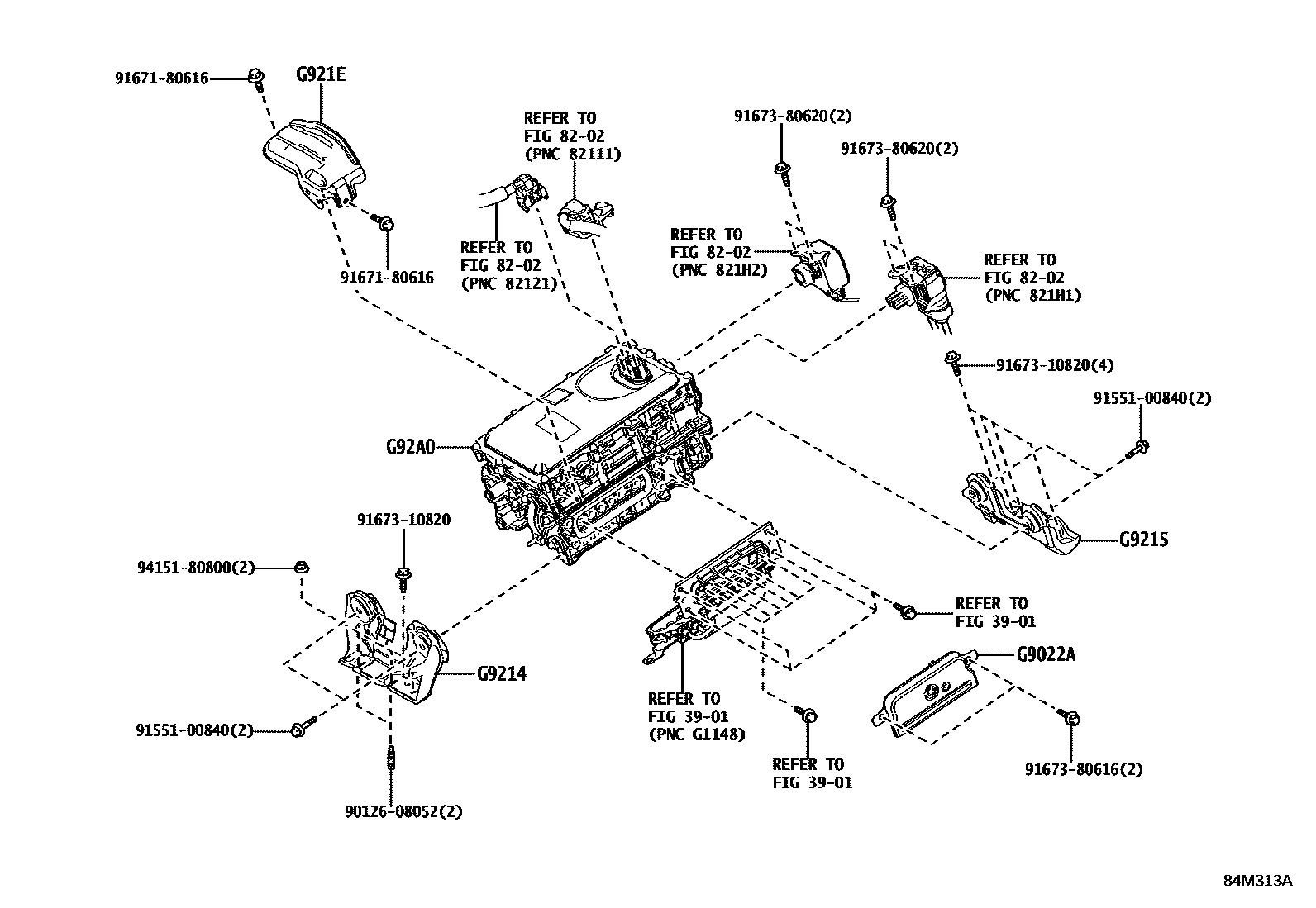

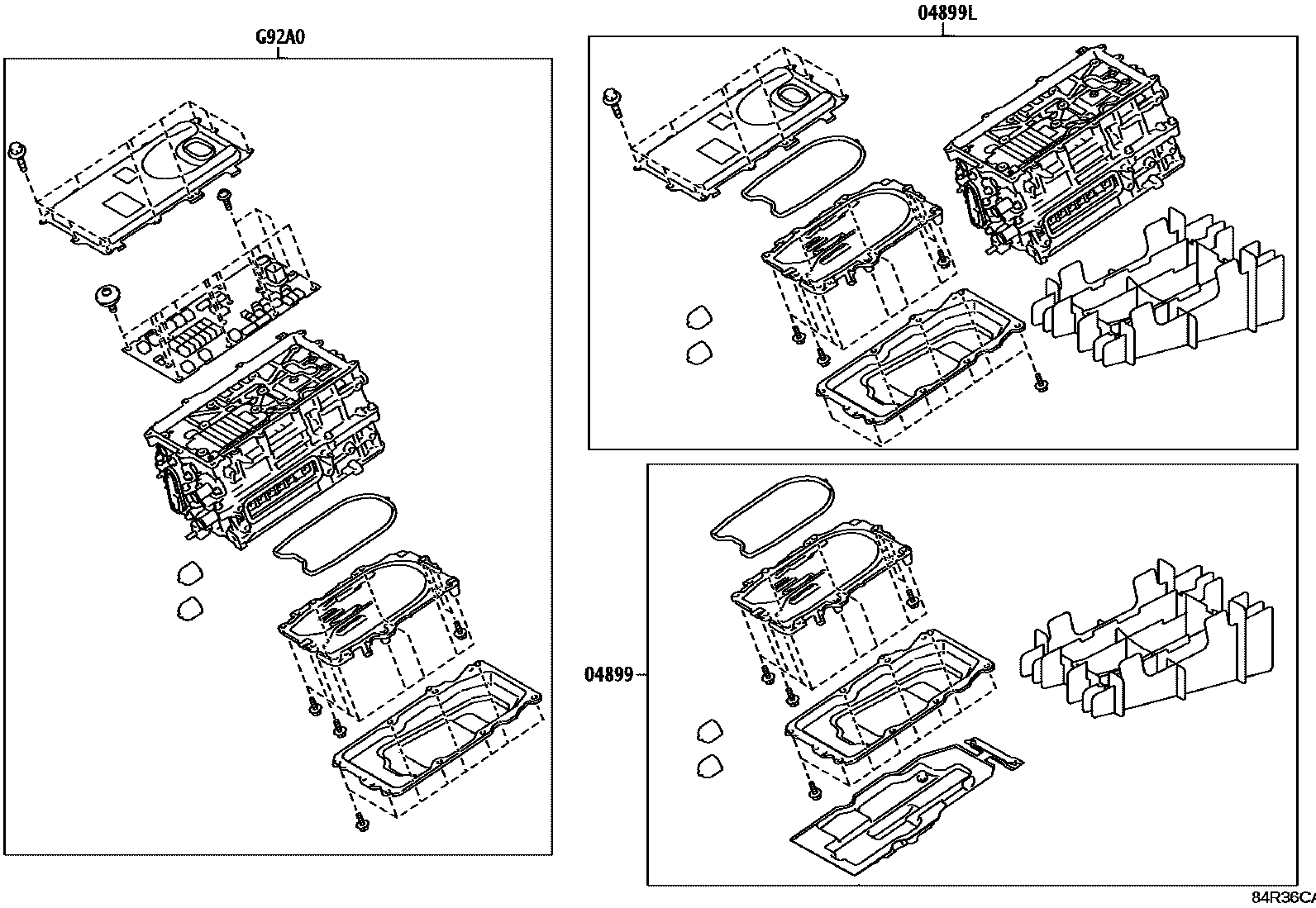

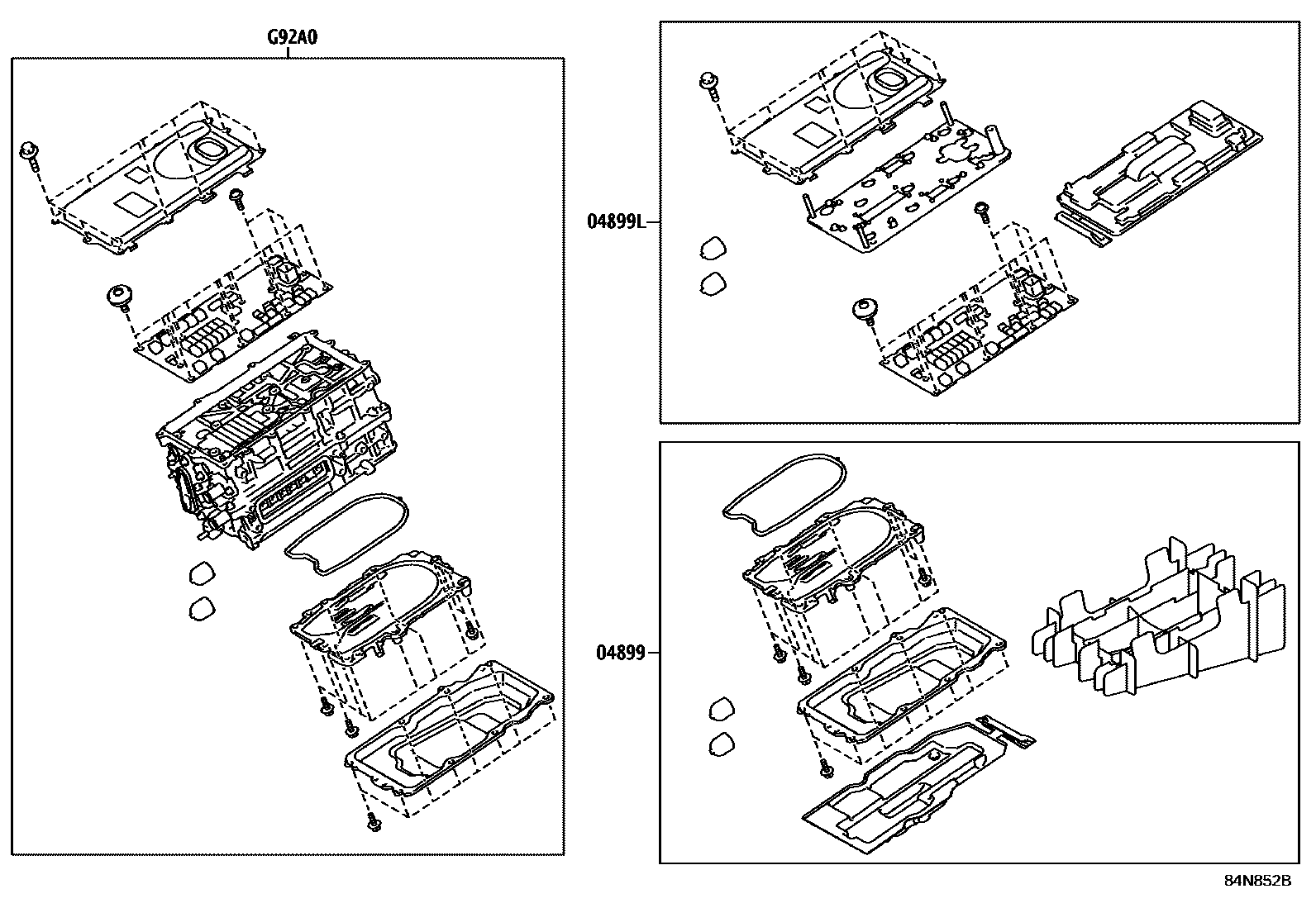

Toyota YARIS HEV 逆变器 — Figure 8431
Toyota YARIS EPC diagram 8431, HEV 逆变器, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04899 | HV converter components | 04899-K0030 · 04899-K2030 |
| 04899L | Motor generator control ECU component | 04899-52050 · 04899-52060 · 04899-K2010 · 04899-K2011 · 04899-K2012 · 04899-K2020 · 04899-K2021 · 04899-K2022 |
| G9022A | Inverter upper cover sub-assembly | G9022-47050 |
| G9118A | HV Motor Control Inverter Warning Labels | G9118-76010 |
| G9214 | No. 1 inverter bracket | G9214-K0010 |
| G9215 | No. 2 inverter bracket | G9215-K0010 |
| G921E | Inverter protection device | G921E-K0010 |
| G9223 | Inverter terminal cover | G9223-47030 |
| G92A0 | Hybrid motor control inverter assembly | G92A0-52150 · G92A0-52160 · G92A0-52170 · G92A0-52180 · G92A0-52181 · G92A0-K2010 · G92A0-K2011 · G92A0-K2020 · G92A0-K2021 |
| G92B0 | Rear HV motor control inverter assembly | G92B0-52010 · G92B0-52011 · G92B0-52012 · G92B0-K0010 |
| G92B1 | HV inverter cooling fan | G92B1-47010 |
| G92B2 | HV inverter cooling unit cover | G92B2-47010 |
| G92D0 | HV inverter protection device assembly | G92D0-K0010 |
