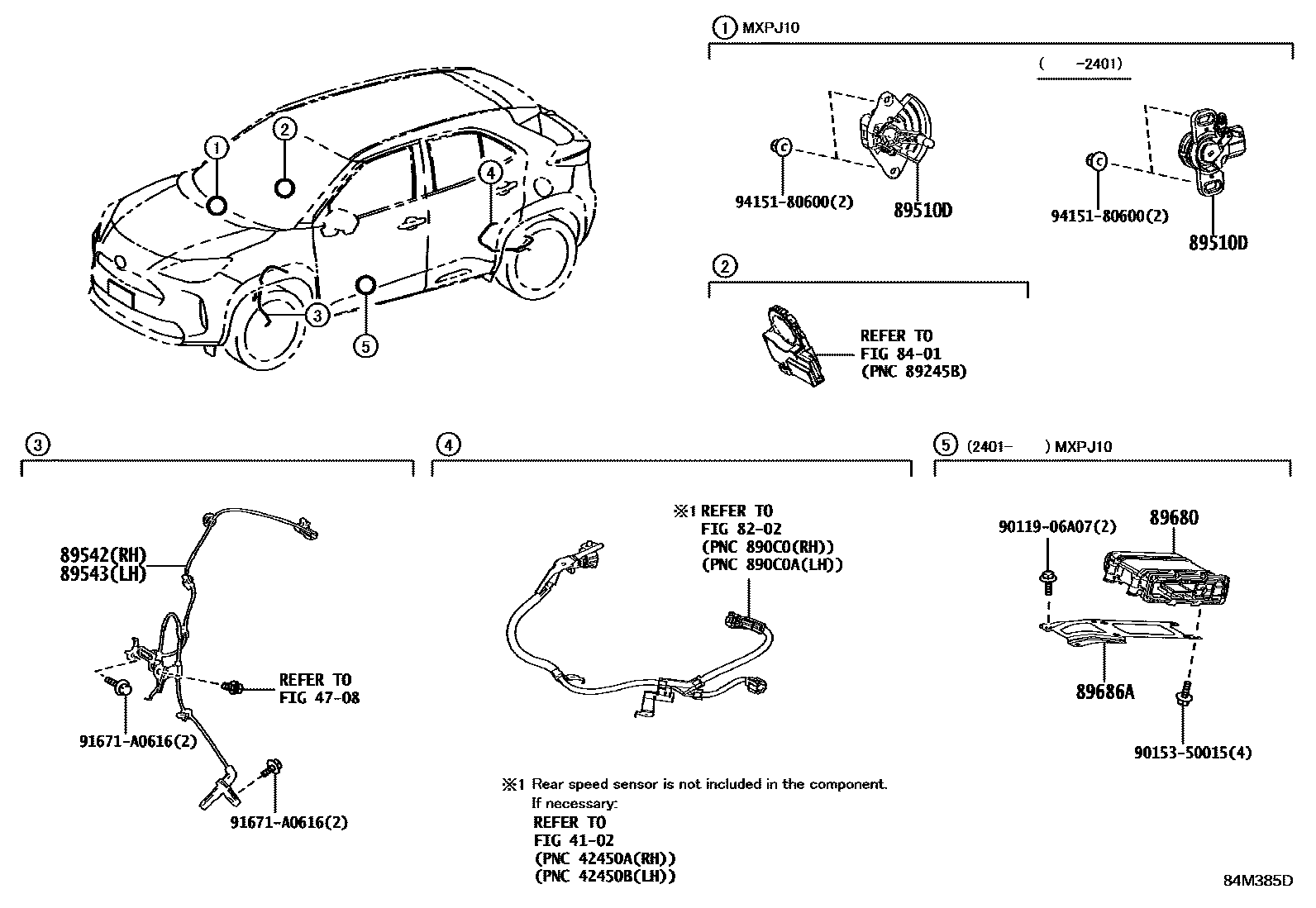

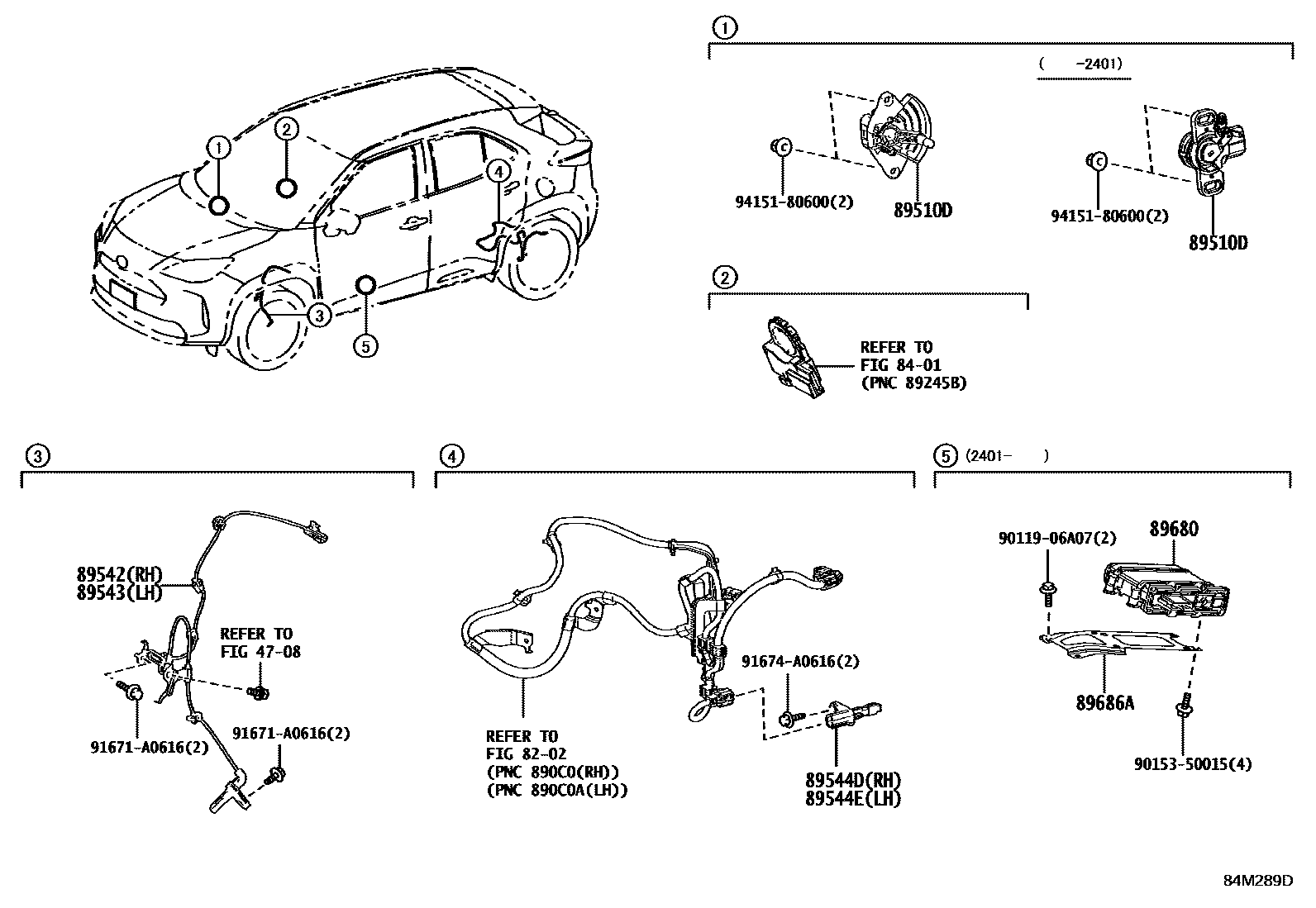

Toyota YARIS ABS 和 VSC — Figure 8414
Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89510D | Brake pedal stroke sensor assembly | 89510-47030 · 89510-K0021 |
| 89542 | Right front wheel speed sensor | 89542-52110 |
| 89543 | Left front wheel speed sensor | 89543-52110 |
| 89544D | Right rear anti-skid control sensor | 89544-52050 |
| 89544E | Left rear anti-skid control sensor | 89544-52050 |
| 89680 | Brake control power supply assembly | 89680-48030 |
| 89686A | No. 1 brake control power bracket | 89686-52020 |
