Toyota YARIS 超速档和电子控制变速器 — Figure 8410

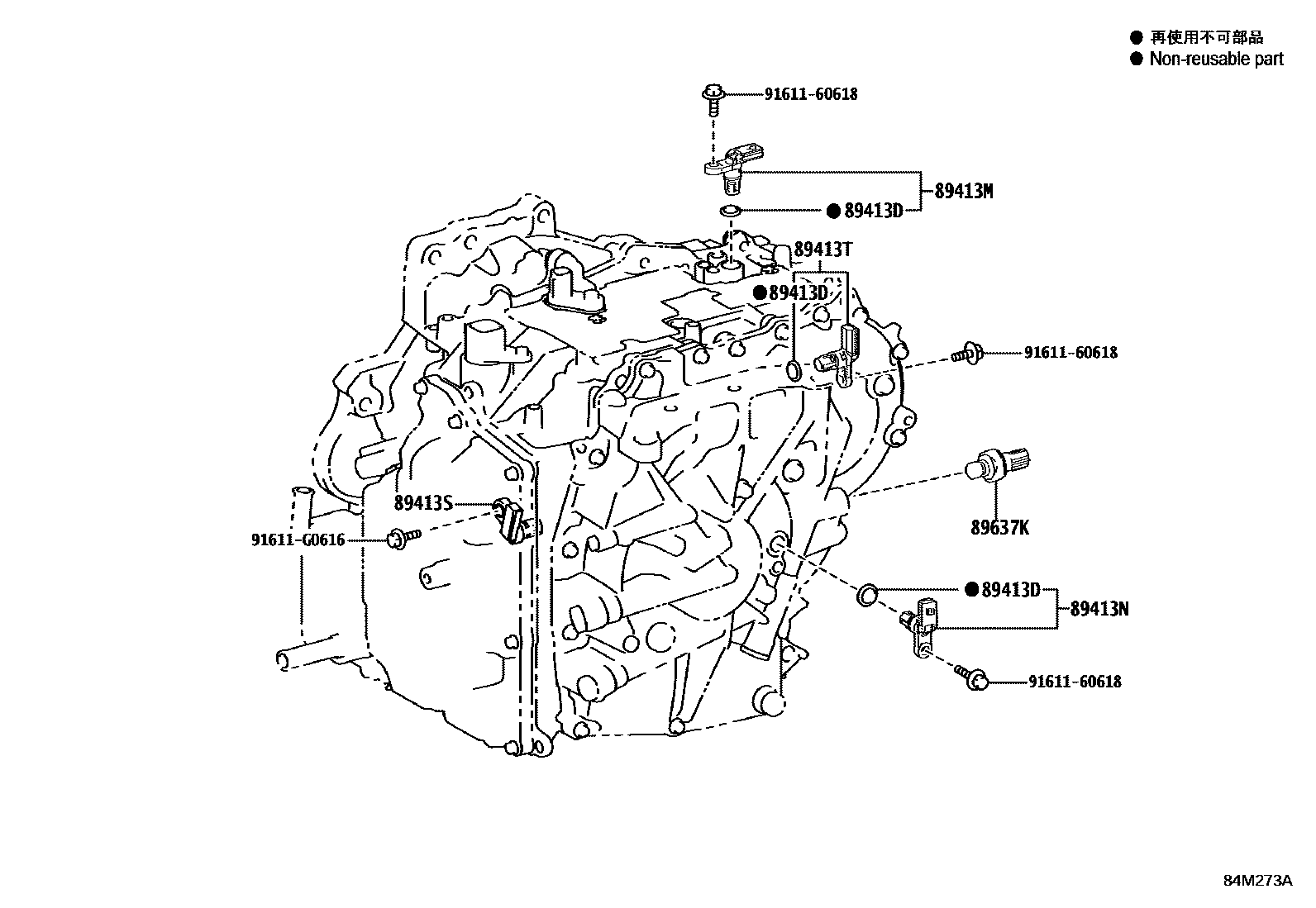

Toyota YARIS EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
| 89413M | Transmission speed sensor (NOUT) | 89413-12010 |
| 89413N | Transmission speed sensor (NT) | 89413-12010 |
| 89413S | Transmission speed sensor (NC) | 89413-11021 |
| 89413T | Transmission Speed Sensor (NSS) | 89413-12010 |
| 89637K | oil pressure sensor | 89637-12040 |
