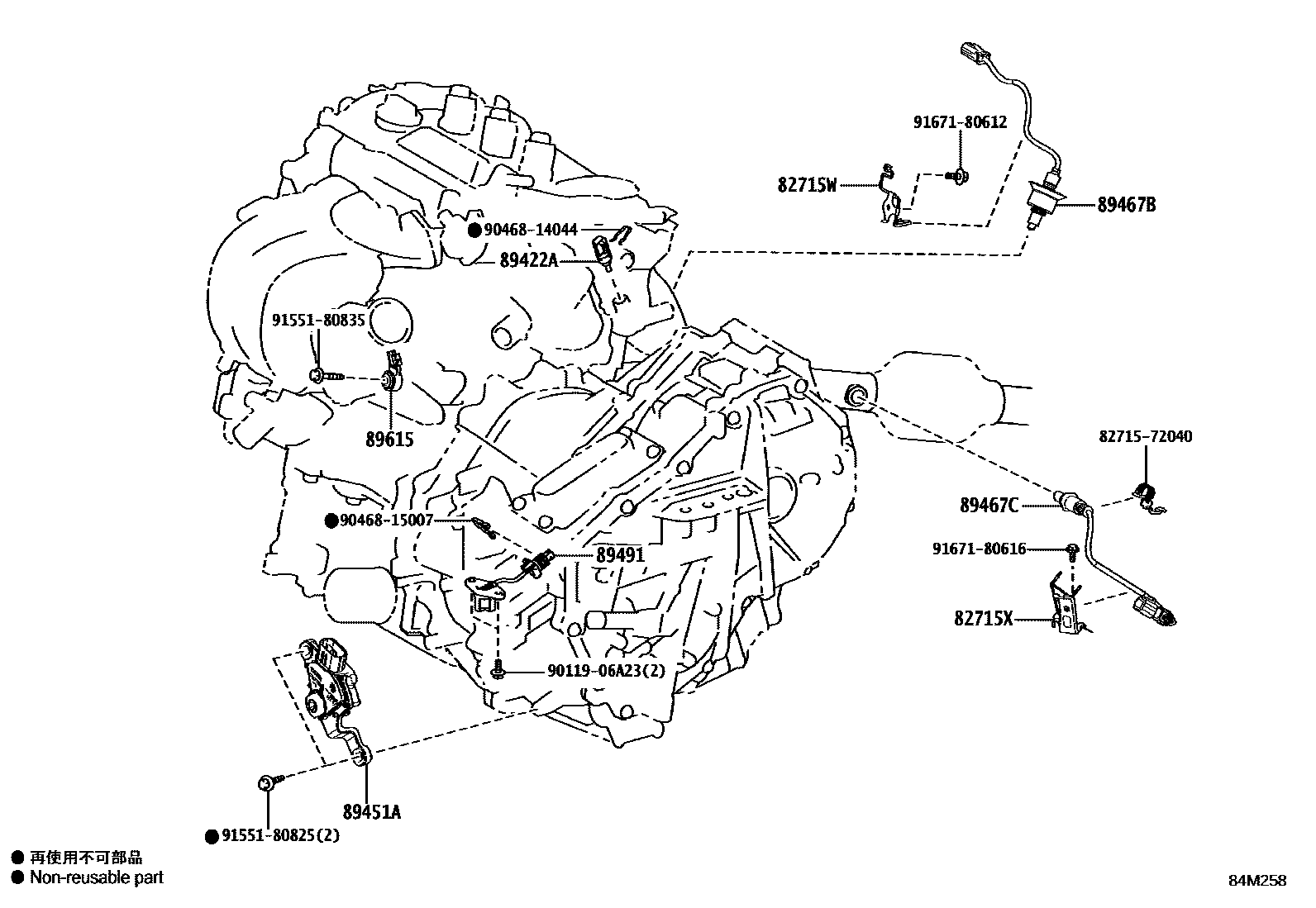

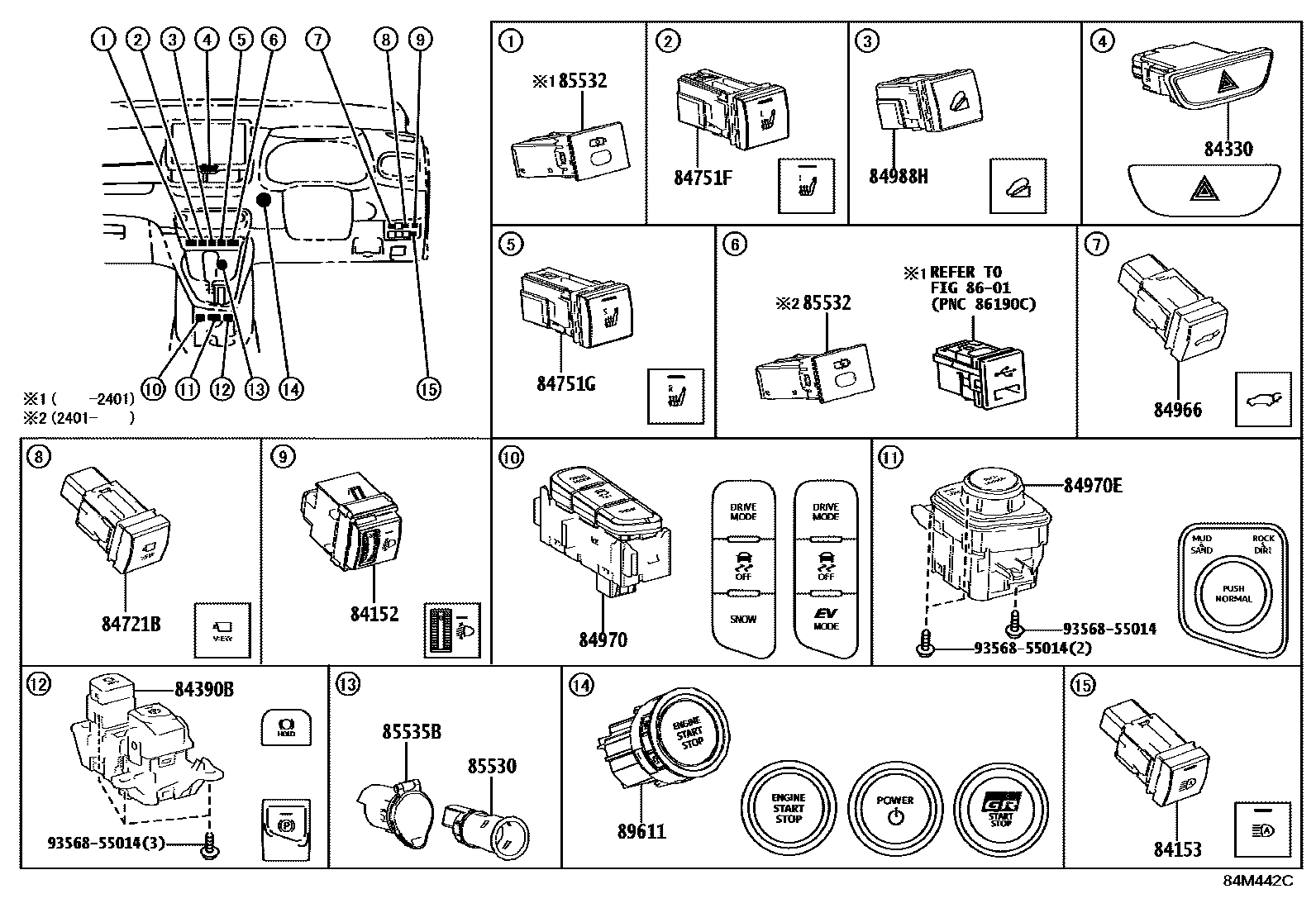

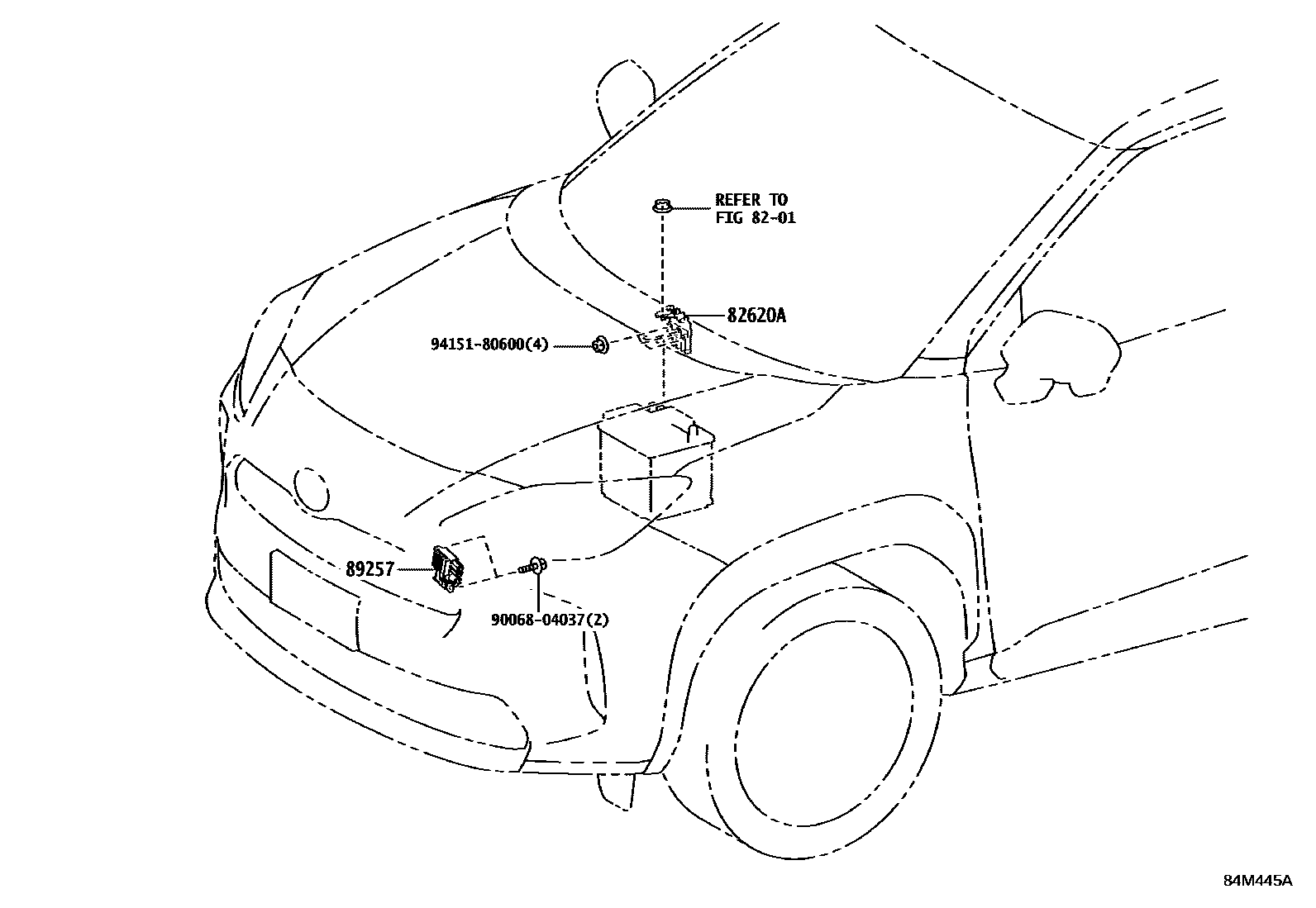

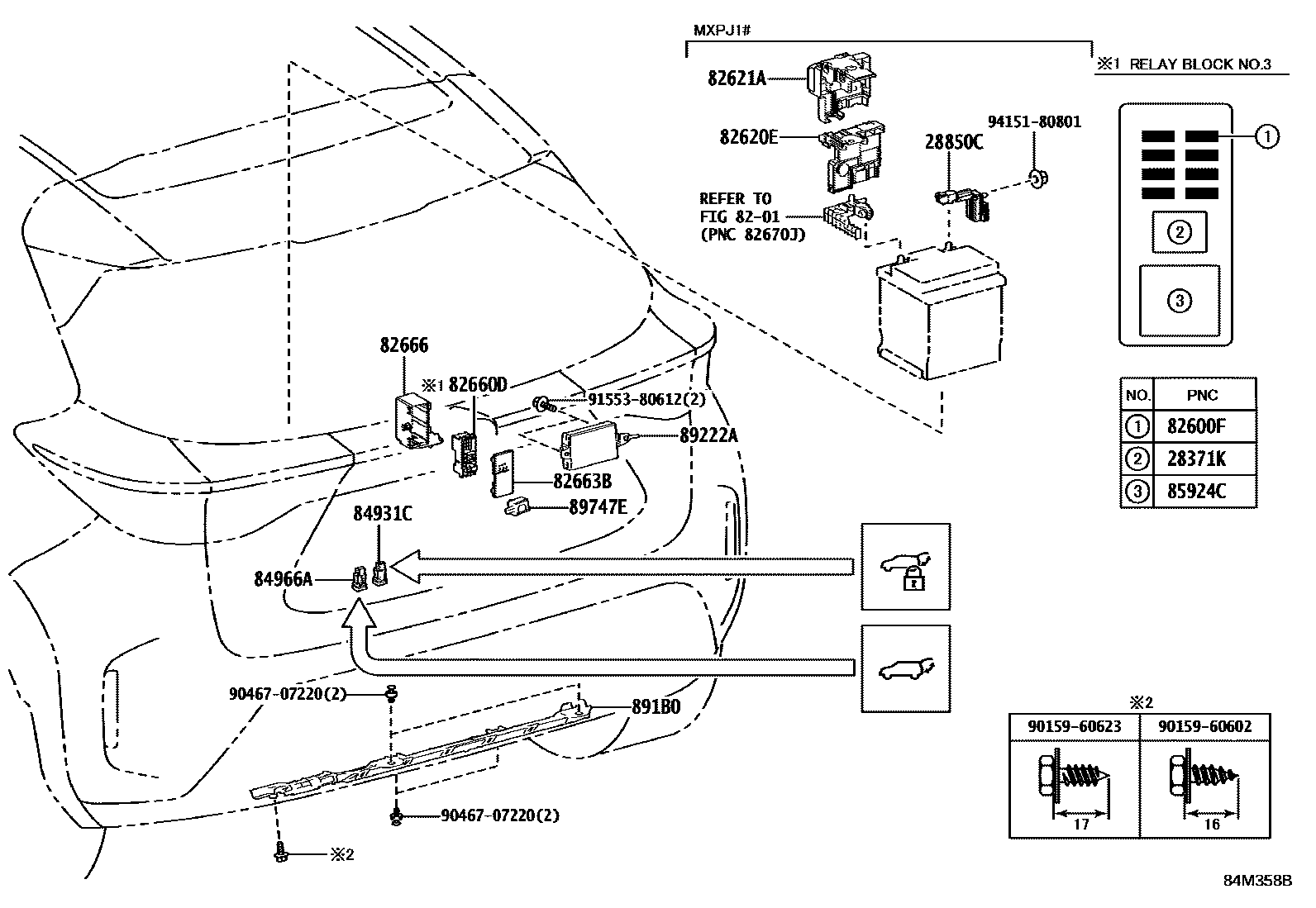

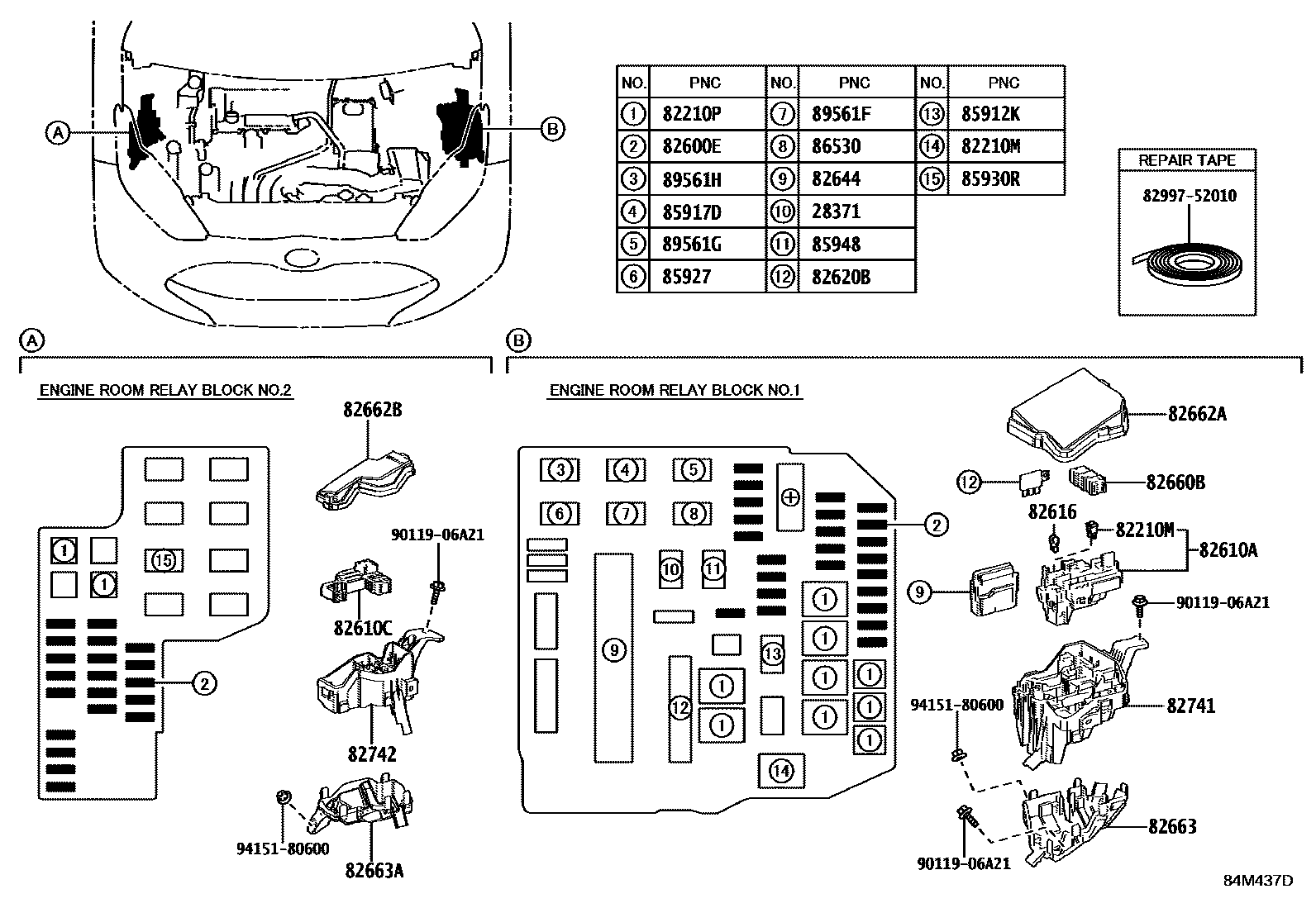

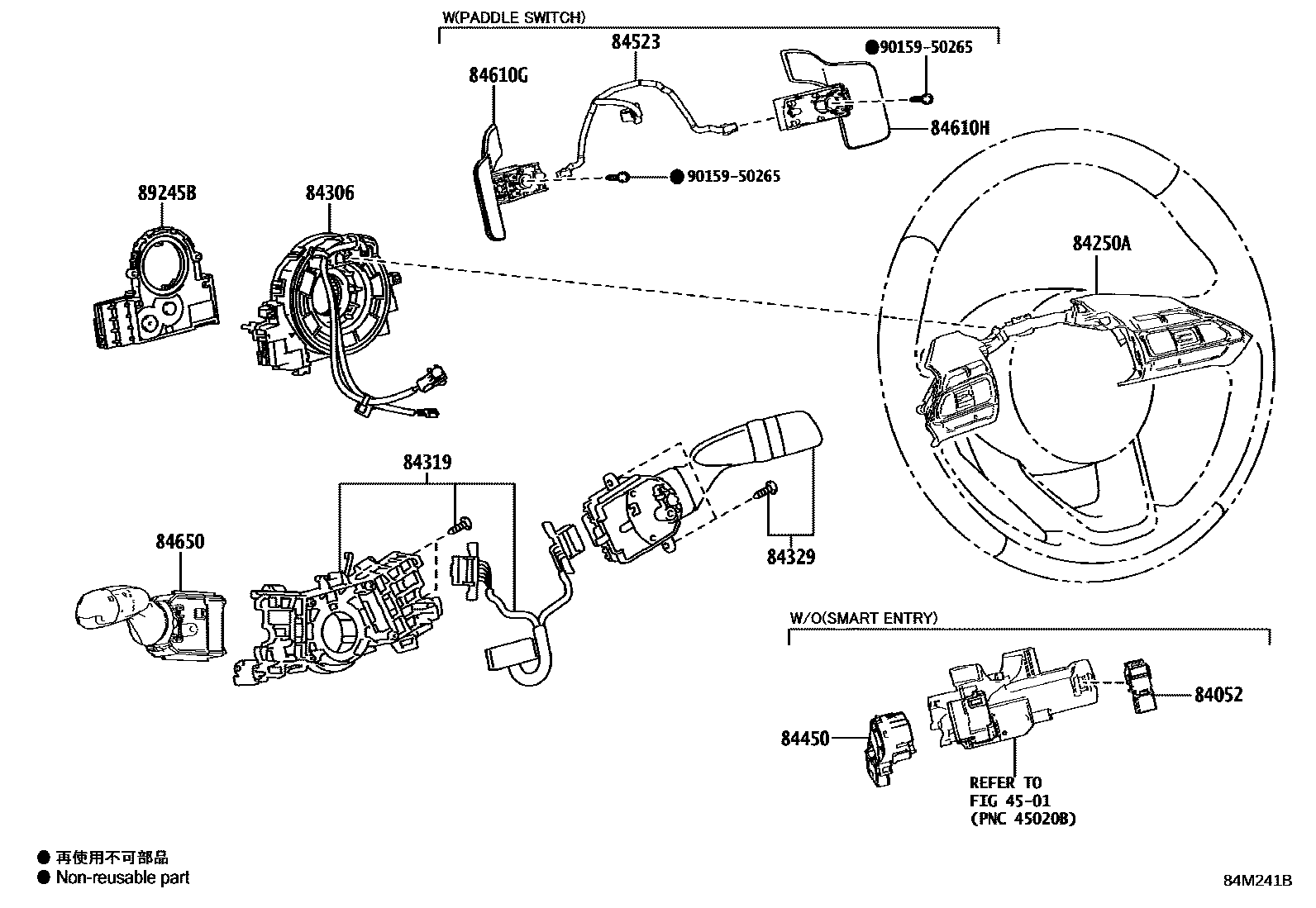

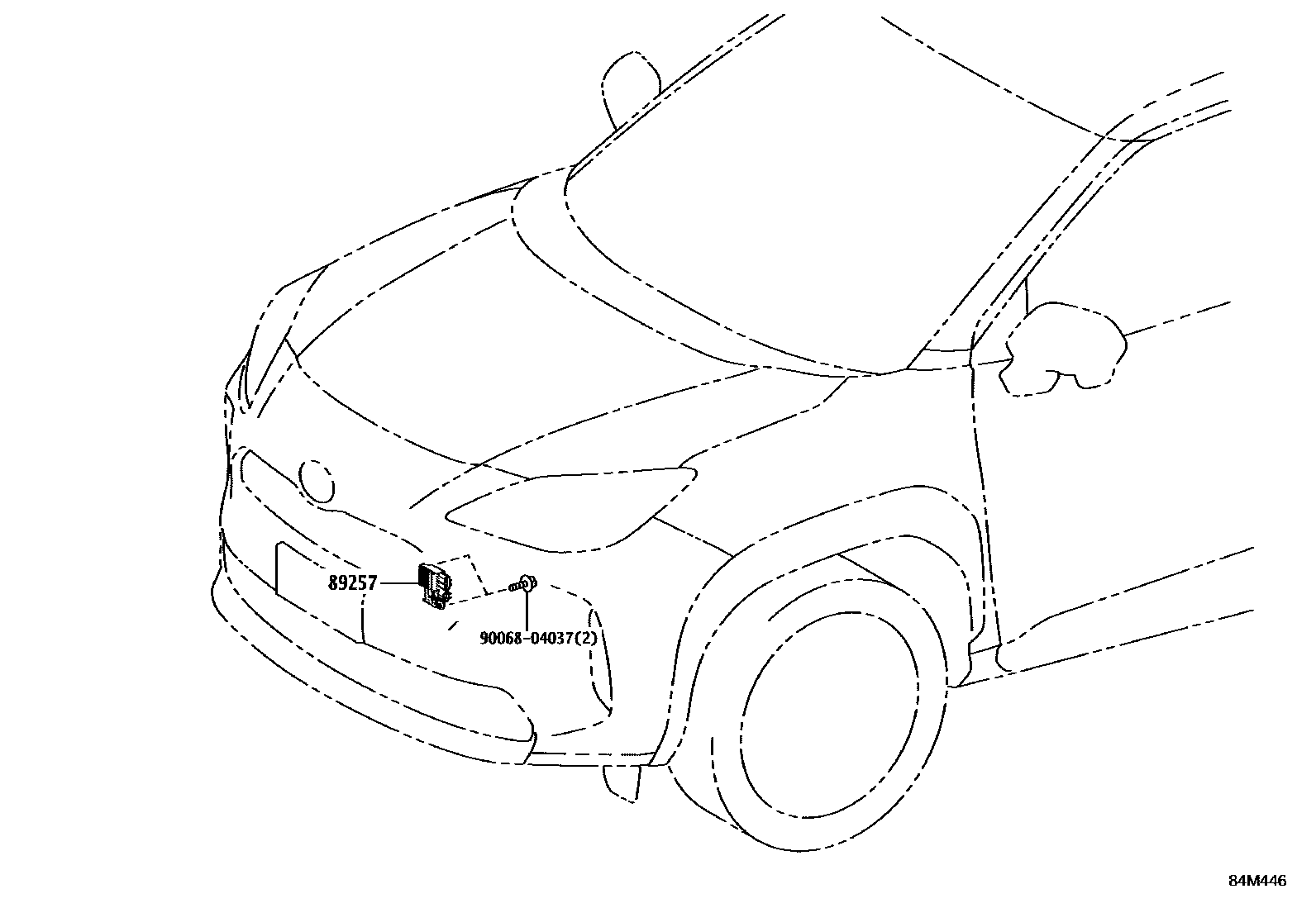

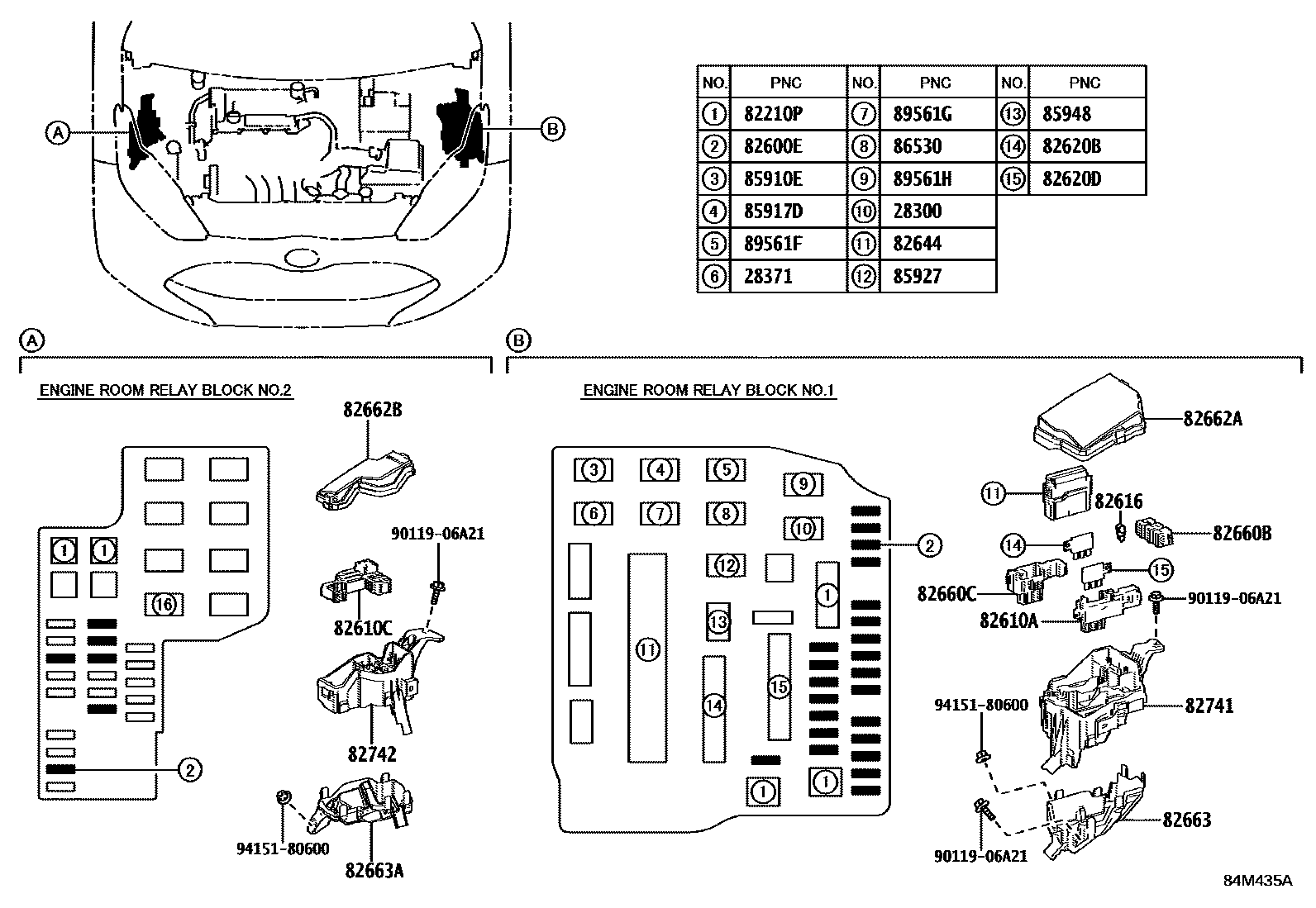

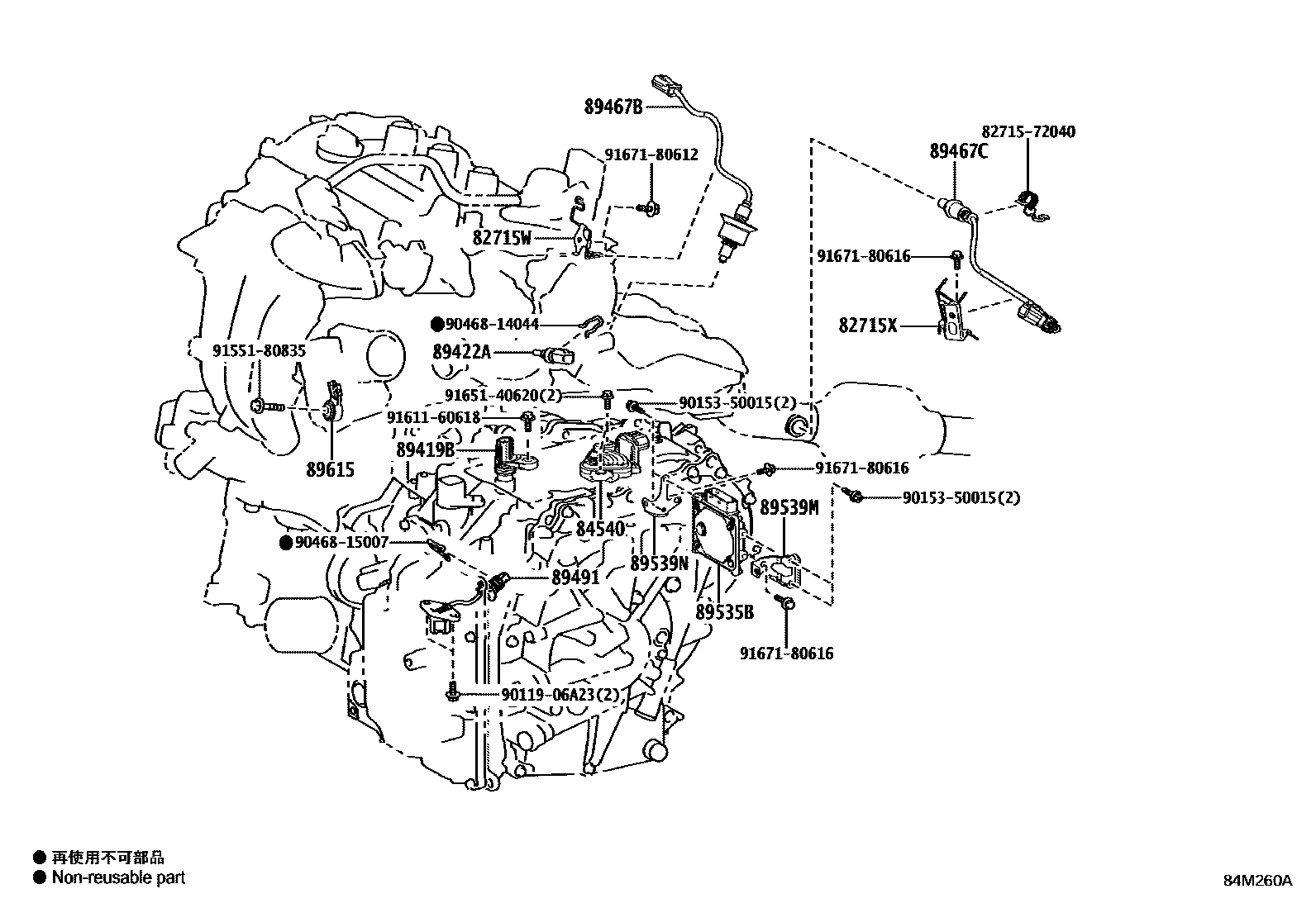

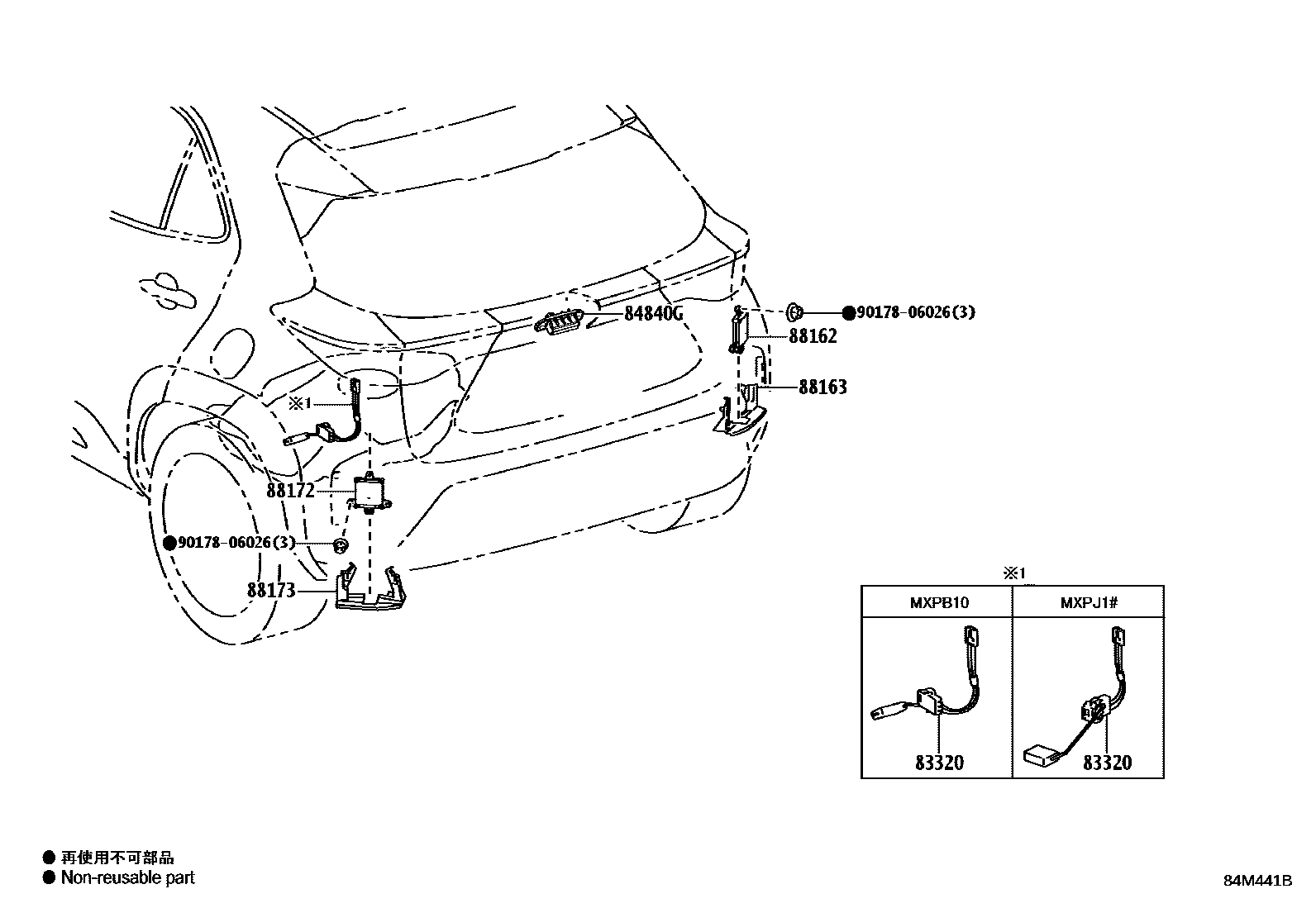

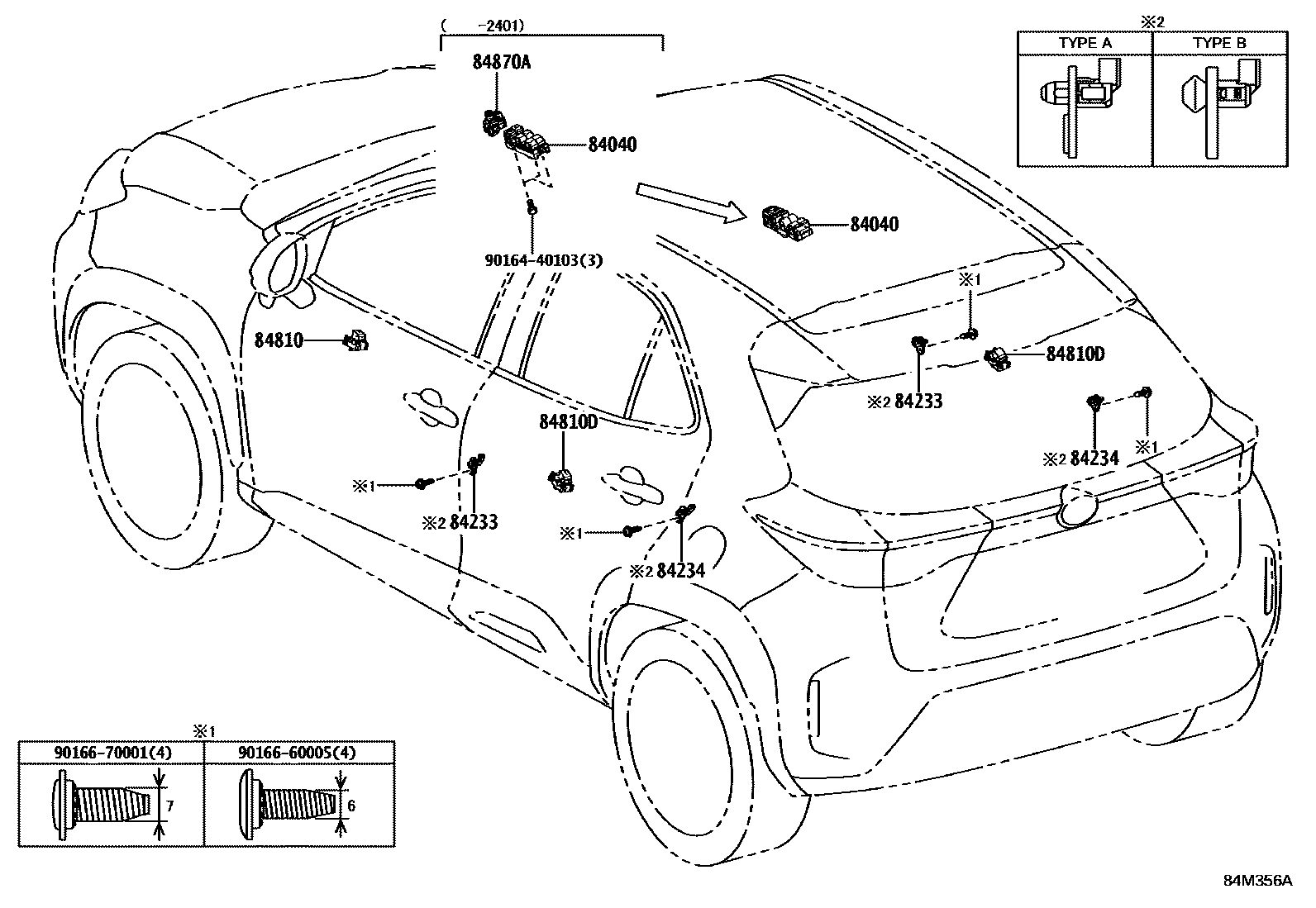

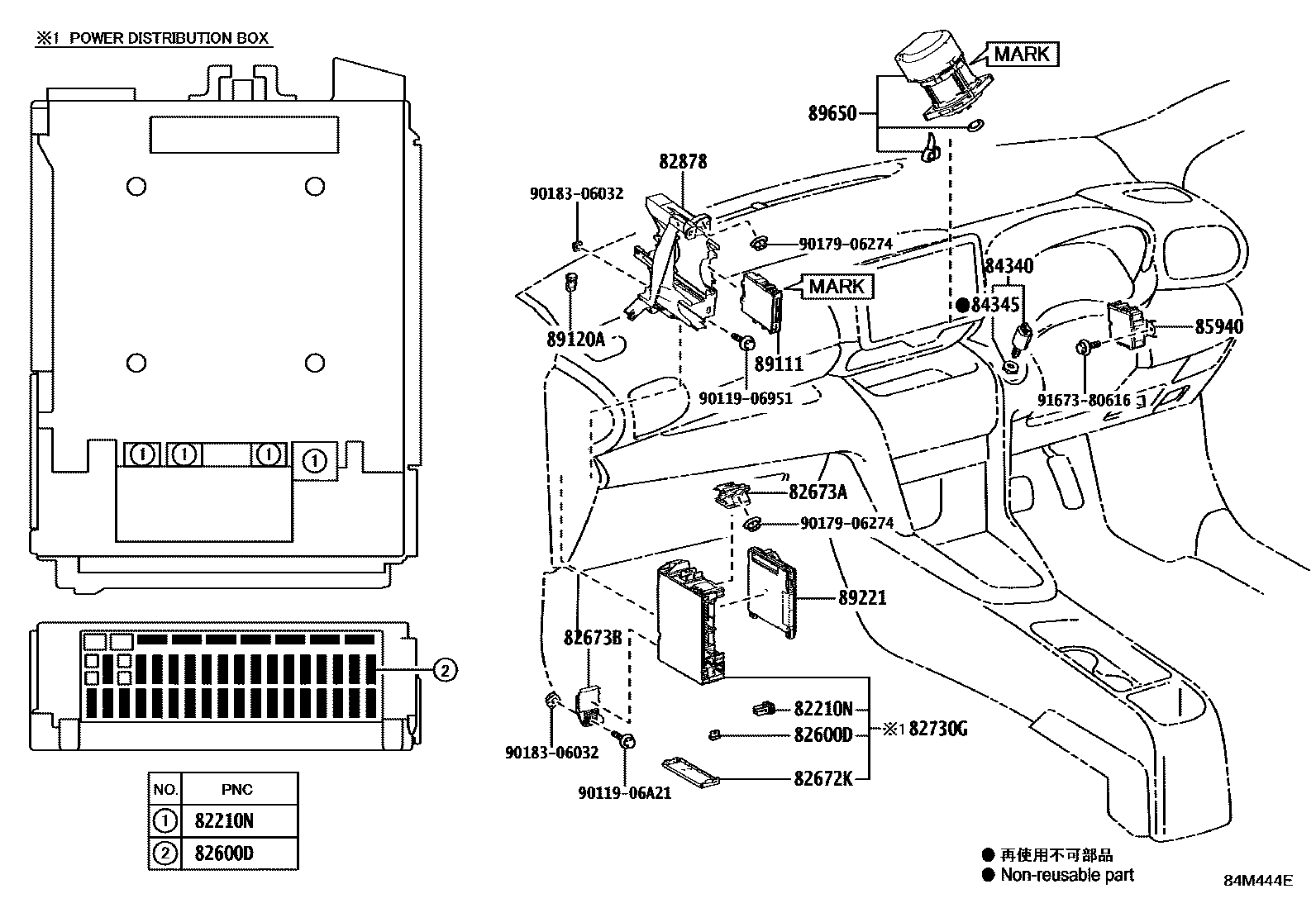

Toyota YARIS 开关和继电器和ECU — Figure 8401
Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 12 images and 109 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 |
| 28371 | No. 1 ignition relay | 90987-02027 |
| 28371K | PC relay | 90987-02027 |
| 28850C | Battery status sensor assembly | 28850-K0020 |
| 82210M | fuse | 90982-08274 |
| 82210N | Instrument panel fuse | 90982-08306 · 90982-08311 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08295 · 90982-08296 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-K0010 · 82610-K0020 |
| 82610C | Fuse box assembly | 82610-K0030 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-K0030 |
| 82620B | Fuse box assembly | 82620-K0040 · 82620-K0050 · 82620-K0060 |
| 82620D | Fuse box assembly | 82620-K0060 |
| 82620E | Fuse box assembly | 82620-K0020 |
| 82621A | Fuse cover | 82621-52180 |
| 82644 | Semiconductor power integrated ECU | 82644-52050 · 82644-52060 · 82644-K0050 · 82644-K0100 |
| 82660B | Relay assembly | 82660-K0030 |
| 82660C | Relay assembly | 82660-K0020 |
| 82660D | Relay assembly | 82660-K0010 |
| 82662A | No. 1 relay box upper cover | 82662-52C20 · 82662-52C30 · 82662-52D90 |
| 82662B | No. 2 relay box upper cover | 82662-52B90 · 82662-52C10 · 82662-52D70 |
| 82663 | Relay box lower cover | 82663-K0050 · 82663-K0060 |
| 82663A | No. 2 relay box lower cover | 82663-K0070 |
| 82663B | No. 3 relay box lower cover | 82663-K0040 |
| 82666 | Connector holder | 82666-K0090 |
| 82672K | Electric power distribution box cover | 82672-52220 · 82672-52230 · 82672-K0010 · 82672-K0020 |
| 82673A | Junction box bracket | 82673-K0010 |
| 82673B | Junction box bracket | 82673-K0020 |
| 82715W | Wire harness clamp bracket | 82715-K0030 |
| 82715X | No. 2 wire harness clip bracket | 8946A-52030 |
| 82730G | Distribution box assembly | 82730-52S40 · 82730-52S70 · 82730-K0010 · 82730-K0040 · 82730-K0050 · 82730-K0120 |
| 82741 | Engine room relay box | 82741-K0040 · 82741-K0050 |
| 82742 | Engine room No. 2 relay box | 82741-K0060 |
| 82878 | Left ECU integrated box | 82878-52010 |
| 83320 | Fuel gauge sensor assembly | 83320-K0020 · 83320-K0060 |
| 84040 | Multi-channel network main switch assembly | 84040-42040 · 84040-52180 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84152 | Headlight beam height adjustment switch | 84152-12100 · 84152-16040 |
| 84153 | Automatic high beam switch | 84153-16010 · 84153-33040 |
| 84233 | Door control light switch assembly (for front door) | 84231-52020 · 84231-53010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-52020 · 84231-53010 |
| 84306 | Spiral cable sub-assembly | 84308-33110 · 84308-52010 · 84308-78040 |
| 84319 | Steering wheel switch housing | 84319-33030 |
| 84329 | turn signal switch | 84329-12160 · 84329-12180 |
| 84330 | Hazard warning signal switch assembly | 84332-52200 |
| 84340 | brake light switch assembly | 84340-49105 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-52010 · 84390-52040 |
| 84450 | Ignition or starter switch assembly | 84450-33040 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-K0010 |
| 84610G | No. 1 transmission shift switch assembly | 84610-33011 |
| 84610H | No. 2 transmission shift switch assembly | 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-12B50 |
| 84721B | Panoramic display switch | 84721-60030 · 84721-K0010 |
| 84751F | Seat heater switch | 84751-15020 · 84751-52120 |
| 84751G | Seat heater switch | 84751-15030 · 84751-52180 |
| 84810 | Electric window lift switch assembly | 84810-12100 |
| 84810D | Rear electric window lift switch assembly | 84810-12100 |
| 84840G | Back door opener switch assembly | 84840-47030 · 84840-47040 · 84840-58010 · 84840-58011 |
| 84870A | Exterior rearview mirror switch assembly | 84872-47070 |
| 84931C | Back door control switch | 84930-16040 · 84930-52090 |
| 84966 | Automatic back door control switch | 84966-52010 · 84966-52030 |
| 84966A | No. 1 automatic back door control switch | 84966-16030 · 84966-52020 |
| 84970 | Combination switch assembly | 84970-52530 · 84970-K0020 · 84970-K0030 |
| 84970E | No. 2 combination switch assembly | 84970-52190 · 84970-52610 |
| 84988H | Downhill assist control switch | 84988-60050 · 84988-60080 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85532 | USB charging socket | 85532-12010 · 85532-47040 · 85532-60010 |
| 85535B | No. 1 power outlet cover | 85535-30020 |
| 85910E | Injector relay | 90987-02027 |
| 85912K | VVT relay | 90987-02027 |
| 85917D | Heater relay (for air-fuel ratio sensor) | 90987-02027 |
| 85924C | IGCT relay | 90987-02031 |
| 85927 | cooling fan relay | 90987-02027 |
| 85930R | RELAIS, +BA | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-K0010 |
| 85948 | windshield wiper relay | 90987-02027 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 88162 | Blind spot monitor right sensor | 88162-52010 · 88162-52080 |
| 88163 | Blind spot monitor right side cover | 88163-52010 |
| 88172 | Blind spot monitor left sensor | 88162-52010 · 88162-52080 |
| 88173 | Blind spot monitor left cover | 88173-52010 |
| 89111 | Network gateway ECU | 89111-52090 · 89111-52140 · 89111-60140 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 891B0 | Kick control sensor assembly | 891B0-52010 · 891B0-52011 · 891B0-52050 |
| 89221 | Multi-channel network body ECU | 89220-52F70 · 89220-52F71 · 89220-52F72 · 89220-52F80 · 89220-52F81 · 89220-52F82 · 89220-52F90 · 89220-52F91 · 89220-52F92 · 89220-52G00 · 89220-52G01 · 89220-52G02 · 89220-52G50 · 89220-52G51 · 89220-52G52 · 89220-52G60 · 89220-52G61 · 89220-52G62 · 89220-52G70 · 89220-52G71 · 89220-52G72 · 89220-52G80 · 89220-52G81 · 89220-52G82 · 89221-52A80 · 89221-52A90 |
| 89222A | Multi-channel network door ECU | 89222-52010 · 89222-52011 · 89222-52012 · 89222-52013 · 89222-52030 · 89222-52050 |
| 89245B | steering sensor | 8924B-60010 · 8924B-K0010 · 8924B-V1010 |
| 89257 | Cooling fan ECU | 89257-K0020 |
| 89419B | gear shift sensor | 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89467B | air fuel ratio sensor | 89467-K0020 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-52370 · 89467-K0030 |
| 89491 | Engine oil level sensor | 89491-50081 · 89491-50082 |
| 89535B | Transmission control ECU | 89535-52030 · 89535-52040 |
| 89539M | No. 1 transmission control ECU bracket | 89539-K0010 |
| 89539N | No. 2 transmission control ECU bracket | 89539-K0020 |
| 89561F | Electronic fuel injection No. 1 main relay | 90987-02027 |
| 89561G | Electronic fuel injection No. 2 main relay | 90987-02027 |
| 89561H | Electronic fuel injection No. 3 main relay | 90987-02033 |
| 89611 | One-button start switch | 89611-12010 · 89611-12020 · 89611-42030 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-52G60 · 89650-52M40 · 89650-52P20 · 89650-52R10 · 89650-52R20 · 89650-52R30 · 89650-52R40 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
