Toyota YARIS 仪表 — Figure 8301
Toyota YARIS EPC diagram 8301, 仪表, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

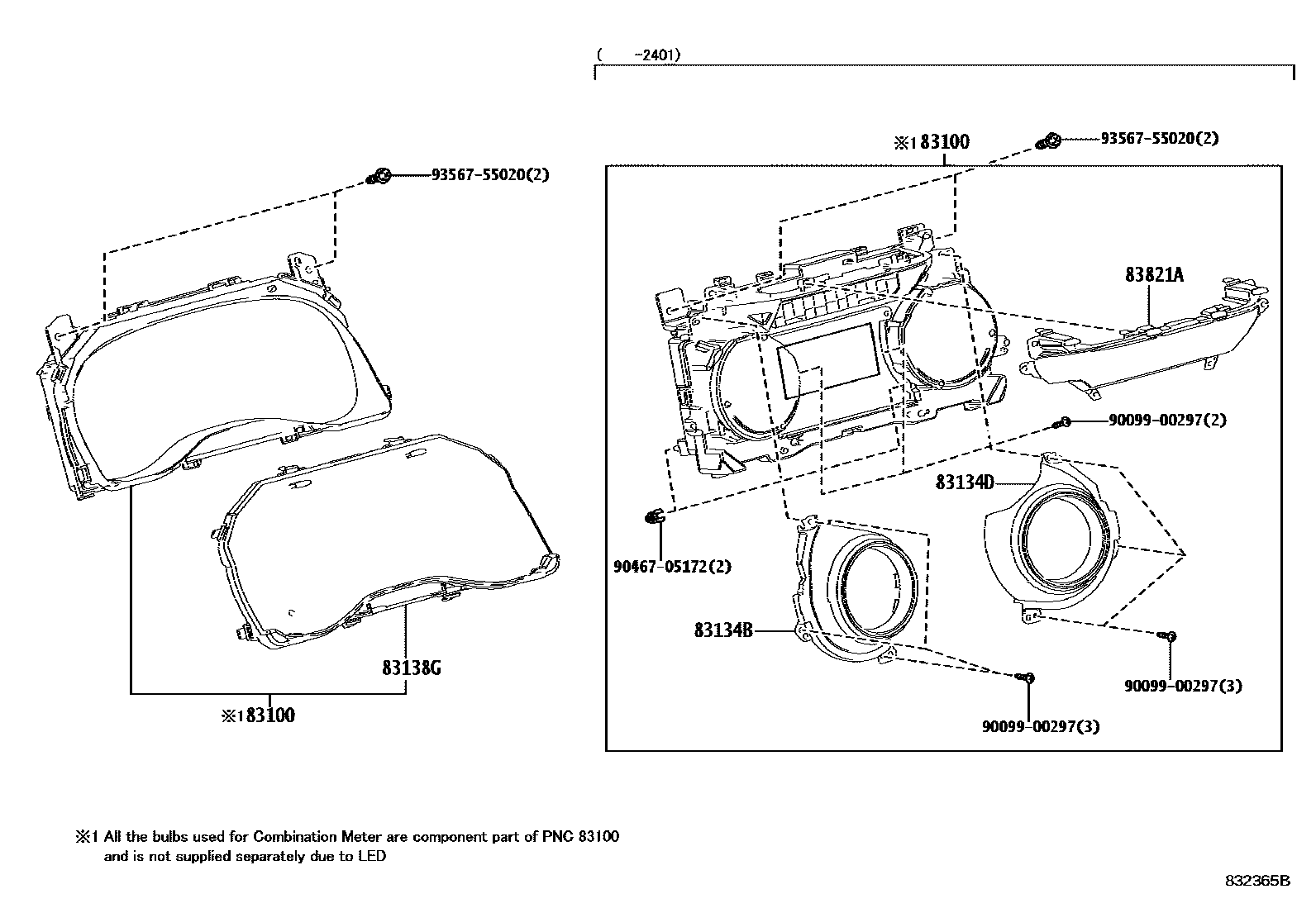

| 83100 | Combined instrument assembly | 83800-5CY40 · 83800-5CY50 · 83800-5CZ70 · 83800-5CZ80 · 83800-5D780 · 83800-5D781 |

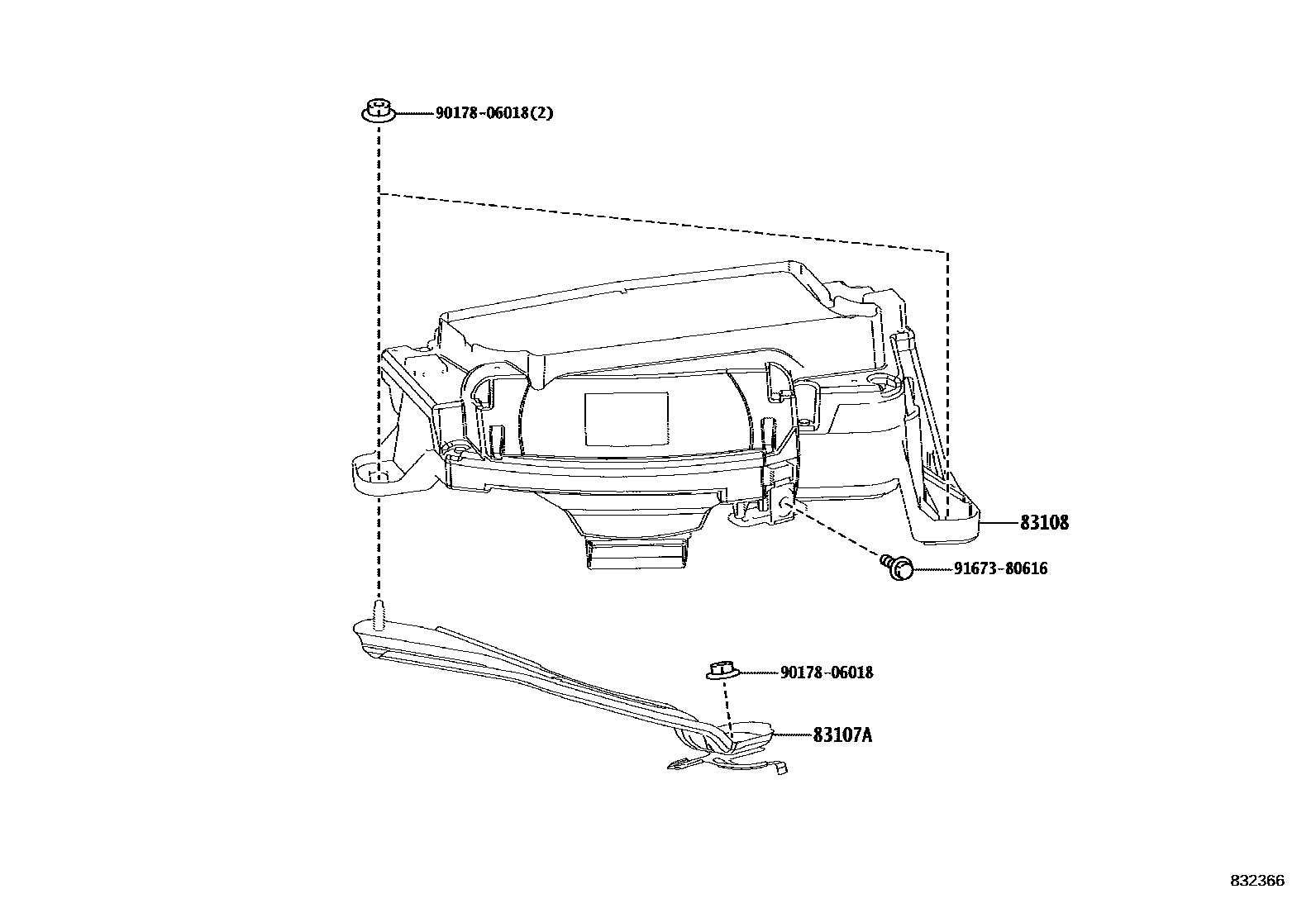

| 83107A | No. 1 instrument bracket sub-assembly | 83107-K0021 |
| 83108 | Instrument rearview mirror sub-assembly | 83108-52010 · 83108-52070 · 83108-52071 |
| 83134B | Combination instrument cover No. 2 | 83822-K0030 |
| 83134D | Combination instrument cover No. 3 | 83823-K0030 |
| 83138G | Instrument cluster glass | 83852-5D840 |
| 83821A | Combination instrument cover No. 1 | 83821-K0030 |
