Toyota YARIS 线束和卡夹 — Figure 8202

Toyota YARIS EPC diagram 8202, 线束和卡夹, with 18 images and 118 PNC and OE references.

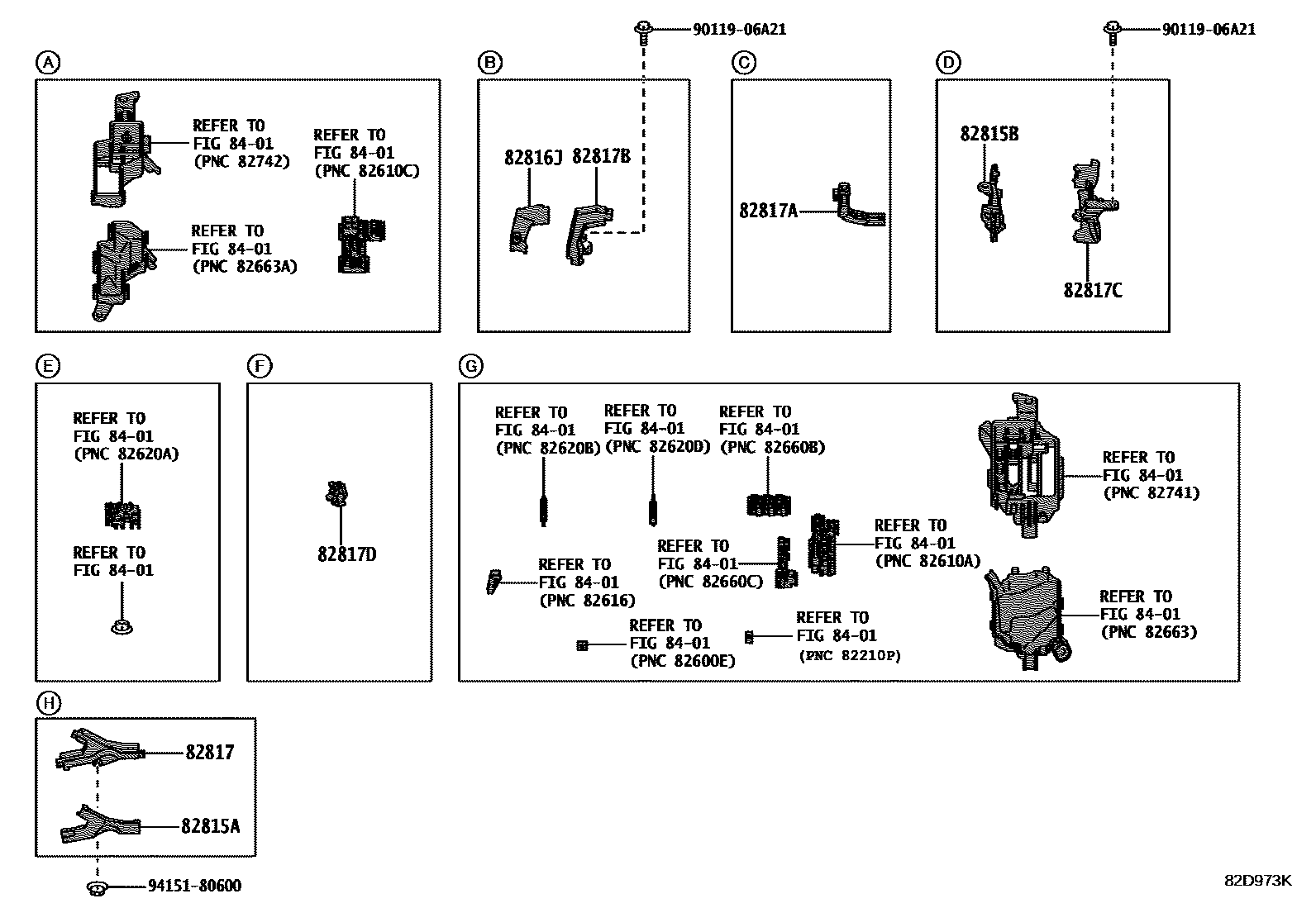

Toyota YARIS 线束和卡夹 EPC diagram — 82D973K
线束和卡夹 — 82D973K (202008 – 999999)

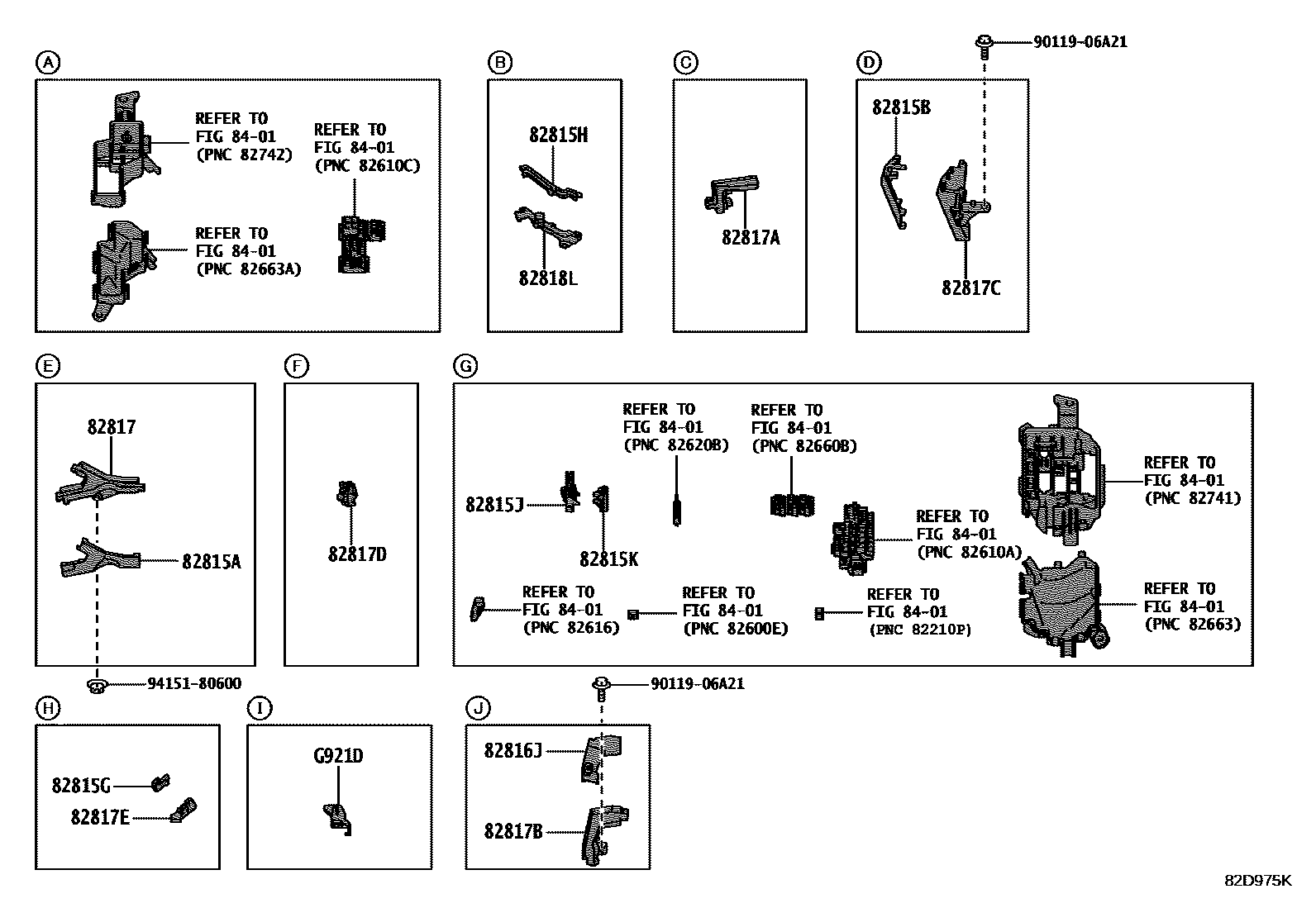

Toyota YARIS 线束和卡夹 EPC diagram — 82D975K
线束和卡夹 — 82D975K (202008 – 999999)

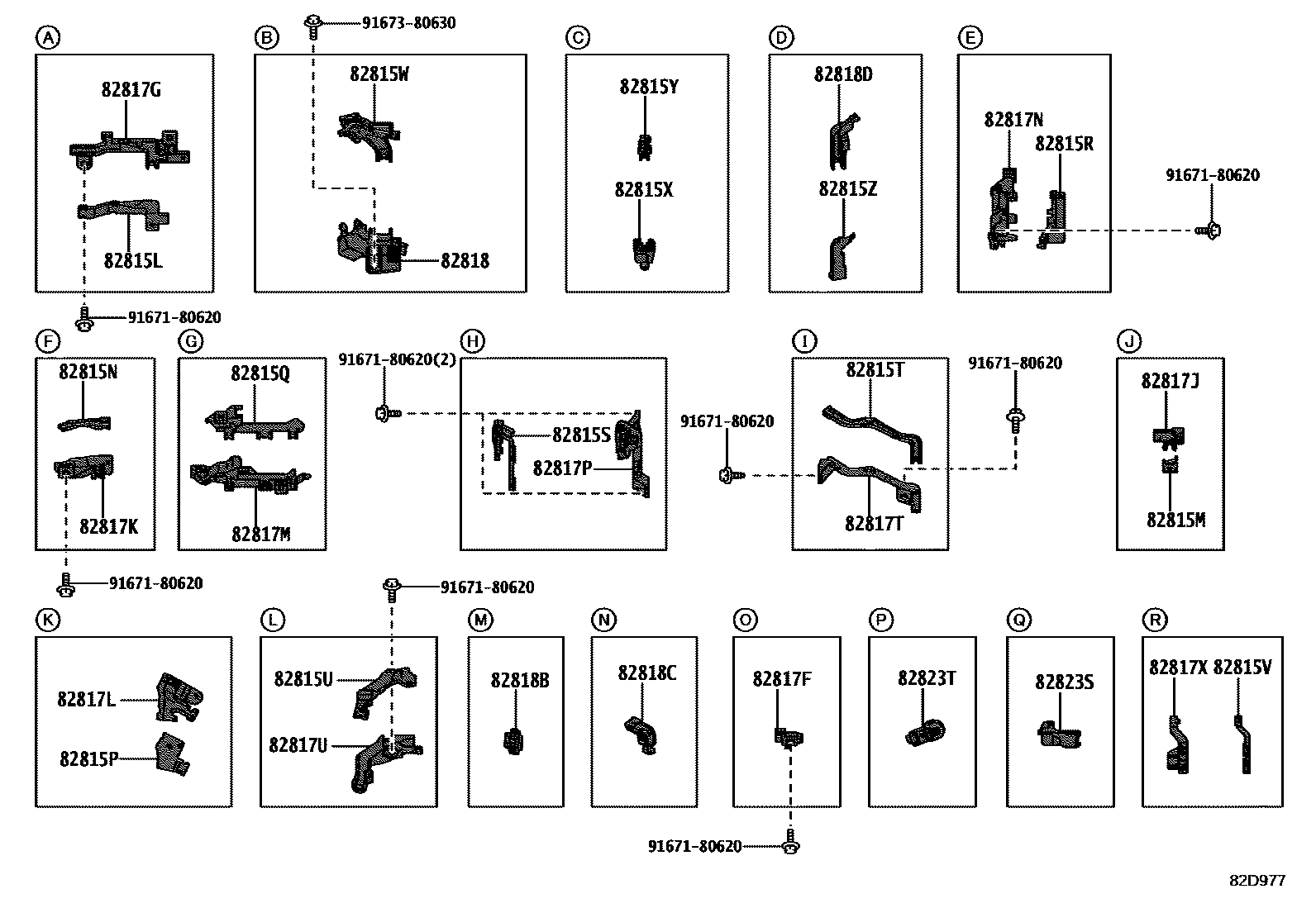

Toyota YARIS 线束和卡夹 EPC diagram — 82D977
线束和卡夹 — 82D977 (202008 – 999999)

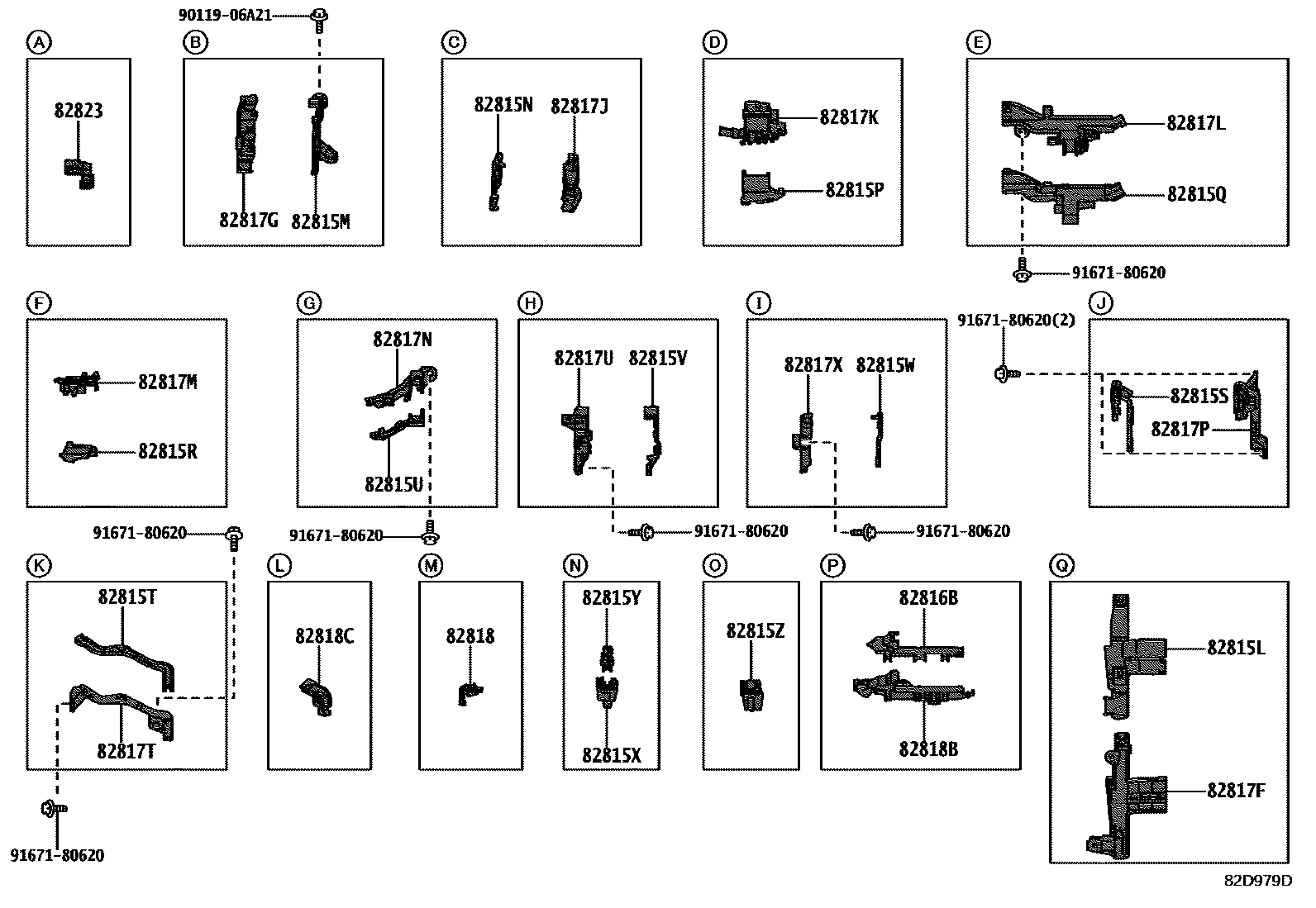

Toyota YARIS 线束和卡夹 EPC diagram — 82D979D
线束和卡夹 — 82D979D (202008 – 999999)

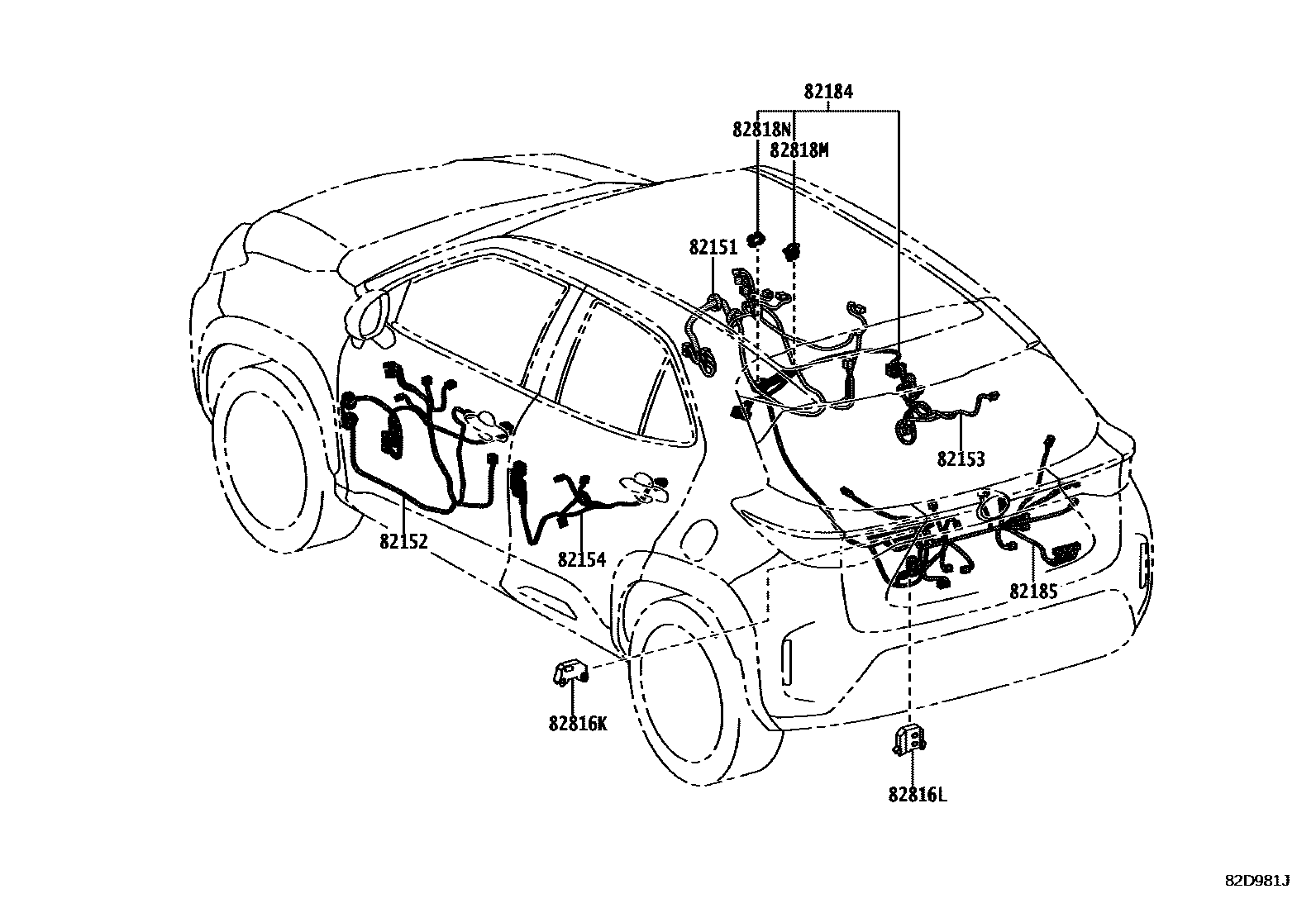

Toyota YARIS 线束和卡夹 EPC diagram — 82D981J
线束和卡夹 — 82D981J (202008 – 999999)
Toyota YARIS 线束和卡夹 EPC diagram — 82D983
线束和卡夹 — 82D983 (202008 – 999999)

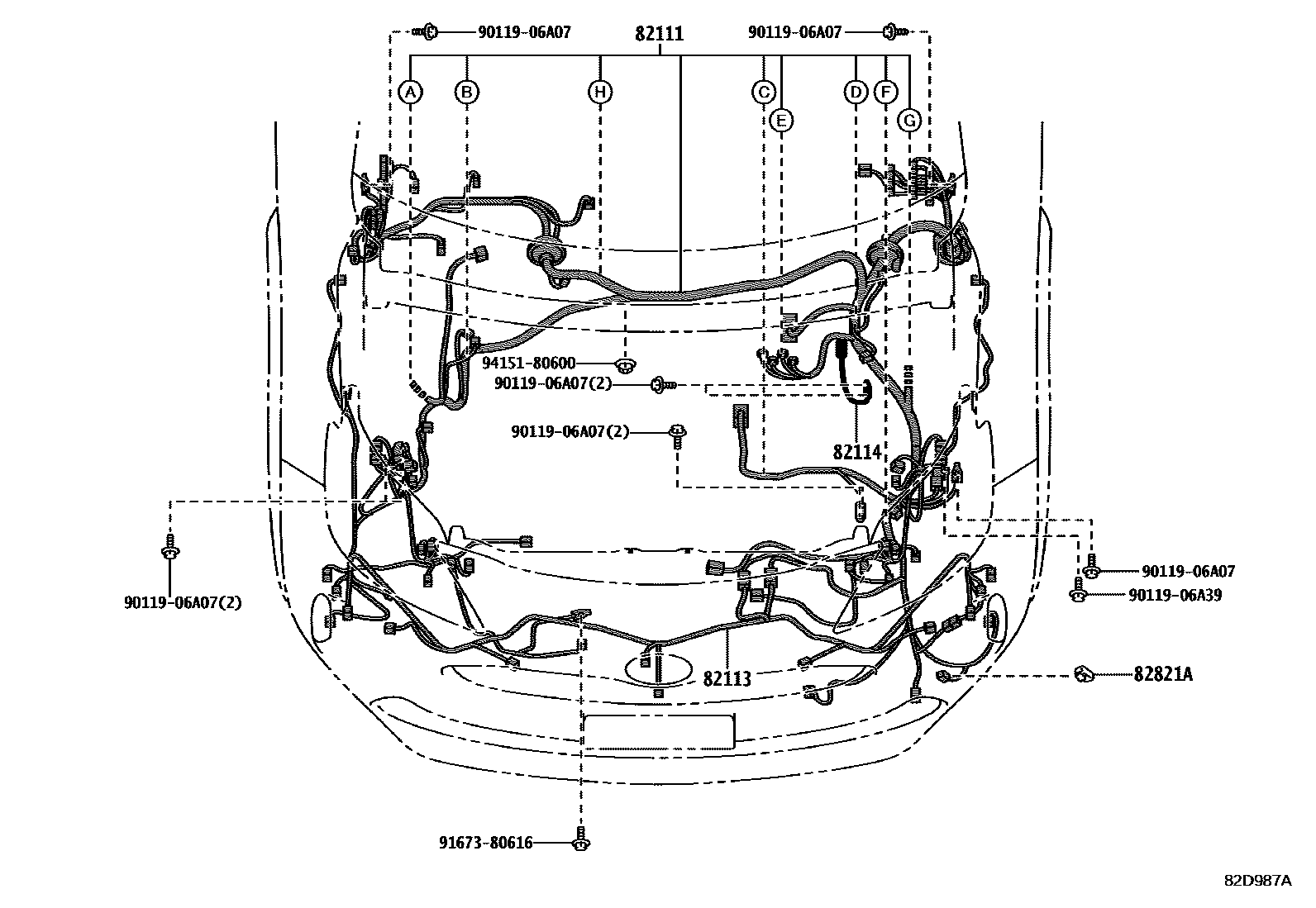

Toyota YARIS 线束和卡夹 EPC diagram — 82D987A
线束和卡夹 — 82D987A (202008 – 999999)

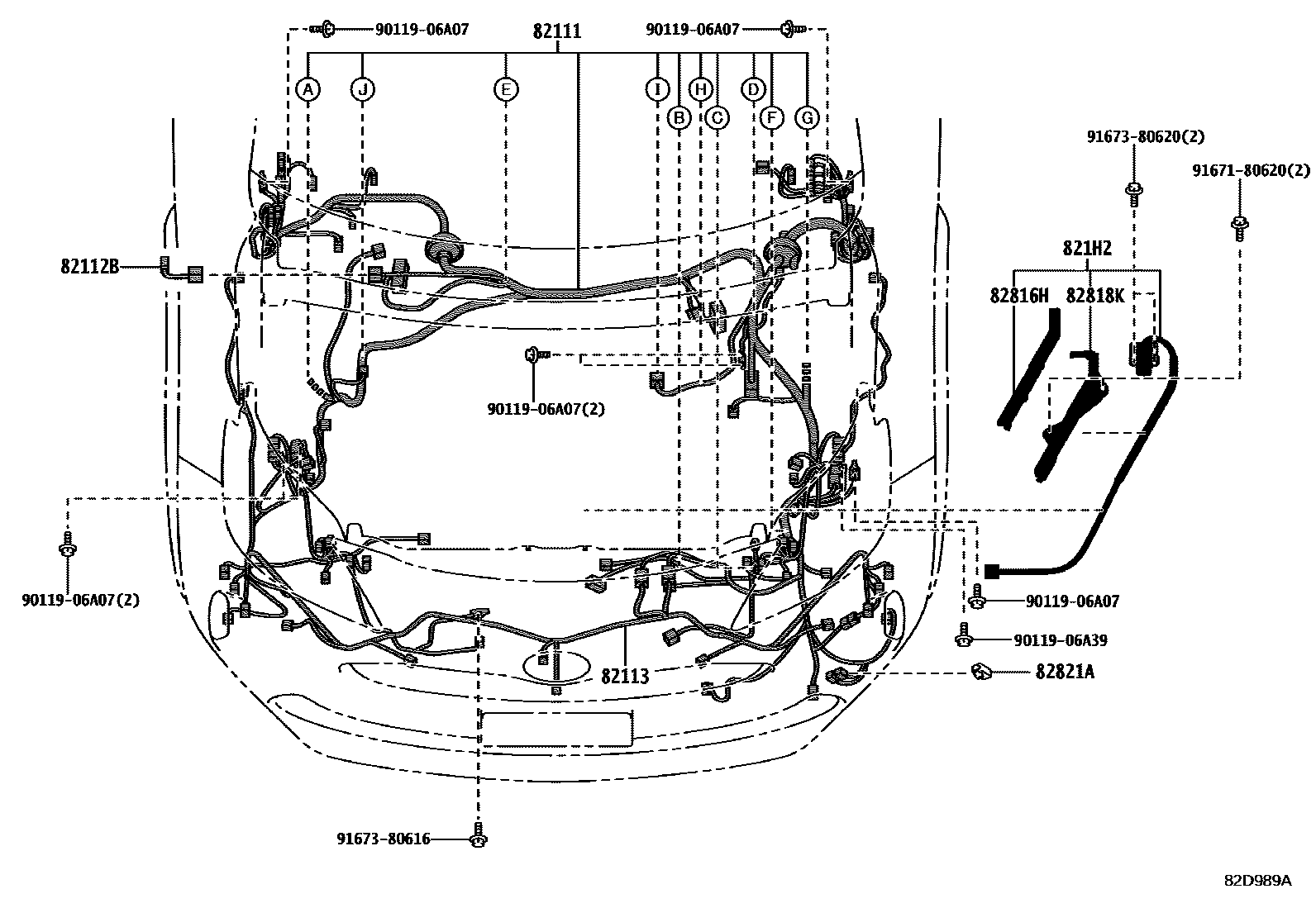

Toyota YARIS 线束和卡夹 EPC diagram — 82D989A
线束和卡夹 — 82D989A (202008 – 999999)

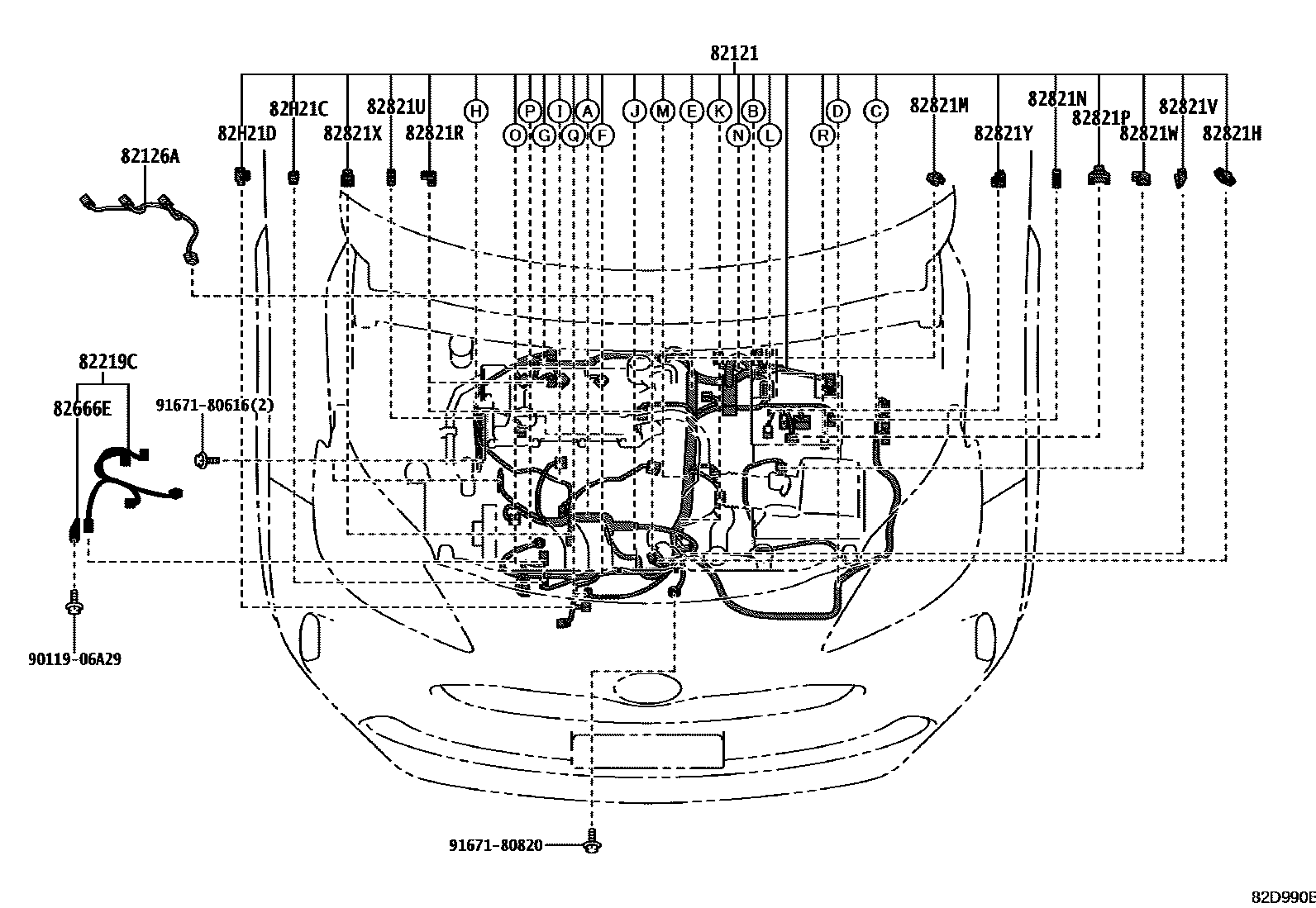

Toyota YARIS 线束和卡夹 EPC diagram — 82D990B
线束和卡夹 — 82D990B (202008 – 999999)

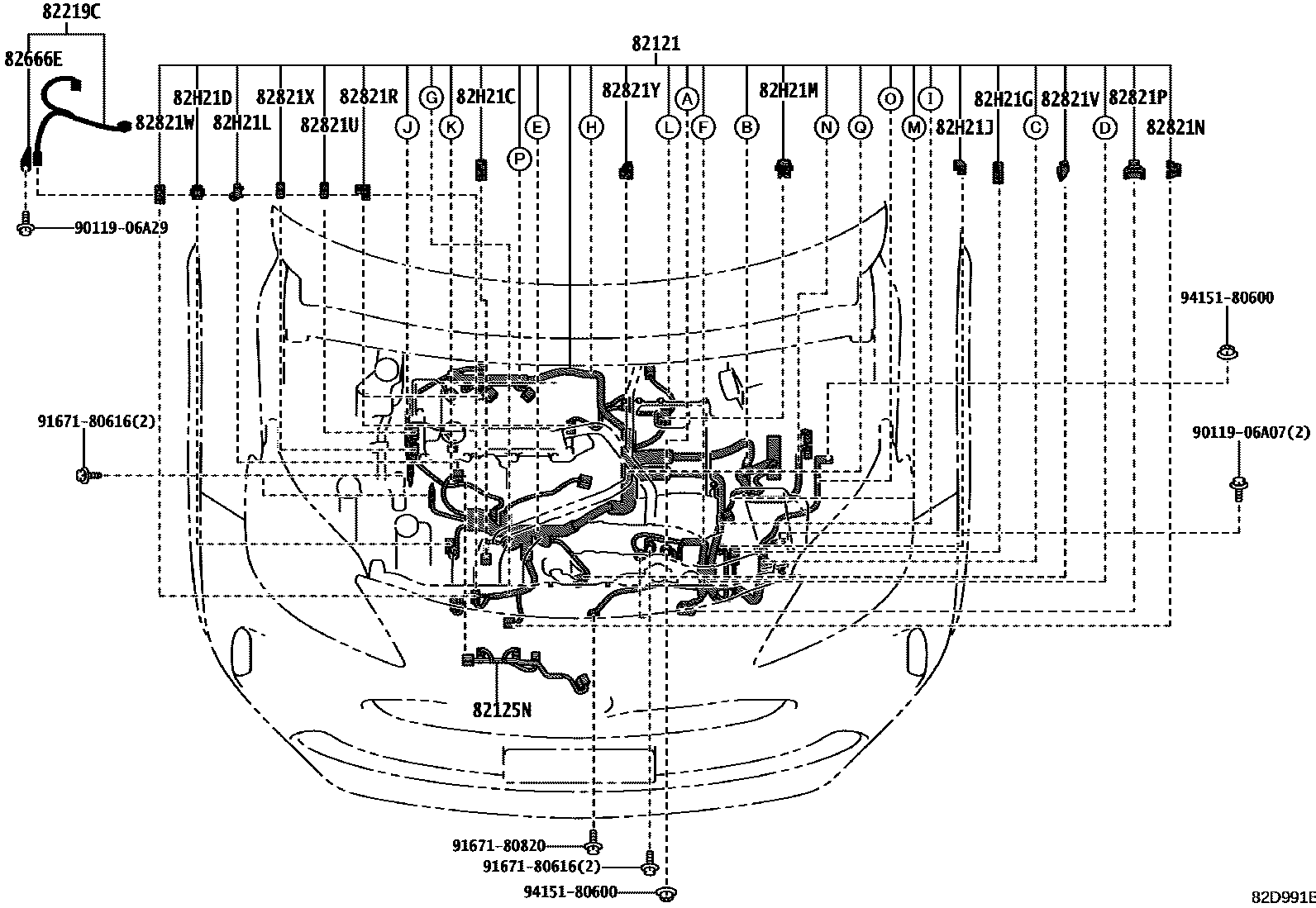

Toyota YARIS 线束和卡夹 EPC diagram — 82D991B
线束和卡夹 — 82D991B (202008 – 999999)

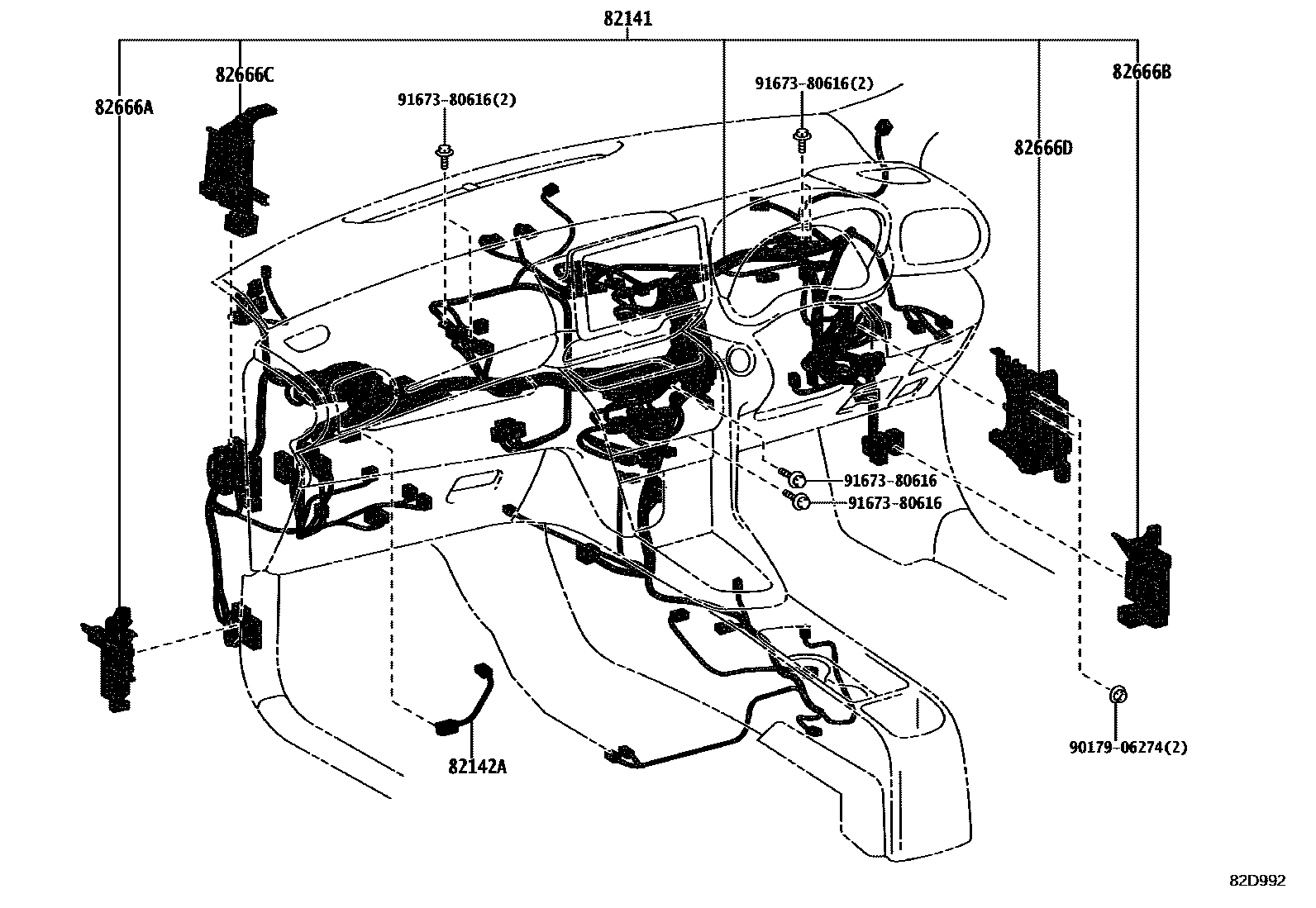

Toyota YARIS 线束和卡夹 EPC diagram — 82D992
线束和卡夹 — 82D992 (202008 – 999999)

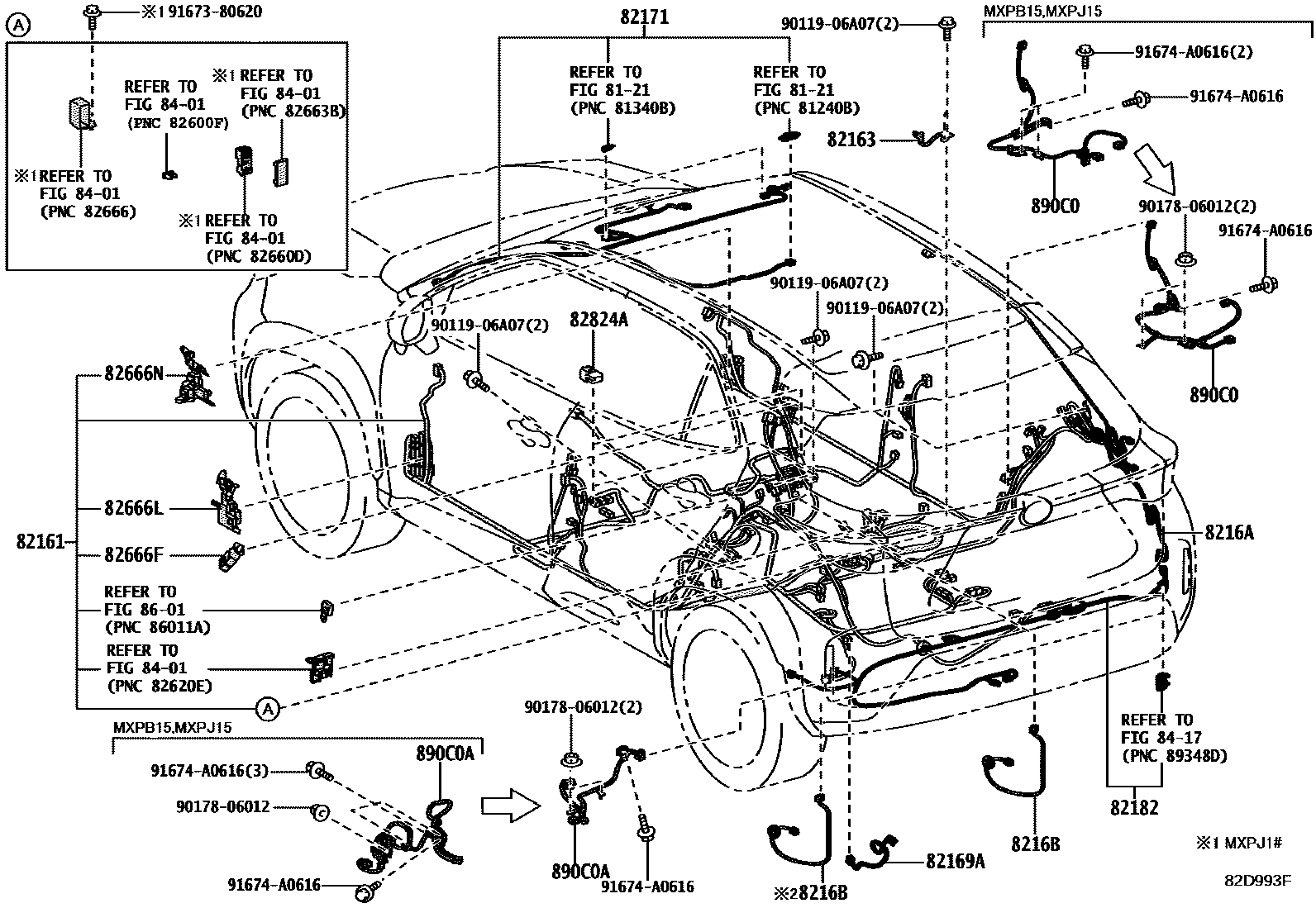

Toyota YARIS 线束和卡夹 EPC diagram — 82D993F
线束和卡夹 — 82D993F (202008 – 999999)

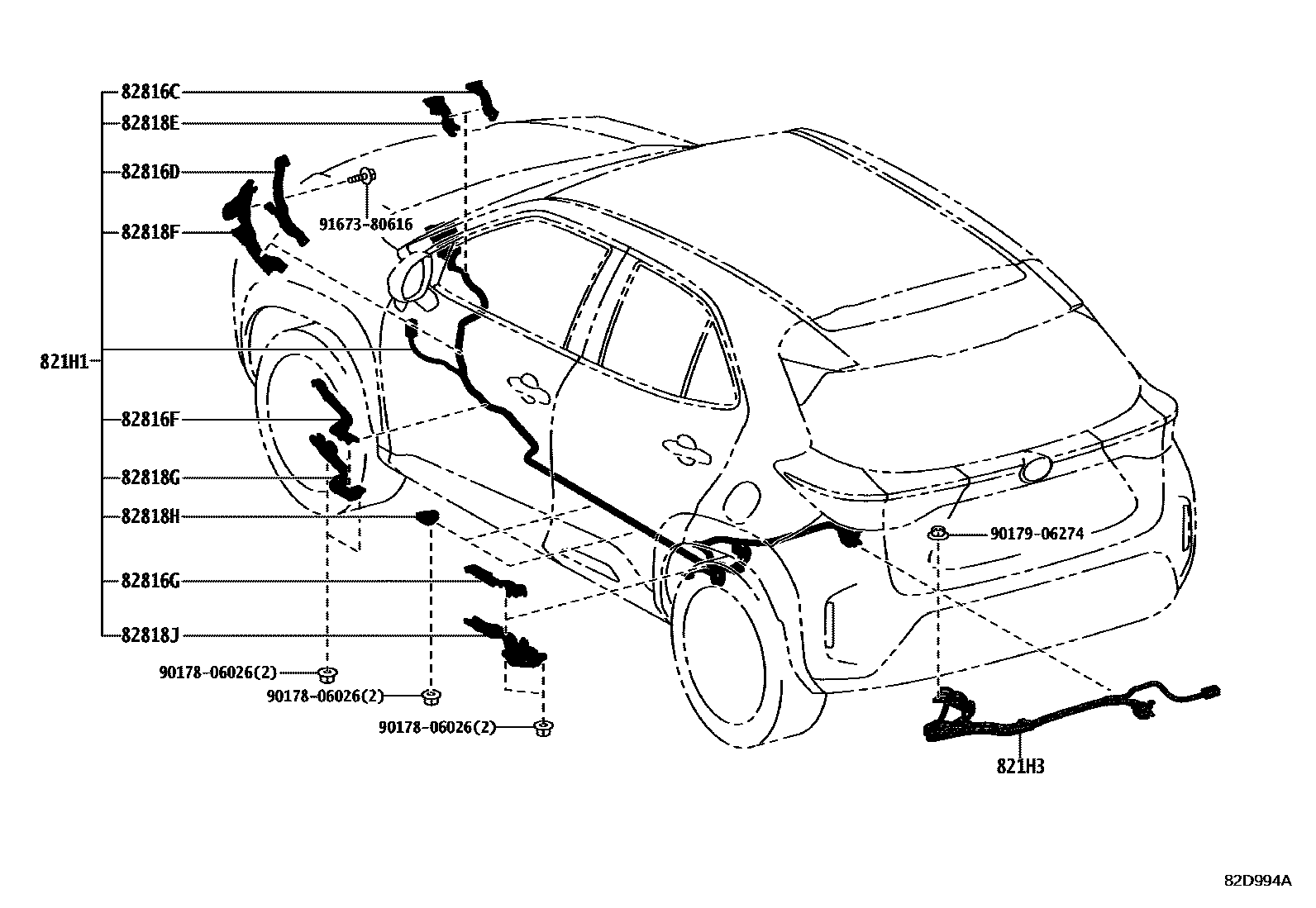

Toyota YARIS 线束和卡夹 EPC diagram — 82D994A
线束和卡夹 — 82D994A (202008 – 999999)

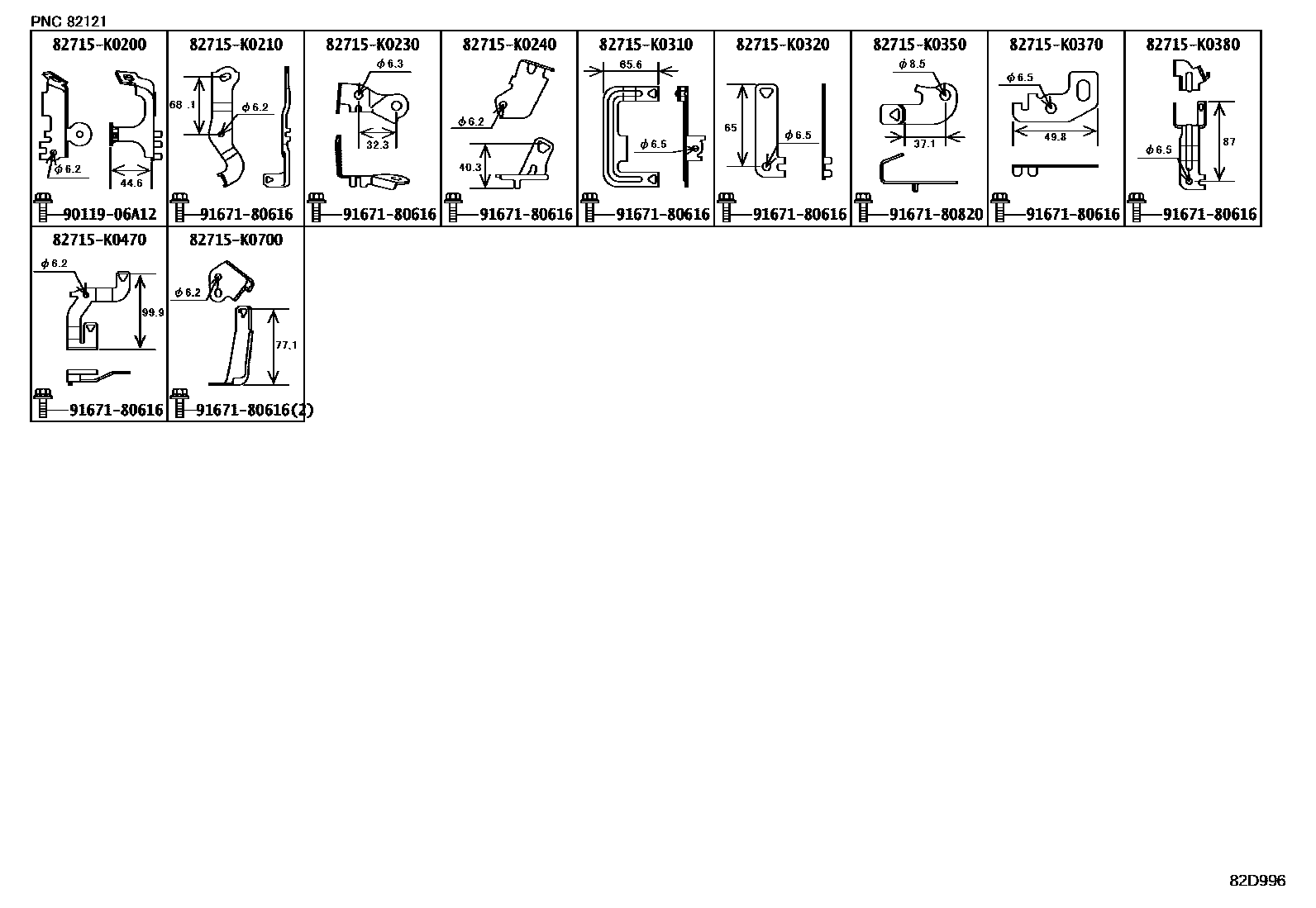

Toyota YARIS 线束和卡夹 EPC diagram — 82D996
线束和卡夹 — 82D996 (202008 – 999999)

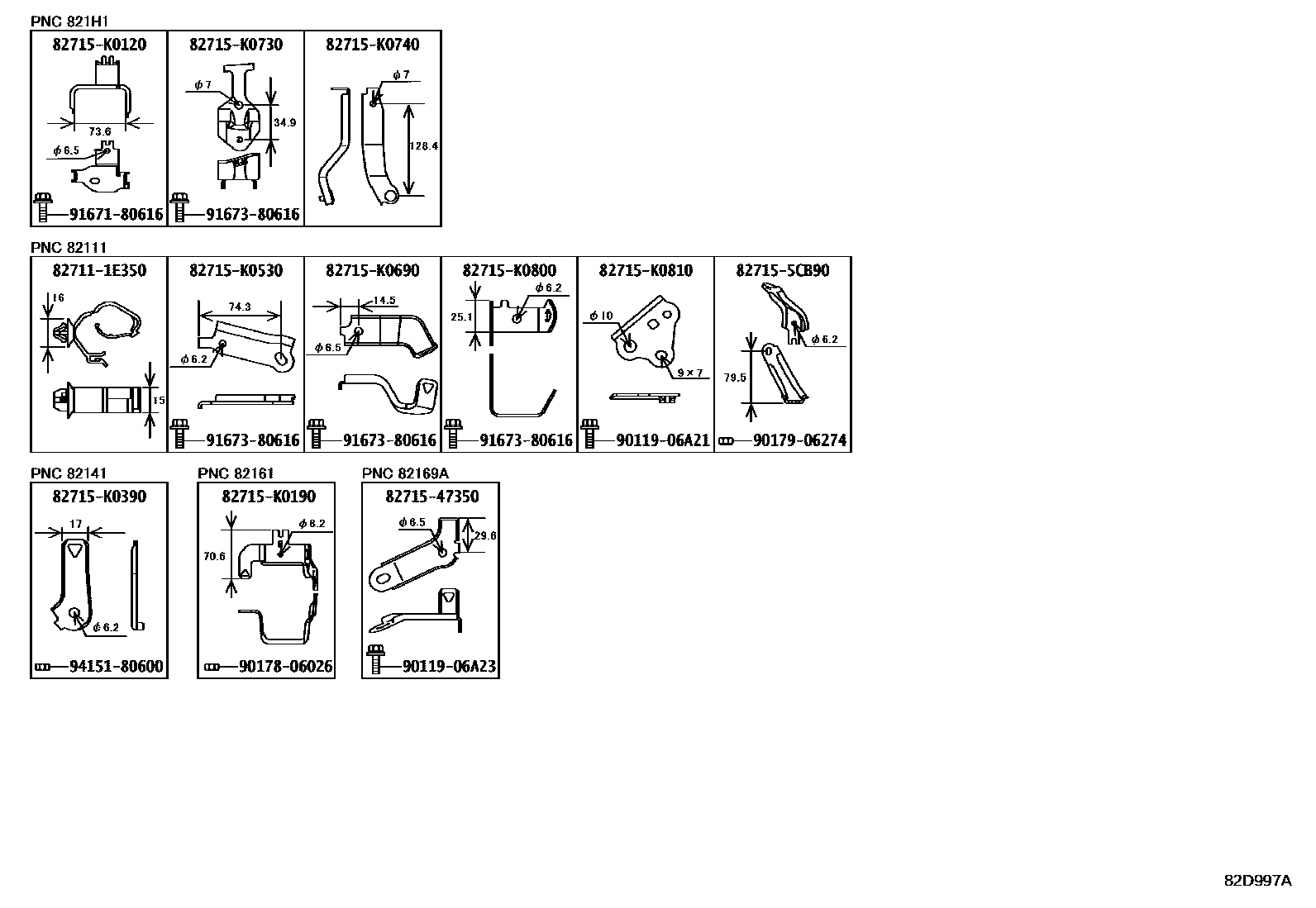

Toyota YARIS 线束和卡夹 EPC diagram — 82D997A
线束和卡夹 — 82D997A (202008 – 999999)

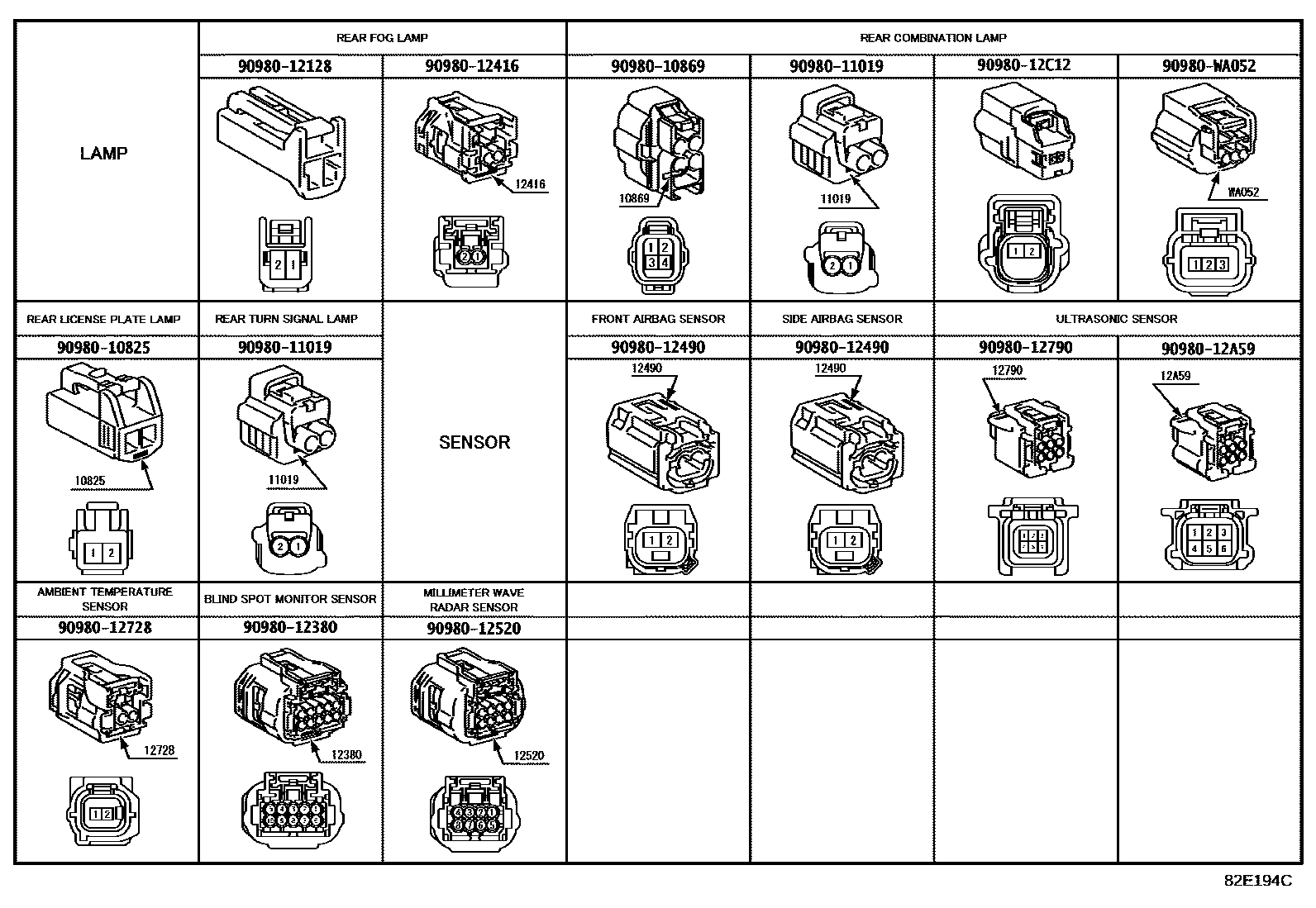

Toyota YARIS 线束和卡夹 EPC diagram — 82E194C
线束和卡夹 — 82E194C (202008 – 999999)

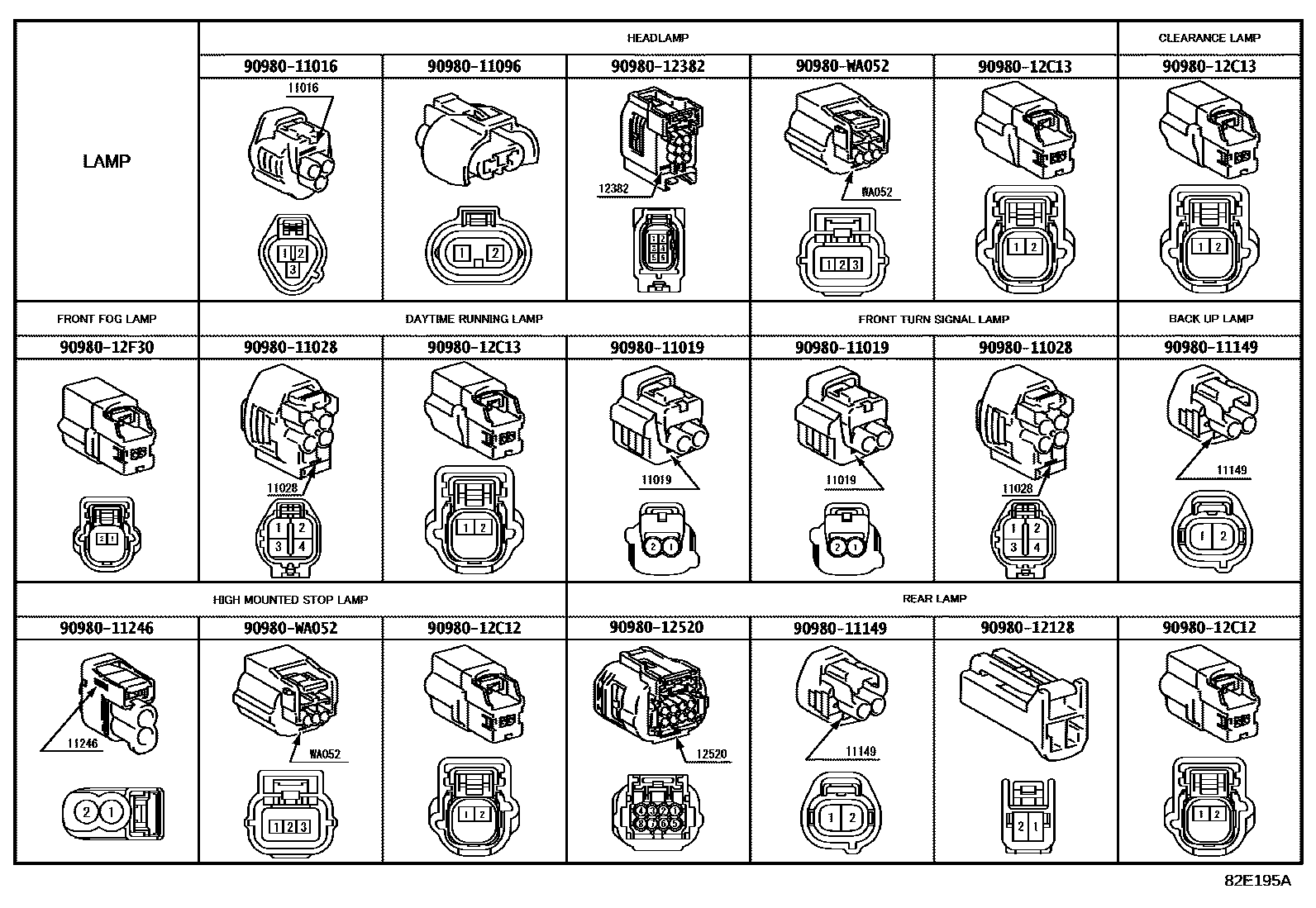

Toyota YARIS 线束和卡夹 EPC diagram — 82E195A
线束和卡夹 — 82E195A (202008 – 999999)

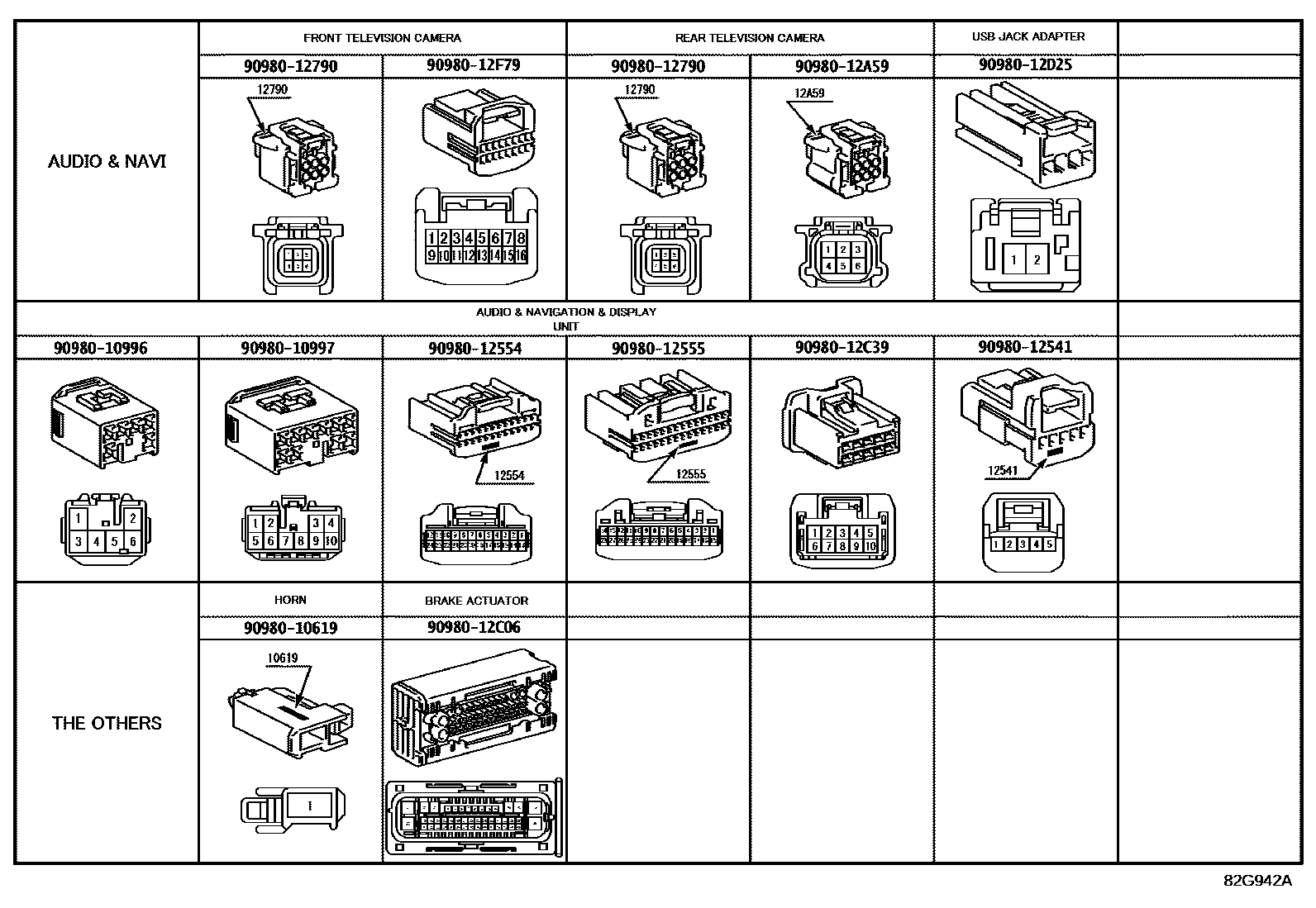

Toyota YARIS 线束和卡夹 EPC diagram — 82G942A
线束和卡夹 — 82G942A (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
82111Engine room main wiring harness82111-5DV40 · 82111-5DV41 · 82111-5DV50 · 82111-5DV51 · 82111-5DV70 · 82111-5DV71 · 82111-5DV80 · 82111-5DV81 · 82115-5C870 · 82115-5C871 · 82115-5C880 · 82115-5C881
82112BEngine room wiring harness No. 282112-52560
82113Engine room wiring harness No. 382113-52080 · 82113-52090 · 82113-52110 · 82113-52120 · 82113-52150 · 82113-52160 · 82113-52180 · 82113-52190 · 82113-52D00 · 82113-52D10 · 82113-52D60 · 82113-52D70
82114Engine room wiring harness No. 482114-52060
82121Engine wiring harness82121-52U70 · 82121-52X00 · 82121-K0230 · 82121-K0231 · 82121-K0260
82125NEngine No. 5 wiring harness82125-52190 · 82125-K0060
82126ANo. 6 engine wiring harness82126-K0040
82141Dashboard wiring harness82146-52700 · 82146-52701 · 82146-52720 · 82146-52721 · 82146-52730 · 82146-52731 · 82146-52820 · 82146-52821 · 82146-52850 · 82146-52851 · 82146-52860 · 82146-52861 · 82146-52B40 · 82146-52B41 · 82146-52B60 · 82146-52B61 · 82146-52B70 · 82146-52B71 · 82146-52B80 · 82146-52B81 · 82146-52C10 · 82146-52C11 · 82146-52C30 · 82146-52C31 · 82146-5C790 · 82146-5C870 · 82146-5C871 · 82146-5CA00 · 82146-5CA01 · 82146-5CA10 · 82146-5CA11 · 82146-5CA40 · 82146-5CA41 · 82146-5CA50 · 82146-5CA51 · 82146-5CB00 · 82146-5CB01 · 82146-5CB30 · 82146-5CB31
82142AInstrument panel wiring harness No. 282140-K0010
82151Right front door wiring harness82151-52X50 · 82151-52Z00 · 82151-52Z10 · 82151-5C340 · 82151-5C350 · 82151-5CL00 · 82151-5CL10 · 82151-5CL30 · 82151-5CL50
82152Left front door wiring harness82152-52U60 · 82152-52V90 · 82152-52W00 · 82152-5C020 · 82152-5C030 · 82152-5CJ20 · 82152-5CJ30 · 82152-5CJ50 · 82152-5CJ70
82153Rear door wiring harness No. 182153-52510
82154Rear door wiring harness No. 282154-52550
82161floor wiring harness82161-5DR40 · 82161-5DR41 · 82161-5DS00 · 82161-5DS01 · 82161-5DS10 · 82161-5DS30 · 82161-5DS40 · 82161-5DS41 · 82161-5DS60 · 82161-5DS61 · 82161-5DT20 · 82161-5DT21 · 82161-5DT30 · 82161-5DT50 · 82161-5DT51 · 82161-5DT60 · 82161-5DT61 · 82161-5DT80 · 82161-5DT81 · 82161-5DU20 · 82161-5DU21 · 82161-5DU30 · 82161-5DU40 · 82161-5DU50 · 82161-5DU51 · 82199-5DV80 · 82199-5DV90 · 82199-5DW00 · 82199-5DW10 · 82199-5DW20 · 82199-5DW40 · 82199-5DW41 · 82199-5DW50
82163Floor wiring harness No. 382163-K0040
82169ANo. 6 floor wiring harness82169-K0040
8216ANo. 7 floor wiring harness82165-52110
8216BNo. 8 floor wiring harness82167-52060
82171Roof No. 1 wiring harness82171-52860 · 82171-52861 · 82171-52870 · 82171-52J90 · 82171-52K10
82182Luggage No. 2 wiring harness82182-52350 · 82182-52370 · 82182-52390
82184Rear door No. 1 wiring harness82184-52800 · 82184-52801 · 82184-52802 · 82184-52810 · 82184-52811 · 82184-52812 · 82184-52830 · 82184-52831 · 82184-52832 · 82184-52840 · 82184-52841 · 82184-52842 · 82184-52A30 · 82184-52A31 · 82184-52A32 · 82184-52A40 · 82184-52A41 · 82184-52A42 · 82184-52B30 · 82184-52B31 · 82184-52B32 · 82184-52B40 · 82184-52B41 · 82184-52B42 · 82184-52L20 · 82184-52L30 · 82184-52L50 · 82184-52M00 · 82184-52M30 · 82184-52M31 · 82184-52N00
82185Rear door wiring harness No. 282185-52B40 · 82185-52B41 · 82185-52B42 · 82185-52B43 · 82185-52D70 · 82185-52D71 · 82185-52D72 · 82185-52D73 · 82185-52D80 · 82185-52D81 · 82185-52D82 · 82185-52D83 · 82185-52E00 · 82185-52E01 · 82185-52E02 · 82185-52E03 · 82185-52E10 · 82185-52E11 · 82185-52E12 · 82185-52E13 · 82185-52E20 · 82185-52E21 · 82185-52E22 · 82185-52E23 · 82185-52E40 · 82185-52E41 · 82185-52E42 · 82185-52E43 · 82185-52E50 · 82185-52E51 · 82185-52E52 · 82185-52E53 · 82185-52E60 · 82185-52E61 · 82185-52E62 · 82185-52E63 · 82185-52E80 · 82185-52E81 · 82185-52E82 · 82185-52E83 · 82185-52E90 · 82185-52E91 · 82185-52E92 · 82185-52E93 · 82185-52F00 · 82185-52F01 · 82185-52F02 · 82185-52F03 · 82185-52F80 · 82185-52F81 · 82185-52F82 · 82185-52F83 · 82185-52F90 · 82185-52F91 · 82185-52F92 · 82185-52F93 · 82185-52G00 · 82185-52G01 · 82185-52G02 · 82185-52G03 · 82185-52G20 · 82185-52G21 · 82185-52G22 · 82185-52G23 · 82185-52G30 · 82185-52G31 · 82185-52G32 · 82185-52G33 · 82185-52G40 · 82185-52G41 · 82185-52G42 · 82185-52G43 · 82185-52G60 · 82185-52G61 · 82185-52G62 · 82185-52G63 · 82185-52G70 · 82185-52G71 · 82185-52G72 · 82185-52G73 · 82185-52G80 · 82185-52G81 · 82185-52G82 · 82185-52G83 · 82185-52J00 · 82185-52J01 · 82185-52J02 · 82185-52J03 · 82185-52J10 · 82185-52J11 · 82185-52J12 · 82185-52J13 · 82185-52J20 · 82185-52J21 · 82185-52J22 · 82185-52J23 · 82185-52S50 · 82185-52S60 · 82185-52T10 · 82185-52T70 · 82185-52U00 · 82185-52U20
82191Front right seat wiring harness82191-52060
821H1Underfloor wiring harness821H1-K0030 · 821H1-K0040
821H2HV air conditioner wiring harness821H2-K0030
821H3HV battery pack wiring harness821H3-K0050
82219Csensor harness82219-K0050 · 82219-K0060
82666AConnector holder No. 282666-K0100
82666BNo. 3 connector holder82666-K0110
82666CNo. 4 connector holder82666-K0120
82666DNo. 5 connector holder82666-K0140
82666ENo. 6 connector holder82666-K0050
82666FNo. 7 connector holder82666-26180
82666LNo. 9 connector holder82666-K0070
82666NNo. 10 connector holder82666-K0080
82815AWiring harness protector cover82815-52740
82815BWiring harness protector cover82815-52A90 · 82815-K0520 · 82815-K0740
82815GNo. 5 wire harness protector cover82815-K0750
82815HNo. 6 wire harness protector cover82815-K0430
82815JNo. 7 wire harness protector cover82815-K0720
82815KNo. 8 wire harness protector cover82815-K0730
82815LNo. 9 wire harness protector cover82815-K0010 · 82815-K0120
82815MNo. 10 wire harness protector cover82815-K0020 · 82815-K0130
82815NNo. 11 wire harness protector cover82815-K0030 · 82815-K0140
82815PNo. 12 wire harness protector cover82815-K0040 · 82815-K0150
82815QNo. 13 wire harness protector cover82815-K0050 · 82815-K0160
82815RNo. 14 wire harness protector cover82815-K0060 · 82815-K0170
82815SNo. 15 wire harness protector cover82815-K0180
82815TNo. 16 wire harness protector cover82815-K0190
82815UNo. 17 wire harness protector cover82815-K0070 · 82815-K0200
82815VNo. 1 wire harness protector cover82815-K0080 · 82815-K0210
82815WNo. 2 wire harness protector cover82815-K0090 · 82815-K0260
82815XNo. 3 wire harness protector cover82815-K0370
82815YNo. 4 wire harness protector cover82815-K0380
82815ZNo. 18 wire harness protector cover82815-K0390 · 82815-K0400
82816BNo. 1 wire harness protector cover82815-K0770
82816CNo. 2 wire harness protector cover82815-K0320
82816DNo. 3 wire harness protector cover82815-K0330
82816FNo. 4 wire harness protector cover82815-K0340
82816GNo. 5 wire harness protector cover82815-K0350
82816HNo. 6 wire harness protector cover82815-K0100
82816JNo. 7 wire harness protector cover82815-K0530
82816KNo. 8 wire harness protector cover82815-52C30
82816LNo. 9 wire harness protector cover82815-52C40
82817No. 1 wire harness protection device82817-52N70
82817ANo. 2 wire harness protection device82817-K0560 · 82817-K0700
82817BNo. 3 wire harness protection device82817-K0750
82817CNo. 4 wire harness protection device82817-52S80 · 82817-K0740 · 82817-K0A50
82817DNo. 5 wire harness protection device82817-K0A70
82817ENo. 6 wire harness protection device82817-52V00 · 82817-K0A60
82817FNo. 7 wire harness protection device82817-52L30 · 82817-K0120
82817GNo. 8 wire harness protection device82817-K0130 · 82817-K0220
82817JNo. 9 wire harness protection device82817-K0140 · 82817-K0230
82817KNo. 10 wire harness protection device82817-K0150 · 82817-K0240
82817LNo. 11 wire harness protection device82817-K0160 · 82817-K0250
82817MNo. 12 wire harness protection device82817-K0170 · 82817-K0260
82817NNo. 13 wire harness protection device82817-K0180 · 82817-K0270
82817PNo. 14 wire harness protection device82817-52T30 · 82817-K0280
82817TNo. 15 wire harness protection device82817-K0290
82817UNo. 16 wire harness protection device82817-K0190 · 82817-K0300
82817XNo. 17 wire harness protection device82817-K0200 · 82817-K0310
82818No. 2 wire harness protection device82817-K0360 · 82817-K0860
82818BNo. 3 wire harness protection device82817-K0380 · 82817-K0A80
82818CNo. 4 wire harness protection device82817-K0390
82818DNo. 5 wire harness protection device82817-K0540
82818ENo. 6 wire harness protection device82817-K0480
82818FNo. 7 wire harness protection device82817-K0490
82818GNo. 8 wire harness protection device82817-K0500
82818HNo. 9 wire harness protection device82817-K0510
82818JNo. 10 wire harness protection device82817-K0520
82818KNo. 11 wire harness protection device82817-K0210
82818LNo. 12 wire harness protection device82817-K0580
82818MNo. 13 wire harness protection device82817-52N80
82818NNo. 14 wire harness protection device82817-K2020
82821AConnector cover82821-52410
82821HConnector cover82821-12760
82821MConnector cover82821-20510
82821NConnector cover82821-30600
82821PConnector cover82821-33490
82821RConnector cover82821-33590
82821UConnector cover82821-33610
82821VConnector cover82821-33620
82821WConnector cover82821-30690 · 82821-33690
82821XConnector cover82821-33650 · 82821-33780
82821YConnector cover82821-33810
82823No. 1 terminal cover82823-K0010
82823Sstarter terminal cover82823-K0020
82823TGenerator terminal cover82823-K0030
82824AHarness connector90980-12373
82H21CConnector cover82821-33770 · 82821-33860
82H21DConnector cover82821-33830 · 82821-33A00
82H21GConnector cover82821-47330 · 82821-52390
82H21JConnector cover82821-50500
82H21LConnector cover82821-50510 · 82821-52380
82H21MConnector cover82821-47690
890C0Parking brake cable assembly No. 1890C0-K0050 · 890C0-K0070
890C0AParking brake No. 2 cable assembly890C0-K0060 · 890C0-K0080
G921DInverter Connector Cover ProtectorG921D-47020
