Toyota YARIS 蓄电池和蓄电池电缆 — Figure 8201
Toyota YARIS EPC diagram 8201, 蓄电池和蓄电池电缆, with 5 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

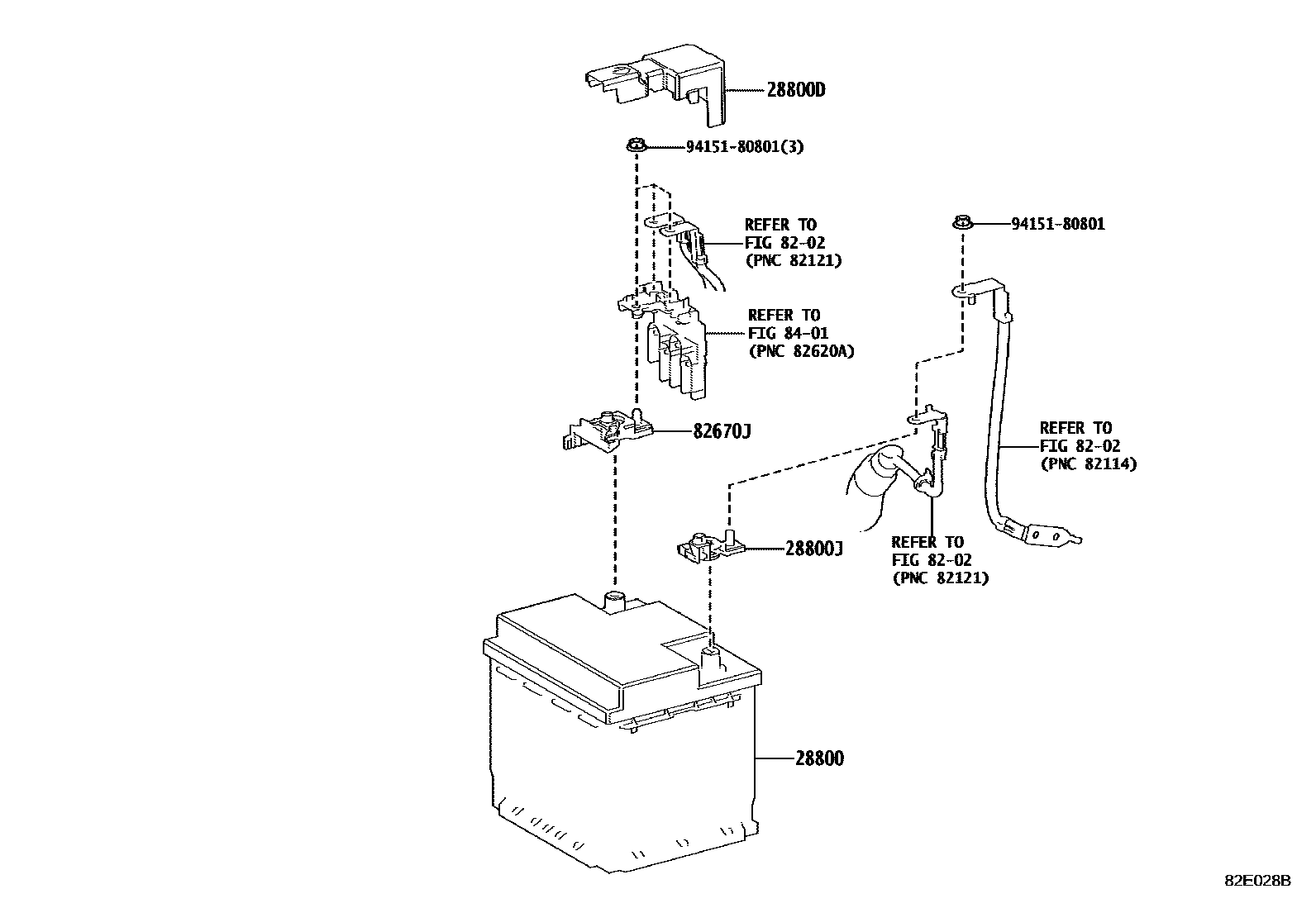

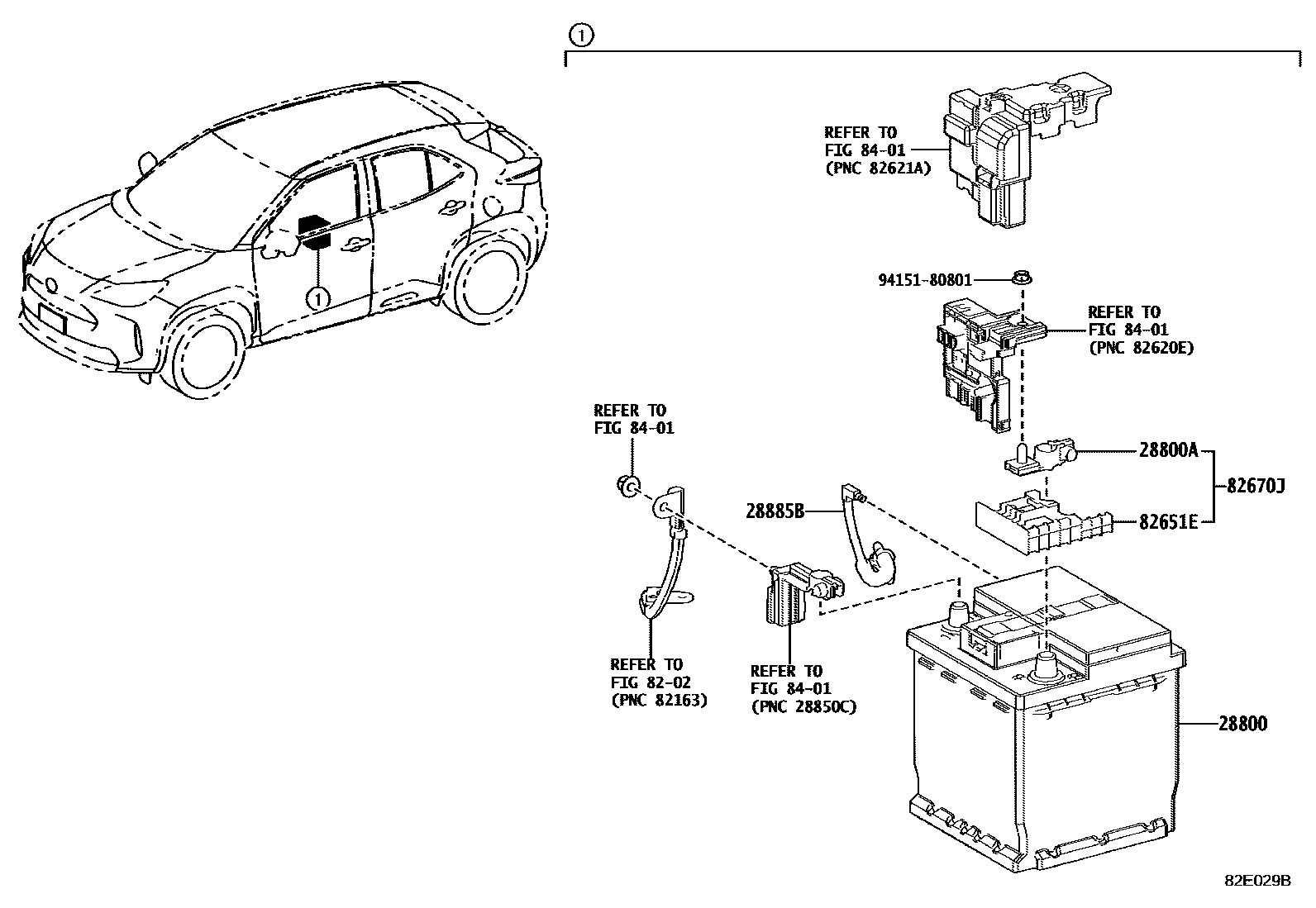

| 28800 | battery | 28800-21211 · 28800-21212 · 28800-21213 · 28800-37130 · 28800-37131 |
| 28800A | battery positive terminal | 90982-05053 |
| 28800D | Connector cover (for battery terminals) | 82621-52170 |
| 28800J | battery negative terminal | 90982-06061 |
| 28885B | battery hose | 28885-K0010 |
| 82651E | Terminal box | 82671-33090 |
| 82670J | Junction box assembly | 82670-33140 · 82670-K0010 |
| 82685E | Maintenance plug warning nameplate | 82685-47110 · G9118-33030 |
| 89890A | Battery ECU assembly | 89890-52050 · 89890-52051 · 89890-K0010 |
| G3830A | Electric vehicle battery plug assembly | G3830-K0010 |

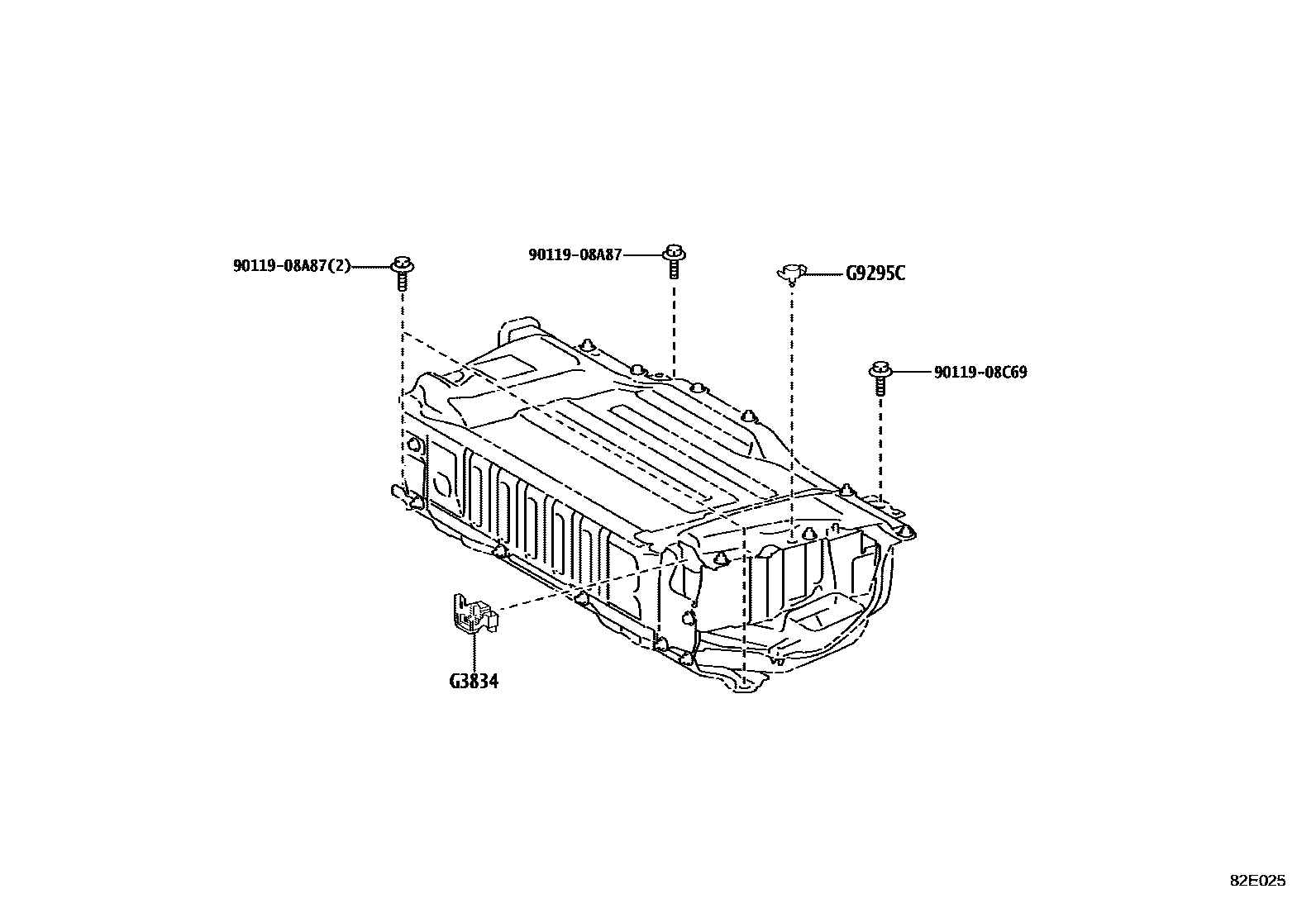

| G3834 | Service plug handle | G3834-47050 |
| G3850 | Power battery No. 1 device box assembly | G3850-52020 |
| G920Q | No. 1 HV battery shielding sub-assembly | G920Q-K0010 |

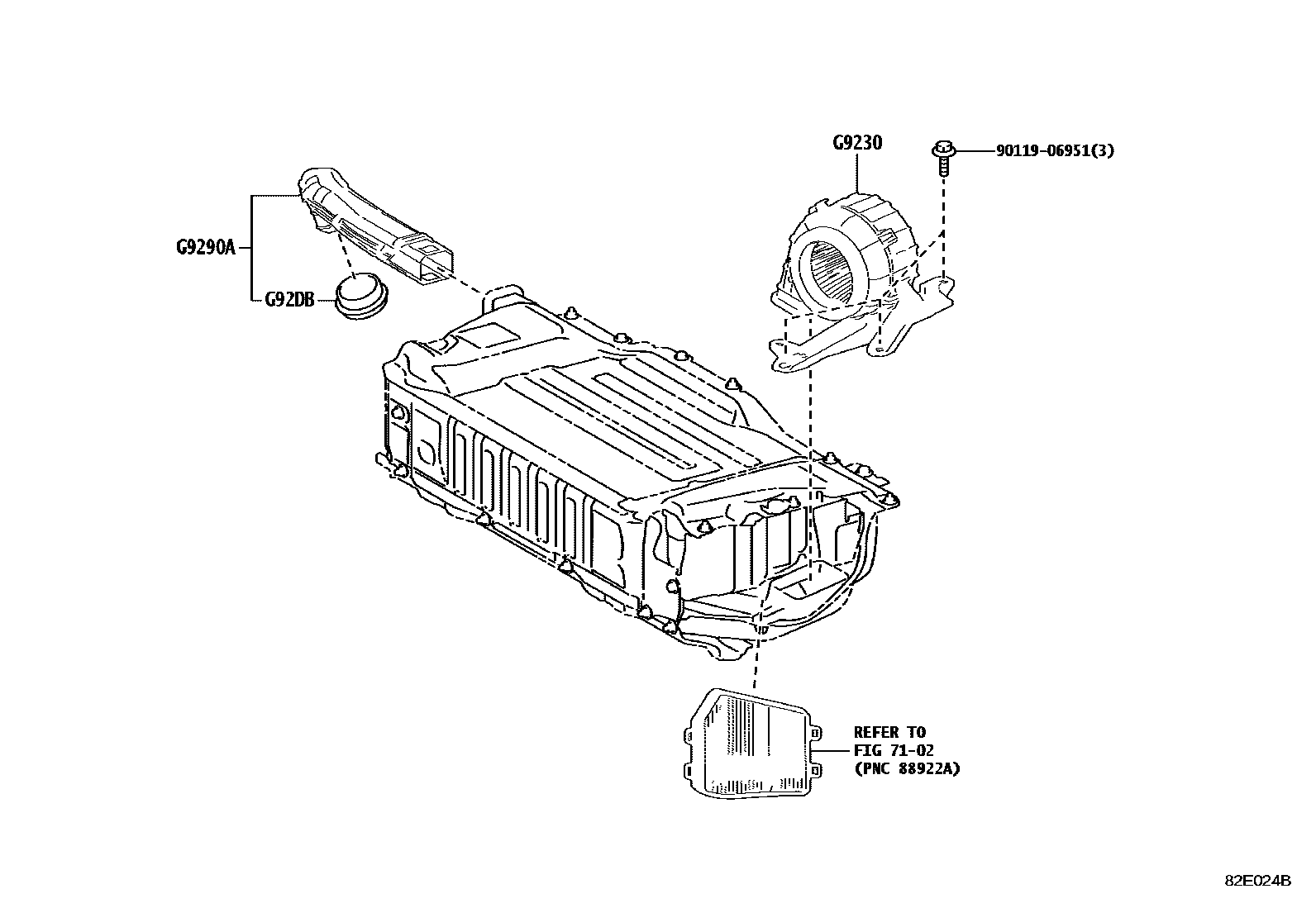

| G9230 | Battery cooling blower assembly | G9230-K0021 |
| G9290A | HV battery hose assembly | G9290-K0010 |
| G9295C | Battery cover No. 2 lock | G9295-30020 |
| G929A | HV battery hose No. 1 | G929A-K0010 |
| G92DB | No. 1 HV battery seal | G92DB-47030 |
| G92E1A | No. 1 HV battery left air inlet | G92E1-K0010 |
| G92N1 | HV battery upper cover | G92NE-K0010 |
| G92PC | No. 1 HV battery protective cover | G92PC-52010 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |
| G9508 | No. 1 HV power supply battery assembly | G9509-52010 |
| G9509 | No. 2 HV power supply battery assembly | G9508-52010 |

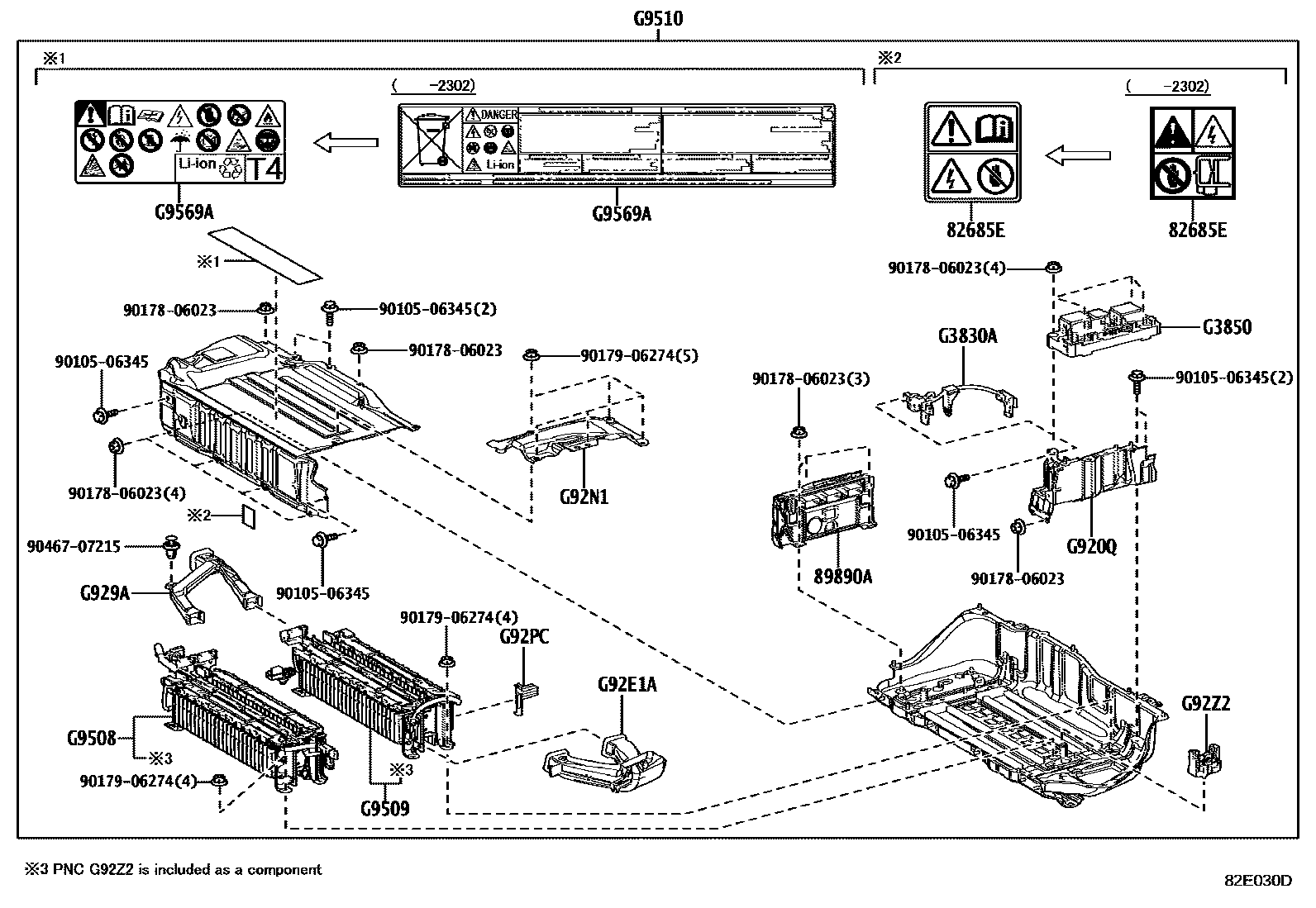

| G9510 | HV power supply battery assembly | G9510-52080 · G9510-52081 · G9510-52082 · G9510-52083 |
| G9569A | Lithium Ion Battery Warning Labels | G9569-47120 · G9569-48020 |
