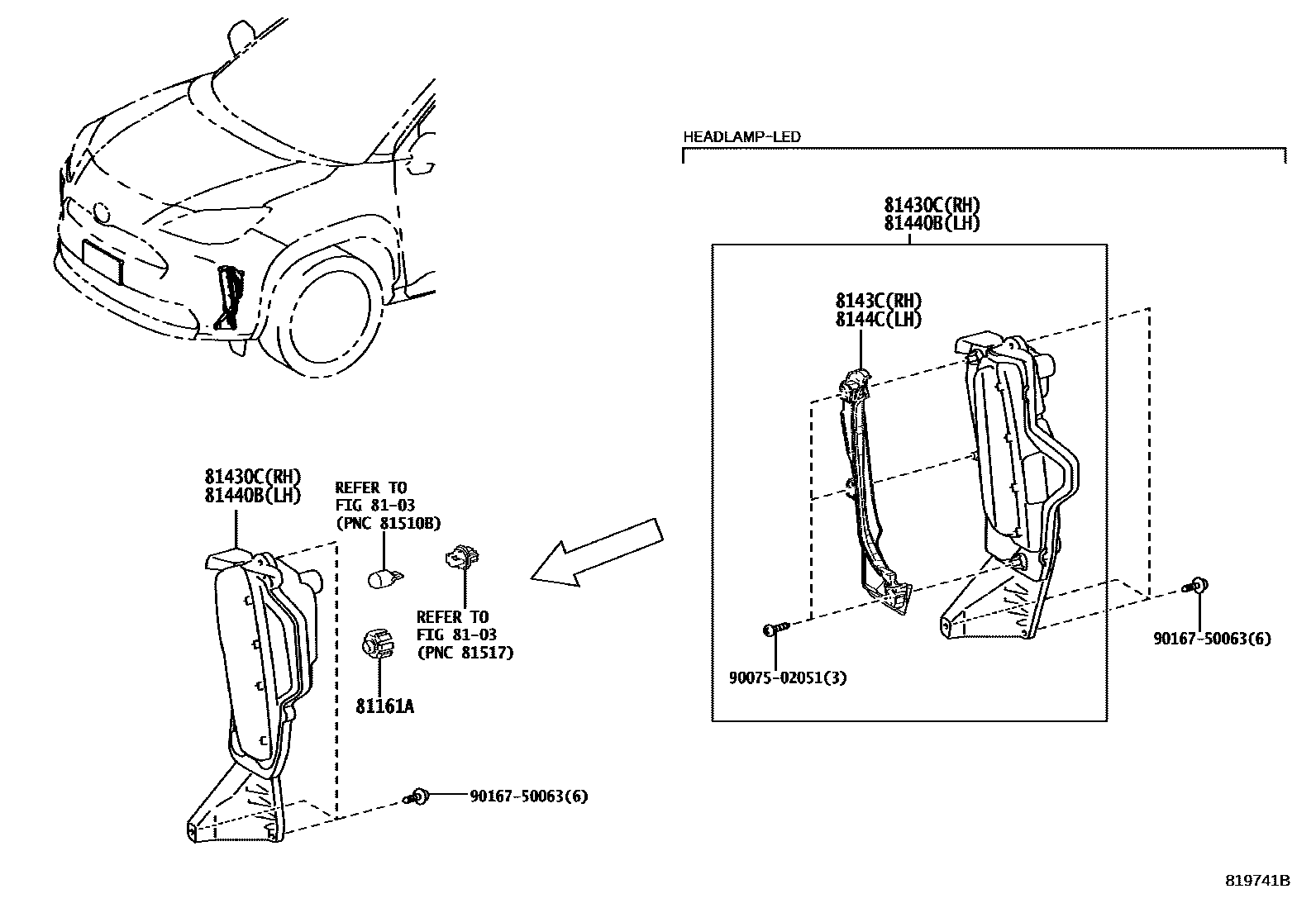

Toyota YARIS 日间行车照明灯或照明灯 — Figure 8119
Toyota YARIS EPC diagram 8119, 日间行车照明灯或照明灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81161A | Daytime running LED lights | 81161-52N10 · 81965-52060 |
| 81430C | Right daytime running light assembly | 81430-52050 · 81430-52060 · 8143B-52040 |
| 8143C | Right daytime running light cover | 8143C-52050 |
| 81440B | Left side daytime running light assembly | 81440-52050 · 81440-52060 · 8144B-52040 |
| 8144C | Left daytime running light cover | 8144C-52050 |
