Toyota YARIS Headlamp — Figure 8101

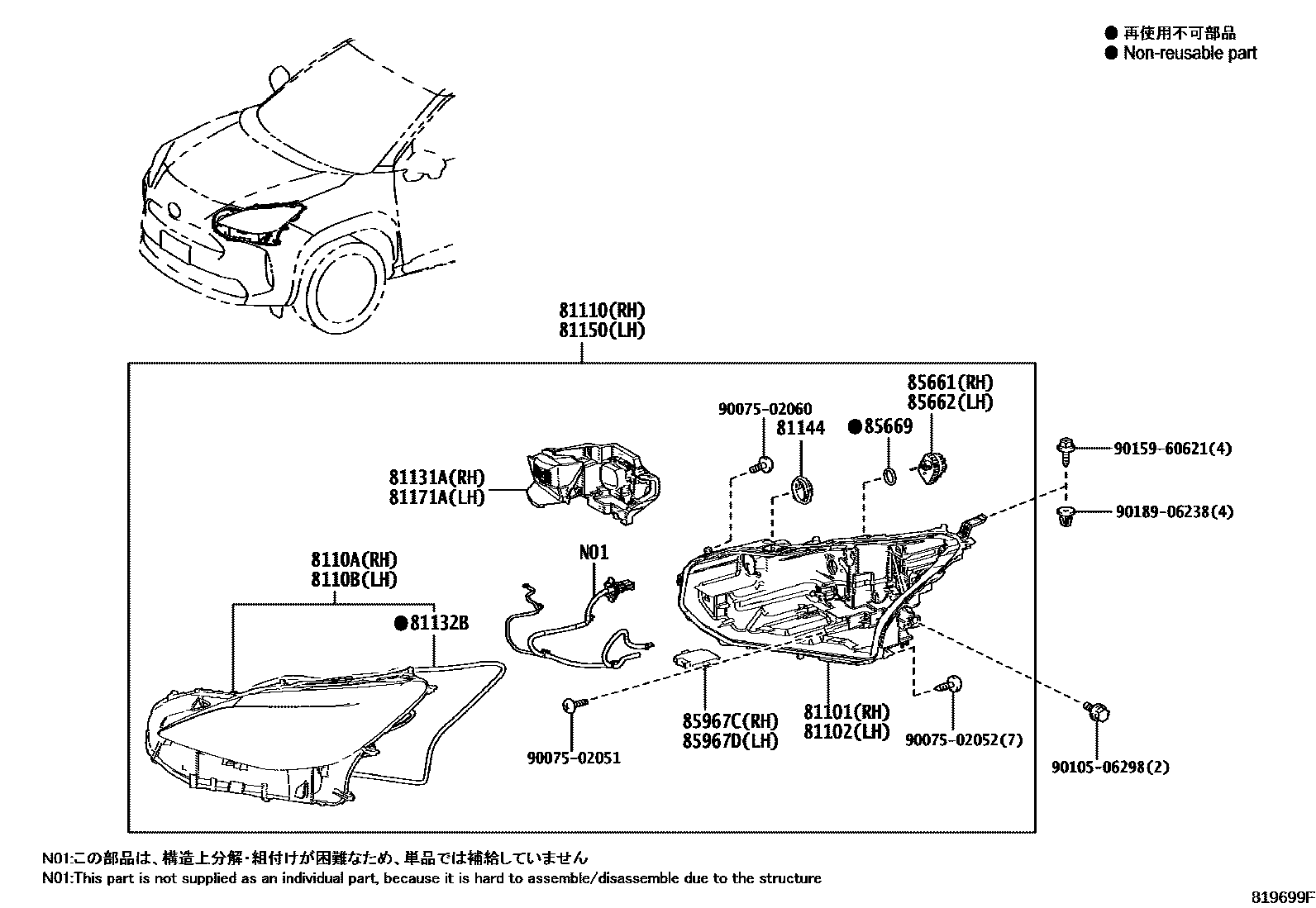

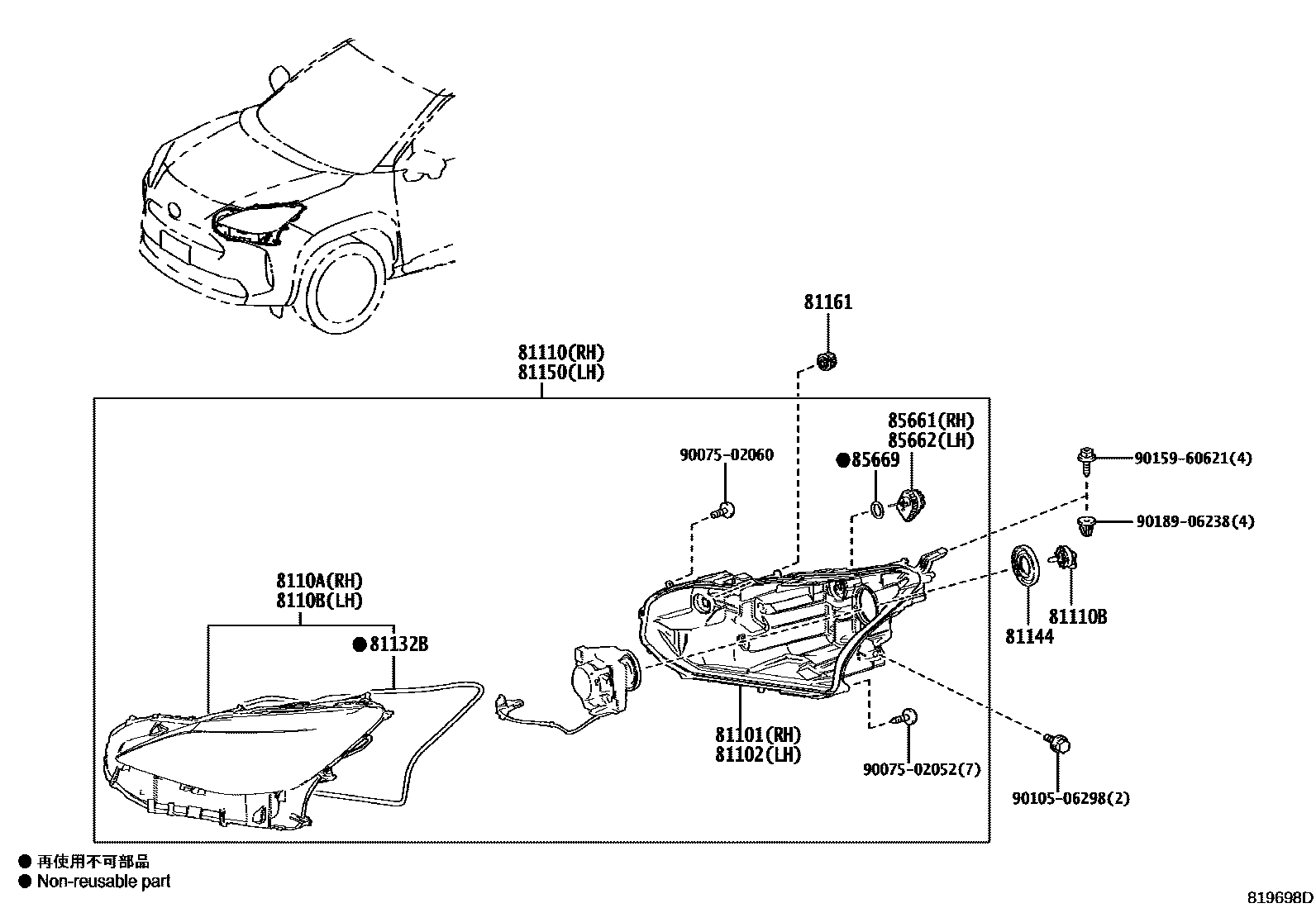

Toyota YARIS EPC diagram 8101, Headlamp, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81101 | Right headlight housing sub-assembly | 8111B-52N10 · 8111B-52N20 |
| 81102 | Left headlight housing sub-assembly | 8115B-52N10 · 8115B-52N20 |
| 8110A | Right headlight cover sub-assembly | 8110A-52N10 · 8110A-52N20 |
| 8110B | Left headlight cover sub-assembly | 8110B-52N10 · 8110B-52N20 |
| 81110 | Right headlight assembly | 81110-52N20 · 81110-52N21 · 81130-52N10 |
| 81110B | Bulb (for headlight No. 1) | 90981-13091 |
| 81131A | Right headlight assembly | 81130-52N20 |
| 81132B | Headlight cover gasket | 81132-50590 |
| 81144 | No. 1 headlight cover | 90075-65006 · 90075-66016 |
| 81150 | Left headlight assembly | 81150-52N20 · 81150-52N21 · 81170-52N10 |
| 81161 | LED width light | 81161-52N10 · 81965-52060 |
| 81171A | Left headlight assembly | 81170-52N20 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
| 85967C | Right LED light control ECU | 8596A-52020 · 8596A-52021 |
| 85967D | Left LED light control ECU | 8596A-52010 · 8596A-52011 |
