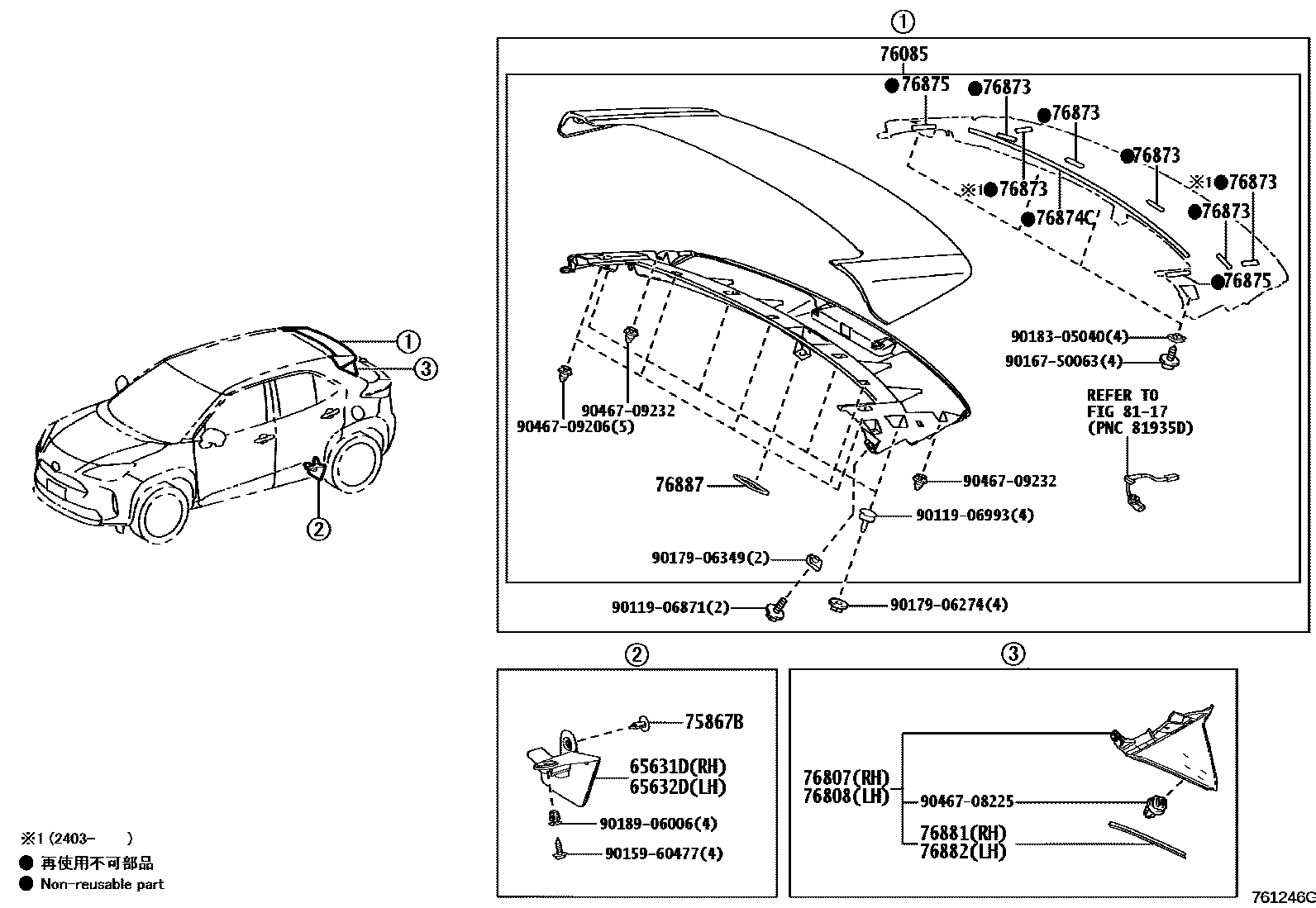

Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-52160 |
| 65632D | Left rear wheel house front panel | 65632-52160 |
| 75867B | Door sill panel protective strip clip | 75867-30140 |
| 76085 | Rear spoiler sub-assembly | 76085-52928 · 76085-52937 |
| 76807 | Right rear spoiler protection strip sub-assembly | 76807-52010 · 76807-52030 |
| 76808 | Left rear spoiler protection strip sub-assembly | 76808-52010 · 76808-52020 |
| 76873 | No. 2 rear spoiler protective strip | 76873-52160 |
| 76874C | No. 3 rear spoiler protective strip | 76874-52100 |
| 76875 | No. 4 rear spoiler protective strip | 76875-52080 |
| 76881 | No. 1 right rear spoiler protective strip | 76881-52010 · 76881-52030 |
| 76882 | No. 1 left rear spoiler protective strip | 76881-52010 · 76881-52030 |
| 76887 | Rear spoiler seal | 76887-52070 · 76887-52071 |
