Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 8 PNC and OE references.

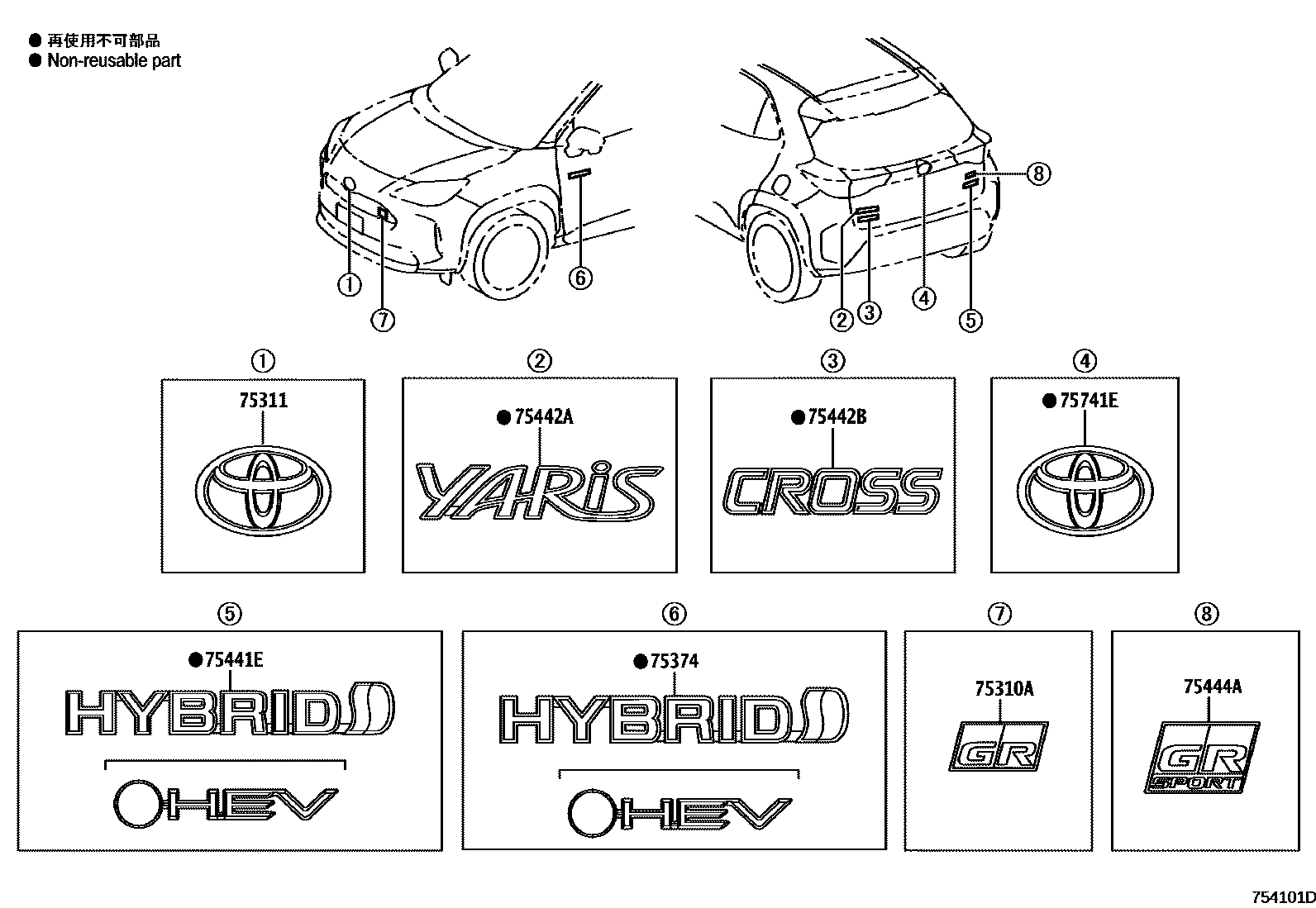

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 754101D
丰田徽标和铭牌(车外和车内) — 754101D (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
75310ARadiator grille plate assembly75310-52050
75311Radiator grille (or front panel) plate75310-12100 · 75310-12110 · 75310-52190 · 75403-52070
75374side panel sign75374-52190 · 75374-52200 · 75440-30030
75441EBack door No. 1 nameplate75440-30110 · 75441-52270
75442ANo. 2 nameplate on back door75442-52550
75442BNo. 2 nameplate on back door75442-52560
75444ANo. 4 nameplate on back door75430-52050
75741Elogo75403-75010 · 90975-02063 · 90975-02140 · 90975-02209
