Toyota YARIS 警示铭牌(车外和车内) — Figure 7403

Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 13 PNC and OE references.

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 745291D
警示铭牌(车外和车内) — 745291D (202008 – 999999)

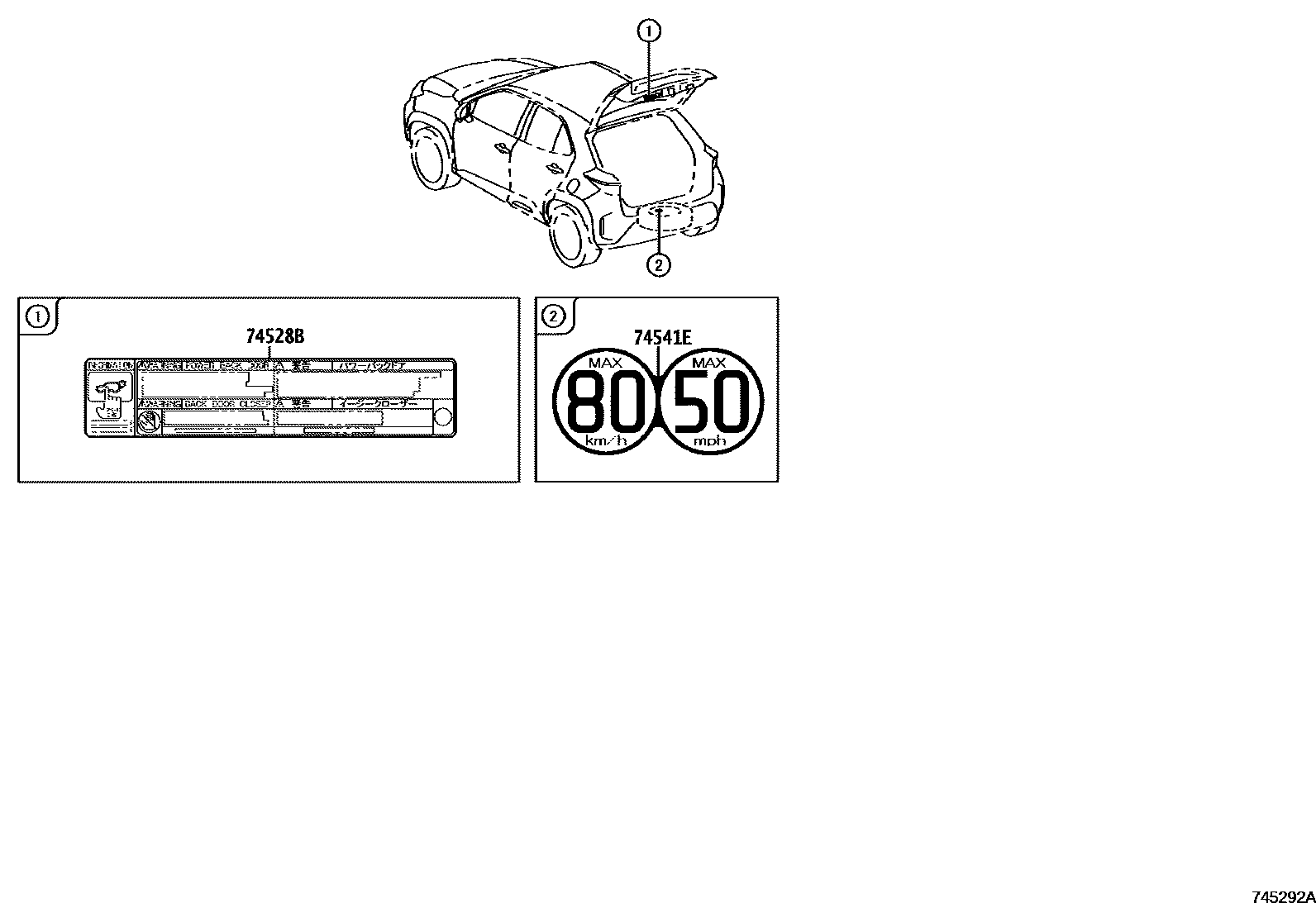

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 745292A
警示铭牌(车外和车内) — 745292A (202008 – 999999)

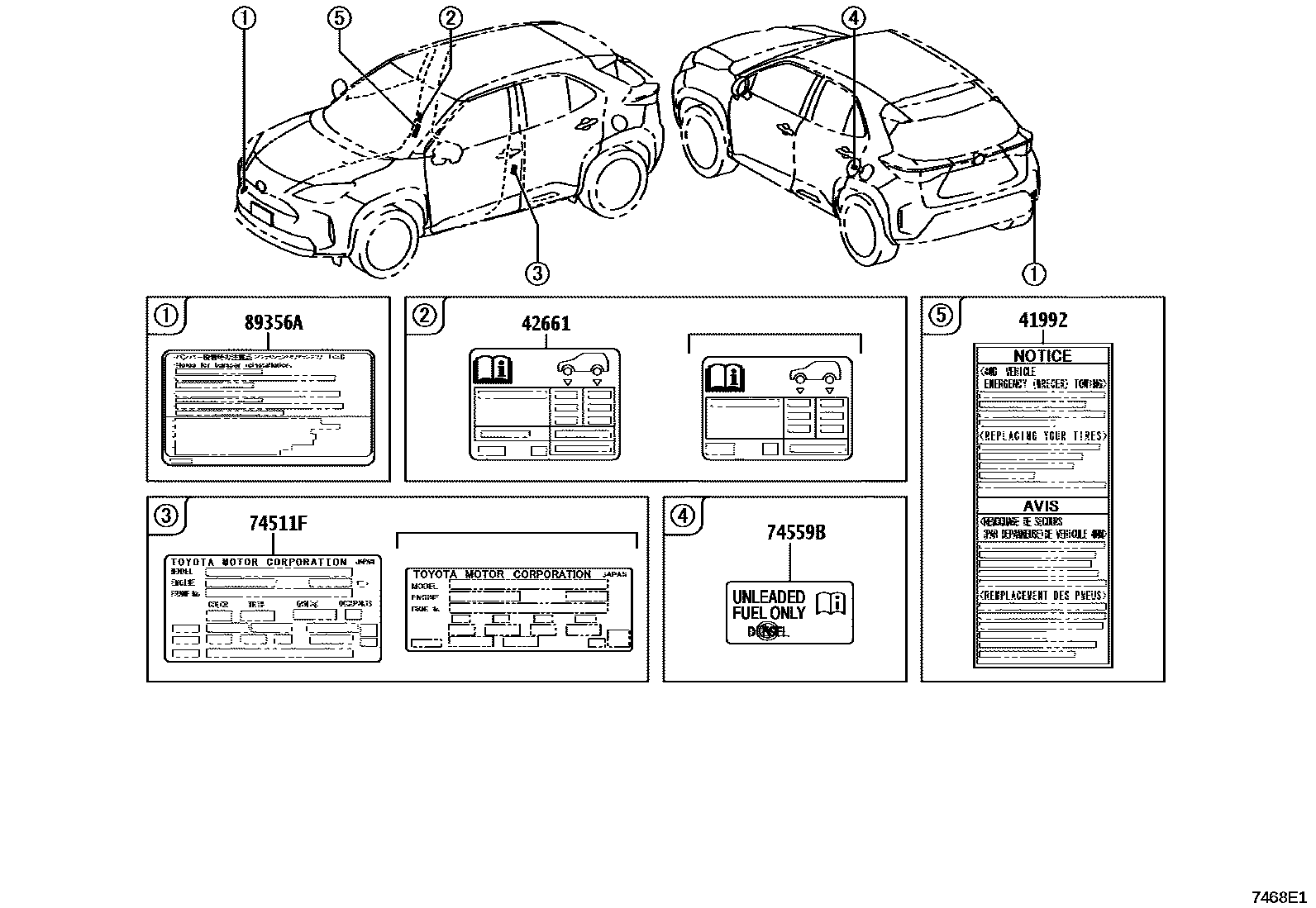

Toyota YARIS 警示铭牌(车外和车内) EPC diagram — 7468E1
警示铭牌(车外和车内) — 7468E1 (202008 – 999999)

PNC and OE references

PNCPart nameOE numbers
11293Dengine warning label11293-36070
16793ECooling fan warning label16793-36030
288A2Battery location label288A2-15020
41992Differential attention label41992-48020
42661tire pressure information label42661-52K80 · 42661-52K90 · 42661-52L00 · 42661-52L10
74511FNameplate (laser identification label)74511-2B300 · 74511-30A80 · 74511-48030
74528BBack door warning label74528-78010
74541ESmall spare tire warning plate42668-42010
74559Bfuel information label74559-20140
82685Dwarning nameplate82684-48010
88723ECooler maintenance warning label7454B-52010 · 88723-K0120 · 88723-K0130
89356Adistance warning information label89356-47020
G9275No. 1 battery warning labelG9275-K0030
