Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

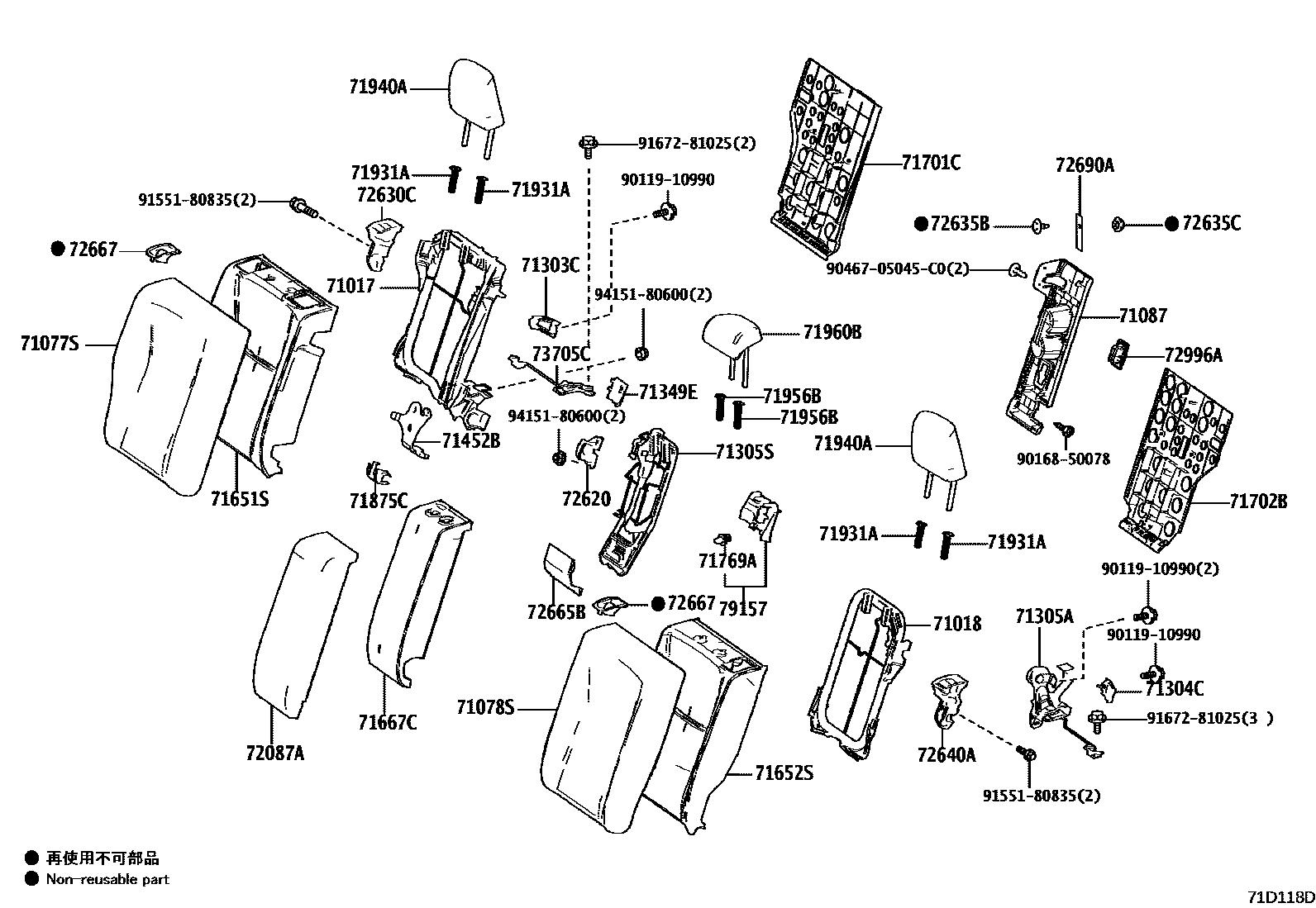

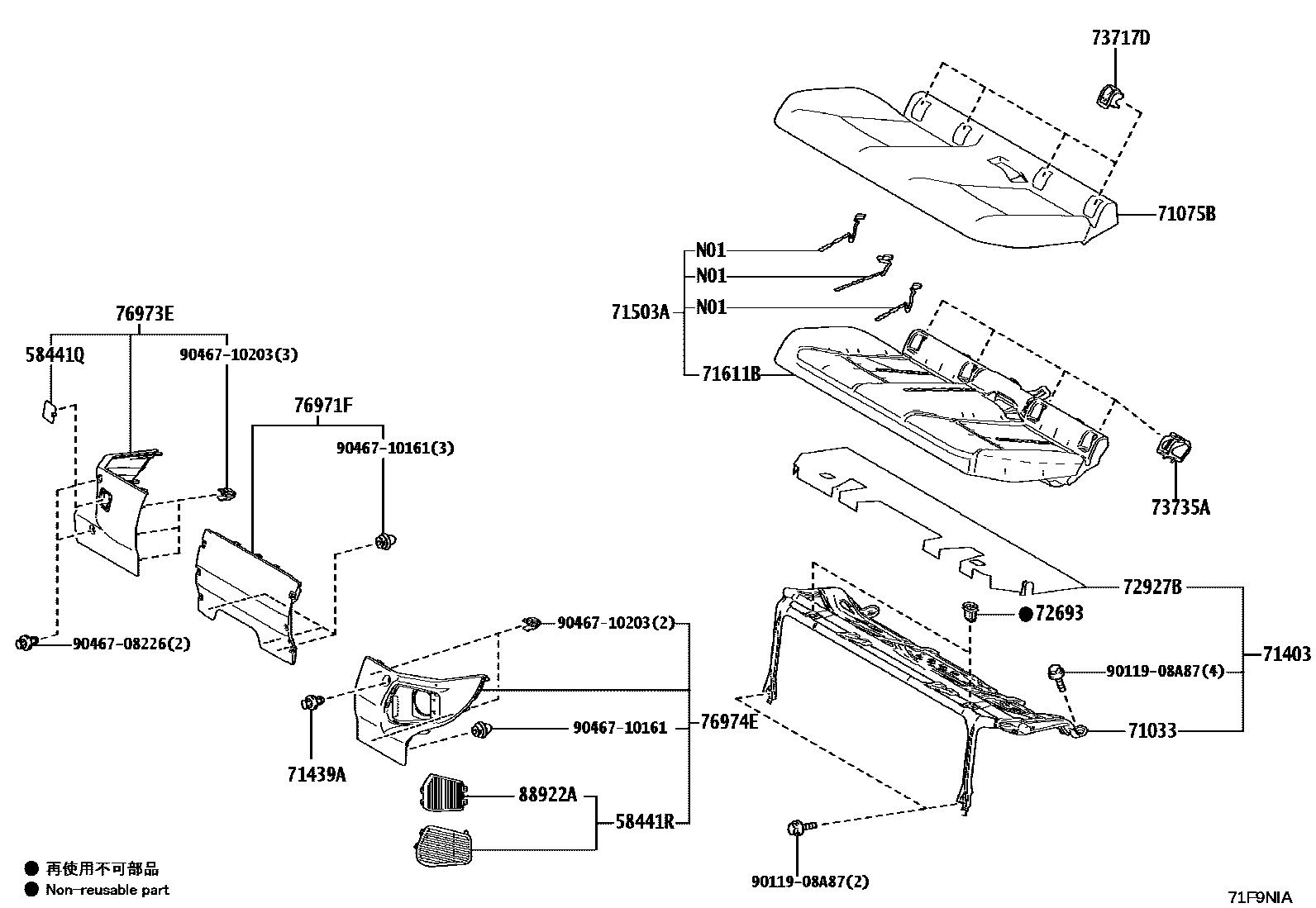

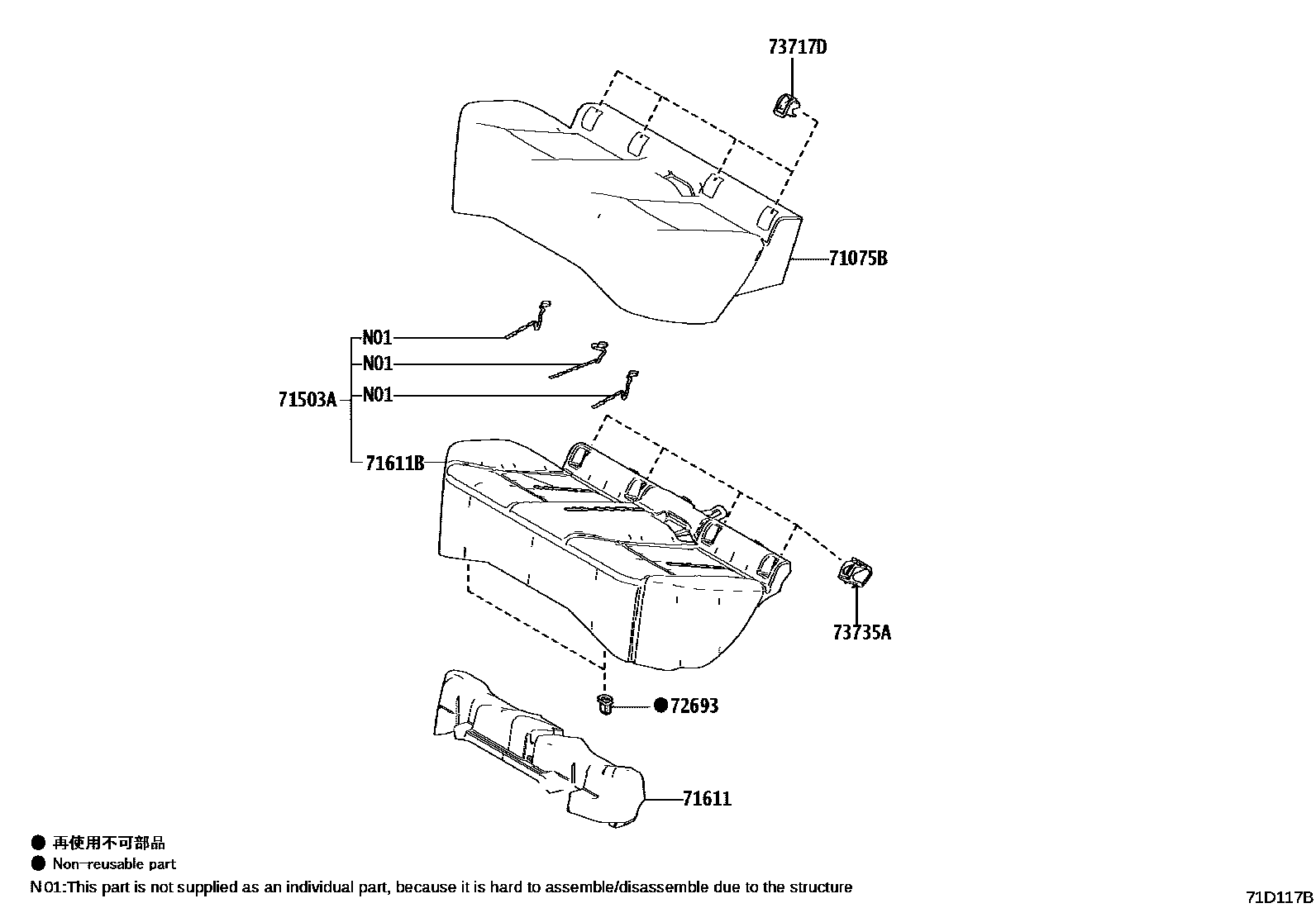

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-52790 |
| 71018 | Rear left seat back frame sub-assembly | 71018-52560 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-K0030 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-K0030 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-K0030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-52120 · 71305-52130 |
| 71305S | Center seat back frame sub-assembly | 71305-52110 |
| 71403 | Rear No. 1 seat leg sub-assembly | 71309-K0010 |
| 71452B | Rear seat back support | 71277-52010 |
| 71503A | Rear seat cushion sub-assembly | 71503-52600 · 71503-52640 |
| 71611 | Rear seat cushion cushion | 71611-K0020 |
| 71611B | Rear seat No. 1 seat cushion | 71503-52610 · 71503-52650 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-52840 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-K0040 |
| 71667C | Rear center seat 1 backrest cushion | 71667-52010 |
| 71701C | Rear right seat back panel sub-assembly | 71701-52010 |
| 71702B | Rear left seat back panel sub-assembly | 71702-K0020 |
| 71769A | Rear seat back panel clip | 71769-28030 |
| 71875C | Right backrest tilt adjuster inner cover | 71875-52490 |
| 72620 | Rear seat back lock assembly | 72630-52200 |
| 72665B | Rear seat back lock cover | 72665-52070 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72927B | Rear seat cushion lower cover | 72927-K0010 |
| 73705C | Child restraint seat anchor bracket sub-assembly | 73705-K0030 |
| 79157 | Seat No. 1 backrest cover | 79157-52010 |
| 88922A | Air Cleaner | G92DH-K0010 |
