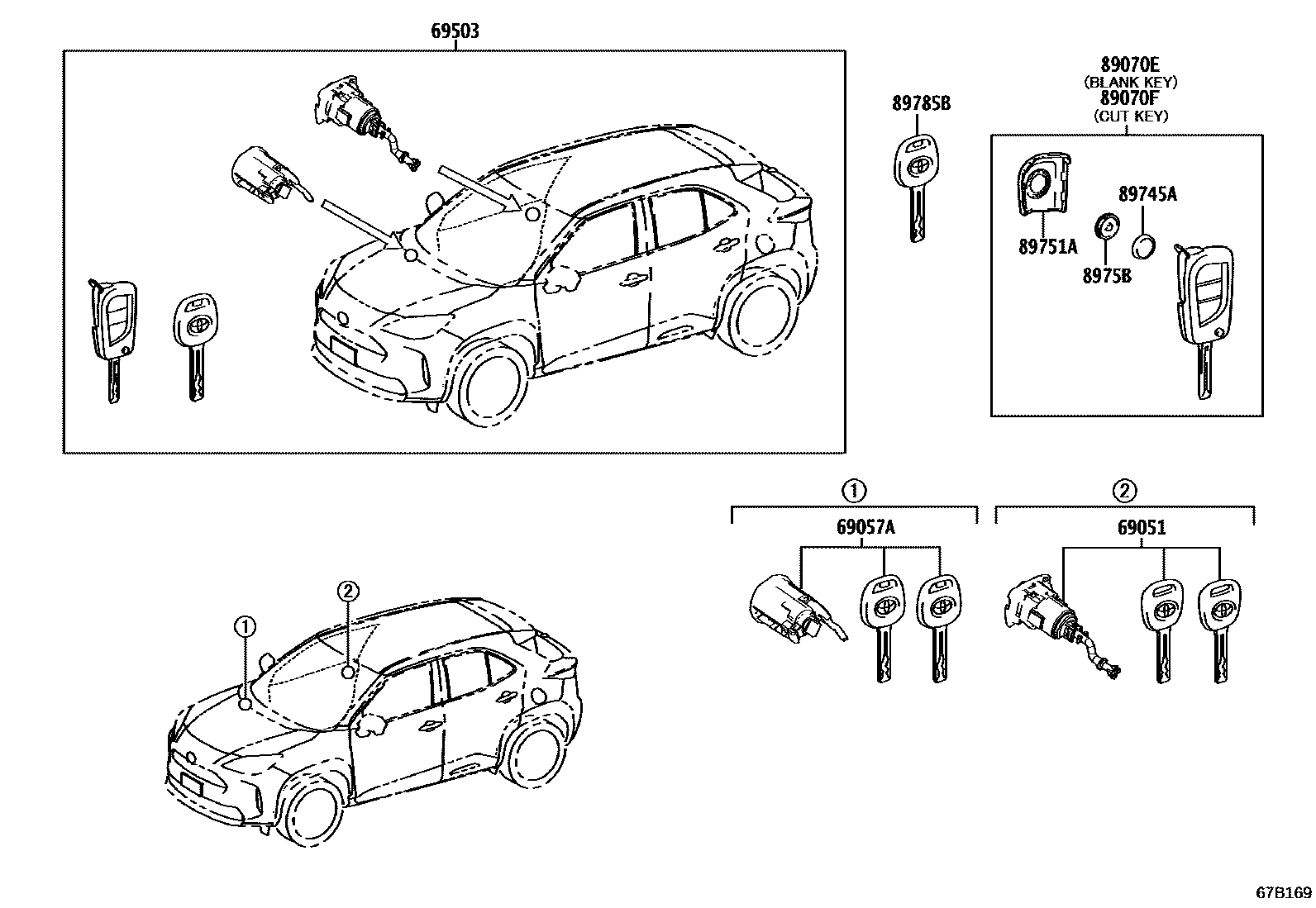

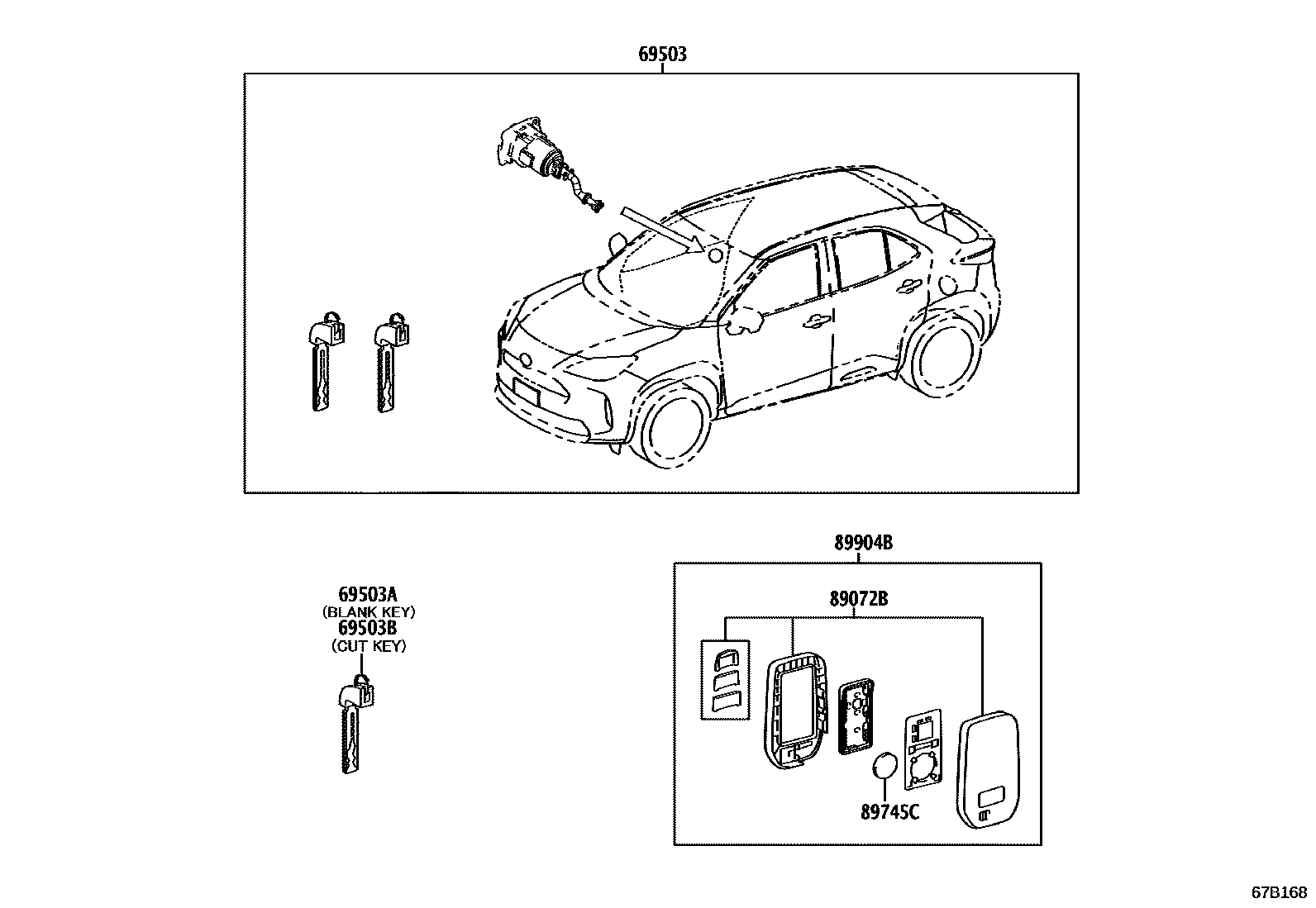

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-52630 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-K0020 |
| 69503 | Door lock cylinder components | 69051-52640 · 89704-52Q10 · 89704-52Q11 · 89704-52Q20 |
| 69503A | external tooth key | 69515-K0020 |
| 69503B | internal tooth key | 69515-K0010 |
| 89070E | Remote key assembly | 89070-10052 · 89070-K0040 |
| 89070F | Remote key assembly (internal tooth key) | 89070-10062 · 89070-K0070 |
| 89072B | Remote key shell assembly (for smart key) | 89072-52840 · 89072-52B30 · 89072-K0010 |
| 89745A | Transmitter battery | 89745-50020 |
| 89745C | Transmitter battery | 89745-K0010 |
| 89751A | Transmitter housing cover | 89751-33200 |
| 8975B | Remote control battery case cover | 8975B-33050 |
| 89785B | transceiver key master transmitter | 89785-28060 · 89785-28070 |
| 89904B | Electronic key transmitter sub-assembly | 8990H-52010 · 8990H-52050 · 8990H-52070 · 8990H-52090 · 8990H-52091 · 8990H-52390 · 8990H-52391 · 8990H-52400 · 8990H-52401 · 8990H-52420 · 8990H-52421 · 8990H-52430 · 8990H-52431 · 8990H-K0010 |
