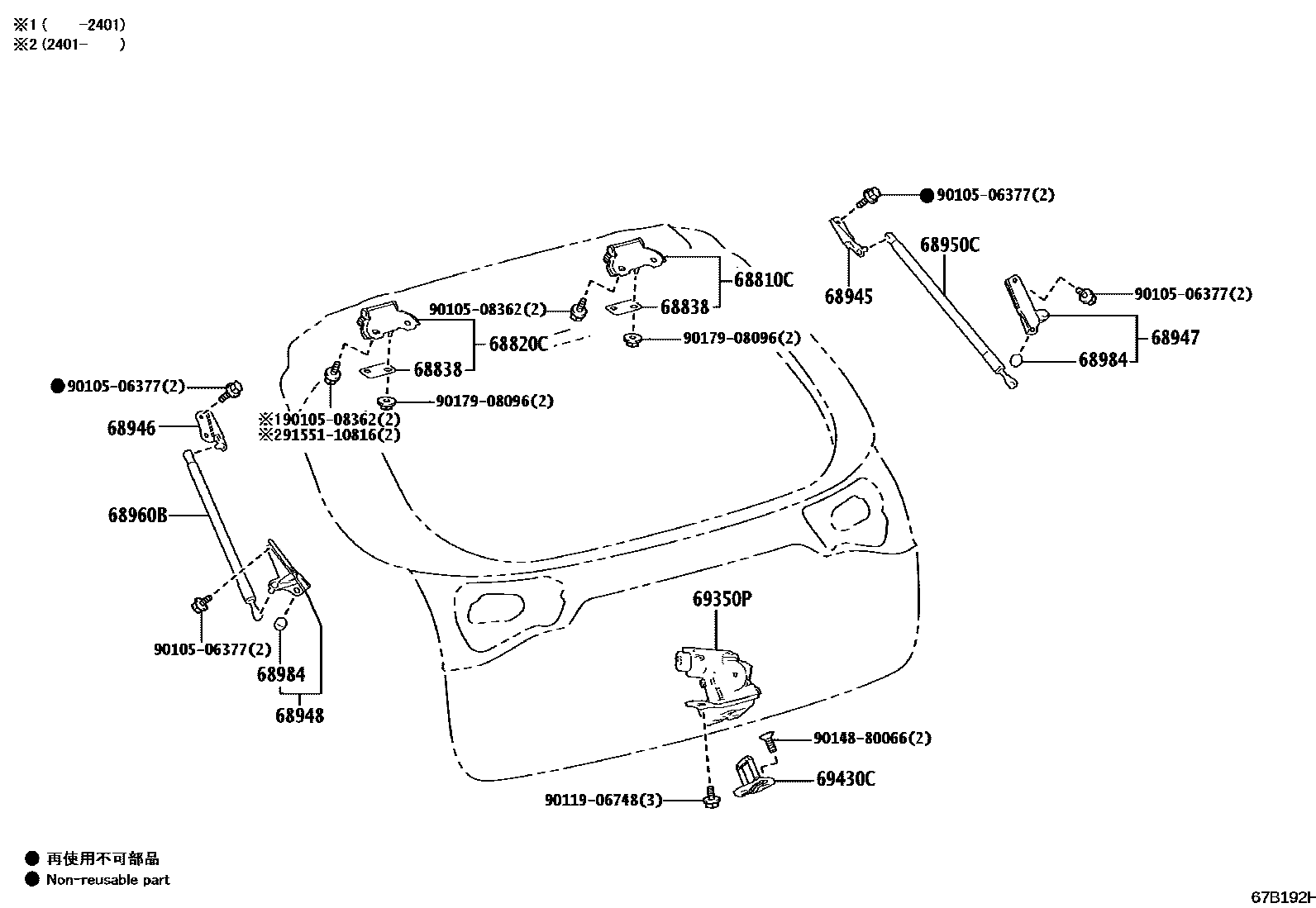

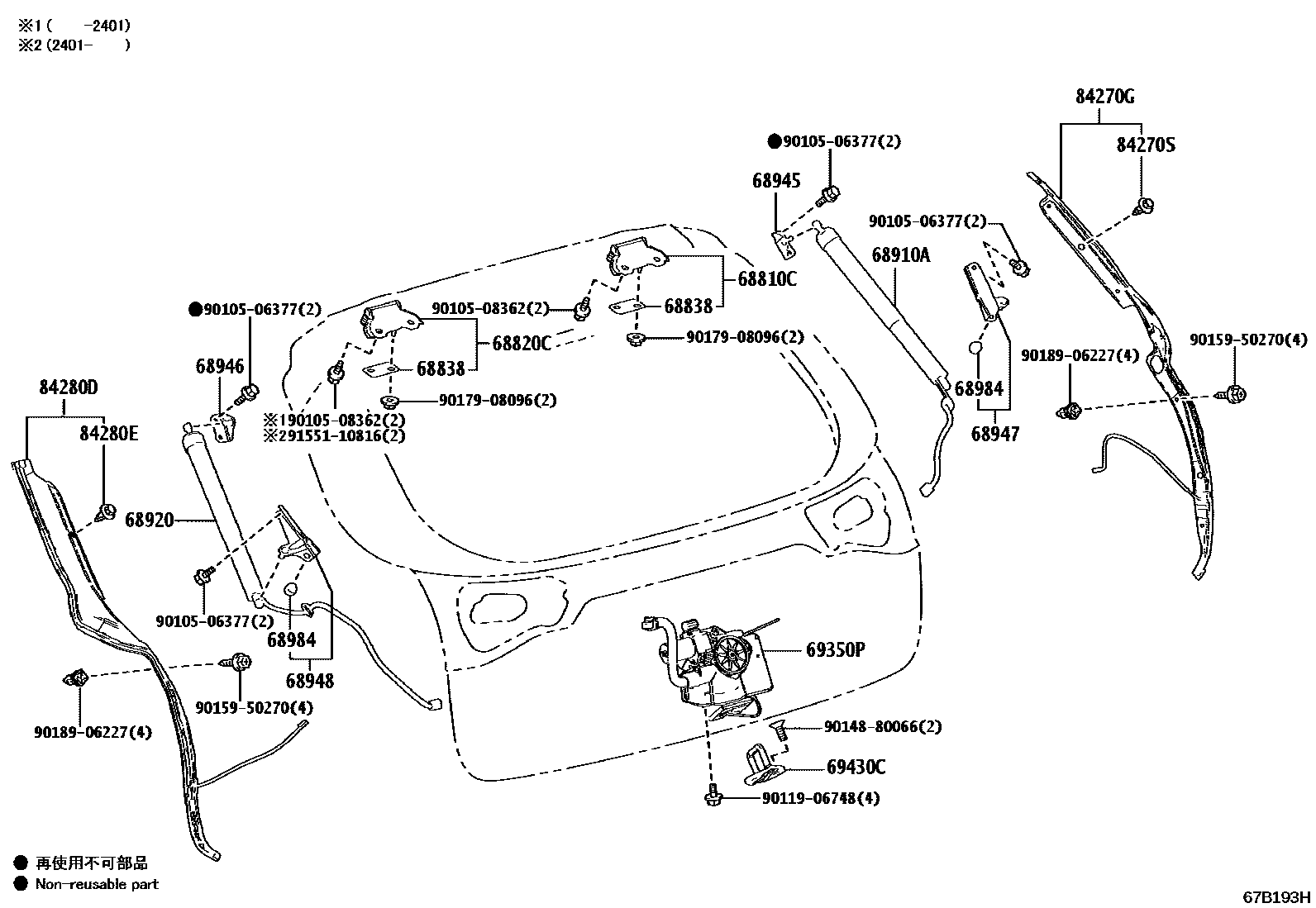

Toyota YARIS 背门锁和背门把手 — Figure 6709
Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810C | Back door right hinge assembly | 68810-52210 · 68810-52300 |
| 68820C | Back door left hinge assembly | 68810-52210 · 68810-52300 |
| 68838 | Back door hinge No. 1 gasket | 68838-48140 · 68838-48150 · 68838-48160 |
| 68910A | Right rear door electric unit assembly assembly | 68910-52030 · 68910-52031 |
| 68920 | Left rear door electric unit assembly assembly | 68920-52030 · 68920-52031 |
| 68945 | Back door right damping stay upper bracket | 68945-52170 · 68945-52180 · 68945-52181 |
| 68946 | Rear door left damping strut upper bracket | 68946-52100 · 68946-52110 · 68946-52111 |
| 68947 | Back door right damping strut lower bracket | 68947-52060 |
| 68948 | Rear door left damping strut lower bracket | 68948-52060 |
| 68950C | Back door right support rod assembly | 68950-0WG60 |
| 68960B | Back door left support rod assembly | 68960-0WG60 |
| 68984 | Back door support rod stop | 68984-42010 |
| 69350P | Back door with door control light switch lock assembly | 69350-42060 · 69350-42070 |
| 69430C | Back door lock assembly | 69430-48030 |
| 84270G | Electric back door right side sensor assembly | 84270-52030 · 84270-52031 |
| 84270S | Catch (sensor on the right side of the electric back door) | 61617-42040 |
| 84280D | Electric back door left sensor assembly | 84280-52020 · 84280-52021 |
| 84280E | Catch (electric back door left sensor) | 61617-42040 |
