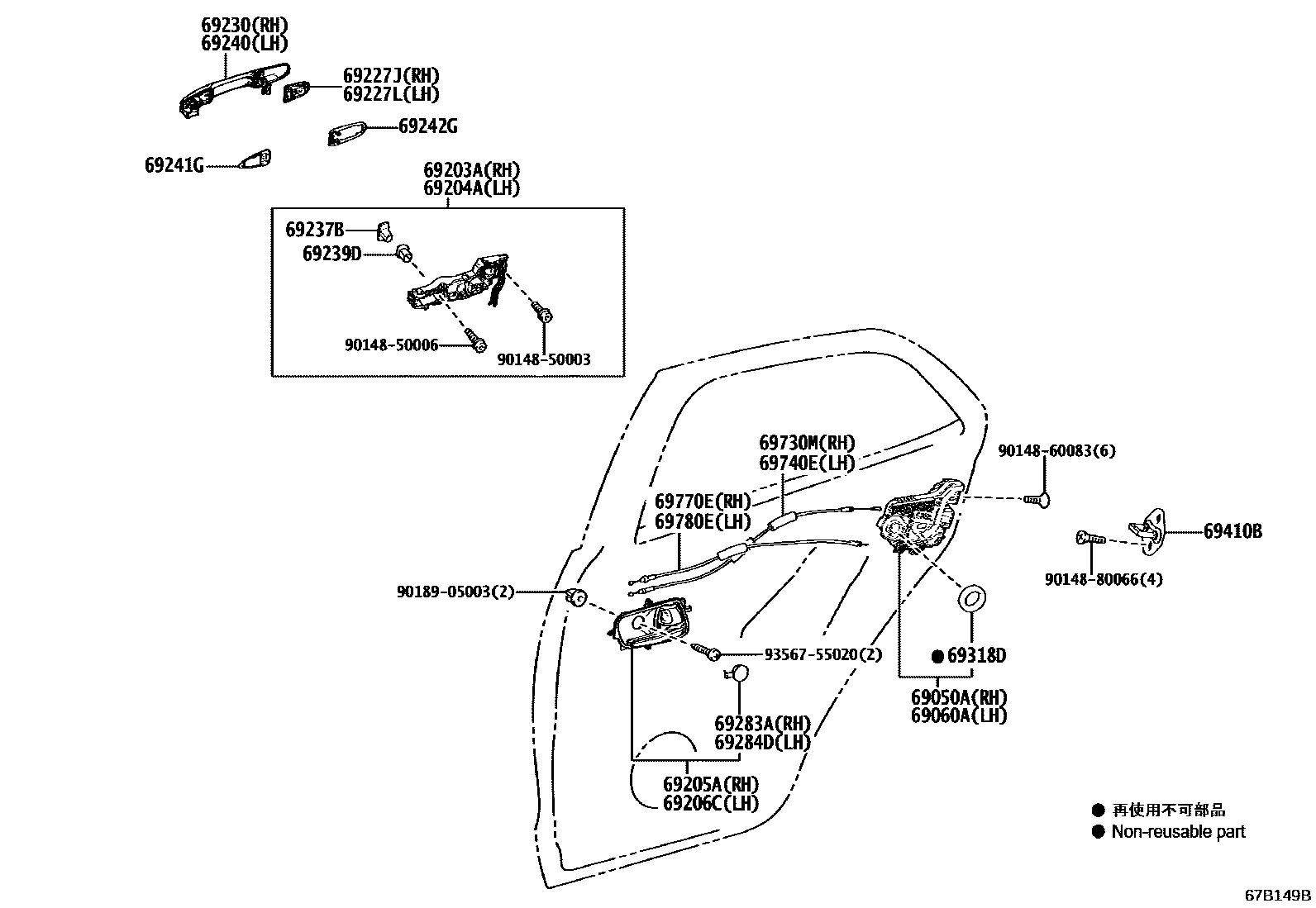

Toyota YARIS 后门锁和后门把手 — Figure 6706
Toyota YARIS EPC diagram 6706, 后门锁和后门把手, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69050A | Right rear door lock assembly with motor | 69050-K0010 · 69050-K0020 |
| 69060A | Left rear door lock assembly with motor | 69060-K0010 · 69060-K0020 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-52110 · 69203-52111 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-52120 · 69204-52121 |
| 69227J | Right rear door outer handle cover | 69227-47020 |
| 69227L | Left rear door outer handle cover | 69227-47020 |
| 69237B | Rear door handle nut | 69237-62010 |
| 69239D | Rear door handle bushing | 69239-47010 |
| 69241G | Rear door front exterior handle pad | 69241-47020 |
| 69242G | Rear door rear outer handle pad | 69242-47030 |
| 69318D | door lock harness seal | 69318-47010 |
| 69410B | Rear door lock plate assembly | 69410-47010 |
| 69730M | Right rear door lock remote control cable (for opening lever) | 69730-52270 · 69730-52271 |
| 69740E | Left rear door lock remote control cable (for opening lever) | 69730-52270 · 69730-52271 |
| 69770E | Right rear door inner locking cable (for locking/unlocking handle) | 69770-52150 · 69770-52151 |
| 69780E | Left rear door inner lock cable (for locking/unlocking handle) | 69770-52150 · 69770-52151 |
