Toyota YARIS 前门车窗升降器和合页 — Figure 6704

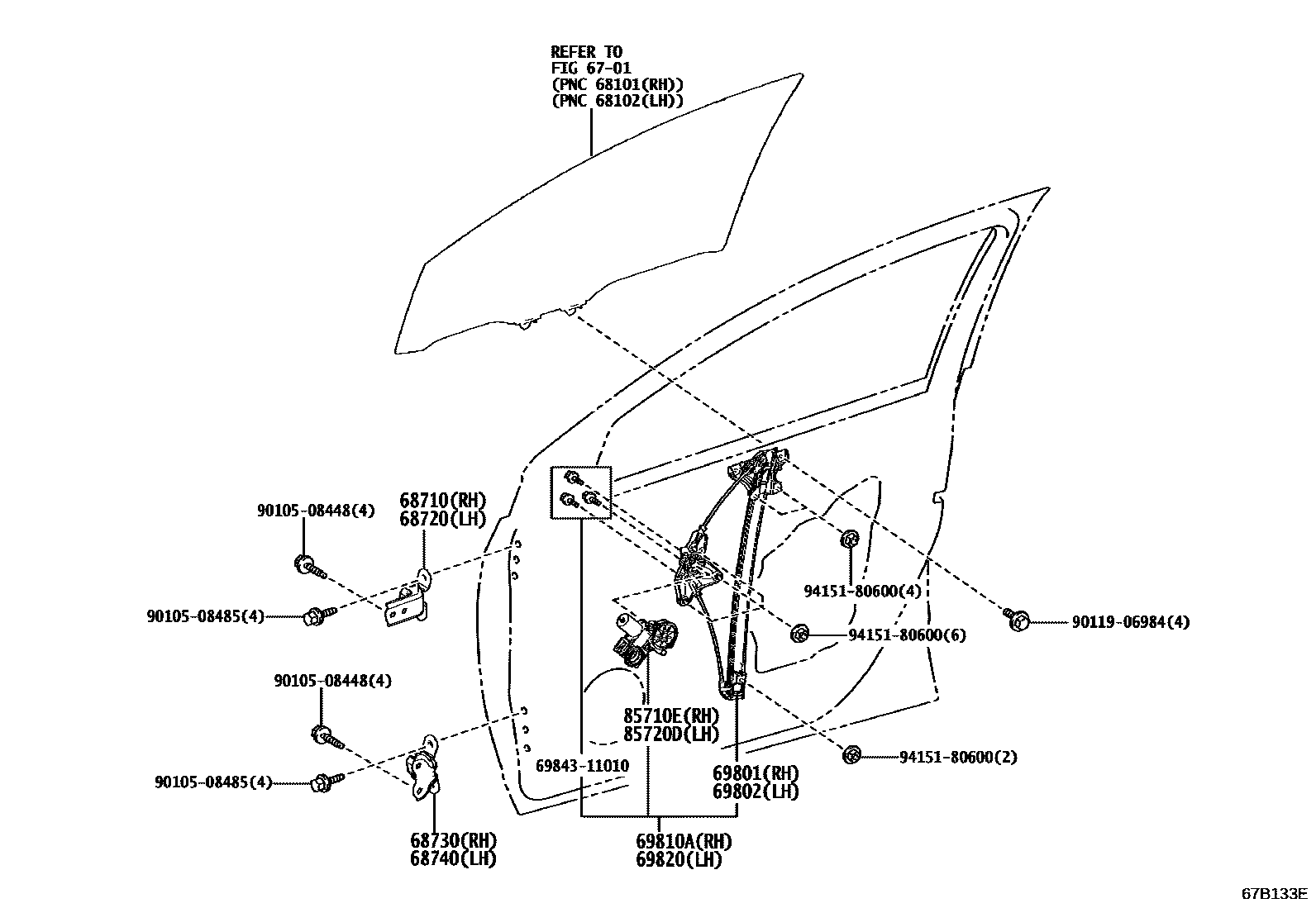

Toyota YARIS EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-12120 |
| 68740 | Left front door lower hinge assembly | 68740-12120 |
| 69801 | Right front door window lifter sub-assembly | 69801-52150 |
| 69802 | Left front door window lifter sub-assembly | 69802-52140 |
| 69810A | Right front door window lift assembly | 69810-52540 · 69810-52610 |
| 69820 | Left front door window lift assembly | 69820-52450 · 69820-52520 |
| 85710E | Right power window lift motor assembly | 85710-52300 · 85710-52410 |
| 85720D | Left electric window lift motor assembly | 85720-52270 · 85720-52380 |
