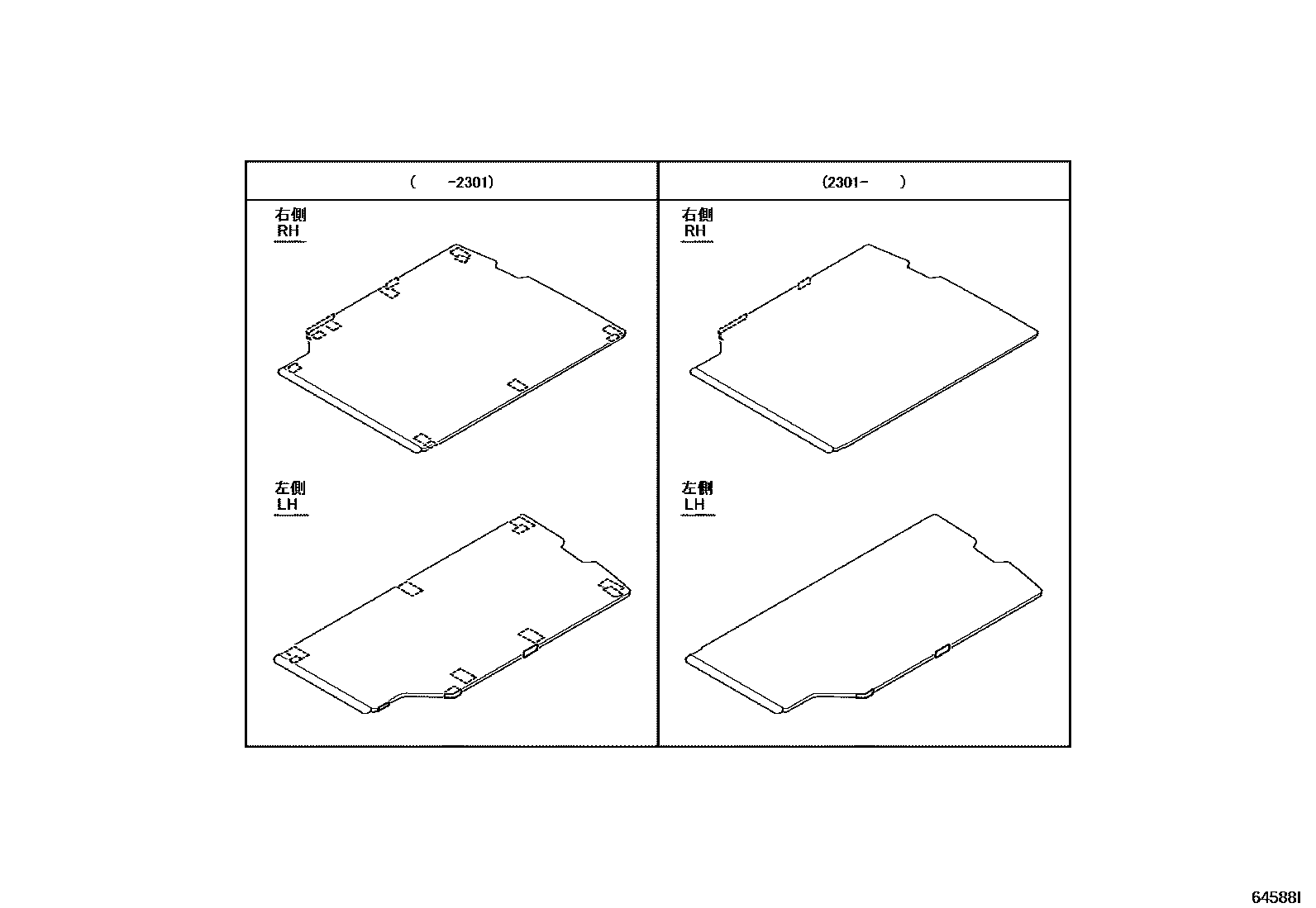

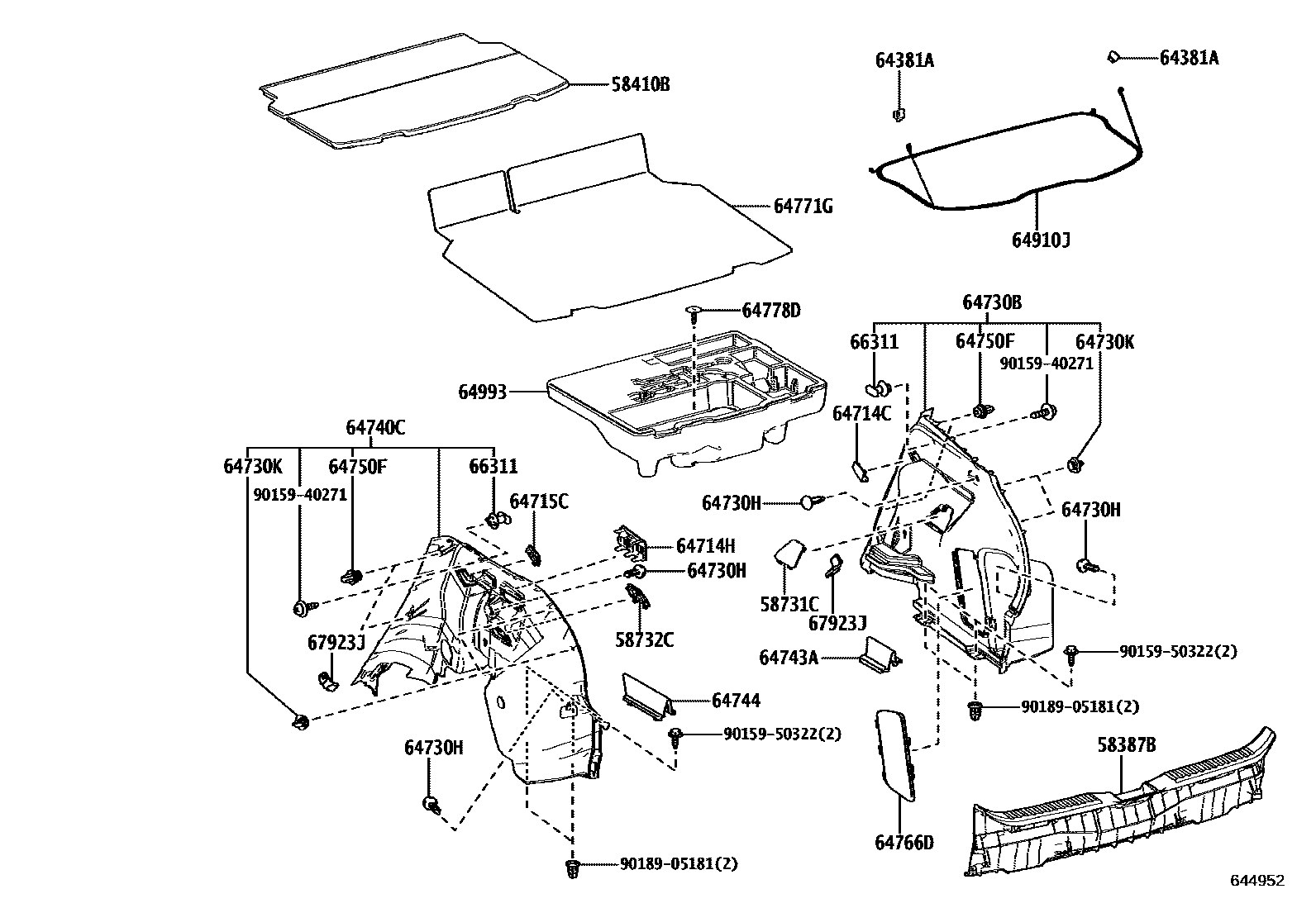

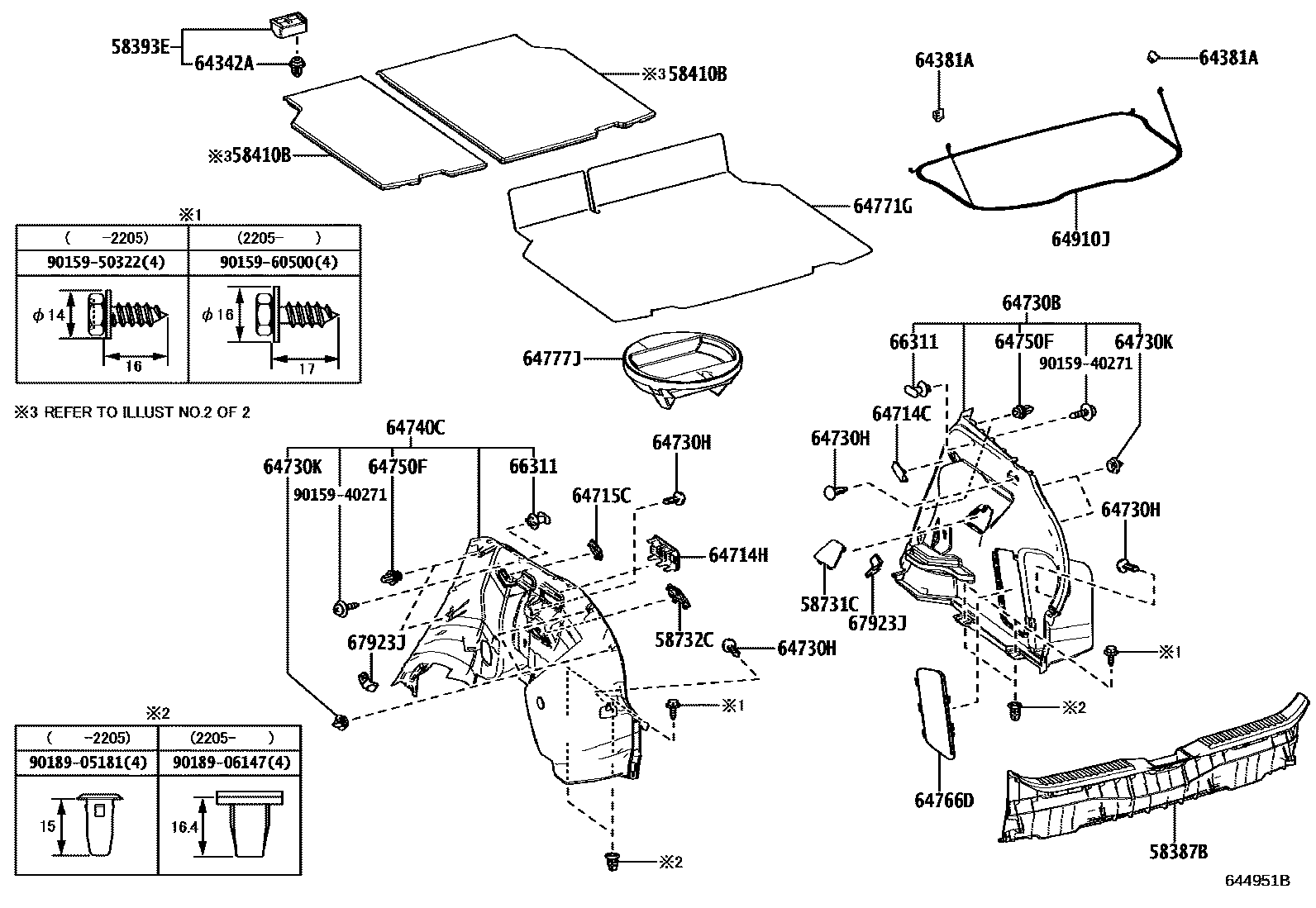

Toyota YARIS 底板和底板装饰罩 — Figure 6404
Toyota YARIS EPC diagram 6404, 底板和底板装饰罩, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64342A | clip | 71769-47020 · 90467-10188 |
| 64381A | Glove box decorative panel hanger | 64381-52010 |
| 64730K | Clip (for bottom panel side decorative panel) | 90467-09240 |
| 64750F | Clip (for bottom panel side decorative panel) | 90467-10161 |
| 64777J | Spare tire cushion | 64777-10020 |
| 64778D | Spare tire protection device | 64778-52160 |
| 64910J | Trunk cover assembly | 64910-52090 |
| 64993 | Bottom floor box | 64993-K0040 |
| 67923J | Clip (for bottom panel side panels) | 67923-52240 |
