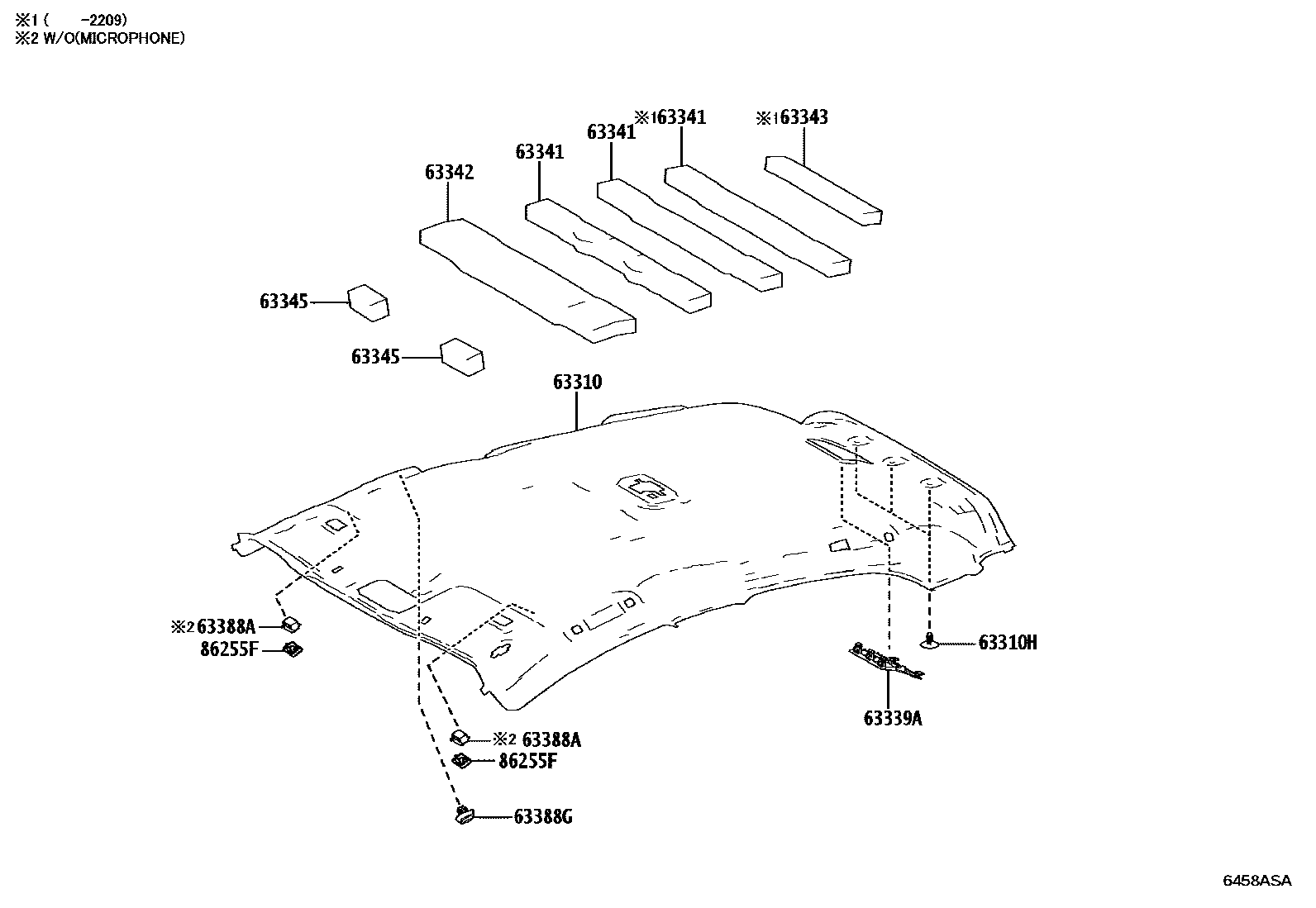

Toyota YARIS 车顶内衬和消声垫 — Figure 6402
Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-52550 |
| 63342 | No. 2 roof muffler pad | 63342-52230 |
| 63343 | No. 3 roof muffler pad | 63343-52170 |
| 63345 | No. 5 roof silencer mat | 63345-52040 |
| 63388A | headliner fixing cover | 63388-52030 |
