Toyota YARIS 侧梁 — Figure 6101

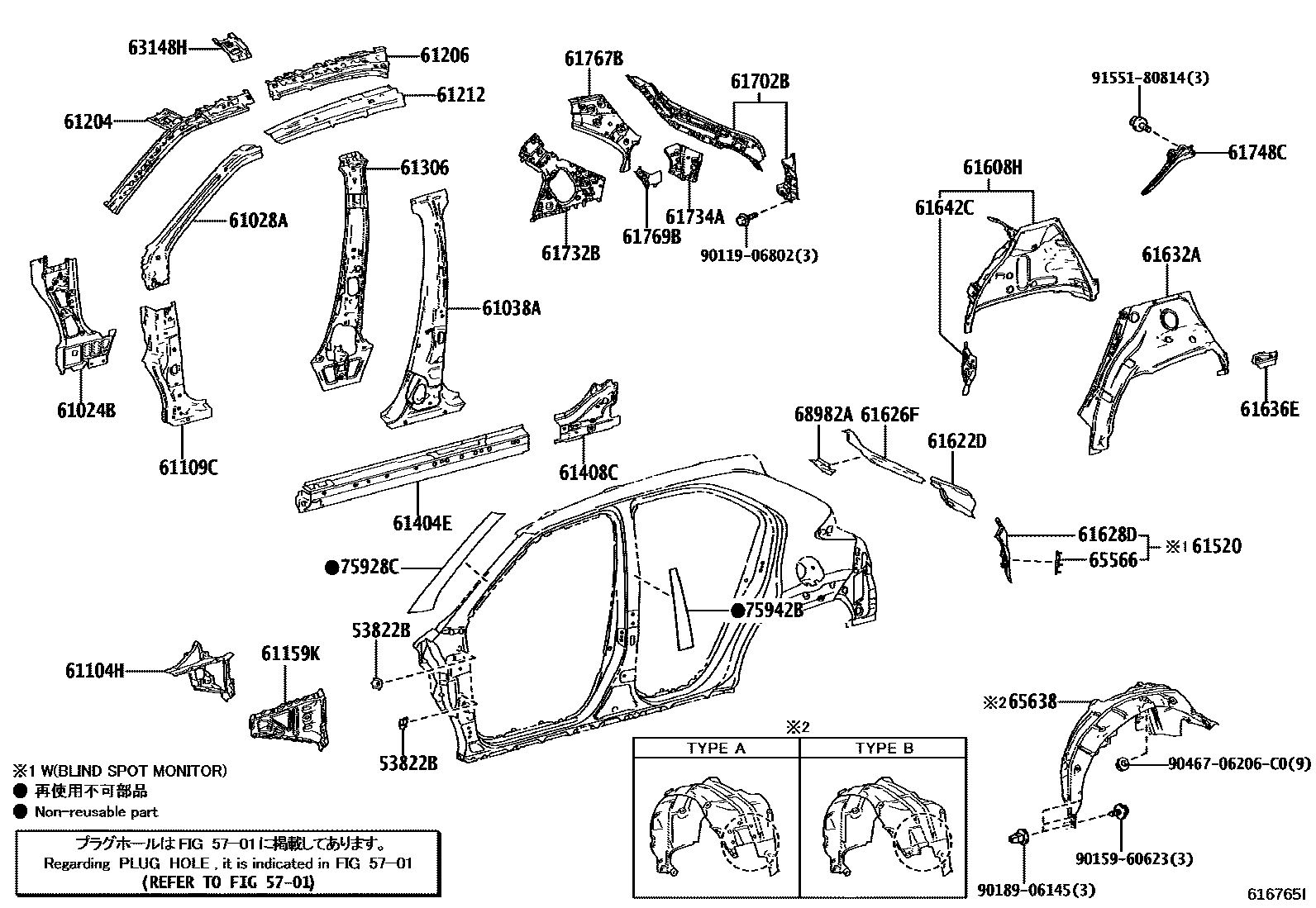

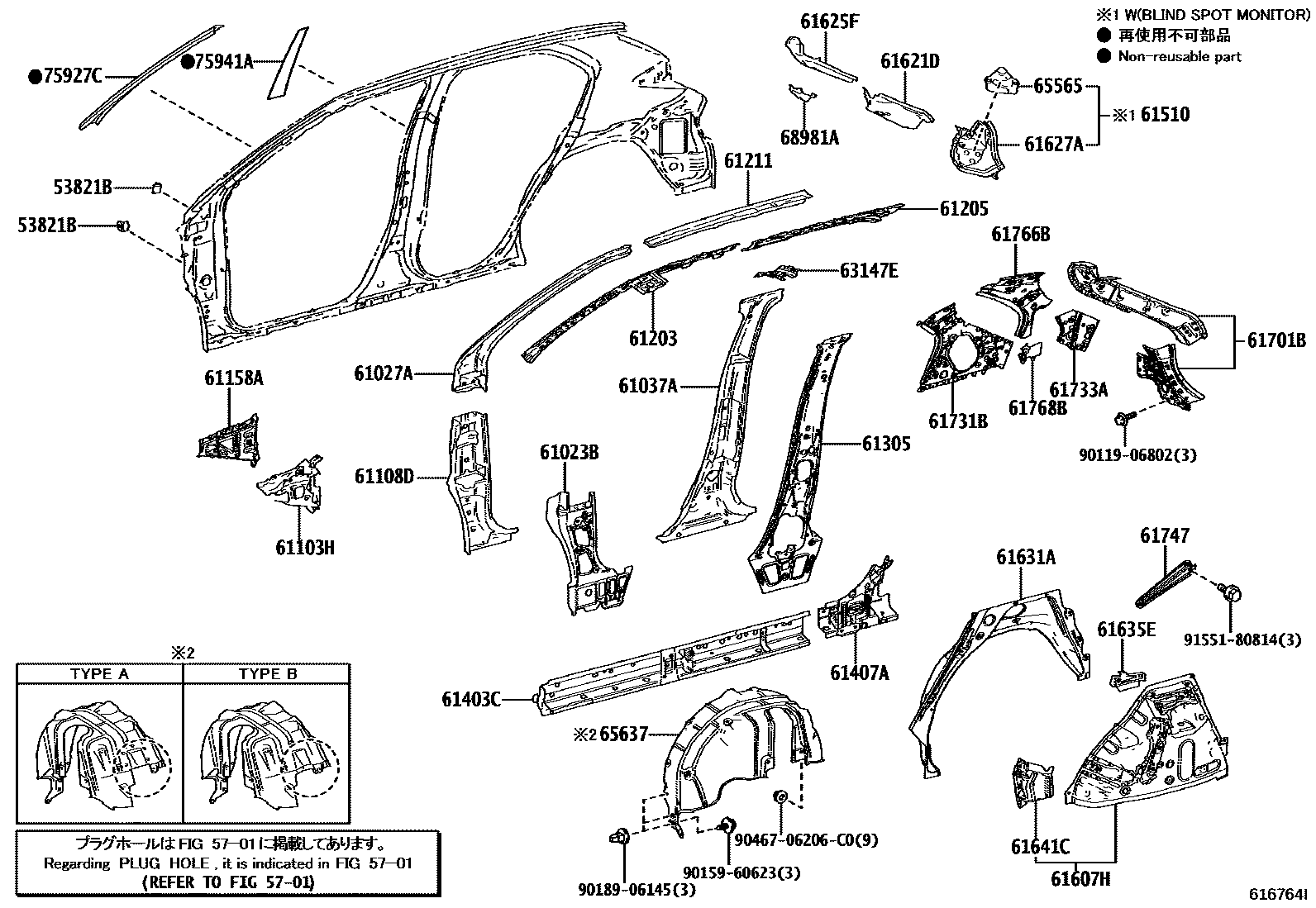

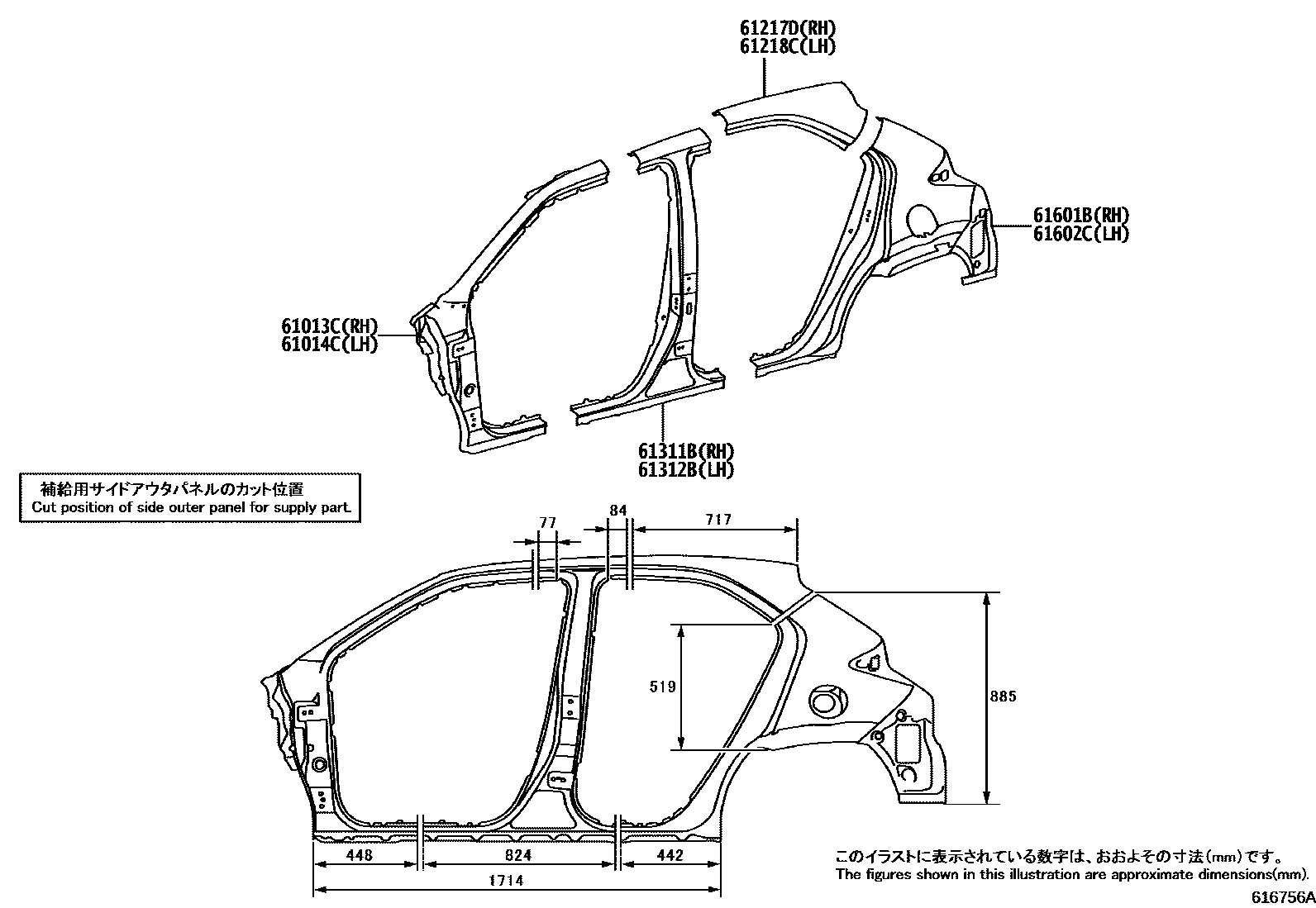

Toyota YARIS EPC diagram 6101, 侧梁, with 3 images and 74 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-48030 |
| 53822B | Left front fender rear support | 53821-48030 |
| 61013C | Right inner panel sub-assembly | 61013-52100 |
| 61014C | Left inner panel sub-assembly | 61014-52090 |
| 61023B | Right body inner front pillar sub-assembly | 61023-K0010 |
| 61024B | Left body inner front pillar sub-assembly | 61024-K0010 |
| 61027A | Right body outer front pillar sub-assembly | 61027-52902 |
| 61028A | Left body outer front pillar sub-assembly | 61028-52902 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-K2010 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-K2010 |
| 61103H | No. 2 right side plate sub-assembly | 61103-52030 |
| 61104H | No. 2 left side panel sub-assembly | 61104-52030 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-52230 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-52240 |
| 61158A | Extension section under right front pillar | 61158-52050 |
| 61159K | Extension section under left front pillar | 61159-52050 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-K2010 · 61203-K2011 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-K2010 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-52040 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-52070 |
| 61211 | Roof right outer longitudinal beam | 61211-52240 |
| 61212 | Roof left outer longitudinal beam | 61212-52250 |
| 61217D | No. 4 longitudinal beam on the outer right side of the roof | 61217-52040 |
| 61218C | No. 4 longitudinal beam on the left side of the roof | 61218-52040 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-52120 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-52120 |
| 61311B | Right body outer center pillar | 61311-52120 |
| 61312B | Left body outer center pillar | 61312-52110 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-52901 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-52901 |
| 61407A | Lower right step plate sub-assembly | 61407-52050 · 61407-K2010 |
| 61408C | Lower left step plate sub-assembly | 61408-52050 · 61408-K2010 |
| 61510 | Right rear upper side panel assembly | 61055-52010 |
| 61520 | Left rear upper side panel assembly | 61056-52010 |
| 61601B | Right side enclosure sub-assembly | 61601-52740 · 61601-52790 |
| 61602C | Left side enclosure sub-assembly | 61602-52880 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-52450 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-52490 · 61608-52491 |
| 61621D | Back door right opening slot | 61621-K2010 |
| 61622D | Rear door left opening slot | 61622-K2010 |
| 61625F | Extension on right side panel | 61625-K2010 |
| 61626F | Extension on left side panel | 61626-K2010 |
| 61627A | Right side panel lower extension | 61627-K2010 |
| 61628D | Left rear side panel lower extension | 61628-K2010 |
| 61631A | Right wheel cover outer panel | 61631-K2010 |
| 61632A | Left side wheel cover outer panel | 61632-K2010 |
| 61635E | Right wheel housing extension | 61635-52140 |
| 61636E | Left side wheel housing extension | 61636-52150 |
| 61641C | Right front side wheel housing corner panel | 61641-52170 |
| 61642C | Left front side wheel housing corner panel | 61642-52170 |
| 61701B | Roof right inner upper panel sub-assembly | 61701-52210 |
| 61702B | Roof left inner upper panel sub-assembly | 61702-52230 |
| 61731B | Roof right inner panel | 61731-K2010 |
| 61732B | Roof left inner panel | 61732-K2010 |
| 61733A | Right front roof inner panel | 61733-K2010 |
| 61734A | Left front roof inner panel | 61734-K2010 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-52080 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-52080 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-52210 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-52230 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-52250 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-52250 |
| 63147E | Roof panel reinforcement bracket | 63147-52140 |
| 63148H | Roof panel reinforcement bracket | 63148-52180 |
| 65565 | Right side panel rear end lining | 65565-50010 |
| 65566 | Left side panel rear end lining | 65565-50010 |
| 65637 | Right rear wheel house lining | 53807-52030 · 65637-52022 |
| 65638 | Left rear wheel house lining | 53808-52040 · 65638-52021 |
| 68981A | Back door right side support rod fixing | 68981-52150 |
| 68982A | Back door left support rod fixing | 68982-52110 |
| 75927C | No. 4 right side light-blocking film | 75927-52040 · 75927-52060 |
| 75928C | No. 4 left shading film | 75928-52040 · 75928-52060 |
| 75941A | Right center pillar trim | 75925-52160 |
| 75942B | Left center pillar trim | 75926-52150 |
