Toyota YARIS 中央扶手箱和支架 — Figure 5806

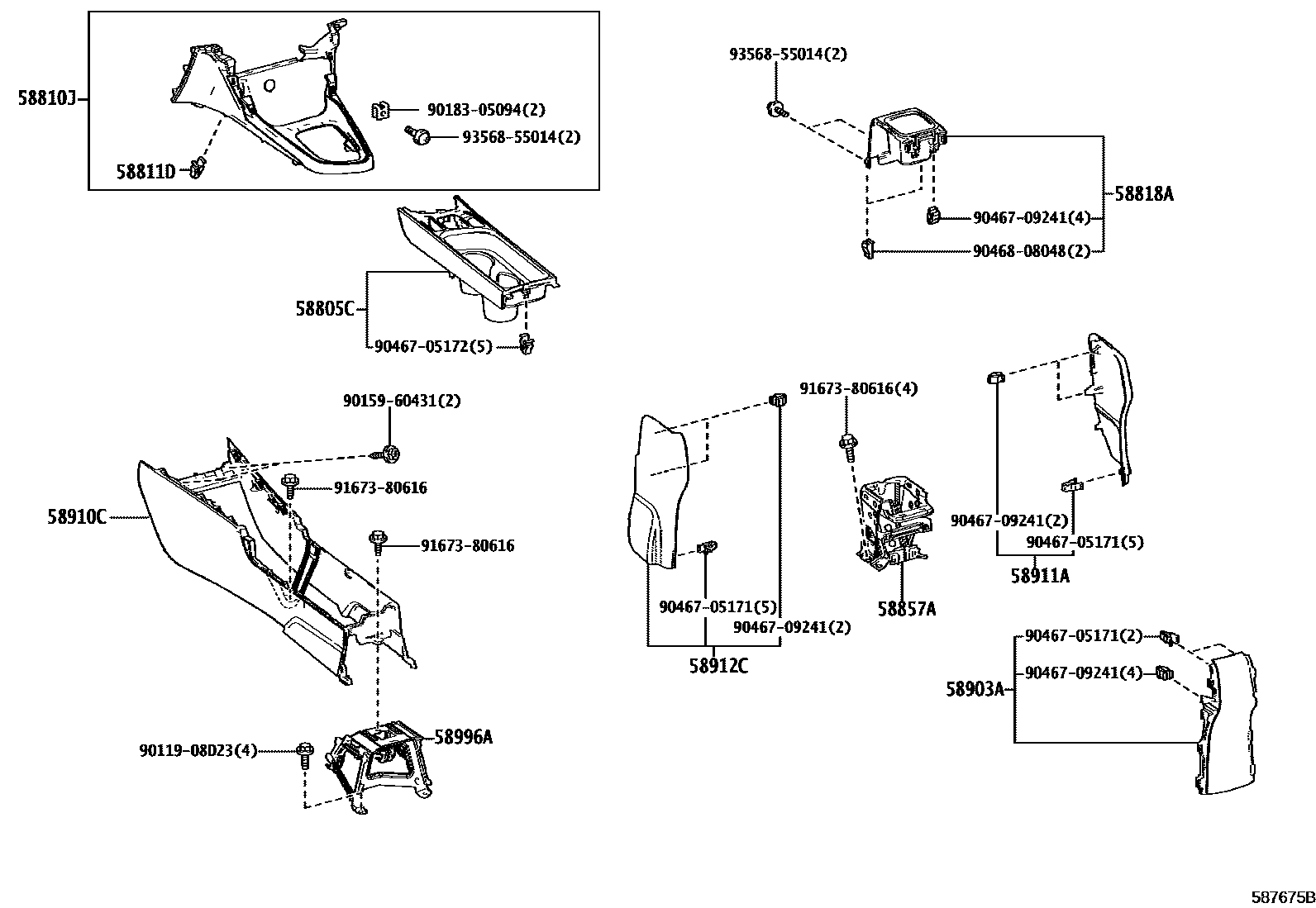

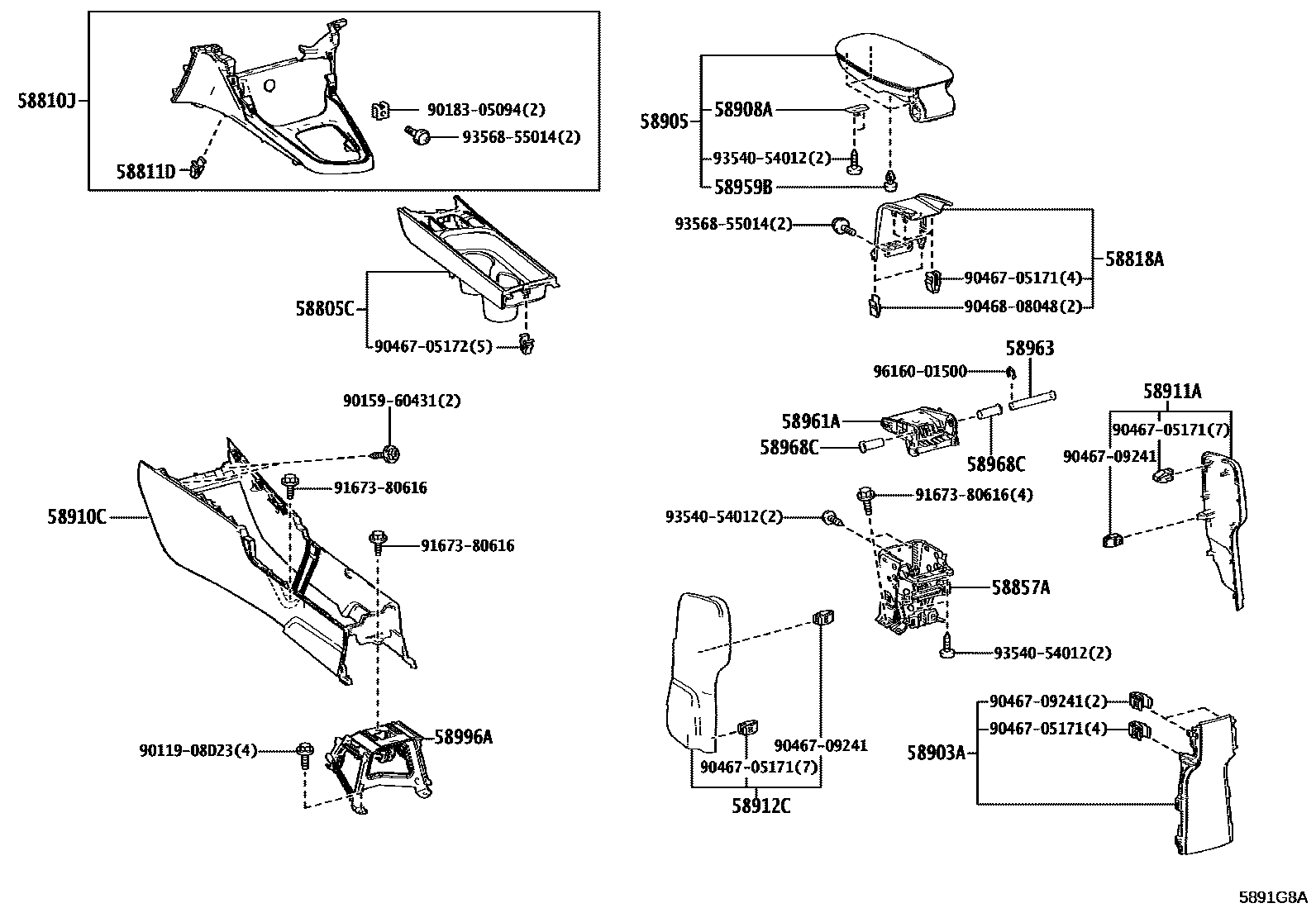

Toyota YARIS EPC diagram 5806, 中央扶手箱和支架, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58811D | Clip (for armrest box) | 90467-05172 |
| 58818A | Front armrest box cover | 58818-52080 |
| 58857A | Armrest box No. 1 upper bracket | 58857-52020 · 58857-K0010 |
| 58903A | Armrest box rear end plate sub-assembly | 58903-52130 |
| 58905 | Armrest box cover sub-assembly | 58905-52140 |
| 58908A | Armrest box lid lock assembly | 58908-12080 |
| 58911A | Armrest box No. 1 side panel | 58911-52320 |
| 58912C | Armrest box No. 2 side panel | 58912-52100 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58961A | Armrest box lid protruding hinge | 58961-52060 |
| 58963 | Armrest box lid hinge shaft | 58963-K0020 |
| 58968C | Armrest box lid stopper gasket | 58968-52040 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-K0110 |
