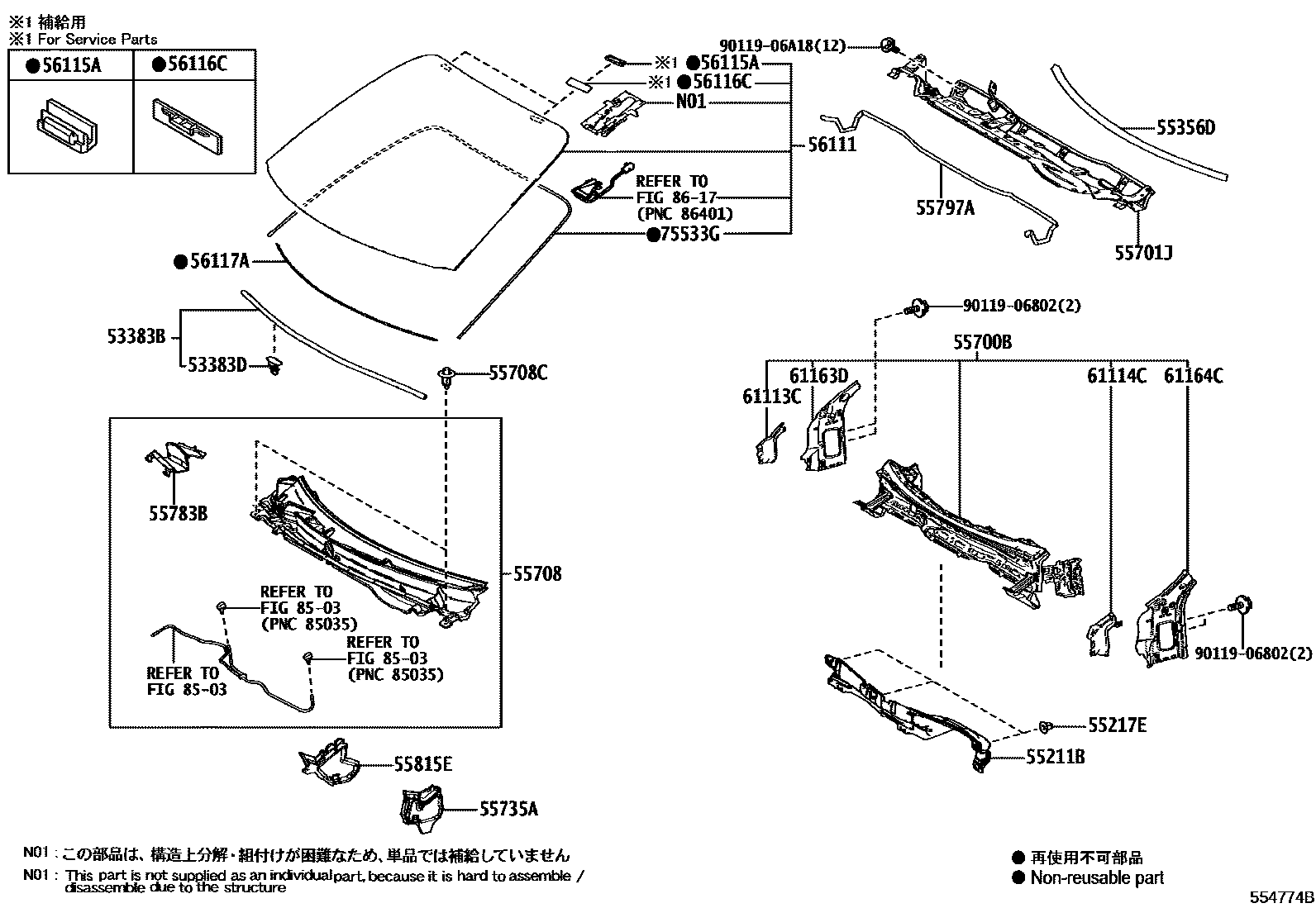

Toyota YARIS 前围板和挡风玻璃 — Figure 5503
Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-52190 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 |
| 55211B | Front panel silencer | 55211-K0050 |
| 55217E | Front apron muffler fixings | 55217-51010 |
| 55356D | Dashboard No. 2 Cushion Pad | 55356-K2010 |
| 55700B | Front apron assembly | 55700-52440 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-52420 · 55701-52470 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-52440 · 55708-52441 |
| 55735A | Left waterproof cover panel | 55735-52160 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-52380 |
| 55797A | Front wall pumping device seal | 55797-K0010 |
| 55815E | No. 1 front vent seal | 55815-52090 |
| 56111 | windshield | 56101-52F70 · 56101-52F80 · 56101-52Z50 · 56101-5C100 · 56101-5C110 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 61113C | right inner panel | 61113-K0010 |
| 61114C | Left medial panel | 61114-K0010 |
| 61163D | Right body inner front lower pillar | 61163-52050 |
| 61164C | Left side inner front lower pillar | 61164-52060 |
| 75533G | Windshield outer protective strip | 75533-52320 |
