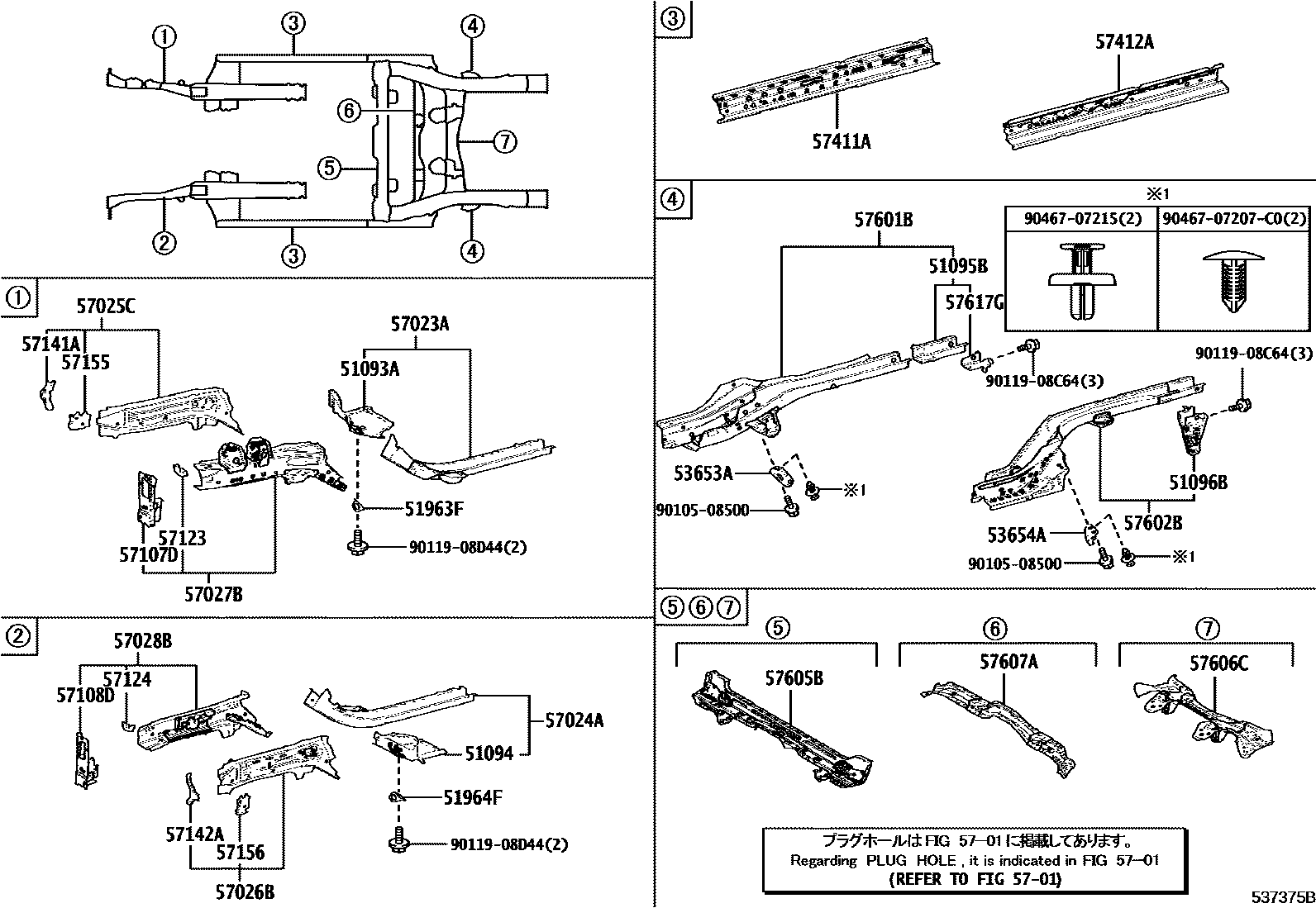

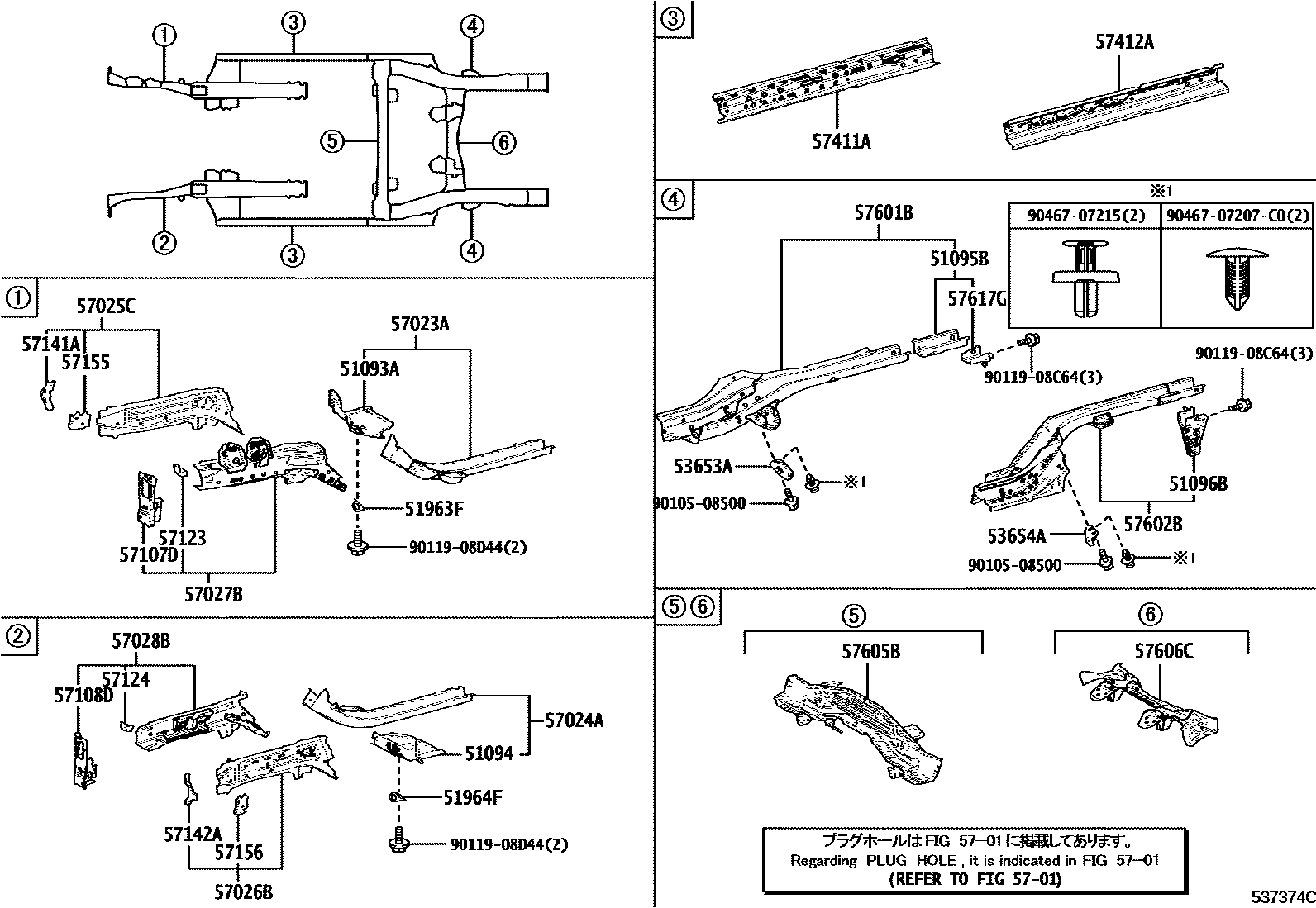

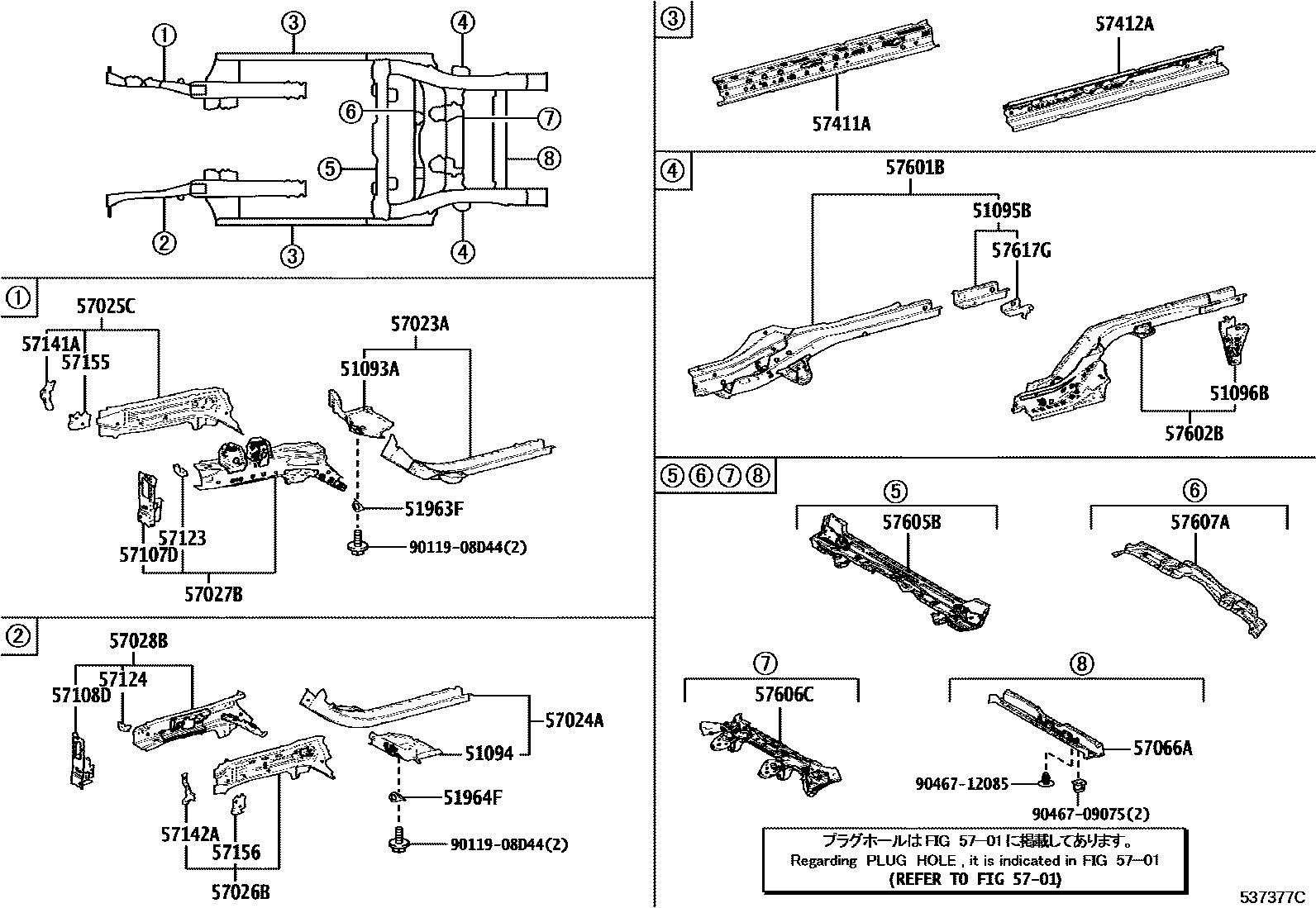

Toyota YARIS Floor stringers — Figure 5305
Toyota YARIS EPC diagram 5305, Floor stringers, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51093A | Right front transport hook sub-assembly | 51093-K0010 · 51093-K0011 |
| 51094 | Left front transport hook sub-assembly | 51094-K0010 · 51094-K0011 |
| 51095B | Right rear transport hook sub-assembly | 51095-52060 |
| 51096B | Left rear transport hook sub-assembly | 51096-K0010 |
| 51963F | transport hook | 51963-52090 |
| 51964F | left transport hook | 51964-52040 |
| 53653A | Rear suspension right lower bracket | 53653-K0010 |
| 53654A | Rear suspension left lower bracket | 53654-K0010 |
| 57023A | Right rear longitudinal beam sub-assembly | 57023-K0010 · 57023-K0011 |
| 57024A | Left rear longitudinal beam sub-assembly | 57024-K0010 · 57024-K0011 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-K0010 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-K0010 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-52020 |
| 57028B | Left front inner longitudinal beam sub-assembly | 57028-K0010 |
| 57066A | Rear floor No. 6 cross member sub-assembly | 57066-K0010 |
| 57107D | Front bumper right side installation reinforcement sub-assembly | 57107-K0010 |
| 57108D | Front bumper left side installation reinforcement sub-assembly | 57108-K0010 |
| 57123 | Right front longitudinal beam bracket | 57123-K0010 |
| 57124 | Left front longitudinal beam bracket | 57124-K0010 |
| 57141A | Front bumper arm right bracket | 57141-K0010 |
| 57142A | Front bumper arm left bracket | 57142-K0010 |
| 57155 | No. 3 right front longitudinal beam reinforcement | 57155-K0010 |
| 57156 | No. 3 left front longitudinal beam reinforcement | 57156-K0010 |
| 57411A | Floor right inner longitudinal beam | 57401-52260 |
| 57412A | Floor left inner longitudinal beam | 57402-52310 |
| 57601B | Rear floor right front longitudinal beam sub-assembly | 57601-52440 · 57601-52460 |
| 57602B | Rear floor left front longitudinal beam sub-assembly | 57602-52530 · 57602-52550 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-K0020 · 57605-K0040 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-K0020 · 57606-K0030 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-K0010 |
| 57617G | rear bumper arm fixing | 57617-K0010 |
