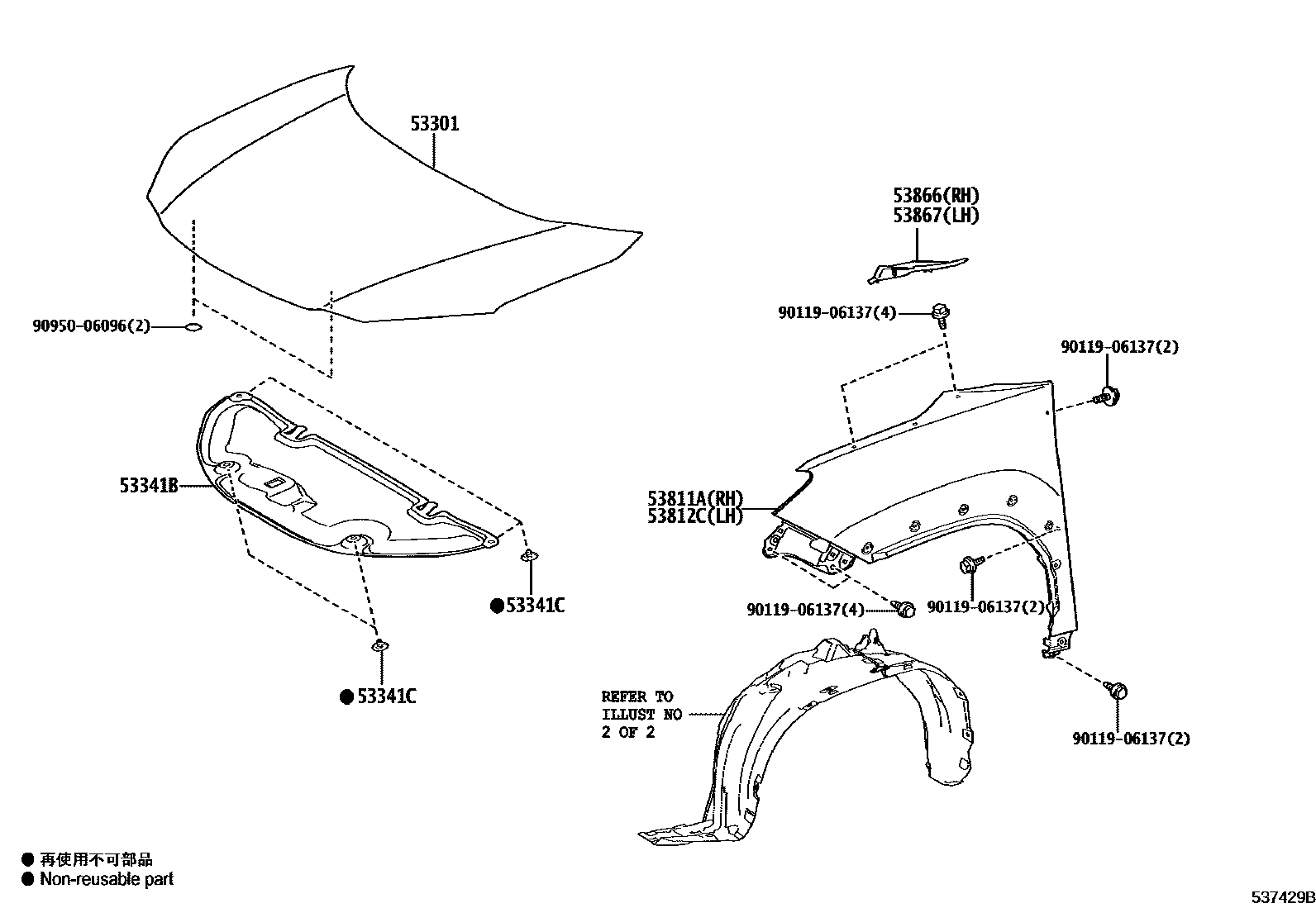

Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-52430 |
| 53341B | engine cover gasket | 53341-52240 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53811A | right front fender | 53811-K2010 |
| 53812C | left front fender | 53812-K2010 |
| 53851D | Right front fender outer panel pad | 53851-52250 |
| 53852B | Left front fender exterior panel pad | 53852-52230 |
| 53866 | Right front fender to cowl side seal | 53866-52200 · 53866-52201 |
| 53867 | Left front fender to cowl side seal | 53867-52210 · 53867-52211 |
| 53875A | Right front fender lining | 53805-52060 · 53875-52510 · 53875-52512 |
| 53875C | Front fender lining clip | 90467-07214 |
| 53875D | No. 2 front fender lining clip | 90467-07214 |
| 53875P | Screw No. 1 | 90159-60477 |
| 53875Q | No. 2 screw | 90159-60477 |
| 53875R | No. 3 screw | 90159-60623 |
| 53875S | Gasket No. 1 | 90189-06236 |
| 53875T | Gasket No. 2 | 90189-06236 |
| 53875U | No. 4 screw | 90159-60623 |
| 53875V | No. 5 screw | 90159-60623 |
| 53875X | Gasket No. 3 | 90189-06236 |
| 53875Y | No. 4 gasket | 90189-06236 |
| 53875Z | No. 5 gasket | 90189-06237 |
| 53876A | Left front fender lining | 53806-52100 · 53876-52510 · 53876-52512 |
| 53879A | Front fender lining fixing parts | 53879-17020 |
