Toyota YARIS 后保险杠及附件 — Figure 5202

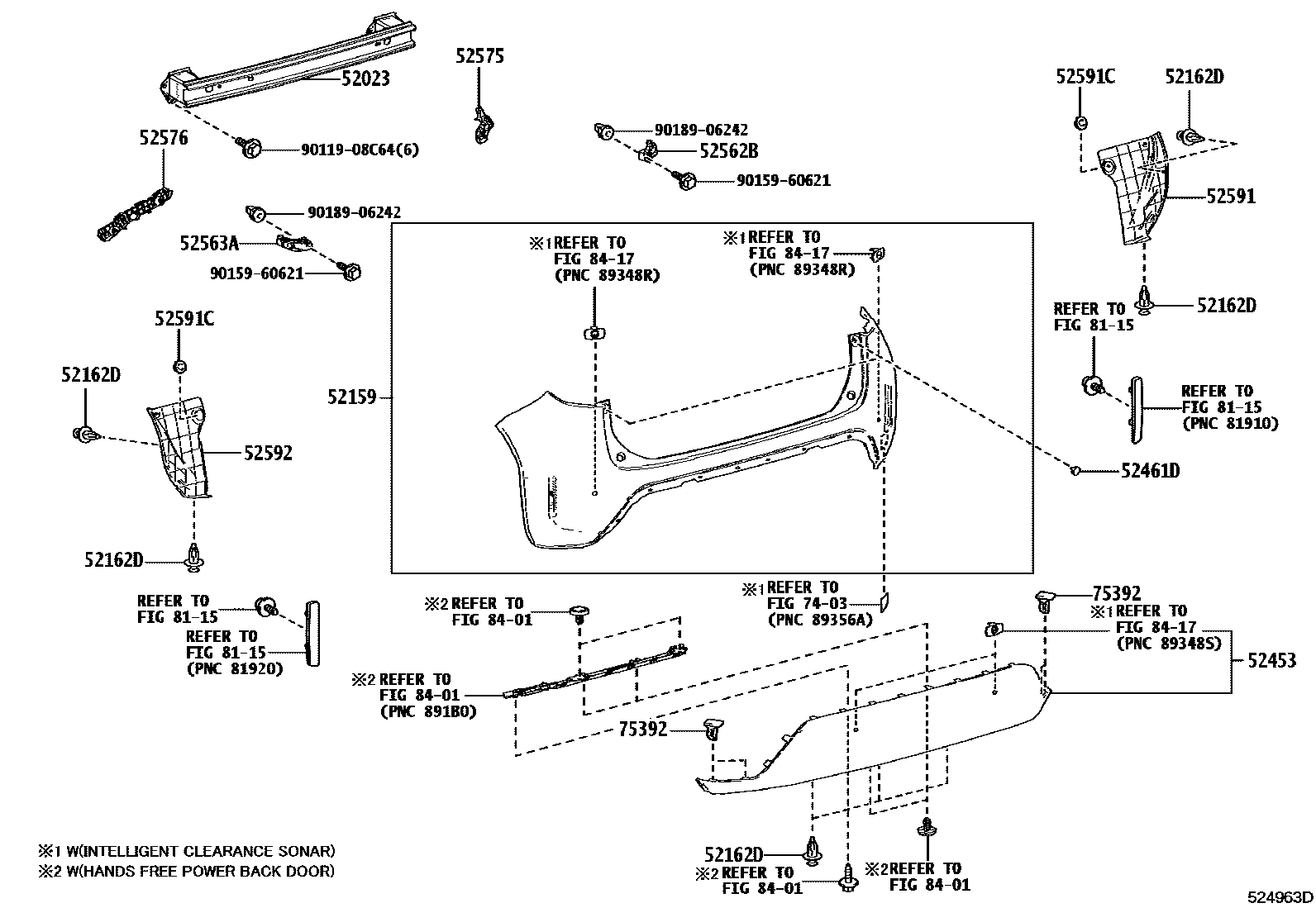

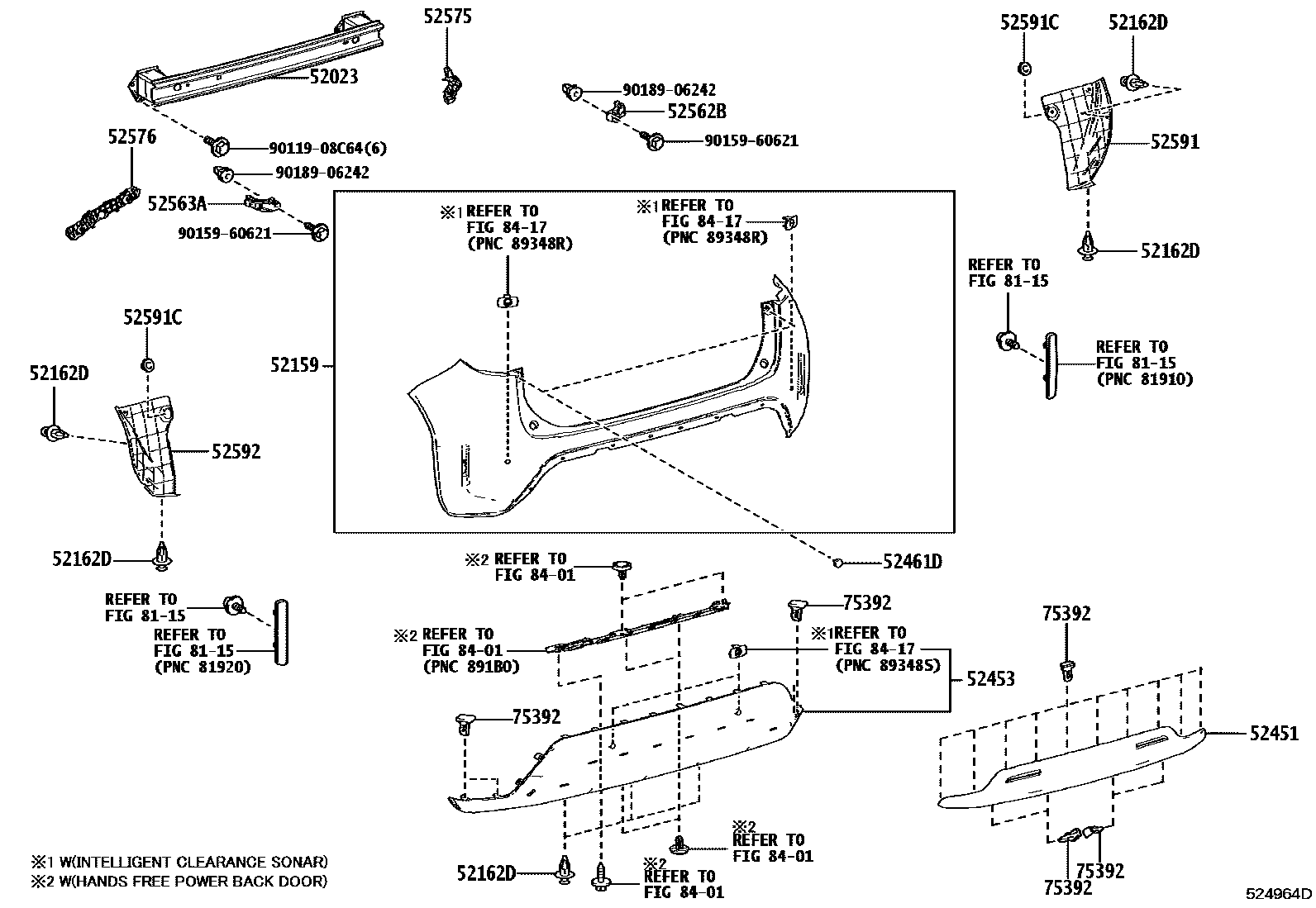

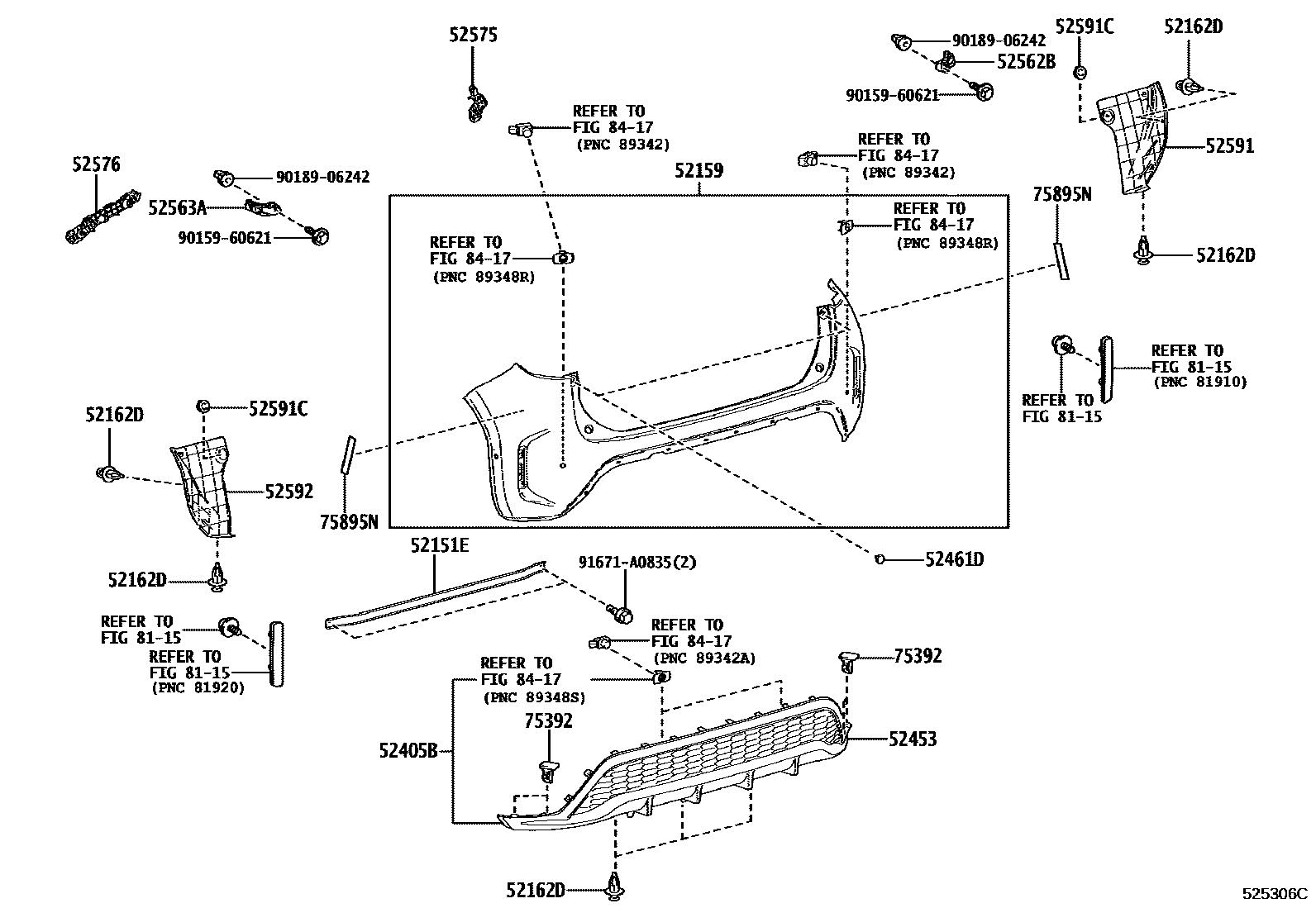

Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0W010 |
| 52151E | rear bumper | 52151-52050 |
| 52159 | rear bumper cover | 52159-52997 · 52159-5C901 · 52159-5C902 · 52159-5C906 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52405B | Rear bumper anti-collision bar sub-assembly | 52405-52040 |
| 52451 | Rear bumper anti-impact parts | 52451-52020 |
| 52453 | Rear bumper center anti-collision bar | 52453-52090 · 52453-52100 · 52453-52902 · 52453-52903 |
| 52461D | rear bumper cushion | 52461-52020 |
| 52562B | Rear bumper upper right fixing bracket | 52562-52100 |
| 52563A | Rear bumper upper left fixing bracket | 52563-52060 |
| 52575 | Rear bumper right side fixing bracket | 52575-52230 |
| 52576 | Rear bumper left side fixing bracket | 52576-52210 |
| 52591 | Rear bumper right seal | 52591-52420 · 52591-52422 · 52905-52010 |
| 52591C | Rear bumper side seal clip | 90467-06121 |
| 52592 | Rear bumper left seal | 52592-52410 · 52592-52412 · 52906-52010 |
| 75392 | External protective strip fixings | 75392-35220 |
| 75895N | No. 1 protective strip tape | 75895-53010 |
