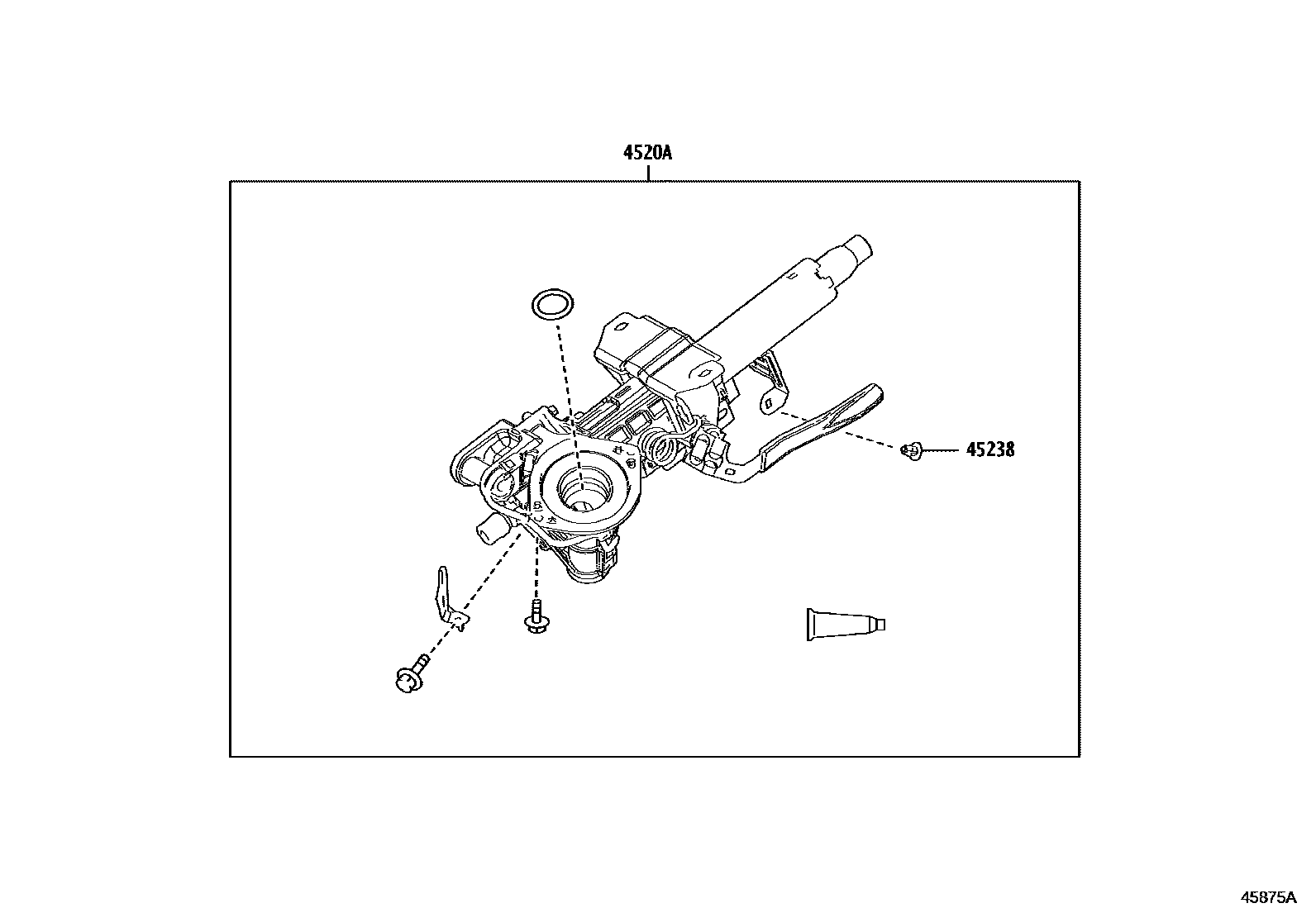

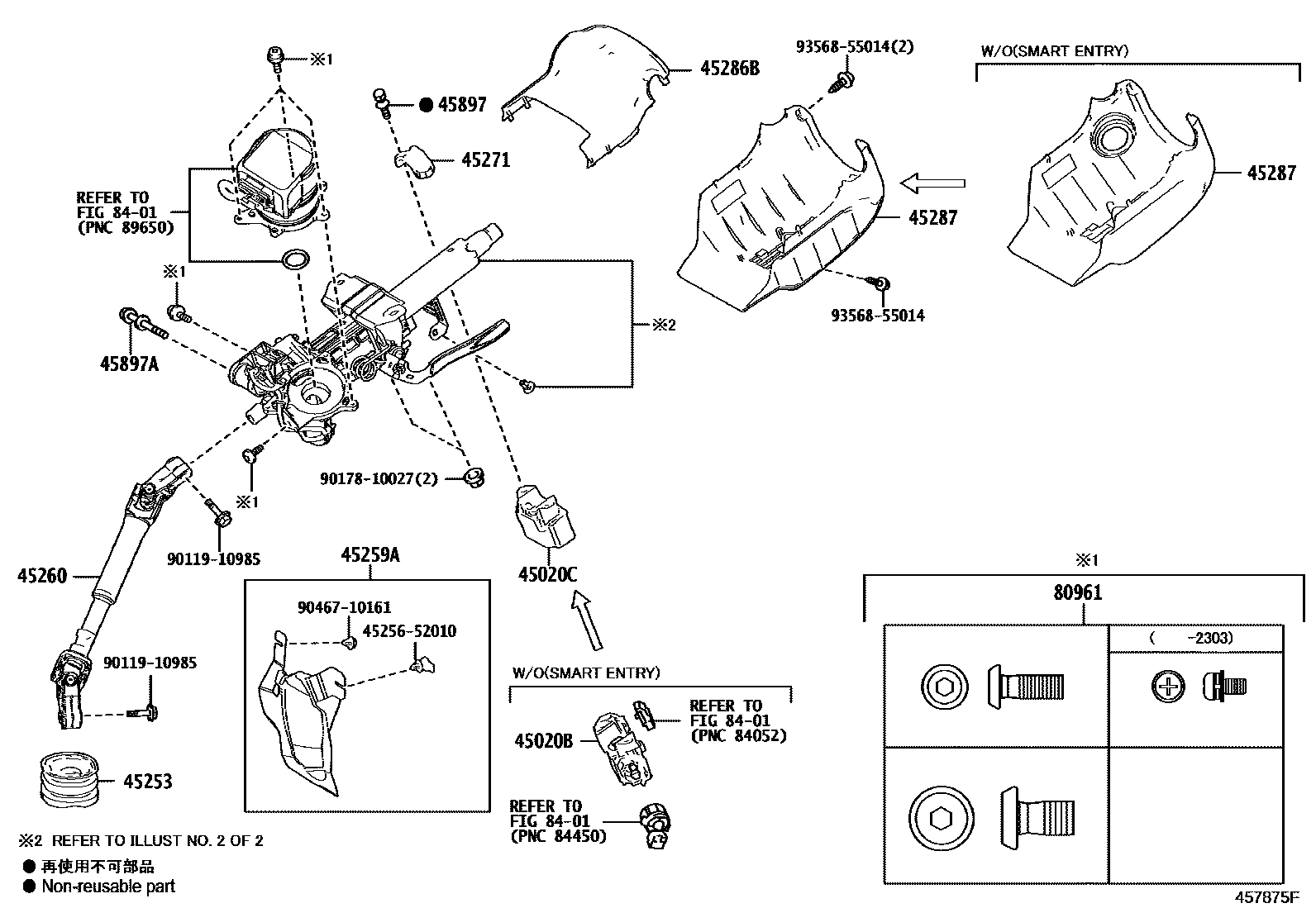

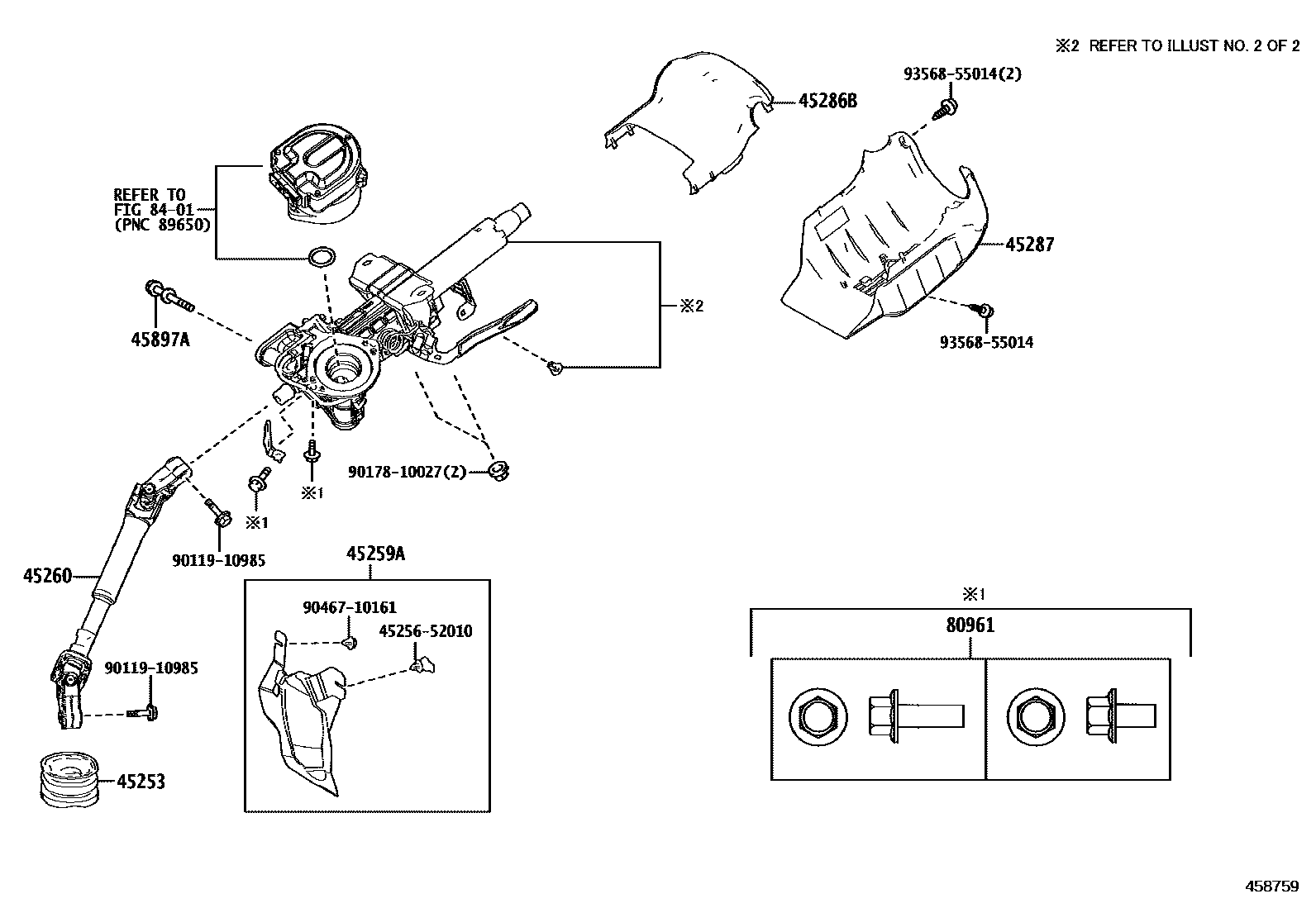

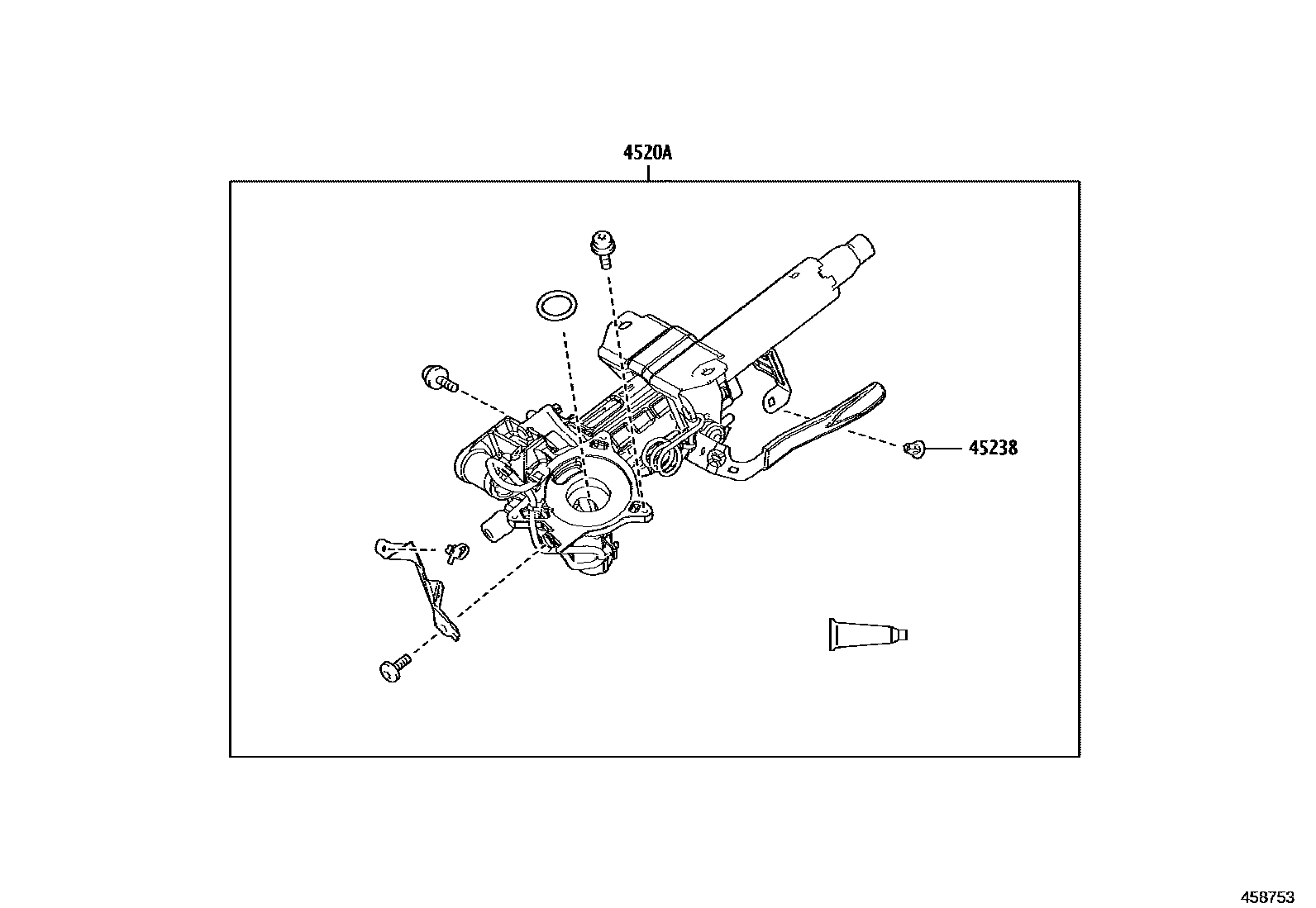

Toyota YARIS Steering Column & Shaft — Figure 4501
Toyota YARIS EPC diagram 4501, Steering Column & Shaft, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Steering lock actuator or upper bracket assembly | 45280-33180 |
| 45020C | Steering lock actuator assembly with ECU | 45020-K0010 |
| 4520A | Electric steering column sub-assembly | 4520A-52310 · 4520A-52311 · 4520A-52320 · 4520A-52330 · 4520A-52360 · 4520A-52370 · 4520A-52371 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45253 | Steering column hole cover | 45253-K0010 |
| 45259A | Steering column hole cover silencer plate | 45259-K0010 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-52330 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10981 |
| 80961 | Power steering motor fastener assembly | 80961-52010 · 80961-52020 · 80961-52040 |
